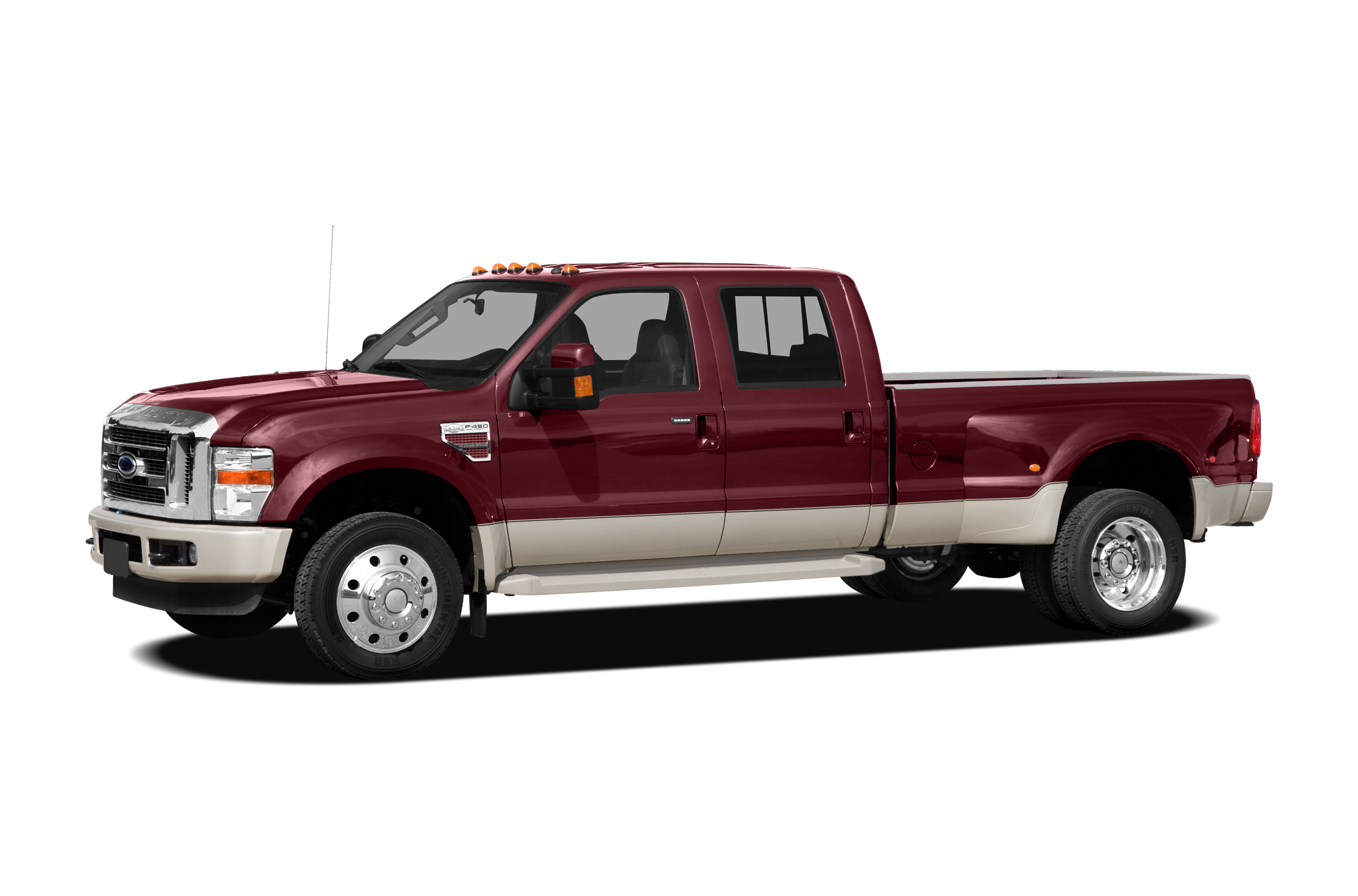

2009 Ford F-450 XL specs & colors

Starting MSRP
Current listing price

Showing the 2009 Ford F-450 2WD Crew Cab 172" XL

Shop Now

Key specs

Color options


Medium stone

Onyx / Blue




Graphite Grey

Amber Red

Crema / Black



Starting MSRP


Front Wheel Size 19.5 x 6.0 in
Rear Wheel Size 19.5 x 6.0 in
Spare Wheel Size N/A in
Front Wheel Material Aluminum
Rear Wheel Material Aluminum
Spare Wheel Material N/A

Cold Cranking Amps @ 0° F (Primary) 750
Maximum Alternator Capacity (amps) HD 135

Engine Type Turbo Diesel V8
Displacement 6.4L/391
SAE Net Horsepower @ RPM 325 @ 3000
SAE Net Torque @ RPM 625 @ 2000
Engine Oil Cooler N/A

Fuel Economy Est-Combined N/A MPG
Cruising Range - Hwy 0.00 mi
Estimated Battery Range N/A mi
EPA Fuel Economy Est - Hwy Not Available MPG
Cruising Range - City 0.00 mi
EPA Fuel Economy Est - City Not Available MPG

Trans Type 6
Trans Description Cont. HD Manual w/OD
Trans Description Cont. Again Not Available
First Gear Ratio (:1) 5.79
Second Gear Ratio (:1) 3.30
Third Gear Ratio (:1) 2.10
Fourth Gear Ratio (:1) 1.30
Fifth Gear Ratio (:1) 1.00
Sixth Gear Ratio (:1) 0.72
Reverse Ratio (:1) 5.23
Trans Power Take Off Yes
Final Drive Axle Ratio (:1) N/A
Transfer Case Model Not Available
Transfer Case Gear Ratio (:1), High Not Available
Transfer Case Gear Ratio (:1), Low Not Available
Transfer Case Power Take Off Not Available
Drivetrain Rear Wheel Drive

Suspension Type - Front Coil
Suspension Type - Rear N/A
Axle Type - Front Dana Monobeam
Axle Type - Rear Dana Full-Floating

Frame Type Ladder-Type

Brake Type Pwr
Brake ABS System 4-Wheel
Brake ABS System (Second Line) Not Available
Disc - Front (Yes or ) Yes
Disc - Rear (Yes or ) Yes
Front Brake Rotor Diam x Thickness 14.53 x 0.47 in
Rear Brake Rotor Diam x Thickness 15.35 x 0.47 in
Drum - Rear (Yes or ) Not Available

Fuel Tank Capacity, Approx 38 gal
Aux Fuel Tank Capacity, Approx Not Available gal

Steering Type Pwr
Steering Ratio (:1), Overall N/A
Turning Diameter - Curb to Curb 47.5 ft
Turning Diameter - Wall to Wall 49.5 ft

Front Tire Size 225/70R19.5G
Rear Tire Size 225/70R19.5G
Spare Tire Size N/A

Dead Weight Hitch - Max Trailer Wt. 5000 lbs
Dead Weight Hitch - Max Tongue Wt. 500 lbs
Wt Distributing Hitch - Max Trailer Wt. 16000 lbs
Wt Distributing Hitch - Max Tongue Wt. 2400 lbs
Fifth Wheel Hitch - Max Trailer Wt. 18600 lbs
Fifth Wheel Hitch - Max Tongue Wt. 4650 lbs
Maximum Trailering Capacity N/A lbs

Gross Combined Wt Rating 27000 lbs
Gross Axle Weight Rating 15100.00 lbs
Curb Weight 8226.00 lbs
Total Option Weight 0.00 lbs
Gross Vehicle Weight Rating 14500.00 lbs
Base Curb Weight N/A lbs
Curb Weight - Front 4678 lbs
Curb Weight - Rear 3548 lbs
Option Weight - Front 0.00 lbs
Option Weight - Rear 0.00 lbs
As Spec'd Curb Weight 8226.00 lbs
As Spec'd Payload 6274.00 lbs
Maximum Payload Capacity 6274.00 lbs

Front Head Room N/A in
Front Leg Room N/A in
Front Shoulder Room N/A in
Front Hip Room N/A in
Second Head Room N/A in
Second Leg Room N/A in
Second Shoulder Room N/A in
Second Hip Room N/A in
Wheelbase 172.4 in
Length, Overall w/o rear bumper 262.4 in
Length, Overall w/rear bumper N/A in
Length, Overall N/A in
Width, Max w/o mirrors 95.5 in
Height, Overall 79.8 in
Overhang, Front 37.6 in
Overhang, Rear w/o bumper 52.4 in
Cab to End of Frame 96.6 in
Ground to Top of Load Floor 35.6 in
Ground Clearance, Front N/A in
Ground Clearance, Rear 7.8 in
Cargo Box Length @ Floor 98.0 in
Cargo Box Width @ Top, Rear 63.6 in
Cargo Box Width @ Floor N/A in
Cargo Box Width @ Wheelhousings 50.9 in
Cargo Box (Area) Height 20.0 in
Tailgate Width 60.6 in
Cargo Volume 77.4 ft³
Ext'd Cab Cargo Volume Not Available ft³
Passenger Capacity 6

172" WB Standard
Rear auxiliary springs Standard
Black door handles Standard
Rear seating roof ride handles Standard
Trailer tow pkg-inc: 7-wire harness w/relays, 7/4 pin combination connector Standard
(4) air registers w/positive shut-off Standard
Forward-folding vinyl rear bench seat Standard
Interval windshield wipers Standard
Rear license plate bracket Standard
Full-size spare tire w/lock & carrier Standard
Child seat tethers on all rear passenger seats Standard
Mono-beam front axle w/coil spring suspension Standard
19.5" forged polished aluminum wheels w/bright center ornaments Standard
6.4L OHV V8 turbo-diesel Power Stroke engine Standard
6-speed HD manual transmission w/OD -inc: PTO provision Standard
Front door operated dome lamp w/time delay off & IP switch Standard
4-wheel anti-lock braking system (ABS) Standard
Roof marker & clearance lights Standard
Dual color-keyed cloth sunvisors-inc: driver-side pocket, passenger-side mirror insert Standard
Black vinyl floor covering Standard
Rear wheel drive Standard
Front/rear stabilizer bars Standard
Black box-rail & tailgate top-edge moldings Standard
Auxiliary pwr point Standard
Black instrumentation -inc: tachometer, speedometer, oil pressure, coolant temp, fuel gauge, indicator lights, message center w/odometer, trip odometer, engine hour meter, warning messages, voltmeter, distance-to-empty, average fuel economy Standard
8' pickup box-inc: (6) tie-down hooks, partitionable & stackable storage Standard
Removable locking tailgate w/black handle & Tailgate Assist Standard
4-ton hydraulic jack Standard
Black painted steel front bumper w/grained mold-in-color top cover -inc: bumper extenders & black front fender moldings Standard
Front/rear map lamps Standard
Turbo boost gauge & air filter minder Standard
SecuriLock anti-theft ignition Standard
AM/FM stereo-inc: digital clock, (2) speakers Standard
Class V trailer hitch receiver-inc: 2.5" hitch Standard
Dual color-keyed coat hooks Standard
(2) front tow hooks Standard
Front passenger-side roof ride handle Standard
225/70R19.5G all-season BSW tires Standard
Driver & front passenger airbags Standard
Carpet delete Standard
Pwr steering w/steering damper Standard
Stationary elevated engine idle control (SEIC) Standard
Molded black cab steps Standard
Rear seat LH/RH grab handles Standard
Air conditioning Standard
4.30 axle ratio w/limited slip rear axle Standard
BeltMinder seatbelt-not-buckled chime & flashing warning light Standard
Color-keyed molded door trim panel-inc: hard armrest, grab handle, reflector Standard
Dual 78 amp/hr (750 CCA) battery Standard
Manually telescoping & folding manual trailer tow mirrors Standard
Sealed beam halogen headlamps Standard
Winter front grill cover *Standard in AK, CO, ID, IA, MA, ME, MI, MN, MT, NH, NY, ND, NE, SD, VT, WI, WY* Standard
Trash bag hook Standard
Front license plate bracket Standard
Driver & passenger grab handles Standard
SOS post crash alert system -inc: doors unlock, horn & hazard flashers are activated when air bags are deployed Standard
Color-keyed cloth headliner Standard
Pwr 4-wheel disc brakes w/hydro-boost Standard
HD vinyl bench seat w/recline & integrated armrest -inc: cupholders in armrest (REQ: 447 Manual Trans) Standard
Black painted rear bumper Standard
135-amp HD alternator Standard
Integrated trailer brake controller *REQ: electric brakes* Standard
Glove box Standard
Solar tinted glass Standard
HD gas shock absorbers Standard
Color-keyed scuff plates Standard
Pickup box/cargo lights Standard
Dash-top tray Standard
Black painted grille Standard
Color-keyed safety belts w/front seat outboard height adjustable D-rings Standard
