2010 Ford F-450 XL specs & colors

$35,300
Starting MSRP
Current listing price
2010 Ford F-450 XL

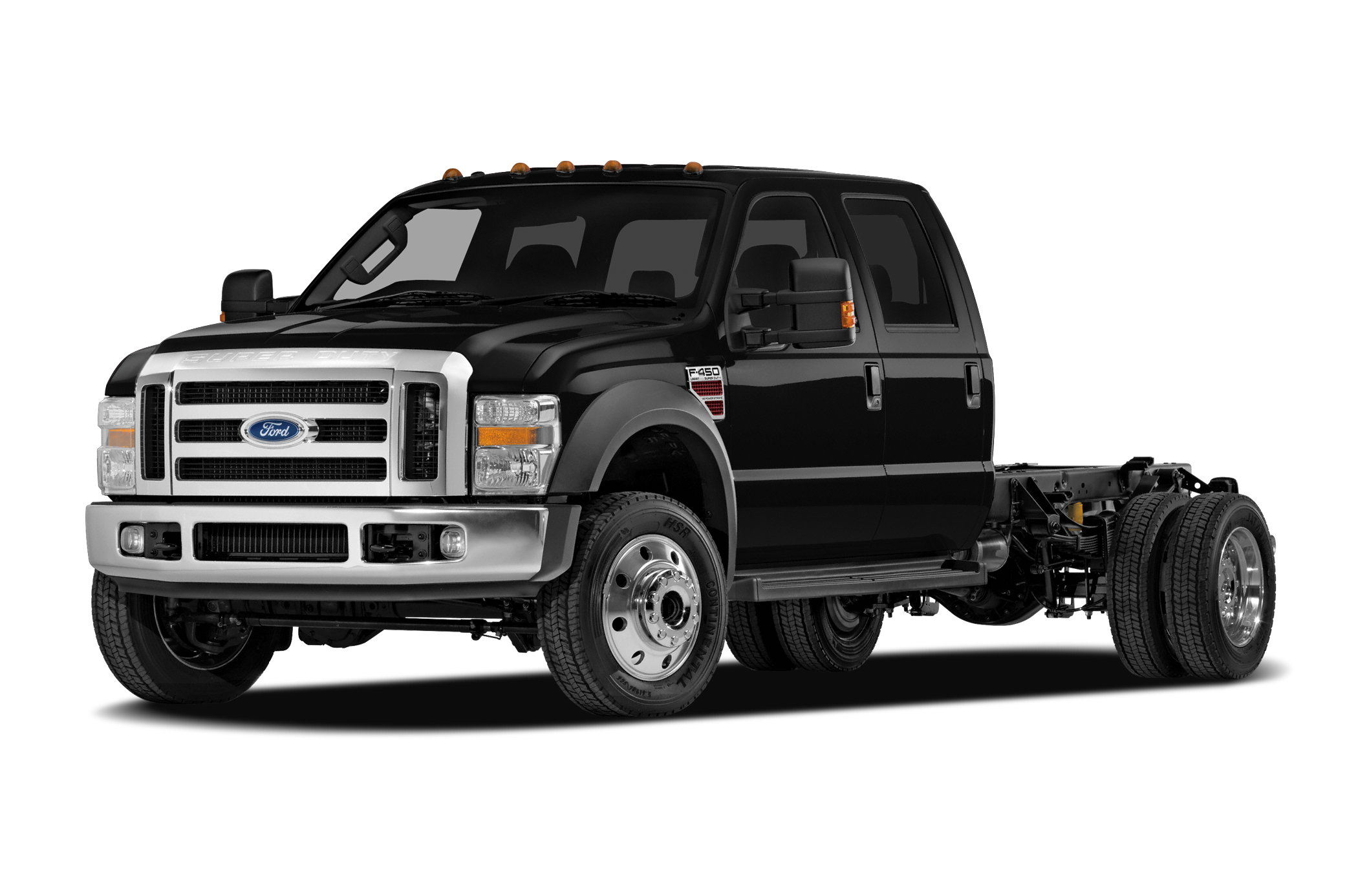

Showing the 2010 Ford F-450 2WD Crew Cab 176" WB 60" CA XL

Shop Now

Key specs

Color options

Interior

Medium stone


Vanilla


Camel


Graphite Grey


Amber Red


Black


Crema / Black


Packages

$0

Starting MSRP

Specifications

Rear Wheel Material Steel
Spare Wheel Size Not Available in
Front Wheel Size 19.5 x 6.0 in
Spare Wheel Material Not Available
Front Wheel Material Steel
Rear Wheel Size 19.5 x 6.0 in
Maximum Alternator Capacity (amps) 157
Cold Cranking Amps @ 0° F (Primary) 650
Engine Type Gas V10
SAE Net Torque @ RPM 457 @ 3250
SAE Net Horsepower @ RPM 362 @ 4750
Engine Oil Cooler Not Available
Displacement 6.8L/415
Cruising Range - Hwy 0.00 mi
Cruising Range - City 0.00 mi
Estimated Battery Range N/A mi
Fuel Economy Est-Combined Not Available MPG
EPA Fuel Economy Est - Hwy Not Available MPG
EPA Fuel Economy Est - City Not Available MPG
Second Gear Ratio (:1) 2.22
Trans Description Cont. Again Not Available
Transfer Case Power Take Off Not Available
Final Drive Axle Ratio (:1) N/A
Trans Power Take Off Not Available
Reverse Ratio (:1) 2.88
Fifth Gear Ratio (:1) 0.71
Third Gear Ratio (:1) 1.55
Transfer Case Model Not Available
First Gear Ratio (:1) 3.11
Transfer Case Gear Ratio (:1), Low Not Available
Trans Type 5
Transfer Case Gear Ratio (:1), High Not Available
Trans Description Cont. Automatic
Drivetrain Rear Wheel Drive
Fourth Gear Ratio (:1) 1.00
Axle Type - Front Mono-beam
Axle Type - Rear Full-Floating
Suspension Type - Front Coil Spring
Suspension Type - Rear Multi-Leaf
Frame Type Ladder
Brake ABS System 4-Wheel
Brake Type Pwr
Disc - Front (Yes or ) Yes
Rear Brake Rotor Diam x Thickness 15.35 x 0.47 in
Front Brake Rotor Diam x Thickness 14.53 x 0.47 in
Disc - Rear (Yes or ) Yes
Drum - Rear (Yes or ) Not Available
Brake ABS System (Second Line) Not Available
Fuel Tank Capacity, Approx 40.0 gal
Aux Fuel Tank Capacity, Approx Not Available gal
Steering Ratio (:1), Overall N/A
Steering Type Pwr
Turning Diameter - Curb to Curb 51.5 ft
Turning Diameter - Wall to Wall 53.3 ft
Rear Tire Size 225/70R19.5G
Spare Tire Size Not Available
Front Tire Size 225/70R19.5G
Wt Distributing Hitch - Max Tongue Wt. Not Available lbs
Fifth Wheel Hitch - Max Tongue Wt. Not Available lbs
Maximum Trailering Capacity N/A lbs
Wt Distributing Hitch - Max Trailer Wt. Not Available lbs
Fifth Wheel Hitch - Max Trailer Wt. Not Available lbs
Dead Weight Hitch - Max Tongue Wt. Not Available lbs
Dead Weight Hitch - Max Trailer Wt. Not Available lbs
Curb Weight - Rear 3033 lbs
As Spec'd Curb Weight 6958.00 lbs
Gross Combined Wt Rating Not Available lbs
Gross Vehicle Weight Rating 16500.00 lbs
As Spec'd Payload 9542.00 lbs
Base Curb Weight N/A lbs
Total Option Weight 0.00 lbs
Curb Weight - Front 3925 lbs
Option Weight - Rear 0.00 lbs
Gross Axle Weight Rating 17200.00 lbs
Curb Weight 6958.00 lbs
Maximum Payload Capacity 9542.00 lbs
Option Weight - Front 0.00 lbs
Cab to End of Frame 107.6 in
Overhang, Rear w/o bumper 47.6 in
Passenger Capacity 6
Front Shoulder Room 68.0 in
Second Head Room 41.4 in
Ground to Top of Load Floor Not Available in
Front Hip Room 67.6 in
Cargo Volume N/A ft³
Front Head Room 41.4 in
Length, Overall w/o rear bumper 261.0 in
Cargo Box Width @ Floor N/A in
Cargo Box Width @ Wheelhousings N/A in
Second Leg Room 41.8 in
Front Leg Room 41.0 in
Second Shoulder Room 68.0 in
Overhang, Front 37.6 in
Cargo Box (Area) Height N/A in
Cargo Box Width @ Top, Rear N/A in
Length, Overall w/rear bumper N/A in
Tailgate Width N/A in
Second Hip Room 67.3 in
Width, Max w/o mirrors 93.9 in
Height, Overall 80.2 in
Ground Clearance, Front N/A in
Wheelbase 176.2 in
Ext'd Cab Cargo Volume N/A ft³
Length, Overall N/A in
Ground Clearance, Rear 7.9 in
Dual rear wheels Standard
Cargo light Standard
176" wheelbase Standard
Dual-note electric horn Standard
Pwr 4-wheel disc brakes w/hydro boost Standard
Front/rear dual map lights Standard
Fixed rear window Standard
Color-coordinated instrument panel w/glove box, (4) air registers w/positive shutoff, pwr point & (4) upfitter switches Standard
Aux pwr point Standard
Color-coordinated scuff plates Standard
157-amp HD alternator Standard
HD gas shock absorbers Standard
TorqShift 5-speed automatic transmission w/OD -inc: tow/haul mode (REQ: 99Y Engine) Standard
Inside hood release Standard
Black vinyl steering wheel Standard
Front/rear passenger roof ride handles Standard
Color-coordinated 3-point safety belts w/front outboard height adjustment Standard
Rear wheel drive Standard
Color-coordinated cloth sun visors -inc: LH pocket, RH mirror insert Standard
Color-coordinated door trim panel -inc: armrest, grab handle, reflector Standard
Driver/front passenger airbags Standard
HD vinyl reclining bench seat Standard
Black painted steel front bumper w/grained MIC top cover Standard
Dual front grab handles Standard
Child tethers on all passenger seats Standard
6.8L 30-valve SOHC EFI Triton V10 engine Standard
Stationary elevated idle control (SEIC) Standard
Dash-top tray Standard
225/70R19.5G BSW tires -inc: (2) front all-season & (4) rear all-season tires Standard
(2) front tow hooks Standard
Rear auxiliary springs Standard
19.5" argent painted steel wheels Standard
Instrumentation -inc: tachometer, speedometer, oil pressure, coolant temp, fuel gauges, transmission temp, indicator lights, message center w/odometer & trip meter, distance-to-empty, average fuel economy, engine hour meter, warning messages Standard
Mono-beam front axle w/coil spring suspension Standard
Variable intermittent windshield wipers Standard
Secondary glove box Standard
Front/rear stabilizer bars Standard
Rear window defroster Standard
Front fender vents Standard
Dual color-coordinated coat hooks Standard
Black painted grille Standard
Rear fold-forward bench seat Standard
7-wire trailer tow harness w/relays, blunt cut & labeled Standard
Pwr steering w/steering damper Standard
Manual telescoping trailer tow mirrors w/manual glass & 2-way fold Standard
72 amp/hr 650 CCA battery Standard
Anti-lock braking system (ABS) Standard
Door activated dome lamp w/delay, I/P switch operation Standard
Black instrument cluster w/black gauges & white graphics Standard
11.5" day/night rearview mirror Standard
Manual air conditioning Standard
Black door handles Standard
Roof clearance lights Standard
4.88 axle ratio (REQ: 99Y Engine) Standard
SOS post crash alert system Standard
Sealed beam halogen headlights Standard
Front license plate bracket Standard
AM/FM stereo -inc: digital clock, (2) speakers Standard
Black vinyl full floor covering Standard
Color-coordinated molded cloth headliner Standard
Solar tinted glass Standard
