2006 Ford Ranger XL specs & colors

$14,450
Starting MSRP
Current listing price

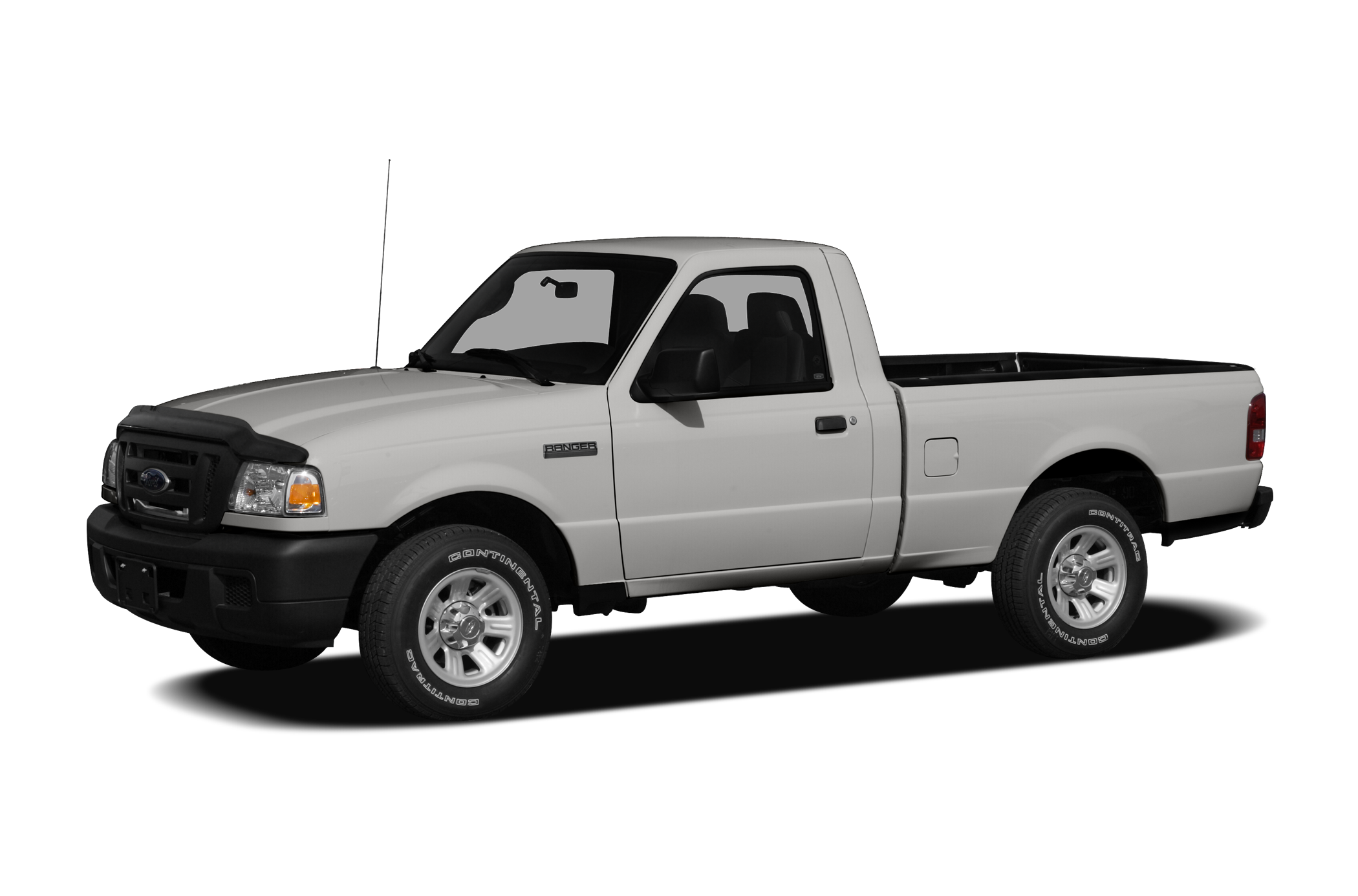

Showing the 2006 Ford Ranger Reg Cab 112" WB XL

Shop Now

Key specs

Color options

Interior

Gray


Crystal Blue


Mocha


Packages

$0

Starting MSRP

Specifications

Rear Wheel Material Steel
Rear Wheel Size 15 x 6.0 in
Front Wheel Size 15 x 6.0 in
Spare Wheel Material Steel
Front Wheel Material Steel
Spare Wheel Size Compact in

Maximum Alternator Capacity (amps) 110
Cold Cranking Amps @ 0° F (Primary) 540

SAE Net Horsepower @ RPM 143 @ 5250
Engine Oil Cooler Not Available
SAE Net Torque @ RPM 154 @ 3750
Engine Type Gas I4
Displacement 2.3L/140

Cruising Range - Hwy 493.00 mi
EPA Fuel Economy Est - City 24 MPG
Fuel Economy Est-Combined N/A MPG
Cruising Range - City 408.00 mi
Estimated Battery Range N/A mi
EPA Fuel Economy Est - Hwy 29 MPG

Trans Description Cont. Again Not Available
Final Drive Axle Ratio (:1) N/A
Trans Type 5
Second Gear Ratio (:1) 2.05
First Gear Ratio (:1) 3.72
Fourth Gear Ratio (:1) 1.00
Reverse Ratio (:1) 3.40
Drivetrain Rear Wheel Drive
Transfer Case Power Take Off Not Available
Trans Description Cont. Manual
Third Gear Ratio (:1) 1.31
Transfer Case Model Not Available
Trans Power Take Off Not Available
Fifth Gear Ratio (:1) 0.79
Transfer Case Gear Ratio (:1), High Not Available
Transfer Case Gear Ratio (:1), Low Not Available

Axle Type - Front Independent SLA
Suspension Type - Rear 2-Stage Multi-Leaf
Axle Type - Rear Ford Semi-Floating
Suspension Type - Front SLA w/Coil Springs

Frame Type Ladder

Rear Brake Rotor Diam x Thickness Not Available in
Brake ABS System 4-Wheel
Drum - Rear (Yes or ) Yes
Brake Type Pwr
Disc - Rear (Yes or ) Not Available
Disc - Front (Yes or ) Yes
Brake ABS System (Second Line) Not Available
Front Brake Rotor Diam x Thickness 11.28 x 0.39 in

Fuel Tank Capacity, Approx 17 gal
Aux Fuel Tank Capacity, Approx Not Available gal

Steering Ratio (:1), Overall N/A
Turning Diameter - Wall to Wall 39.7 ft
Steering Type Pwr Rack & Pinion
Turning Diameter - Curb to Curb 37.7 ft

Spare Tire Size Compact
Rear Tire Size P225/70R15
Front Tire Size P225/70R15

Wt Distributing Hitch - Max Trailer Wt. Not Available lbs
Wt Distributing Hitch - Max Tongue Wt. Not Available lbs
Dead Weight Hitch - Max Tongue Wt. 158 lbs
Dead Weight Hitch - Max Trailer Wt. 1580 lbs
Fifth Wheel Hitch - Max Tongue Wt. N/A lbs
Maximum Trailering Capacity N/A lbs
Fifth Wheel Hitch - Max Trailer Wt. N/A lbs

Curb Weight - Rear 1263 lbs
Curb Weight - Front 1765 lbs
Curb Weight 3028.00 lbs
Gross Vehicle Weight Rating 4380.00 lbs
Base Curb Weight N/A lbs
As Spec'd Curb Weight 3028.00 lbs
Maximum Payload Capacity 1352.00 lbs
As Spec'd Payload 1352.00 lbs
Option Weight - Front 0.00 lbs
Gross Combined Wt Rating 4800 lbs
Gross Axle Weight Rating 4550.00 lbs
Option Weight - Rear 0.00 lbs
Total Option Weight 0.00 lbs

Second Leg Room N/A in
Front Hip Room 52.7 in
Height, Overall 66.2 in
Passenger Capacity 3
Front Head Room 39.3 in
Second Hip Room N/A in
Cargo Box Length @ Floor 72.7 in
Ground Clearance, Rear 7.7 in
Ground to Top of Load Floor 29.7 in
Cargo Box (Area) Height 16.5 in
Tailgate Width 52.0 in
Length, Overall N/A in
Length, Overall w/rear bumper N/A in
Width, Max w/o mirrors 69.3 in
Cargo Box Width @ Floor 54.4 in
Wheelbase 111.5 in
Overhang, Front 34.0 in
Cargo Box Width @ Top, Rear N/A in
Front Leg Room 42.4 in
Second Shoulder Room N/A in
Overhang, Rear w/o bumper 43.9 in
Cargo Box Width @ Wheelhousings 40.5 in
Ext'd Cab Cargo Volume N/A ft³
Front Shoulder Room 54.5 in
Ground Clearance, Front N/A in
Cargo Volume 37.4 ft³
Length, Overall w/o rear bumper 189.4 in
Cab to End of Frame 72.2 in
Second Head Room N/A in

5-speed manual transmission w/OD Standard
Black manual side mirrors Standard
Independent short/long arm front suspension w/coil spring Standard
Engine block heater & battery warmer *STD on retail vehicles only in AK, MN, ND, SD, MT, WI & WY. Optional on fleet vehicles* Standard
4380# GVWR, 1260# maximum payload Standard
Quick-release tailgate w/black handle Standard
AM/FM stereo w/clock Standard
City 21/hwy 26 (2.3L engine/5-speed auto trans) Standard
"Nostril" grille w/black bar-style inserts & surround Standard
Vinyl 60/40 split bench seat Standard
Driver/passenger-side A-pillar-mounted grab handles Standard
City 17/hwy 23 (3.0L engine/5-speed auto trans) Standard
2-stage multi-leaf spring rear suspension Standard
540-CCA battery Standard
6' pickup box Standard
City 24/hwy 29 (2.3L engine/5-speed manual trans) Standard
Bi-color tail lamp Standard
Pwr rack & pinion steering Standard
Driver & front passenger airbags w/passenger-side deactivation switch Standard
(4) cargo box tie-down hooks Standard
Black vinyl floor covering Standard
Intermittent windshield wipers Standard
Black front/rear step bumper-inc: black painted face bar w/matching lower valance Standard
Solar tinted glass on windshield & front door windows Standard
Black door handles Standard
(4) P225/70R15 all-season BSW tires Standard
Low series door trim panels Standard
100,000 mile tune-up interval Standard
Manual day/night rearview mirror Standard
Front/rear stone guards Standard
4-wheel anti-lock brake system (ABS) Standard
Glove box Standard
Rear wheel drive Standard
12-volt auxiliary pwr point Standard
Front stabilizer bar Standard
Black-faced gauge cluster w/black trim rings Standard
17 gallon fuel tank Standard
4-spoke black urethane steering wheel Standard
Dome light Standard
Gas shock absorbers Standard
2.3L DOHC 16-valve I4 engine Standard
Front shoulder safety belts-inc: height adjusters, pretensioners, energy management, retractors Standard
Center front lap belt Standard
Cup holders Standard
Smokers pkg-inc: lighter, ash tray/cup Standard
Pwr front disc/rear drum brakes Standard
Child safety seat restraint latches (LATCH) on front passenger seat Standard
4-wheel anti-lock brake system (ABS) Standard
City 18/hwy 23 (3.0L engine/5-speed manual trans) Standard
Sun visors w/LH strap Standard
15" argent painted steel wheels Standard
Space-saver spare tire Standard
Raised "power dome" hood Standard
95-amp alternator Standard
Gauges-inc: tachometer, fuel, engine temp Standard
