2009 Ford Ranger XL specs & colors

Starting MSRP
Current listing price

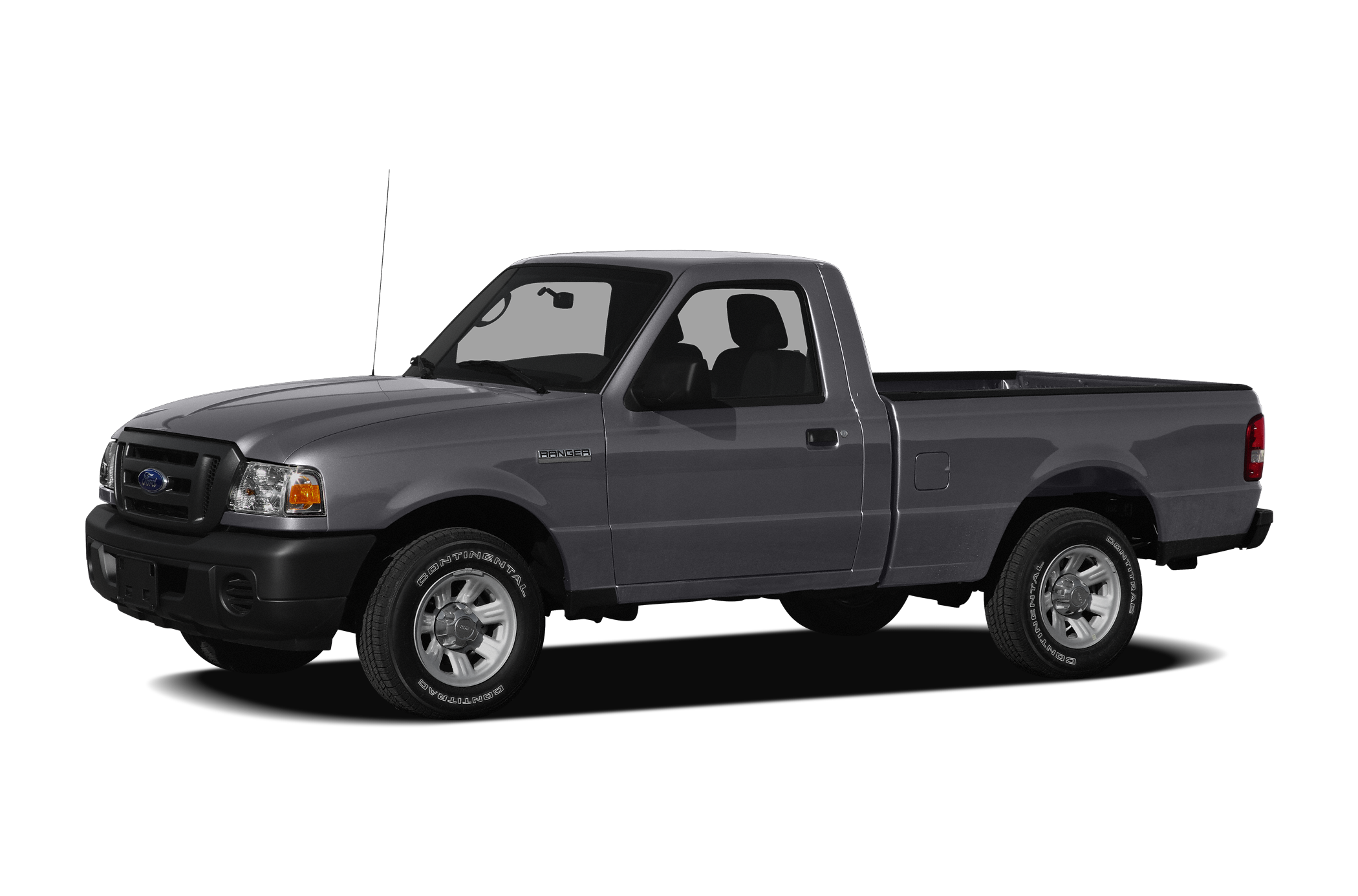

2009 Ford Ranger XL

Showing the 2009 Ford Ranger 2WD Reg Cab 112" XL

Shop Now

Key specs

Color options





Starting MSRP


Front Wheel Size 15 x 7 in
Rear Wheel Size 15 x 7 in
Spare Wheel Size Compact in
Front Wheel Material Steel
Rear Wheel Material Steel
Spare Wheel Material Steel
Cold Cranking Amps @ 0° F (Primary) 540
Maximum Alternator Capacity (amps) 110
Engine Type Gas I4
Displacement 2.3L/140
SAE Net Horsepower @ RPM 143 @ 5250
SAE Net Torque @ RPM 154 @ 3750
Engine Oil Cooler Not Available
EPA Fuel Economy Est - Hwy 26 MPG
Cruising Range - City 357.00 mi
EPA Fuel Economy Est - City 21 MPG
Fuel Economy Est-Combined 23 MPG
Cruising Range - Hwy 442.00 mi
Estimated Battery Range N/A mi
Drivetrain Rear Wheel Drive
Trans Type 5
Trans Description Cont. Manual
Trans Description Cont. Again Not Available
First Gear Ratio (:1) 3.72
Second Gear Ratio (:1) 2.20
Third Gear Ratio (:1) 1.50
Fourth Gear Ratio (:1) 1.00
Fifth Gear Ratio (:1) 0.79
Reverse Ratio (:1) 3.40
Trans Power Take Off Not Available
Final Drive Axle Ratio (:1) N/A
Transfer Case Model Not Available
Transfer Case Gear Ratio (:1), High Not Available
Transfer Case Gear Ratio (:1), Low Not Available
Transfer Case Power Take Off Not Available
Suspension Type - Front SLA w/Coil Springs
Suspension Type - Rear 2-Stage Multi-Leaf
Axle Type - Front Twin-Forged SLA
Axle Type - Rear Ford Semi-Floating
Frame Type Ladder
Brake Type Pwr
Brake ABS System 4-Wheel
Brake ABS System (Second Line) Not Available
Disc - Front (Yes or ) Yes
Disc - Rear (Yes or ) Not Available
Front Brake Rotor Diam x Thickness 11.28 x 0.39 in
Rear Brake Rotor Diam x Thickness Not Available in
Drum - Rear (Yes or ) Yes
Fuel Tank Capacity, Approx 17 gal
Aux Fuel Tank Capacity, Approx Not Available gal
Steering Type Pwr Rack & Pinion
Steering Ratio (:1), Overall N/A
Turning Diameter - Curb to Curb 37.7 ft
Turning Diameter - Wall to Wall 39.7 ft
Front Tire Size P225/70R15
Rear Tire Size P225/70R15
Spare Tire Size Compact
Dead Weight Hitch - Max Trailer Wt. 2000 lbs
Dead Weight Hitch - Max Tongue Wt. 200 lbs
Wt Distributing Hitch - Max Trailer Wt. 1580 lbs
Wt Distributing Hitch - Max Tongue Wt. 158 lbs
Fifth Wheel Hitch - Max Trailer Wt. Not Available lbs
Fifth Wheel Hitch - Max Tongue Wt. Not Available lbs
Maximum Trailering Capacity N/A lbs
Base Curb Weight N/A lbs
Curb Weight - Front 1797 lbs
Curb Weight - Rear 1335 lbs
Option Weight - Front 0.00 lbs
Option Weight - Rear 0.00 lbs
As Spec'd Curb Weight 3132.00 lbs
As Spec'd Payload 1168.00 lbs
Maximum Payload Capacity 1168.00 lbs
Gross Combined Wt Rating 4800 lbs
Gross Axle Weight Rating 4350.00 lbs
Curb Weight 3132.00 lbs
Total Option Weight 0.00 lbs
Gross Vehicle Weight Rating 4300.00 lbs
Passenger Capacity 3
Front Head Room 39.2 in
Front Leg Room 42.4 in
Front Shoulder Room 54.5 in
Front Hip Room 52.7 in
Second Head Room N/A in
Second Leg Room N/A in
Second Shoulder Room N/A in
Second Hip Room N/A in
Wheelbase 111.5 in
Length, Overall w/o rear bumper 189.4 in
Length, Overall w/rear bumper N/A in
Length, Overall N/A in
Width, Max w/o mirrors 69.3 in
Height, Overall 66.2 in
Overhang, Front 34.0 in
Overhang, Rear w/o bumper 44.0 in
Cab to End of Frame 81.8 in
Ground to Top of Load Floor 29.7 in
Ground Clearance, Front N/A in
Ground Clearance, Rear 7.9 in
Cargo Box Length @ Floor 72.7 in
Cargo Box Width @ Top, Rear 54.4 in
Cargo Box Width @ Floor 54.4 in
Cargo Box Width @ Wheelhousings 40.5 in
Cargo Box (Area) Height 16.5 in
Tailgate Width 52.0 in
Cargo Volume 37.4 ft³
Ext'd Cab Cargo Volume Not Available ft³
Cup holders Standard
Dome light Standard
Front shoulder safety belts -inc: height adjusters, pretensioners, energy management, retractors Standard
Pwr rack & pinion steering Standard
Solar tinted glass -inc: windshield, front door windows & rear window Standard
Bi-color tail lamps Standard
Independent short/long A arm front suspension -inc: coil spring Standard
Low series door trim panels Standard
Center front lap belt Standard
15" 7-spoke silver-painted steel wheels Standard
90,000 mile tune-up interval Standard
Front stone guards & rear mud flaps Standard
Black-faced gauge cluster w/black trim rings Standard
2-stage multi-leaf rear suspension Standard
Sun visors w/driver side strap Standard
AM/FM stereo w/clock Standard
Driver & front passenger dual-stage airbags -inc: front passenger sensing system Standard
Gauges -inc: tachometer, fuel, engine temp Standard
Trailer tow hitch receiver Standard
Vinyl 60/40 split bench seat Standard
Pwr front disc/rear drum brakes Standard
Variable-intermittent windshield wipers Standard
Black urethane steering wheel Standard
Black door handles Standard
Driver/passenger A-pillar-mounted grab handles Standard
4-wheel anti-lock brake system (ABS) Standard
58-amp (540 CCA) battery Standard
Black front/rear step bumper -inc: black painted face bar w/matching lower valance Standard
Manual day/night rearview mirror Standard
12-volt aux pwr point Standard
Compact spare tire Standard
110-amp alternator Standard
6' pickup box Standard
Glove box Standard
Tuned gas shock absorbers Standard
Rear wheel drive Standard
4300# GVWR, 1180# maximum payload Standard
(4) cargo box tie-down hooks Standard
Tire pressure monitoring system (TPMS) Standard
2.3L DOHC 16-valve I4 engine Standard
Black manual side mirrors Standard
Quick-release tailgate w/black handle Standard
P225/70R15 all-season BSW tires Standard
Black H-bar grille Standard
Raised "power dome" hood Standard
Front stabilizer bar Standard
Black vinyl floor covering Standard
Smokers pkg -inc: lighter, ash tray Standard
5-speed manual transmission w/OD Standard
SecuriLock anti-theft system Standard
