2023 Ford Transit Connect XLT specs & colors
Mini-van, Cargo
MSRP
- XL SWB w/Rear Liftgate
- $34,100
- XL SWB w/Rear Symmetrical Doors
- $34,100
- XL LWB w/Rear Liftgate
- $35,100
- XL LWB w/Rear Symmetrical Doors
- $35,100
- XL LWB w/Rear Symmetrical Doors
- $35,600
- XL LWB w/Rear Liftgate
- $35,600
- XLT SWB w/Rear Liftgate
- $36,275
- XLT SWB w/Rear Symmetrical Doors
- $36,275
- XLT LWB w/Rear Liftgate
- $37,275
- XLT LWB w/Rear Symmetrical Doors
- $37,275
- XLT LWB w/Rear Symmetrical Doors
- $37,715
- XLT LWB w/Rear Liftgate
- $37,715
- Titanium LWB w/Rear Liftgate
- $39,800
$36,275
Starting MSRP
Current listing price
Current listing price

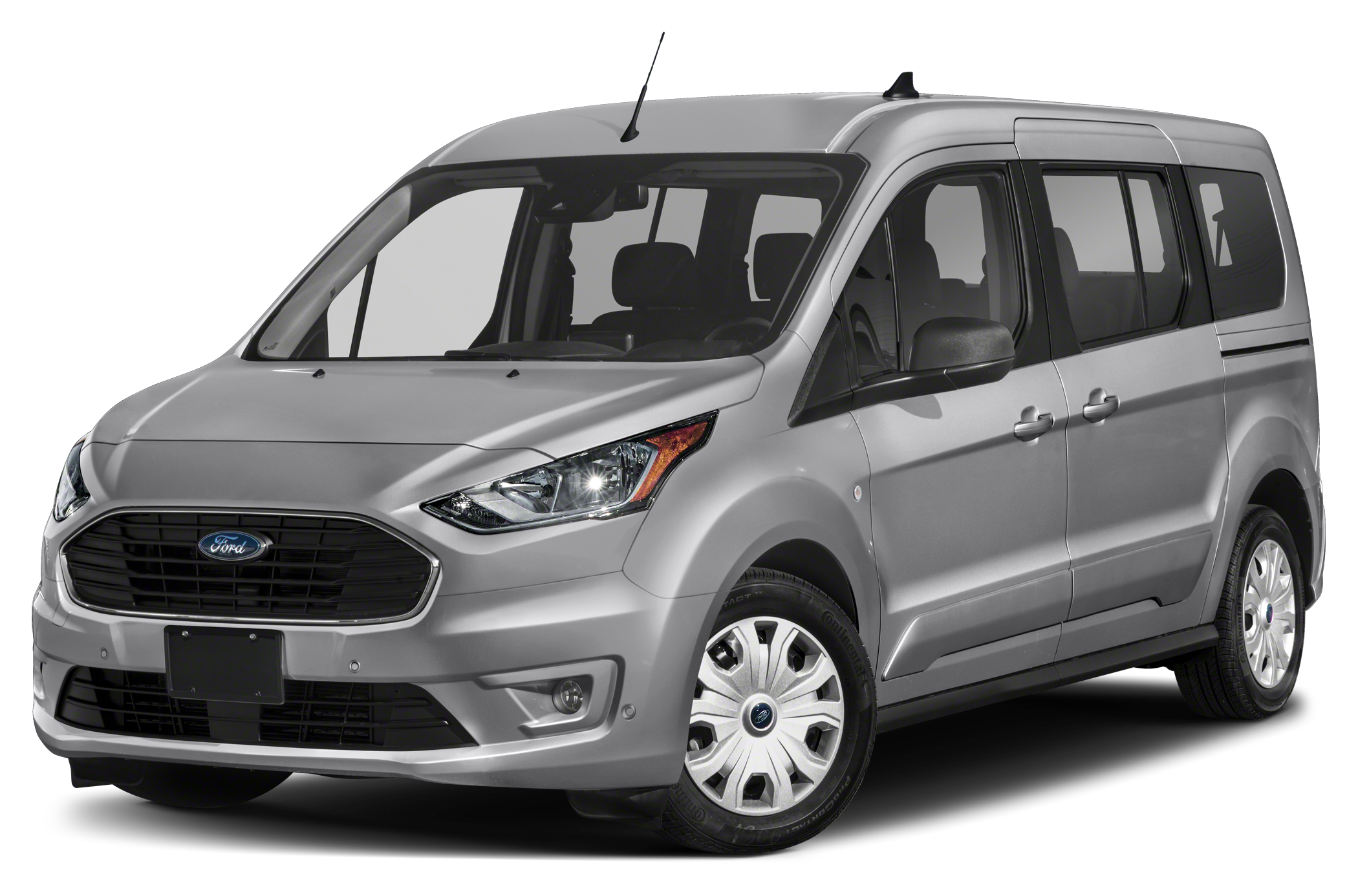

Showing the 2023 Ford Transit Connect XLT SWB w/Rear Liftgate
Shop NowKey specs
Color options
Interior
Topaz
Anthracite
Packages
$0
Starting MSRP
Specifications
Highlights
|
Regular Unleaded I-4
Engine Type
|
|
24 City / 26 Hwy
MPG
|
|
162 hp
Horsepower
|
|
2
Seating Capacity
|
Brakes
|
N/A
Front Brake Rotor Diam x Thickness
|
|
Yes
Disc - Rear (Yes or )
|
|
Yes
Disc - Front (Yes or )
|
|
4-Wheel
Brake ABS System (Second Line)
|
|
4-Wheel
Brake ABS System
|
|
4-Wheel Disc
Brake Type
|
|
N/A
Drum - Rear (Yes or )
|
|
N/A
Rear Brake Rotor Diam x Thickness
|
Electrical
|
150
Maximum Alternator Capacity (amps)
|
|
800
Cold Cranking Amps @ 0° F (Primary)
|
Engine
|
144 @ 4500
SAE Net Torque @ RPM
|
|
162 @ 6500
SAE Net Horsepower @ RPM
|
|
2.0 L/122
Displacement
|
|
Regular Unleaded I-4
Engine Type
|
|
8-Speed A/T
A/T Transmission w/Dual Shift Mode Transmission Options
|
|
24 City / 26 Hwy
MPG
|
|
N/A
Total Cooling System Capacity
|
Entertainment
|
Optional
Bluetooth®
|
Measurements
|
2
Passenger Capacity
|
|
N/A
Ext'd Cab Cargo Volume
|
|
123 ft³
Cargo Volume
|
|
N/A
Tailgate Width
|
|
50 in
Cargo Box (Area) Height
|
|
49 in
Cargo Box Width @ Wheelhousings
|
|
N/A
Cargo Box Width @ Floor
|
|
N/A
Cargo Area Width @ Beltline
|
|
N/A
Cargo Box Width @ Top, Rear
|
|
72 in
Cargo Area Length @ Floor to Seat 1
|
|
N/A
Cargo Area Length @ Floor to Console
|
|
N/A
Step Up Height - Side
|
|
N/A
Step Up Height - Front
|
|
N/A
Side Door Opening Width
|
|
N/A
Side Door Opening Height
|
|
N/A
Rear Door Opening Width
|
|
N/A
Rear Door Opening Height
|
|
5 in
Ground Clearance, Rear
|
|
5 in
Ground Clearance, Front
|
|
23 in
Ground to Top of Load Floor
|
|
N/A
Cab to End of Frame
|
|
N/A
Overhang, Rear w/o bumper
|
|
N/A
Overhang, Front
|
|
72 in
Height, Overall
|
|
72 in
Width, Max w/o mirrors
|
|
174 in
Length, Overall
|
|
N/A
Length, Overall w/rear bumper
|
|
105 in
Wheelbase
|
|
N/A
Second Hip Room
|
|
N/A
Second Shoulder Room
|
|
N/A
Second Leg Room
|
|
N/A
Second Head Room
|
|
54 in
Front Hip Room
|
|
58 in
Front Shoulder Room
|
|
42 in
Front Leg Room
|
|
47 in
Front Head Room
|
Safety
|
Optional
Lane Departure Warning
|
|
Optional
Blind Spot Monitor
|
|
Standard
Blind Spot Monitor
|
|
Standard
Stability Control
|
Steering
|
N/A
Turning Diameter - Wall to Wall
|
|
38 ft
Turning Diameter - Curb to Curb
|
|
N/A
Steering Ratio (:1), Overall
|
|
Rack-Pinion
Steering Type
|
Suspension
|
Semi-Independent
Axle Type - Rear
|
|
Independent
Axle Type - Front
|
|
Torsion Beam
Suspension Type - Rear
|
|
Strut
Suspension Type - Front
|
Tires & Wheels
|
Steel
Spare Wheel Material
|
|
Steel
Rear Wheel Material
|
|
Steel
Front Wheel Material
|
|
Full-Size in
Spare Wheel Size
|
|
16 X 6.5 in
Rear Wheel Size
|
|
16 X 6.5 in
Front Wheel Size
|
|
Full-Size
Spare Tire Size
|
|
P215/55HR16
Rear Tire Size
|
|
P215/55HR16
Front Tire Size
|
Weight & Capacity
|
N/A
Maximum Trailering Capacity
|
|
N/A
Fifth Wheel Hitch - Max Tongue Wt.
|
|
1,549 lbs
Maximum Payload Capacity
|
|
1,549 lbs
As Spec'd Payload
|
|
3,581 lbs
As Spec'd Curb Weight
|
|
0 lbs
Option Weight - Rear
|
|
0 lbs
Option Weight - Front
|
|
1,457 lbs
Curb Weight - Rear
|
|
2,124 lbs
Curb Weight - Front
|
|
3,581 lbs
Base Curb Weight
|
|
N/A
Fifth Wheel Hitch - Max Trailer Wt.
|
|
N/A
Wt Distributing Hitch - Max Tongue Wt.
|
|
N/A
Wt Distributing Hitch - Max Trailer Wt.
|
|
N/A
Dead Weight Hitch - Max Tongue Wt.
|
|
N/A
Dead Weight Hitch - Max Trailer Wt.
|
|
N/A
Gross Combined Wt Rating
|
|
3,581 lbs
Curb Weight
|
|
5,130 lbs
Gross Vehicle Weight Rating
|
|
0 lbs
Total Option Weight
|
|
5,575 lbs
Gross Axle Weight Rating
|
|
N/A
Aux Fuel Tank Capacity, Approx
|
|
16 gal
Fuel Tank Capacity, Approx
|
