2023 Ford Transit Connect XLT specs & colors

Mini-van, Cargo

Change trim

$37,275

Starting MSRP
Current listing price

2023 Ford Transit Connect XLT

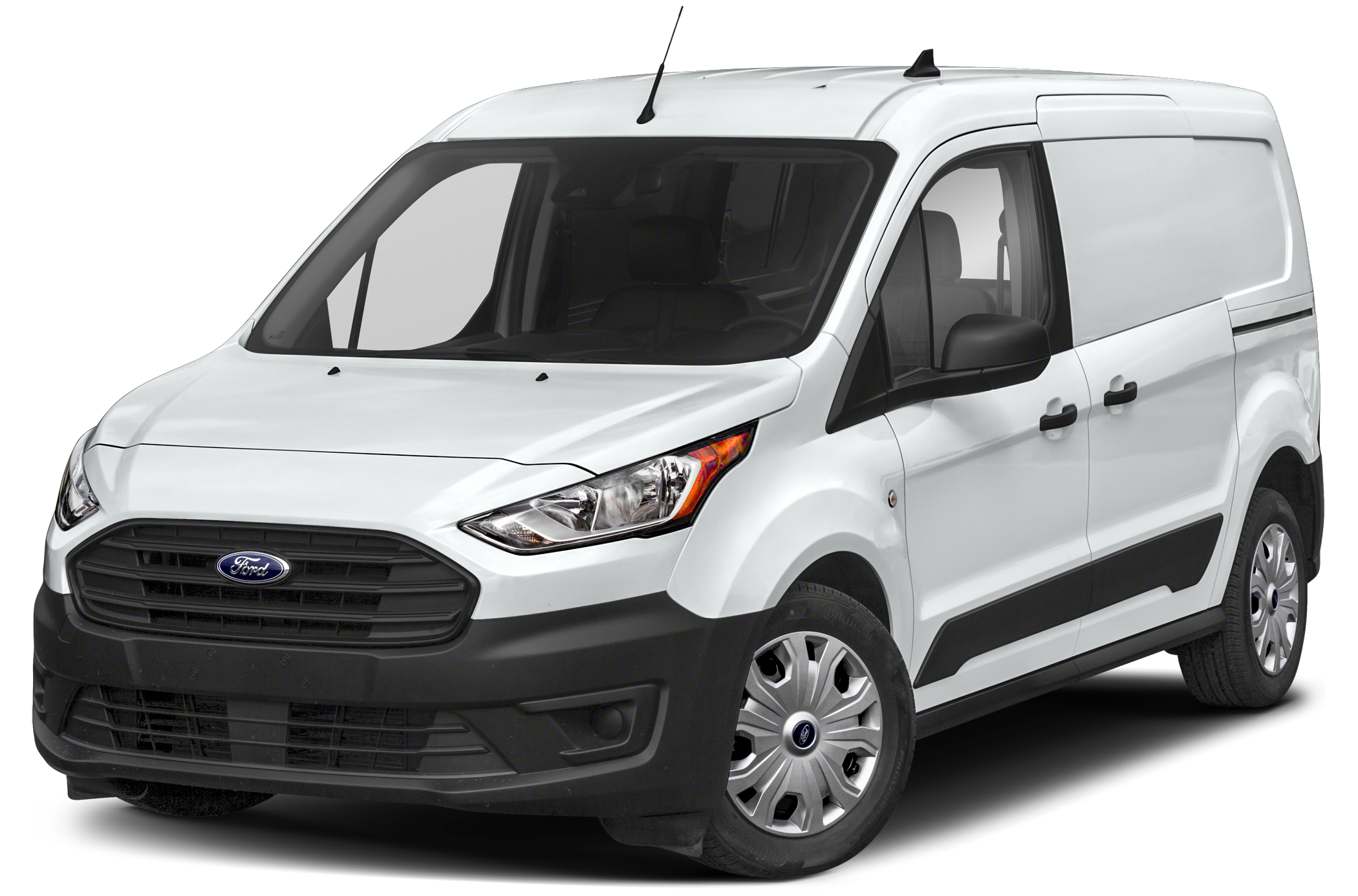

Showing the 2023 Ford Transit Connect XLT LWB w/Rear Symmetrical Doors

Shop Now

Key specs

4-door
2 seats
162.0-hp, 2.0-liter, 4 Cylinder Engine (Gasoline Fuel)
25 combined MPG
174.2" length, 72" height
Front Wheel Drive

Color options

Exterior

Silver Metallic

Interior

Topaz

Anthracite

Packages

Order Code 110A

$0

Starting MSRP

Specifications

Highlights

Engine Type: Regular Unleaded I-4
MPG: 24 City / 26 Hwy
Horsepower: 162 hp
Seating Capacity: 2

Brakes

Brake Type: 4-Wheel Disc
Brake ABS System: 4-Wheel
Brake ABS System (Second Line): 4-Wheel
Disc - Front (Yes or ): Yes
Disc - Rear (Yes or ): Yes
Front Brake Rotor Diam x Thickness: N/A
Rear Brake Rotor Diam x Thickness: N/A
Drum - Rear (Yes or ): N/A

Electrical

Cold Cranking Amps @ 0° F (Primary): 800
Maximum Alternator Capacity (amps): 150

Engine

Engine Type: Regular Unleaded I-4
Displacement: 2.0 L/122
SAE Net Horsepower @ RPM: 162 @ 6500
SAE Net Torque @ RPM: 144 @ 4500
Transmission Options: 8-Speed A/T
A/T
Transmission w/Dual Shift Mode
MPG: 24 City / 26 Hwy
Total Cooling System Capacity: N/A

Entertainment

Bluetooth®: Standard

Measurements

Passenger Capacity: 2
Ext'd Cab Cargo Volume: N/A
Cargo Volume: 146 ft³
Tailgate Width: N/A
Cargo Box (Area) Height: 50 in
Cargo Box Width @ Wheelhousings: 49 in
Cargo Box Width @ Floor: N/A
Cargo Area Width @ Beltline: N/A
Cargo Box Width @ Top, Rear: N/A
Cargo Area Length @ Floor to Seat 1: 88 in
Cargo Area Length @ Floor to Console: N/A
Step Up Height - Side: N/A
Step Up Height - Front: N/A
Side Door Opening Width: N/A
Side Door Opening Height: N/A
Rear Door Opening Width: N/A
Rear Door Opening Height: N/A
Ground Clearance, Rear: 6 in
Ground Clearance, Front: 6 in
Ground to Top of Load Floor: 23 in
Cab to End of Frame: N/A
Overhang, Rear w/o bumper: N/A
Overhang, Front: N/A
Height, Overall: 72 in
Width, Max w/o mirrors: 72 in
Length, Overall: 190 in
Length, Overall w/rear bumper: N/A
Wheelbase: 121 in
Second Hip Room: N/A
Second Shoulder Room: N/A
Second Leg Room: N/A
Second Head Room: N/A
Front Hip Room: 54 in
Front Shoulder Room: 58 in
Front Leg Room: 42 in
Front Head Room: 47 in

Safety

Lane Departure Warning: Optional
Blind Spot Monitor: Optional
Stability Control: Standard
Backup Camera: Standard

Steering

Steering Type: Rack-Pinion
Steering Ratio (:1), Overall: N/A
Turning Diameter - Curb to Curb: 40 ft
Turning Diameter - Wall to Wall: N/A

Suspension

Suspension Type - Front: Strut
Suspension Type - Rear: Torsion Beam
Axle Type - Front: Independent
Axle Type - Rear: Semi-Independent

Tires & Wheels

Front Tire Size: P215/55HR16
Rear Tire Size: P215/55HR16
Spare Tire Size: Full-Size
Front Wheel Size: 16 X 6.5 in
Rear Wheel Size: 16 X 6.5 in
Spare Wheel Size: Full-Size in
Front Wheel Material: Steel
Rear Wheel Material: Steel
Spare Wheel Material: Steel

Weight & Capacity

Aux Fuel Tank Capacity, Approx: N/A
Base Curb Weight: 3,689 lbs
Curb Weight - Front: 2,204 lbs
Curb Weight - Rear: 1,485 lbs
Option Weight - Front: 0 lbs
Option Weight - Rear: 0 lbs
As Spec'd Curb Weight: 3,689 lbs
As Spec'd Payload: 1,613 lbs
Maximum Payload Capacity: 1,613 lbs
Gross Combined Wt Rating: N/A
Dead Weight Hitch - Max Trailer Wt.: N/A
Dead Weight Hitch - Max Tongue Wt.: N/A
Wt Distributing Hitch - Max Trailer Wt.: N/A
Wt Distributing Hitch - Max Tongue Wt.: N/A
Fifth Wheel Hitch - Max Trailer Wt.: N/A
Fifth Wheel Hitch - Max Tongue Wt.: N/A
Maximum Trailering Capacity: N/A
Fuel Tank Capacity, Approx: 16 gal
Gross Vehicle Weight Rating: 5,302 lbs
Total Option Weight: 0 lbs
Curb Weight: 3,689 lbs
Gross Axle Weight Rating: 5,575 lbs
