2023 Ford Transit Connect Titanium specs & colors

Full-size Passenger Van

Change trim

$39,800

Starting MSRP
Current listing price

2023 Ford Transit Connect Titanium

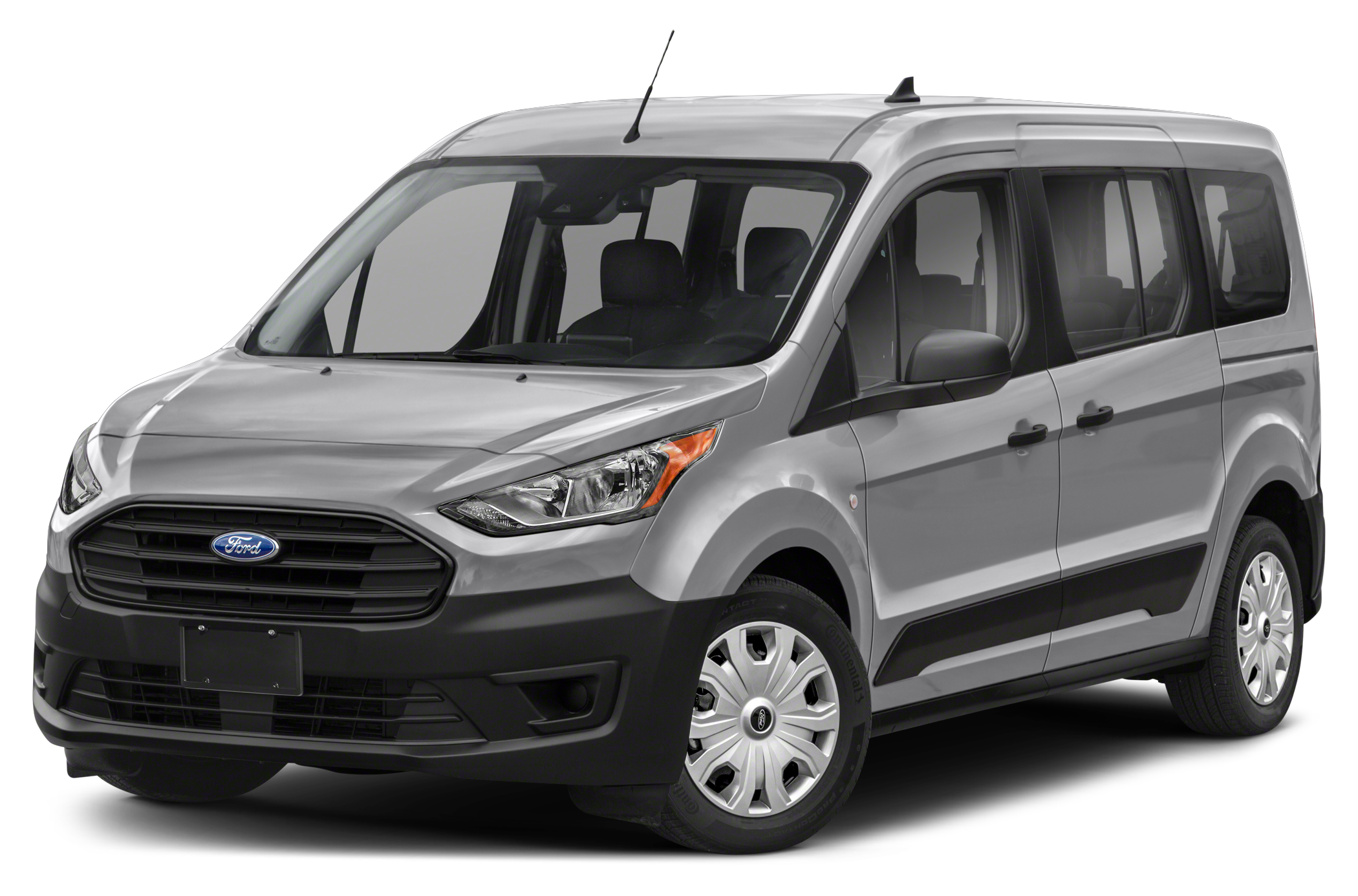

Showing the 2023 Ford Transit Connect Titanium LWB w/Rear Liftgate

Shop Now

No inventory available.
Shop 2023 Ford Transit Connect

Key specs

4-door
5 seats
162.0-hp, 2.0-liter, 4 Cylinder Engine (Gasoline Fuel)
26 combined MPG
190" length, 71.6" height
Front Wheel Drive

Color options

Exterior

Sunburst Gold Metallic

Interior

Black

Packages

Order Code 310A

$0

Starting MSRP
- Front Splash Guards/Mud Flaps
Enhanced Active Park Assist

$895

Starting MSRP
- Forward & Reverse Sensing System

Specifications

Highlights

Engine Type: Regular Unleaded I-4
MPG: 24 City / 28 Hwy
Horsepower: 162 hp
Seating Capacity: 5

Brakes

Brake Type: 4-Wheel Disc
Brake ABS System: 4-Wheel
Brake ABS System (Second Line): N/A
Disc - Front (Yes or ): Yes
Disc - Rear (Yes or ): Yes
Front Brake Rotor Diam x Thickness: N/A
Rear Brake Rotor Diam x Thickness: N/A
Drum - Rear (Yes or ): N/A

Electrical

Cold Cranking Amps @ 0° F (Primary): 800
Maximum Alternator Capacity (amps): 220

Engine

Engine Type: Regular Unleaded I-4
Displacement: 2.0 L/122
SAE Net Horsepower @ RPM: 162 @ 6500
SAE Net Torque @ RPM: 144 @ 4500
Transmission Options: 8-Speed A/T
A/T
Transmission w/Dual Shift Mode
MPG: 24 City / 28 Hwy
Total Cooling System Capacity: N/A

Entertainment

Bluetooth®: Optional
Bluetooth®: Standard

Measurements

Front Head Room: 47 in
Front Leg Room: 42 in
Front Shoulder Room: 58 in
Front Hip Room: 54 in
Second Head Room: 46 in
Second Leg Room: 38 in
Second Shoulder Room: 59 in
Second Hip Room: 58 in
Third Head Room: 42 in
Third Leg Room: 35 in
Third Shoulder Room: 56 in
Third Hip Room: 47 in
Wheelbase: 121 in
Length, Overall: 190 in
Width, Max w/o mirrors: 72 in
Height, Overall: 72 in
Track Width, Front: 61 in
Track Width, Rear: 62 in
Min Ground Clearance: 6 in
Rear Door Opening Height: N/A
Rear Door Opening Width: N/A
Cargo Area Length @ Floor to Seat 1: 86 in
Cargo Area Length @ Floor to Seat 2: 50 in
Cargo Area Length @ Floor to Seat 3: 17 in
Cargo Area Width @ Beltline: N/A
Cargo Box Width @ Wheelhousings: 47 in
Cargo Box (Area) Height: 43 in
Liftover Height: 22 in
Cargo Volume to Seat 1: 106 ft³
Cargo Volume to Seat 2: 60 ft³
Cargo Volume to Seat 3: 16 ft³
Trunk Volume: N/A
Passenger Capacity: 6
Passenger Volume: 167 ft³

Safety

Stability Control: Standard
Backup Camera: Standard
Blind Spot Monitor: Optional
Lane Departure Warning: Optional

Steering

Turning Diameter - Wall to Wall: N/A
Steering Type: Rack-Pinion
Steering Ratio (:1), Overall: N/A
Lock to Lock Turns (Steering): N/A
Turning Diameter - Curb to Curb: 40 ft

Suspension

Suspension Type - Front: Strut
Suspension Type - Rear: Torsion Beam
Suspension Type - Front (Cont.): Strut
Suspension Type - Rear (Cont.): Torsion Beam

Tires & Wheels

Front Tire Size: P215/55HR16
Rear Tire Size: P215/55HR16
Spare Tire Size: Full-Size
Front Wheel Size: 16 X 6.5 in
Rear Wheel Size: 16 X 6.5 in
Spare Wheel Size: Full-Size in
Front Wheel Material: Aluminum
Rear Wheel Material: Aluminum
Spare Wheel Material: Steel

Weight & Capacity

Fuel Tank Capacity, Approx: 16 gal
Aux Fuel Tank Capacity, Approx: N/A
Base Curb Weight: 4,019 lbs
Dead Weight Hitch - Max Trailer Wt.: N/A
Dead Weight Hitch - Max Tongue Wt.: N/A
Wt Distributing Hitch - Max Trailer Wt.: N/A
Wt Distributing Hitch - Max Tongue Wt.: N/A
