2020 GMC Canyon 2WD SL specs & colors

$22,200
Starting MSRP
Current listing price

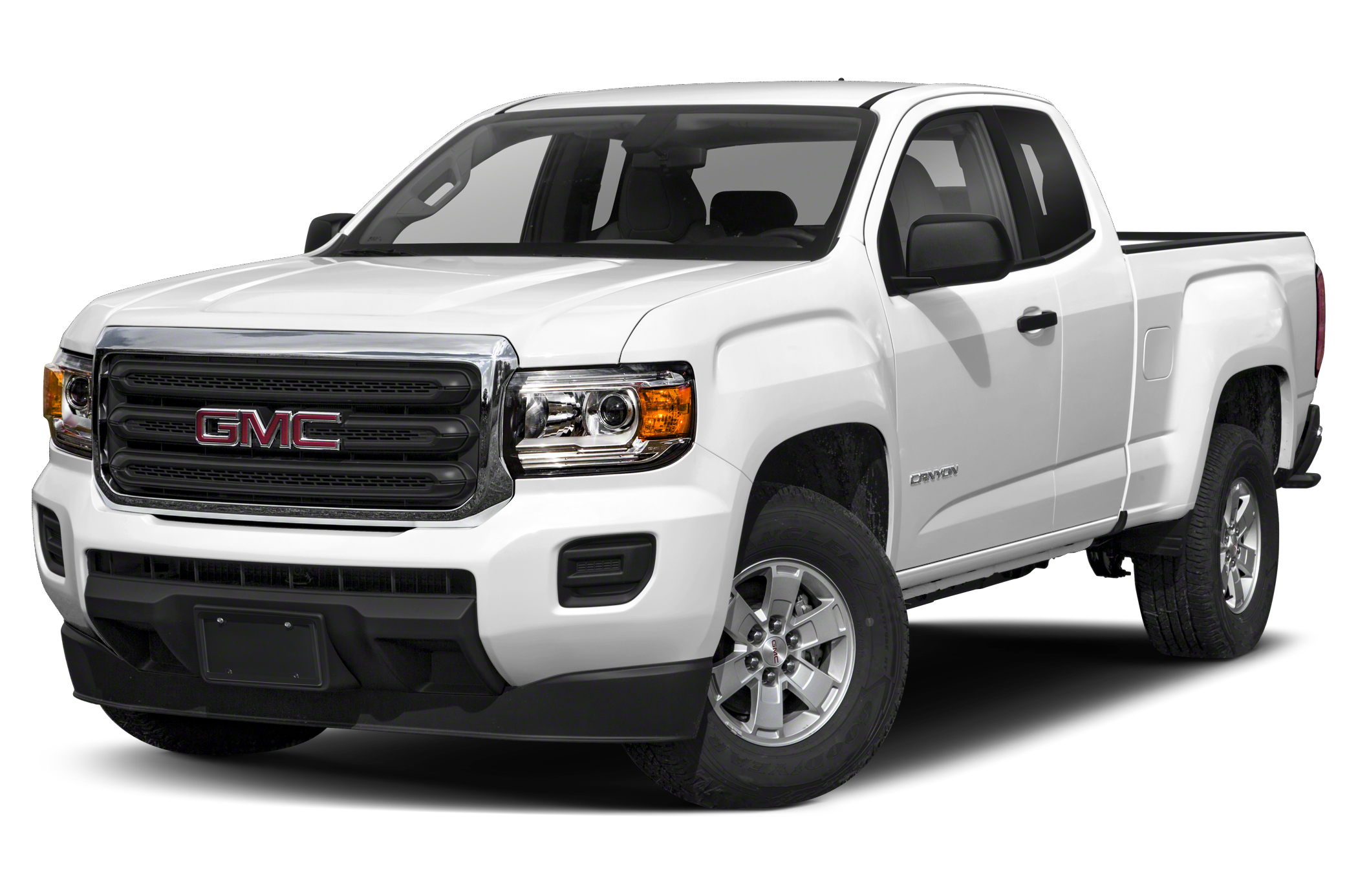

2020 GMC Canyon 2WD SL

Showing the 2020 GMC Canyon 2WD Ext Cab 128" SL

Shop Now

Key specs

Color options

Interior

Jet Black / Dark Ash


Packages

$0

Starting MSRP

  • includes standard equipment

Specifications

Front Wheel Material Aluminum
Rear Wheel Size 16 x 7 in
Front Wheel Size 16 x 7 in
Spare Wheel Material Aluminum
Spare Wheel Size 18 x 4.5 in
Rear Wheel Material Aluminum
Cold Cranking Amps @ 0° F (Primary) N/A
Maximum Alternator Capacity (amps) N/A
SAE Net Torque @ RPM 191 @ 4400
Engine Oil Cooler N/A
Engine Type Gas I4
SAE Net Horsepower @ RPM 200 @ 6300
Displacement 2.5L/150
Cruising Range - City 420.00 mi
Fuel Economy Est-Combined 22 MPG
Estimated Battery Range N/A mi
Cruising Range - Hwy 546.00 mi
EPA Fuel Economy Est - Hwy 26 MPG
EPA Fuel Economy Est - City 20 MPG
Second Gear Ratio (:1) 2.37
Transfer Case Gear Ratio (:1), High N/A
Trans Description Cont. Automatic
Sixth Gear Ratio (:1) 0.67
Transfer Case Power Take Off N/A
Fifth Gear Ratio (:1) 0.85
First Gear Ratio (:1) 4.06
Trans Description Cont. Again N/A
Reverse Ratio (:1) 3.20
Drivetrain Rear Wheel Drive
Third Gear Ratio (:1) 1.55
Final Drive Axle Ratio (:1) N/A
Fourth Gear Ratio (:1) 1.16
Transfer Case Model N/A
Transfer Case Gear Ratio (:1), Low N/A
Trans Power Take Off N/A
Trans Type 6
Axle Type - Front Independent
Axle Type - Rear Semi-Floating
Suspension Type - Front Independent Coil
Suspension Type - Rear 2-Stage Multi-Leaf
Frame Type Fully-boxed
Drum - Rear (Yes or ) N/A
Brake ABS System 4-Wheel
Rear Brake Rotor Diam x Thickness 12.75 x -TBD- in
Disc - Rear (Yes or ) Yes
Front Brake Rotor Diam x Thickness 12.2 x -TBD- in
Disc - Front (Yes or ) Yes
Brake ABS System (Second Line) N/A
Brake Type Pwr
Aux Fuel Tank Capacity, Approx N/A gal
Fuel Tank Capacity, Approx 21 gal
Steering Ratio (:1), Overall N/A
Turning Diameter - Wall to Wall N/A ft
Turning Diameter - Curb to Curb 41.3 ft
Steering Type Electric Rack & Pinion
Front Tire Size 265/70R16
Spare Tire Size T175/90D18
Rear Tire Size 265/70R16
Dead Weight Hitch - Max Tongue Wt. 350 lbs
Wt Distributing Hitch - Max Trailer Wt. 3500 lbs
Dead Weight Hitch - Max Trailer Wt. 3500 lbs
Fifth Wheel Hitch - Max Trailer Wt. N/A lbs
Wt Distributing Hitch - Max Tongue Wt. 350 lbs
Fifth Wheel Hitch - Max Tongue Wt. N/A lbs
Maximum Trailering Capacity 3500 lbs
Base Curb Weight N/A lbs
Total Option Weight 0.00 lbs
Gross Axle Weight Rating 6200.00 lbs
Curb Weight 3842.00 lbs
As Spec'd Curb Weight 3806.00 lbs
As Spec'd Payload 1594.00 lbs
Option Weight - Rear 0.00 lbs
Maximum Payload Capacity 1558.00 lbs
Gross Combined Wt Rating 8500 lbs
Curb Weight - Front 2183 lbs
Gross Vehicle Weight Rating 5400.00 lbs
Option Weight - Front 0.00 lbs
Curb Weight - Rear 1659 lbs
Overhang, Rear w/o bumper 47.2 in
Width, Max w/o mirrors 74.3 in
Length, Overall w/rear bumper N/A in
Ground to Top of Load Floor N/A in
Cargo Box Width @ Wheelhousings 44.4 in
Ext'd Cab Cargo Volume N/A ft³
Tailgate Width N/A in
Length, Overall w/o rear bumper N/A in
Length, Overall 212.4 in
Second Leg Room N/A in
Overhang, Front 36.9 in
Height, Overall 70.4 in
Front Head Room 41.4 in
Cargo Box (Area) Height N/A in
Cargo Box Width @ Top, Rear N/A in
Cargo Box Width @ Floor 57.8 in
Ground Clearance, Rear 8.4 in
Passenger Capacity 2
Front Leg Room 45 in
Cargo Volume 49.9 ft³
Front Hip Room 55 in
Ground Clearance, Front 8.4 in
Second Head Room N/A in
Second Shoulder Room N/A in
Second Hip Room N/A in
Cab to End of Frame N/A in
Front Shoulder Room 57.5 in
Wheelbase 128.3 in
Cargo Box Length @ Floor 74 in
Audio system, GMC Infotainment System with 7" diagonal color touch-screen AM/FM stereo with seek-and-scan and digital clock, includes Bluetooth streaming audio for music and select phones; featuring Android Auto and Apple CarPlay capability for compatible phones (STD) Standard
Audio system feature, 6-speaker system Standard
Tailgate handle, Black Standard
Door handles, Black Standard
Wheel, compact spare, 18" x 4.5" (45.7 cm x 11.4 cm) Black cast aluminum Standard
Tire, compact spare T175/90D18, blackwall Standard
Bumper, rear Chrome Standard
Glass, windshield shade band Standard
Headlamps, halogen projector-type with LED signature Standard
Moldings, Black beltline Standard
CornerStep, rear bumper Standard
Wheels, 16" x 7" (40.6 cm x 17.8 cm) Ultra Silver Metallic cast aluminum Standard
Tires, 265/70R16 all-season, blackwall Standard
Tailgate, locking Standard
Lamps, cargo area, cab mounted with switch on center switch bank Standard
Mirrors, outside manual-folding, Black Standard
Seat adjuster, driver 4-way power with manual recline Standard
Steering column, tilt, manual Standard
Floor covering, full-length Black vinyl Standard
Door locks, power Standard
Console, floor, front compartment, custom Standard
Seat trim, Vinyl Standard
Steering wheel, urethane Standard
Air conditioning, single-zone manual climate control Standard
Theft-deterrent system, immobilization Standard
USB data ports, 2 includes auxiliary input jack, located on the front console Standard
Visors, driver and front passenger with passenger vanity mirror Standard
Display, driver instrument information enhanced, one color Standard
Lighting, interior, center dome Standard
Seat adjuster, passenger 2-way manual, fore/aft with manual recline Standard
Mirror, inside rearview manual day/night Standard
Seats, front bucket (STD) Standard
Windows, power with driver Express-Up and Down Standard
Handles, door release, front and rear, Jet Black Standard
Seat delete, rear Standard
Speedometer, miles/kilometers Standard
Transmission, 6-speed automatic (STD) Standard
Engine, 2.5L I4, DI, DOHC, VVT (200 hp [149.0 kW] @ 6300 rpm, 191 lb-ft of torque [259 N-m] @ 4400 rpm) (STD) Standard
Frame, fully-boxed Standard
Steering, electric power-assist Standard
Rear axle, 4.10 ratio Standard
Pickup box Standard
Capless Fuel Fill (Requires gas engine and (E63) pickup box.) Standard
Rear wheel drive Standard
Brakes, 4-wheel antilock, 4-wheel disc Standard
GVWR, 5400 lbs. (2449 kg) Standard
Daytime Running Lamps Standard
Traction control, electronic Standard
Tire Pressure Monitoring System (does not apply to spare tire) Standard
Rear Vision Camera Standard
Teen Driver a configurable feature that lets you activate customizable vehicle settings associated with a key fob, to help encourage safe driving behavior. It can limit certain available vehicle features, and it prevents certain safety systems from being turned off. It includes the Buckle-to-Drive feature which prevents the driver from shifting from Park for up to 20 seconds if the driver's seat belt is not buckled. An in-vehicle report card gives you information on driving habits and helps you to continue to coach your new driver Standard
Tire Fill Alert provides an audible and visual indication when tire pressure is added to a tire that is low. Aids to achieve optimal tire pressure Standard
Airbags, Dual-stage frontal airbags for driver and front passenger; Seat-mounted side-impact airbags for driver and front outboard passenger; Head-curtain airbags for front and rear outboard seating positions; Includes front outboard Passenger Sensing System for frontal passenger airbag (Always use seat belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.) Standard
StabiliTrak, stability control system Standard
