2025 GMC Canyon 4WD Denali specs & colors
Crew Cab Pickup
MSRP
- 2WD Crew Cab Elevation
- $38,400
- 4WD Crew Cab Elevation
- $41,700
- 4WD Crew Cab AT4
- $45,700
- 4WD Crew Cab Denali
- $52,000
$52,000
Starting MSRP
Current listing price
Current listing price

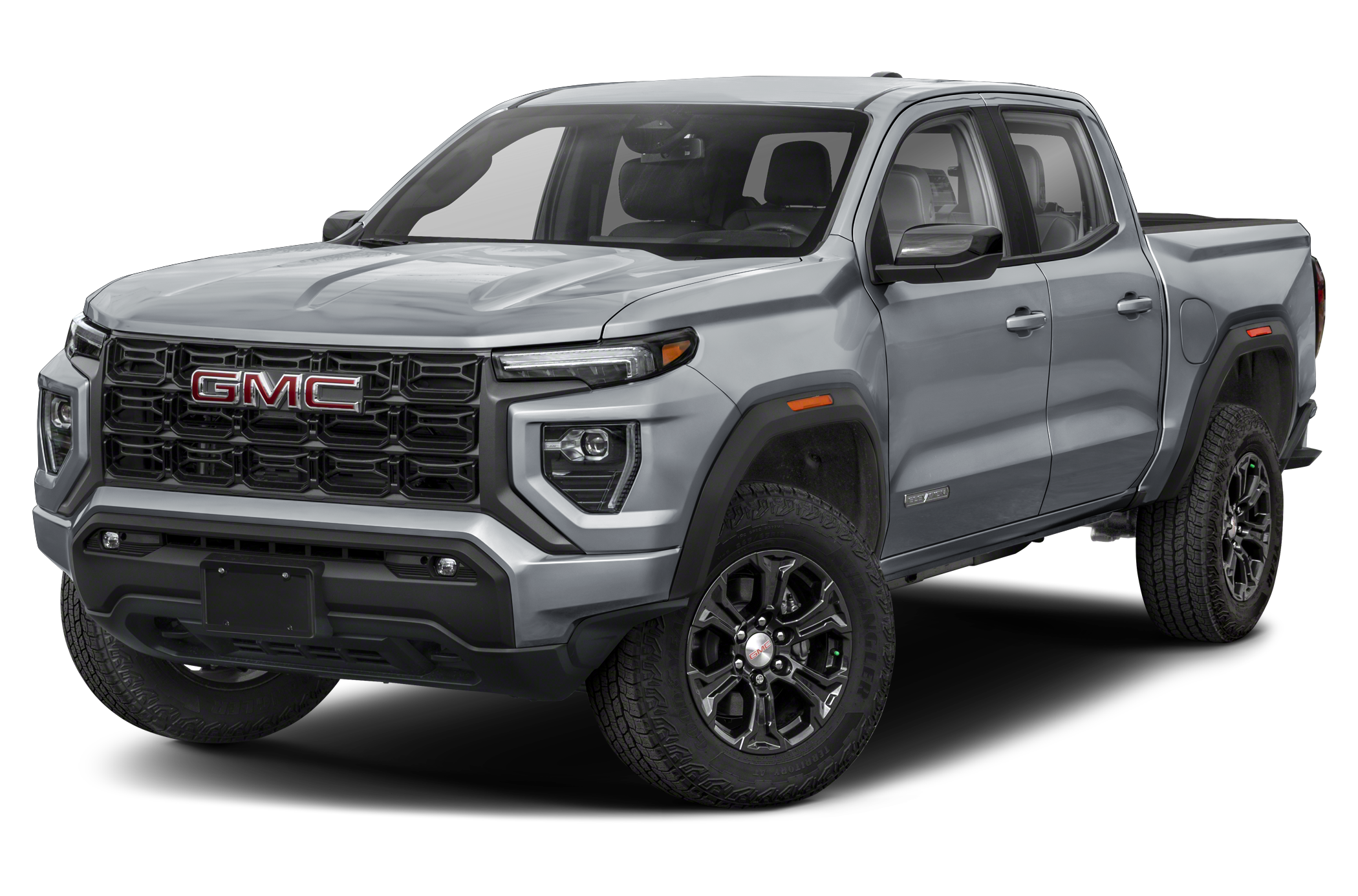

Showing the 2025 GMC Canyon 4WD Crew Cab Denali
Shop NowKey specs
Color options
Interior
Jet Black / Teak
Packages
$0
Starting MSRP
- includes standard equipment
Specifications
Highlights
|
Turbocharged Gas I4
Engine Type
|
|
17 City / 21 Hwy
MPG
|
|
310 hp
Horsepower
|
|
5
Seating Capacity
|
Brakes
|
4-Wheel
Brake ABS System
|
|
13.3 x -TBD- in
Rear Brake Rotor Diam x Thickness
|
|
Yes
Disc - Rear (Yes or )
|
|
Pwr
Brake Type
|
|
13.4 x -TBD- in
Front Brake Rotor Diam x Thickness
|
|
N/A
Drum - Rear (Yes or )
|
|
Yes
Disc - Front (Yes or )
|
|
N/A
Brake ABS System (Second Line)
|
Electrical
|
800
Cold Cranking Amps @ 0° F (Primary)
|
|
220
Maximum Alternator Capacity (amps)
|
Engine
|
430 @ 3000
SAE Net Torque @ RPM
|
|
Turbocharged Gas I4
Engine Type
|
|
310 @ 5600
SAE Net Horsepower @ RPM
|
|
2.7L/-TBD-
Displacement
|
|
8-Speed A/T
A/T Transmission Options
|
|
17 City / 21 Hwy
MPG
|
|
N/A
Total Cooling System Capacity
|
Entertainment
|
Standard
Bluetooth®
|
Measurements
|
35 in
Overhang, Front
|
|
38 in
Second Head Room
|
|
80 in
Height, Overall
|
|
N/A
Cab to End of Frame
|
|
N/A
Cargo Box (Area) Height
|
|
45 in
Front Leg Room
|
|
53 in
Second Hip Room
|
|
46 in
Cargo Box Width @ Wheelhousings
|
|
131 in
Wheelbase
|
|
55 in
Front Hip Room
|
|
42 ft³
Cargo Volume
|
|
62 in
Cargo Box Length @ Floor
|
|
N/A
Ext'd Cab Cargo Volume
|
|
N/A
Length, Overall w/rear bumper
|
|
56 in
Second Shoulder Room
|
|
35 in
Second Leg Room
|
|
213 in
Length, Overall
|
|
N/A
Tailgate Width
|
|
58 in
Cargo Box Width @ Floor
|
|
47 in
Overhang, Rear w/o bumper
|
|
N/A
Ground to Top of Load Floor
|
|
72.4 w/Mirrors Folded, 84.4 w/Mirrors in
Width, Max w/o mirrors
|
|
40 in
Front Head Room
|
|
11 in
Ground Clearance, Rear
|
|
11 in
Ground Clearance, Front
|
|
N/A
Cargo Box Width @ Top, Rear
|
|
N/A
Length, Overall w/o rear bumper
|
|
57 in
Front Shoulder Room
|
|
5
Passenger Capacity
|
Safety
|
Standard
Lane Departure Warning
|
|
Optional
Backup Camera
|
|
Standard
Stability Control
|
|
Standard
Rear Cross Traffic Alert
|
|
Standard
Navigation System
|
Steering
|
N/A
Turning Diameter - Curb to Curb
|
|
N/A
Turning Diameter - Wall to Wall
|
|
N/A
Steering Ratio (:1), Overall
|
|
Electric Rack & Pinion
Steering Type
|
Suspension
|
Lifted w/Semi-Elliptic Two-Stage Multi-Leaf Springs
Suspension Type - Rear
|
|
N/A
Axle Type - Front
|
|
N/A
Axle Type - Rear
|
|
Lifted w/Independent Coil-Over-Shock
Suspension Type - Front
|
Tires & Wheels
|
Aluminum
Spare Wheel Material
|
|
20 x 9 in
Rear Wheel Size
|
|
275/60R20
Spare Tire Size
|
|
Aluminum
Rear Wheel Material
|
|
275/60R20SL
Rear Tire Size
|
|
Aluminum
Front Wheel Material
|
|
20 x 9 in
Front Wheel Size
|
|
275/60R20SL
Front Tire Size
|
|
20 x 9 in
Spare Wheel Size
|
Weight & Capacity
|
1,524 lbs
As Spec'd Payload
|
|
N/A
Aux Fuel Tank Capacity, Approx
|
|
0 lbs
Option Weight - Front
|
|
5,000 lbs
Dead Weight Hitch - Max Trailer Wt.
|
|
N/A
Base Curb Weight
|
|
21 gal
Fuel Tank Capacity, Approx
|
|
1,524 lbs
Maximum Payload Capacity
|
|
770 lbs
Wt Distributing Hitch - Max Tongue Wt.
|
|
0 lbs
Total Option Weight
|
|
500 lbs
Dead Weight Hitch - Max Tongue Wt.
|
|
7,100 lbs
Gross Axle Weight Rating
|
|
4,726 lbs
As Spec'd Curb Weight
|
|
N/A
Fifth Wheel Hitch - Max Tongue Wt.
|
|
4,726 lbs
Curb Weight
|
|
0 lbs
Option Weight - Rear
|
|
2,086 lbs
Curb Weight - Rear
|
|
7,700 lbs
Maximum Trailering Capacity
|
|
2,640 lbs
Curb Weight - Front
|
|
N/A
Fifth Wheel Hitch - Max Trailer Wt.
|
|
7,700 lbs
Wt Distributing Hitch - Max Trailer Wt.
|
|
13,250 lbs
Gross Combined Wt Rating
|
|
6,250 lbs
Gross Vehicle Weight Rating
|
