2025 GMC Canyon 4WD AT4 specs & colors
Crew Cab Pickup
MSRP
- 2WD Crew Cab Elevation
- $38,400
- 4WD Crew Cab Elevation
- $41,700
- 4WD Crew Cab AT4
- $45,700
- 4WD Crew Cab Denali
- $52,000
$45,700
Starting MSRP
Current listing price
Current listing price

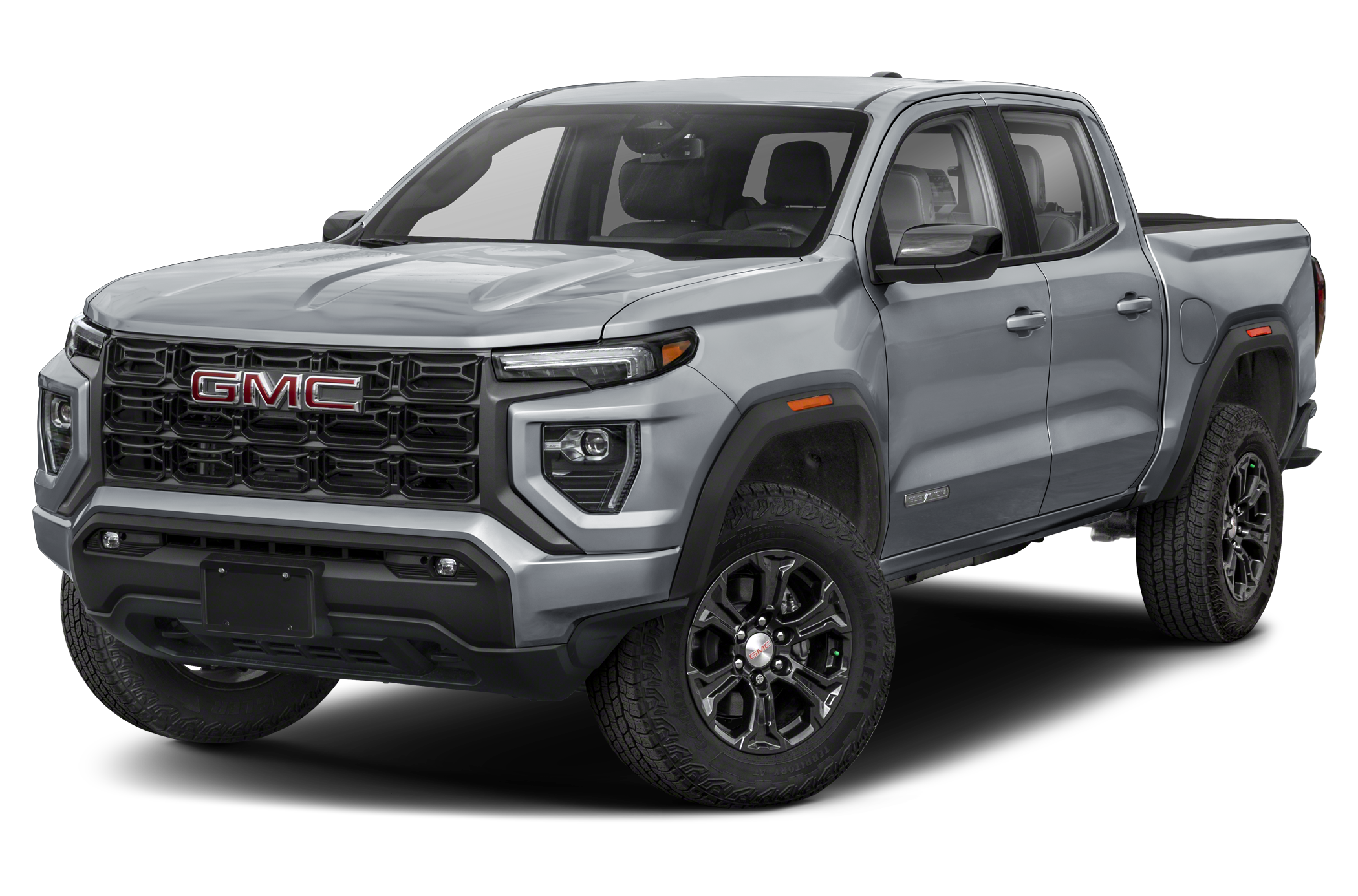

Showing the 2025 GMC Canyon 4WD Crew Cab AT4
Shop 2025 GMC Canyon
Key specs
Color options
Interior
Ceramic White with Red stitching
Jet Black / Timber
Packages
$0
Starting MSRP
- includes standard equipment
Specifications
Highlights
|
Turbocharged Gas I4
Engine Type
|
|
16 City / 16 Hwy
MPG
|
|
310 hp
Horsepower
|
|
5
Seating Capacity
|
Brakes
|
N/A
Drum - Rear (Yes or )
|
|
13.3 x -TBD- in
Rear Brake Rotor Diam x Thickness
|
|
13.4 x -TBD- in
Front Brake Rotor Diam x Thickness
|
|
Yes
Disc - Rear (Yes or )
|
|
Yes
Disc - Front (Yes or )
|
|
N/A
Brake ABS System (Second Line)
|
|
4-Wheel
Brake ABS System
|
|
Pwr
Brake Type
|
Electrical
|
220
Maximum Alternator Capacity (amps)
|
|
800
Cold Cranking Amps @ 0° F (Primary)
|
Engine
|
430 @ 3000
SAE Net Torque @ RPM
|
|
310 @ 5600
SAE Net Horsepower @ RPM
|
|
2.7L/-TBD-
Displacement
|
|
Turbocharged Gas I4
Engine Type
|
|
8-Speed A/T
A/T Transmission Options
|
|
16 City / 16 Hwy
MPG
|
|
N/A
Total Cooling System Capacity
|
Entertainment
|
Standard
Bluetooth®
|
Measurements
|
5
Passenger Capacity
|
|
N/A
Ext'd Cab Cargo Volume
|
|
42 ft³
Cargo Volume
|
|
N/A
Tailgate Width
|
|
N/A
Cargo Box (Area) Height
|
|
46 in
Cargo Box Width @ Wheelhousings
|
|
58 in
Cargo Box Width @ Floor
|
|
N/A
Cargo Box Width @ Top, Rear
|
|
62 in
Cargo Box Length @ Floor
|
|
10 in
Ground Clearance, Rear
|
|
10 in
Ground Clearance, Front
|
|
N/A
Ground to Top of Load Floor
|
|
N/A
Cab to End of Frame
|
|
47 in
Overhang, Rear w/o bumper
|
|
35 in
Overhang, Front
|
|
80 in
Height, Overall
|
|
72.4 w/Mirrors Folded, 84.4 w/Mirrors in
Width, Max w/o mirrors
|
|
213 in
Length, Overall
|
|
N/A
Length, Overall w/rear bumper
|
|
N/A
Length, Overall w/o rear bumper
|
|
131 in
Wheelbase
|
|
53 in
Second Hip Room
|
|
56 in
Second Shoulder Room
|
|
35 in
Second Leg Room
|
|
38 in
Second Head Room
|
|
55 in
Front Hip Room
|
|
57 in
Front Shoulder Room
|
|
45 in
Front Leg Room
|
|
40 in
Front Head Room
|
Safety
|
Standard
Lane Departure Warning
|
|
Standard
Backup Camera
|
|
Standard
Rear Cross Traffic Alert
|
|
Standard
Stability Control
|
|
Standard
Navigation System
|
Steering
|
N/A
Turning Diameter - Wall to Wall
|
|
N/A
Turning Diameter - Curb to Curb
|
|
N/A
Steering Ratio (:1), Overall
|
|
Electric Rack & Pinion
Steering Type
|
Suspension
|
N/A
Axle Type - Rear
|
|
N/A
Axle Type - Front
|
|
Semi-Elliptic Two-Stage Multi-Leaf Springs
Suspension Type - Rear
|
|
Independent Coil-Over-Shock
Suspension Type - Front
|
Tires & Wheels
|
Steel
Spare Wheel Material
|
|
Aluminum
Rear Wheel Material
|
|
Aluminum
Front Wheel Material
|
|
17 x 8 in
Spare Wheel Size
|
|
18 x 8.5 in
Rear Wheel Size
|
|
18 x 8.5 in
Front Wheel Size
|
|
P265/70R17SL
Spare Tire Size
|
|
265/65R18SL
Rear Tire Size
|
|
265/65R18SL
Front Tire Size
|
Weight & Capacity
|
N/A
Base Curb Weight
|
|
2,553 lbs
Curb Weight - Front
|
|
1,989 lbs
Curb Weight - Rear
|
|
0 lbs
Option Weight - Front
|
|
0 lbs
Option Weight - Rear
|
|
4,542 lbs
As Spec'd Curb Weight
|
|
1,708 lbs
As Spec'd Payload
|
|
1,708 lbs
Maximum Payload Capacity
|
|
13,250 lbs
Gross Combined Wt Rating
|
|
5,000 lbs
Dead Weight Hitch - Max Trailer Wt.
|
|
500 lbs
Dead Weight Hitch - Max Tongue Wt.
|
|
6,250 lbs
Gross Vehicle Weight Rating
|
|
0 lbs
Total Option Weight
|
|
4,542 lbs
Curb Weight
|
|
7,100 lbs
Gross Axle Weight Rating
|
|
N/A
Aux Fuel Tank Capacity, Approx
|
|
21 gal
Fuel Tank Capacity, Approx
|
|
7,700 lbs
Maximum Trailering Capacity
|
|
N/A
Fifth Wheel Hitch - Max Tongue Wt.
|
|
N/A
Fifth Wheel Hitch - Max Trailer Wt.
|
|
770 lbs
Wt Distributing Hitch - Max Tongue Wt.
|
|
7,700 lbs
Wt Distributing Hitch - Max Trailer Wt.
|
