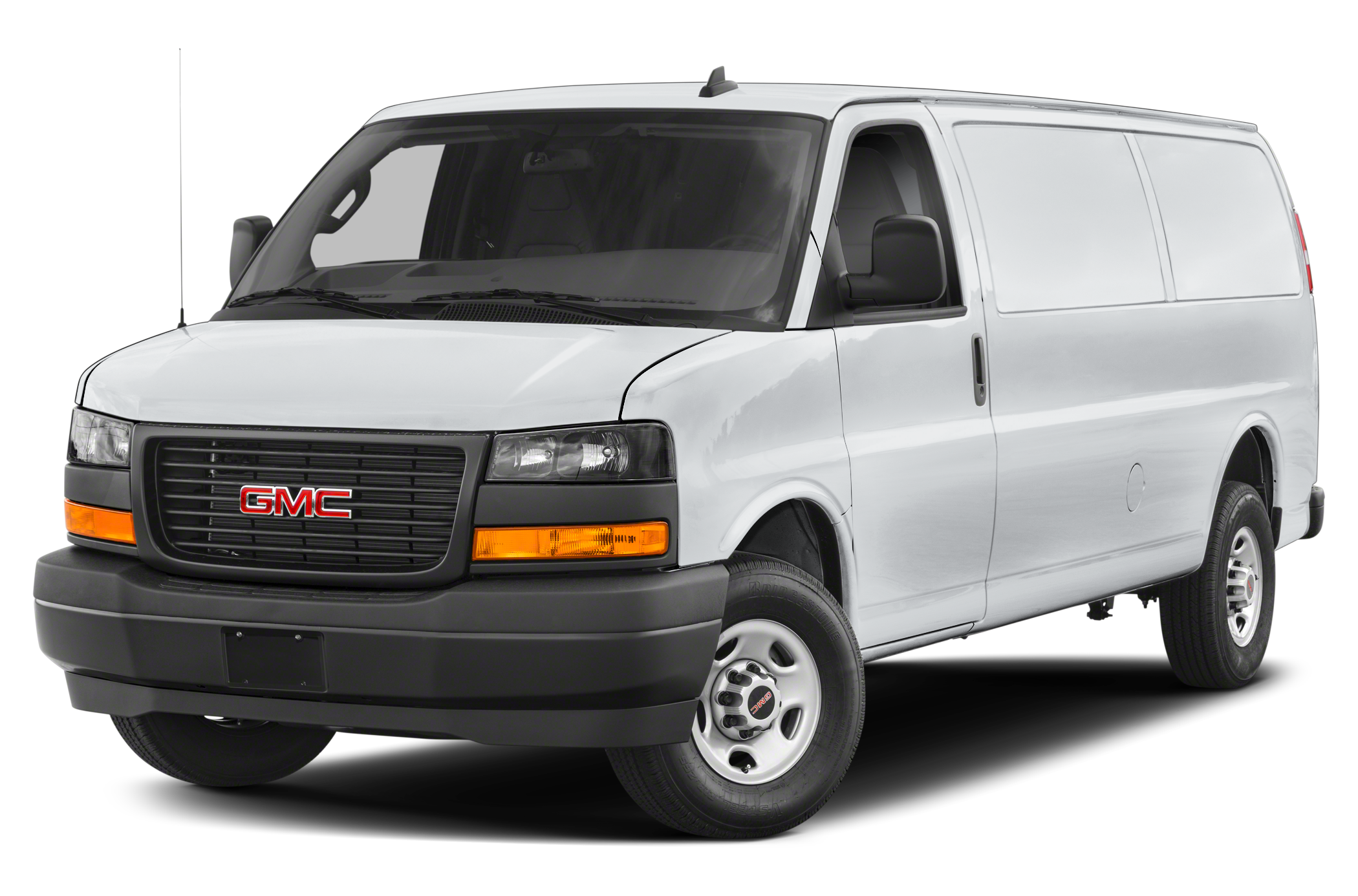

2024 GMC Savana 3500 specs & colors

Full-size Cargo Van

Change trim

$43,800

Starting MSRP
Current listing price

2024 GMC Savana 3500

Showing the 2024 GMC Savana 3500 RWD 3500 135"

Shop Now

Key specs

3-door
1 seat
276.0-hp, 4.3-liter, V6 Cylinder Engine (Gasoline Fuel)
0 combined MPG
224.05" length, 84.75" height
Rear Wheel Drive

Color options

Exterior

Red Hot

Interior

Neutral

Medium Pewter

Jet Black / Medium Dark Pewter

Packages

Work Van Preferred Equipment Group

$0

Starting MSRP
- includes standard equipment
Driver Convenience Package

$395

Starting MSRP
- includes Tilt-Wheel and (K34) cruise control
Chrome Appearance Package

$355

Starting MSRP
- (Includes (V37) front and rear chrome bumpers and (V22) chrome grille.

Specifications

Highlights

Engine Type: Gas V6
MPG: -
Horsepower: 401 hp
276 hp
Seating Capacity: 1

Brakes

Drum - Rear (Yes or ): N/A
Rear Brake Rotor Diam x Thickness: 13.0 x 1.1 in
Front Brake Rotor Diam x Thickness: 12.8 x 1.5 in
Disc - Rear (Yes or ): Yes
Disc - Front (Yes or ): Yes
Brake ABS System (Second Line): N/A
Brake ABS System: 4-Wheel
Brake Type: Pwr

Electrical

Maximum Alternator Capacity (amps): 105
Cold Cranking Amps @ 0° F (Primary): 600

Engine

SAE Net Torque @ RPM: 298 @ 3900
SAE Net Horsepower @ RPM: 276 @ 5200
Displacement: 4.3L/-TBD-
Engine Type: Gas V6
Transmission Options: Transmission Overdrive Switch
8-Speed A/T
A/T
Transmission w/Dual Shift Mode
MPG: -
Total Cooling System Capacity: 13.6 qts

Measurements

Ext'd Cab Cargo Volume: N/A
Cargo Volume: 239 ft³
Tailgate Width: N/A
Cargo Box (Area) Height: 55 in
Cargo Box Width @ Wheelhousings: 52 in
Cargo Box Width @ Floor: N/A
Cargo Area Width @ Beltline: N/A
Cargo Box Width @ Top, Rear: N/A
Cargo Area Length @ Floor to Seat 1: 127 in
Cargo Area Length @ Floor to Console: 155 in
Step Up Height - Side: 28 in
Step Up Height - Front: 28 in
Side Door Opening Width: N/A
Side Door Opening Height: N/A
Rear Door Opening Width: 53 in
Rear Door Opening Height: 49 in
Ground Clearance, Rear: 9 in
Ground Clearance, Front: 10 in
Ground to Top of Load Floor: 30 in
Cab to End of Frame: N/A
Overhang, Rear w/o bumper: N/A
Overhang, Front: 40 in
Height, Overall: 85 in
Width, Max w/o mirrors: 79 in
Length, Overall: 224 in
Length, Overall w/rear bumper: N/A
Wheelbase: 135 in
Second Hip Room: N/A
Second Shoulder Room: N/A
Second Leg Room: N/A
Second Head Room: N/A
Front Hip Room: 65 in
Front Shoulder Room: 69 in
Front Leg Room: 41 in
Front Head Room: 41 in
Passenger Capacity: 2

Safety

Backup Camera: Standard
Stability Control: Standard

Steering

Turning Diameter - Wall to Wall: N/A
Turning Diameter - Curb to Curb: 49 ft
Steering Ratio (:1), Overall: N/A
Steering Type: Pwr

Suspension

Axle Type - Rear: Full-Floating
Axle Type - Front: Independent
Suspension Type - Rear: Hypoid Multi-Leaf
Suspension Type - Front: Coil Spring

Tires & Wheels

Spare Wheel Material: Steel
Rear Wheel Material: Steel
Front Wheel Material: Steel
Spare Wheel Size: 16 x 6.5 in
Rear Wheel Size: 16 x 6.5 in
Front Wheel Size: 16 x 6.5 in
Spare Tire Size: LT245/75R16E
Rear Tire Size: LT245/75R16E
Front Tire Size: LT245/75R16E

Weight & Capacity

Gross Vehicle Weight Rating: 9,600 lbs
Total Option Weight: 0 lbs
Curb Weight: 5,108 lbs
Gross Axle Weight Rating: 10,384 lbs
Aux Fuel Tank Capacity, Approx: N/A
Fuel Tank Capacity, Approx: 31 gal
Maximum Trailering Capacity: 10,000 lbs
Fifth Wheel Hitch - Max Tongue Wt.: N/A
Fifth Wheel Hitch - Max Trailer Wt.: N/A
Wt Distributing Hitch - Max Tongue Wt.: 740 lbs
Wt Distributing Hitch - Max Trailer Wt.: 7,400 lbs
Dead Weight Hitch - Max Tongue Wt.: 500 lbs
Dead Weight Hitch - Max Trailer Wt.: 5,000 lbs
Gross Combined Wt Rating: 15,000 lbs
Maximum Payload Capacity: 4,492 lbs
As Spec'd Payload: 4,407 lbs
As Spec'd Curb Weight: 5,193 lbs
Option Weight - Rear: 0 lbs
Option Weight - Front: 0 lbs
Curb Weight - Rear: 2,216 lbs
Curb Weight - Front: 2,892 lbs
Base Curb Weight: N/A
