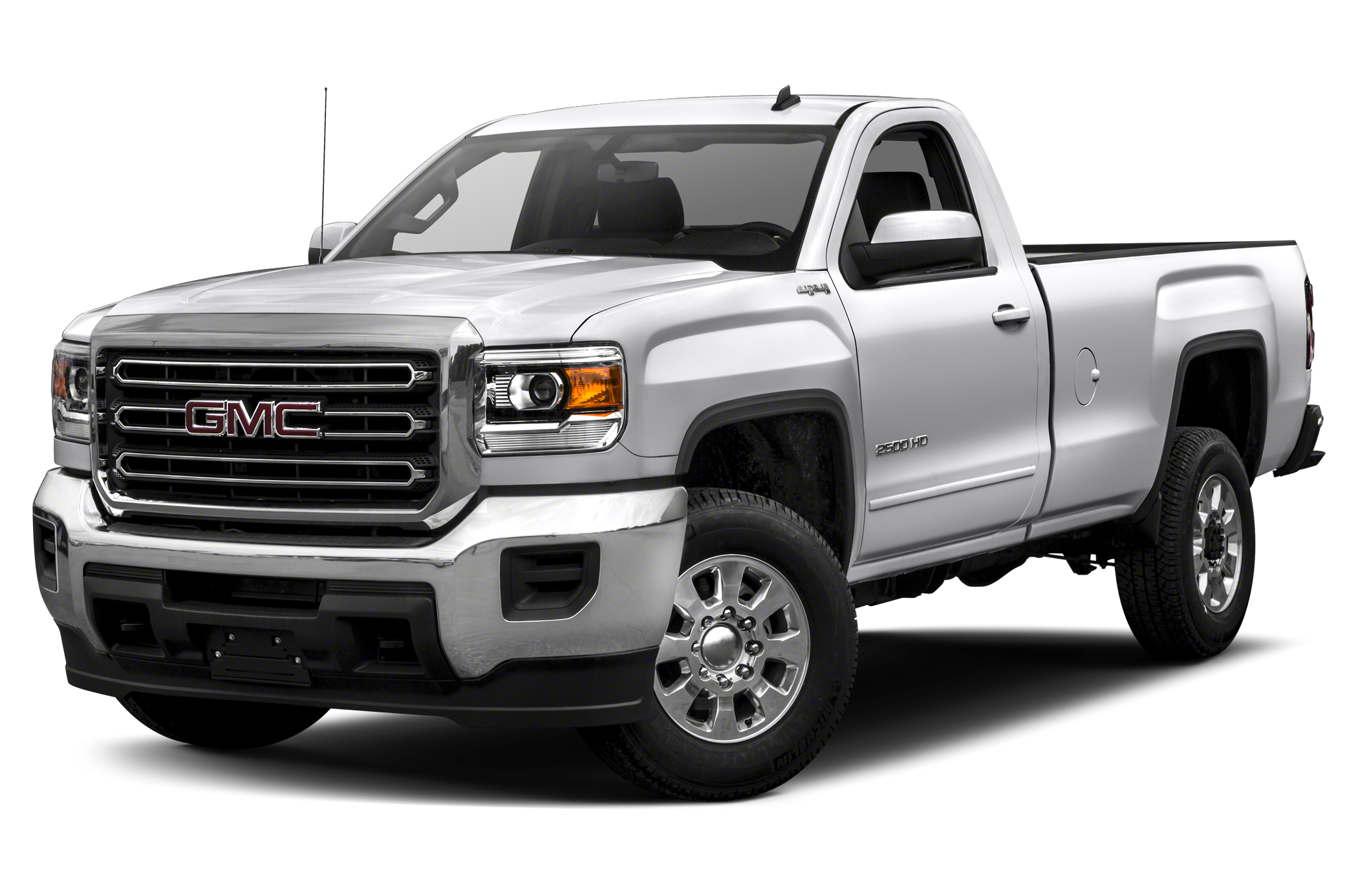

2017 GMC Sierra 2500 specs & colors

Regular Cab Pickup

Change trim

MSRP

Change trim

$34,190

Starting MSRP
Current listing price

Showing the 2017 GMC Sierra 2500 2WD Reg Cab 133.6"

Shop Now

Color options

Exterior

Interior

Jet Black / Dark Ash

Jet Black

Packages

LPO, GMC Interior Protection Package

$200

Starting MSRP

includes (VAV) all-weather floor mats
LPO and (VBR) rubber bed mat
LPO,

Sierra Convenience Package

$1,300

Starting MSRP

includes (DL8) outside heated power-adjustable mirrors
(AQQ) Remote Keyless Entry
(A91) remote locking tailgate

Work Truck Preferred Equipment Group

$0

Starting MSRP

includes standard equipment

Specifications

Cruising Range - City	N/A mi
Fuel Economy Est-Combined	N/A MPG
Cruising Range - Hwy	N/A mi
EPA Fuel Economy Est - City	N/A MPG
EPA Fuel Economy Est - Hwy	N/A MPG
Estimated Battery Range	N/A mi

Second Gear Ratio (:1)	2.36
Transfer Case Gear Ratio (:1), Low	N/A
Fourth Gear Ratio (:1)	1.15
Trans Power Take Off	N/A
Trans Type	6
Third Gear Ratio (:1)	1.53
Sixth Gear Ratio (:1)	0.67
Fifth Gear Ratio (:1)	0.85
Trans Description Cont. Again	N/A
Transfer Case Gear Ratio (:1), High	N/A
Transfer Case Model	N/A
Reverse Ratio (:1)	3.06
Final Drive Axle Ratio (:1)	N/A
Trans Description Cont.	Automatic
First Gear Ratio (:1)	4.03
Drivetrain	Rear Wheel Drive
Transfer Case Power Take Off	N/A

Brake ABS System (Second Line)	N/A
Disc - Front (Yes or )	Yes
Rear Brake Rotor Diam x Thickness	14.17 x -TBD- in
Brake ABS System	4-Wheel
Brake Type	Pwr
Drum - Rear (Yes or )	N/A
Front Brake Rotor Diam x Thickness	13.98 x -TBD- in
Disc - Rear (Yes or )	Yes

Dead Weight Hitch - Max Trailer Wt.	5000 lbs
Wt Distributing Hitch - Max Tongue Wt.	1450 lbs
Fifth Wheel Hitch - Max Tongue Wt.	3700 lbs
Wt Distributing Hitch - Max Trailer Wt.	14500 lbs
Maximum Trailering Capacity	13000 lbs
Dead Weight Hitch - Max Tongue Wt.	500 lbs
Fifth Wheel Hitch - Max Trailer Wt.	14800 lbs

Base Curb Weight	N/A lbs
Maximum Payload Capacity	3559.00 lbs
Gross Combined Wt Rating	21100 lbs
Option Weight - Front	0.00 lbs
Total Option Weight	0.00 lbs
As Spec'd Curb Weight	5741.00 lbs
Curb Weight	5741.00 lbs
Gross Vehicle Weight Rating	9300.00 lbs
Curb Weight - Rear	2469 lbs
Curb Weight - Front	3272 lbs
Option Weight - Rear	0.00 lbs
Gross Axle Weight Rating	10600.00 lbs
As Spec'd Payload	3559.00 lbs

Second Head Room	N/A in
Ext'd Cab Cargo Volume	N/A ft³
Front Hip Room	61.22 in
Width, Max w/o mirrors	80.12 in
Second Shoulder Room	N/A in
Second Leg Room	N/A in
Length, Overall w/o rear bumper	224.43 in
Length, Overall w/rear bumper	N/A in
Cargo Box Width @ Wheelhousings	51.03 in
Cargo Box Width @ Top, Rear	N/A in
Front Head Room	42.80 in
Second Hip Room	N/A in
Tailgate Width	N/A in
Wheelbase	133.60 in
Cargo Box (Area) Height	21.22 in
Overhang, Rear w/o bumper	N/A in
Cargo Box Width @ Floor	N/A in
Cab to End of Frame	N/A in
Overhang, Front	N/A in
Height, Overall	77.80 in
Ground Clearance, Rear	8.78 in
Ground to Top of Load Floor	N/A in
Ground Clearance, Front	8.78 in
Front Leg Room	45.27 in
Cargo Box Length @ Floor	97.76 in
Front Shoulder Room	66.03 in
Cargo Volume	76.3 ft³
Length, Overall	N/A in
Passenger Capacity	3

Headlamps, high intensity discharge (HID) projector-beam with GMC signature LED lighting	Standard
Mirrors, outside manual, Black	Standard
Lamps, cargo area, cab mounted with switch on center switch bank	Standard
Capless fuel fill (Requires gas engine and (E63) pickup box.)	Standard
Bumper, rear chrome with bumper CornerSteps (Requires (E63) pickup box.)	Standard
Tailgate and bed rail protection caps, top	Standard
Wheels, 17" (43.2 cm) steel includes 17" x 7.5" (43.2 cm x 19.1 cm) steel spare wheel. Spare not included with (ZW9) pickup box delete unless a spare tire is ordered. (STD)	Standard
Glass, solar absorbing, tinted	Standard
Tire carrier lock keyed cylinder lock that utilizes same key as ignition and door (Not included when (ZW9) pickup box delete or (9J4) rear bumper delete is ordered.)	Standard
Door handles, Black	Standard
Grille surround, chrome	Standard
Wheels, 17" x 7.5" (43.2 cm x 19.1 cm) full-size, steel spare Spare not included with (ZW9) pickup box delete unless a spare tire is ordered. (Requires 17" wheels and tires.)	Standard
Bumper, front chrome	Standard
Tires, LT245/75R17E all-season, blackwall (STD)	Standard
CornerStep, rear bumper (Requires (E63) pickup box.)	Standard
Tailgate, locking, utilizes same key as ignition and door (Not available with (AQQ) Remote Keyless Entry.)	Standard

Seats, front 40/20/40 split-bench, 3-passenger, driver and front passenger recline with outboard head restraints and center fold-down armrest with storage. Vinyl has fixed lumbar and cloth has manually adjustable driver lumbar. (STD)	Standard
Driver Information Center, 3.5-inch diagonal monochromatic display provides warning messages and basic vehicle information	Standard
Instrumentation, 6-gauge cluster featuring speedometer, fuel level, engine temperature, tachometer, voltage and oil pressure	Standard
Cruise control, steering wheel-mounted	Standard
Seat trim, Cloth	Standard
Steering column, manual Tilt-Wheel	Standard
Assist handle, front passenger and driver on A-pillars	Standard
Door locks, power	Standard
Floor covering, Graphite-colored rubberized-vinyl	Standard
Air conditioning, single-zone	Standard
Steering wheel, base	Standard

Pickup box (STD)	Standard
Differential, heavy-duty locking rear	Standard
Cooling, auxiliary external transmission oil cooler	Standard
Battery, heavy-duty 720 cold-cranking amps/80 Amp-hr, maintenance-free with rundown protection and retained accessory power	Standard
Exhaust, aluminized stainless-steel muffler and tailpipe	Standard
Suspension Package, Handling/Trailering, heavy-duty includes 51mm twin tube shock absorbers and 33mm front stabilizer bar (STD)	Standard
Alternator, 150 amps	Standard
Frame, fully-boxed, hydroformed front section	Standard
Steering, Recirculating Ball with smart flow power steering system	Standard
Brakes, 4-wheel antilock, 4-wheel disc with DuraLife brake rotors	Standard
Engine, Vortec 6.0L Variable Valve Timing V8 SFI, E85-compatible, FlexFuel capable of running on unleaded or up to 85% ethanol (360 hp [268.4 kW] @ 5400 rpm, 380 lb-ft of torque [515.0 N-m] @ 4200 rpm (Does not include E85 capability with (ZW9) pickup box delete.) (STD)	Standard
Rear axle, 4.10 ratio (Requires (L96) Vortec 6.0L V8 SFI engine.)	Standard
Recovery hooks, front, frame-mounted, black	Standard
Rear wheel drive	Standard
GVWR, 9300 lbs. (4218 kg) (Requires Regular Cab model, (L96) Vortec 6.0L V8 SFI engine and 2WD.)	Standard
Cargo tie downs (4), movable upper (Requires (E63) pickup box.)	Standard
Transmission, 6-speed automatic, heavy-duty, electronically controlled with overdrive and tow/haul mode. Includes Cruise Grade Braking and Powertrain Grade Braking (STD) (Requires (L96) Vortec 6.0L V8 SFI engine.)	Standard
Air cleaner, high-capacity	Standard
Cooling, external engine oil cooler	Standard

Airbags Double Cab and Regular Cab: Single-stage frontal airbag for driver; Dual-stage front airbag for front outboard passenger; Seat-mounted side-impact airbags for driver and front outboard passenger; Head-curtain airbags for front and rear outboard seating positions; Includes front outboard Passenger Sensing System for frontal outboard passenger airbag (With (ZW9) pickup box delete on Double Cab and Regular Cab you will get the following: Single-stage frontal airbags for driver and front outboard passenger; Seat-mounted side-impact airbags for driver and front outboard passenger; Head-curtain airbags for front and rear outboard seating positions; Includes airbag deactivation switch for front outboard passenger airbag. Always use safety belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information. Regular Cab model does not have rear outboard seating positions.)	Standard
StabiliTrak, stability control system with Proactive Roll Avoidance and traction control includes electronic trailer sway control and hill start assist	Standard
Daytime Running Lamps with automatic exterior lamp control	Standard
Teen Driver mode a configurable feature that lets you activate customizable vehicle settings associated with a key fob, to encourage safe driving behavior. It can limit certain vehicle features, and it prevents certain safety systems from being turned off. An in-vehicle report gives you information on your teen's driving habits and helps you to continue to coach your new driver	Standard
Tire Pressure Monitoring System (does not apply to spare tire)	Standard

Compare trims

Wondering which trim is right for you?

Our 2017 GMC Sierra 2500 trim comparison will help you decide.

Spare Wheel Size	17 x 7.5 in
Rear Wheel Material	Steel
Spare Wheel Material	Steel
Rear Wheel Size	17 x 7.5 in
Front Wheel Size	17 x 7.5 in
Front Wheel Material	Steel

SAE Net Horsepower @ RPM	360 @ 5400
SAE Net Torque @ RPM	380 @ 4200
Engine Oil Cooler	Yes
Engine Type	Gas/Ethanol V8
Displacement	6.0L/366

Axle Type - Front	Independent
Suspension Type - Rear	Multi-Leaf
Axle Type - Rear	Semi Floating
Suspension Type - Front	Torsion Bar

Fuel Tank Capacity, Approx	36.0 gal
Aux Fuel Tank Capacity, Approx	N/A gal

Turning Diameter - Curb to Curb	45.9 ft
Steering Type	Pwr
Turning Diameter - Wall to Wall	N/A ft
Steering Ratio (:1), Overall	N/A

Maximum Alternator Capacity (amps)	150
Cold Cranking Amps @ 0° F (Primary)	720

Front Tire Size	LT245/75R17E
Rear Tire Size	LT245/75R17E
Spare Tire Size	N/A

Audio system feature, 4-speaker system on Regular Cab models	Standard
Audio system, 4.2" Diagonal Color Display, AM/FM stereo with USB port and auxiliary jack (STD) (Upgradeable to (IOB) 7" diagonal color display radio with IntelliLink.)	Standard
