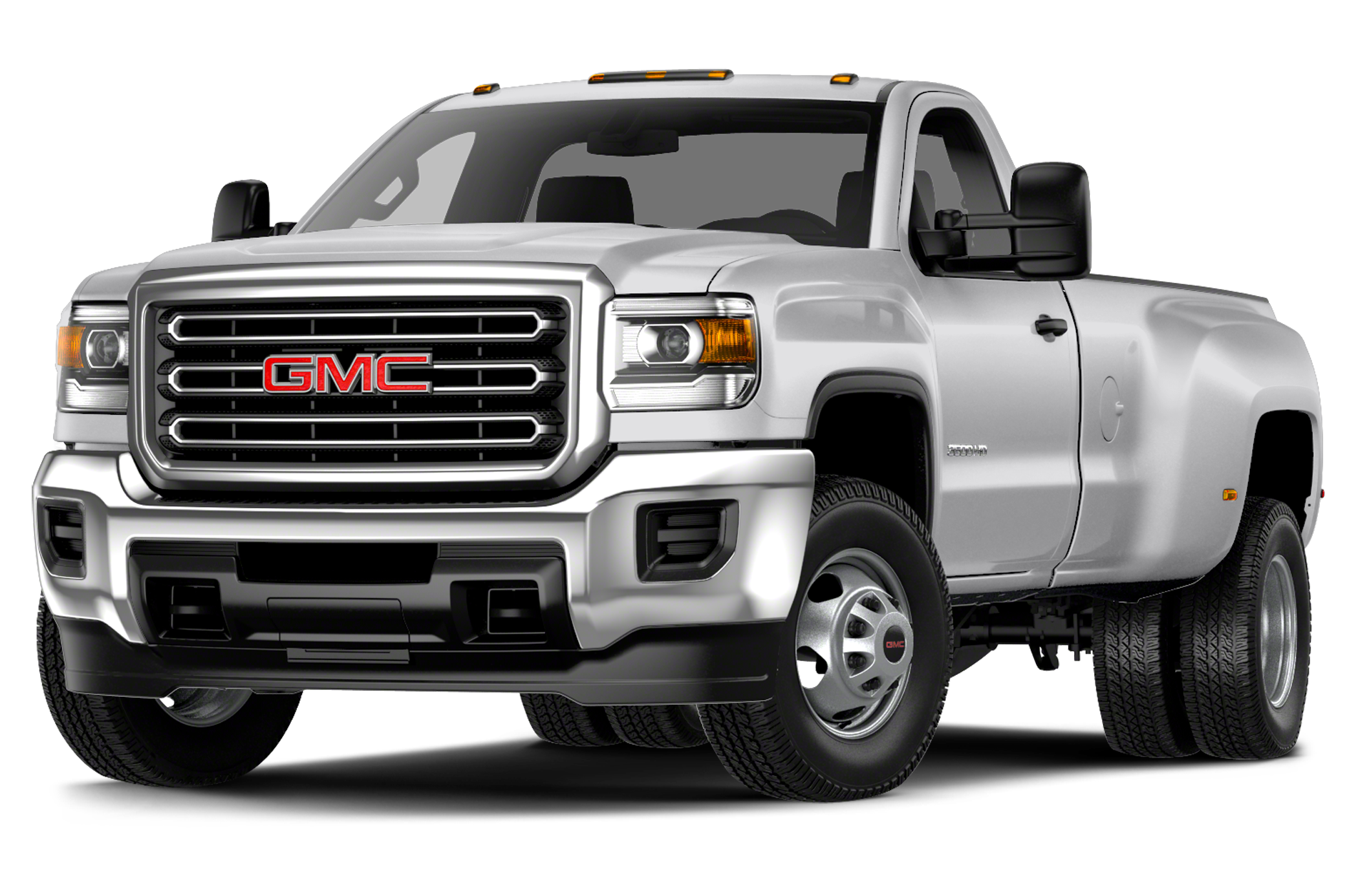

2016 GMC Sierra 3500 specs & colors
Regular Cab Pickup
MSRP
- 2WD Reg Cab 133.6"
- $34,635
- 4WD Reg Cab 133.6"
- $37,590
- 2WD Double Cab 158.1"
- $37,960
- 2WD Crew Cab 153.7"
- $39,195
- 2WD Reg Cab 133.6" SLE
- $39,330
- 2WD Crew Cab 167.7"
- $39,390
- 4WD Double Cab 158.1"
- $40,915
- 4WD Crew Cab 153.7"
- $42,150
- 4WD Crew Cab 167.7"
- $42,345
- 4WD Reg Cab 133.6" SLE
- $42,460
- 2WD Double Cab 158.1" SLE
- $43,080
- 2WD Crew Cab 153.7" SLE
- $45,060
- 2WD Crew Cab 167.7" SLE
- $45,255
- 4WD Double Cab 158.1" SLE
- $46,330
- 2WD Double Cab 158.1" SLT
- $47,875
- 4WD Crew Cab 153.7" SLE
- $48,170
- 4WD Crew Cab 167.7" SLE
- $48,365
- 2WD Crew Cab 153.7" SLT
- $49,820
- 2WD Crew Cab 167.7" SLT
- $50,015
- 4WD Double Cab 158.1" SLT
- $51,025
- 4WD Crew Cab 153.7" SLT
- $52,945
- 4WD Crew Cab 167.7" SLT
- $53,140
- 2WD Crew Cab 153.7" Denali
- $54,575
- 2WD Crew Cab 167.7" Denali
- $54,770
- 4WD Crew Cab 153.7" Denali
- $57,930
- 4WD Crew Cab 167.7" Denali
- $58,125
$34,635
Starting MSRP
Current listing price
Current listing price
Showing the 2016 GMC Sierra 3500 2WD Reg Cab 133.6"
Shop NowKey specs
Color options
Interior
Jet Black / Dark Ash
Jet Black
Packages
$0
Starting MSRP
- includes standard equipment
Specifications
Highlights
|
Gas/Ethanol V8
Engine Type
|
|
-
MPG
|
|
360 hp
397 hp 322 hp 360 hp Horsepower
|
|
3
Seating Capacity
|
Brakes
|
4-Wheel
Brake ABS System
|
|
Pwr
Brake Type
|
|
N/A
Drum - Rear (Yes or )
|
|
N/A
Rear Brake Rotor Diam x Thickness
|
|
N/A
Front Brake Rotor Diam x Thickness
|
|
Yes
Disc - Front (Yes or )
|
|
Yes
Disc - Rear (Yes or )
|
|
N/A
Brake ABS System (Second Line)
|
Electrical
|
150
Maximum Alternator Capacity (amps)
|
|
N/A
Cold Cranking Amps @ 0° F (Primary)
|
Engine
|
380 @ 4200
SAE Net Torque @ RPM
|
|
360 @ 5400
SAE Net Horsepower @ RPM
|
|
6.0L/366
Displacement
|
|
Gas/Ethanol V8
Engine Type
|
|
6-Speed A/T
Transmission Overdrive Switch A/T Transmission Options
|
|
-
MPG
|
|
N/A
Total Cooling System Capacity
|
Measurements
|
N/A
Cargo Box Width @ Top, Rear
|
|
N/A
Cargo Box Width @ Floor
|
|
51 in
Cargo Box Width @ Wheelhousings
|
|
21 in
Cargo Box (Area) Height
|
|
N/A
Tailgate Width
|
|
76 ft³
Cargo Volume
|
|
N/A
Ext'd Cab Cargo Volume
|
|
3
Passenger Capacity
|
|
98 in
Cargo Box Length @ Floor
|
|
8 in
Ground Clearance, Rear
|
|
N/A
Ground Clearance, Front
|
|
39 in
Ground to Top of Load Floor
|
|
N/A
Cab to End of Frame
|
|
N/A
Overhang, Rear w/o bumper
|
|
N/A
Overhang, Front
|
|
78 in
Height, Overall
|
|
80 in
Width, Max w/o mirrors
|
|
N/A
Length, Overall
|
|
N/A
Length, Overall w/rear bumper
|
|
224 in
Length, Overall w/o rear bumper
|
|
134 in
Wheelbase
|
|
N/A
Second Hip Room
|
|
N/A
Second Shoulder Room
|
|
N/A
Second Leg Room
|
|
N/A
Second Head Room
|
|
61 in
Front Hip Room
|
|
66 in
Front Shoulder Room
|
|
45 in
Front Leg Room
|
|
43 in
Front Head Room
|
Safety
|
Standard
Stability Control
|
Steering
|
N/A
Turning Diameter - Wall to Wall
|
|
46 ft
Turning Diameter - Curb to Curb
|
|
N/A
Steering Ratio (:1), Overall
|
|
Pwr Recirculating Ball
Steering Type
|
Suspension
|
Full-Floating
Axle Type - Rear
|
|
Independent
Axle Type - Front
|
|
Multi-Leaf
Suspension Type - Rear
|
|
Independent
Suspension Type - Front
|
Tires & Wheels
|
N/A
Spare Wheel Material
|
|
Steel
Rear Wheel Material
|
|
Steel
Front Wheel Material
|
|
N/A
Spare Wheel Size
|
|
18 x 8.0 in
Rear Wheel Size
|
|
18 x 8.0 in
Front Wheel Size
|
|
N/A
Spare Tire Size
|
|
LT265/70R18E
Rear Tire Size
|
|
LT265/70R18E
Front Tire Size
|
Weight & Capacity
|
11,450 lbs
Gross Axle Weight Rating
|
|
5,959 lbs
Curb Weight
|
|
0 lbs
Total Option Weight
|
|
10,400 lbs
Gross Vehicle Weight Rating
|
|
14,600 lbs
Maximum Trailering Capacity
|
|
3,650 lbs
Fifth Wheel Hitch - Max Tongue Wt.
|
|
14,600 lbs
Fifth Wheel Hitch - Max Trailer Wt.
|
|
1,450 lbs
Wt Distributing Hitch - Max Tongue Wt.
|
|
14,500 lbs
Wt Distributing Hitch - Max Trailer Wt.
|
|
500 lbs
Dead Weight Hitch - Max Tongue Wt.
|
|
5,000 lbs
Dead Weight Hitch - Max Trailer Wt.
|
|
20,500 lbs
Gross Combined Wt Rating
|
|
4,441 lbs
Maximum Payload Capacity
|
|
4,441 lbs
As Spec'd Payload
|
|
5,959 lbs
As Spec'd Curb Weight
|
|
0 lbs
Option Weight - Rear
|
|
0 lbs
Option Weight - Front
|
|
2,734 lbs
Curb Weight - Rear
|
|
3,225 lbs
Curb Weight - Front
|
|
N/A
Base Curb Weight
|
|
N/A
Aux Fuel Tank Capacity, Approx
|
|
36 gal
Fuel Tank Capacity, Approx
|
