2002 GMC Sonoma SL specs & colors
Extended Cab Pickup
MSRP
- Reg Cab 108" WB SL Fleet
- $13,975
- Reg Cab 108" WB SL
- $13,975
- Reg Cab 108" WB SLS
- $15,093
- Reg Cab 108" WB SLS Fleet
- $15,093
- Reg Cab 118" WB SL
- $15,420
- Ext Cab 123" WB SL
- $15,957
- Ext Cab 123" WB SL Fleet
- $15,957
- Reg Cab 118" WB SLS
- $16,538
- Ext Cab 123" WB SLS Fleet
- $17,093
- Ext Cab 123" WB SLS
- $17,093
- Ext Cab 123" WB 4WD SL
- $19,675
- Ext Cab 123" WB 4WD SLS
- $20,793
- Crew Cab 123" WB 4WD SLS
- $24,492
$19,675
Starting MSRP
Current listing price
Current listing price

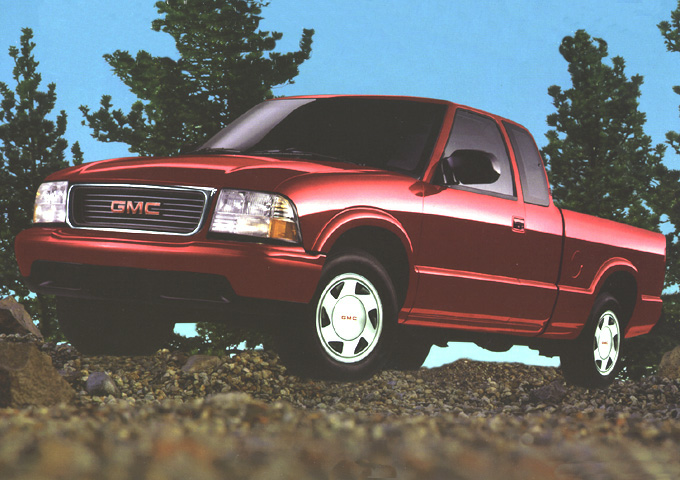

Showing the 2002 GMC Sonoma Ext Cab 123" WB 4WD SL
Shop NowKey specs
Color options
Interior
Light Beige
Graphite
Pewter Gray
Packages
$95
Starting MSRP
- SL decor
Specifications
Highlights
|
Gas V6
Engine Type
|
|
15 City / 20 Hwy
MPG
|
|
190 hp
Horsepower
|
|
4
Seating Capacity
|
Brakes
|
Power
Brake Type
|
|
4-Wheel
Brake ABS System
|
|
Not Available
Brake ABS System (Second Line)
|
|
Yes
Disc - Front (Yes or )
|
|
Yes
Disc - Rear (Yes or )
|
|
10.82 x 1.14 in
Front Brake Rotor Diam x Thickness
|
|
11.6 x 0.79 in
Rear Brake Rotor Diam x Thickness
|
|
Not Available
Drum - Rear (Yes or )
|
Electrical
|
525
Cold Cranking Amps @ 0° F (Primary)
|
|
100
Maximum Alternator Capacity (amps)
|
Engine
|
Gas V6
Engine Type
|
|
4.3L/262
Displacement
|
|
190 @ 4400
SAE Net Horsepower @ RPM
|
|
250 @ 2800
SAE Net Torque @ RPM
|
|
M/T
A/T 5-Speed M/T 4-Speed A/T Transmission Options
|
|
15 City / 20 Hwy
MPG
|
|
12.1 qts
Total Cooling System Capacity
|
Measurements
|
3
Passenger Capacity
|
|
40 in
Front Head Room
|
|
42 in
Front Leg Room
|
|
57 in
Front Shoulder Room
|
|
52 in
Front Hip Room
|
|
N/A
Second Head Room
|
|
N/A
Second Leg Room
|
|
N/A
Second Shoulder Room
|
|
N/A
Second Hip Room
|
|
123 in
Wheelbase
|
|
205 in
Length, Overall w/o rear bumper
|
|
N/A
Length, Overall w/rear bumper
|
|
N/A
Length, Overall
|
|
68 in
Width, Max w/o mirrors
|
|
63 in
Height, Overall
|
|
35 in
Overhang, Front
|
|
47 in
Overhang, Rear w/o bumper
|
|
N/A
Cab to End of Frame
|
|
27 in
Ground to Top of Load Floor
|
|
9 in
Ground Clearance, Front
|
|
8 in
Ground Clearance, Rear
|
|
73 in
Cargo Box Length @ Floor
|
|
57 in
Cargo Box Width @ Top, Rear
|
|
55 in
Cargo Box Width @ Floor
|
|
40 in
Cargo Box Width @ Wheelhousings
|
|
17 in
Cargo Box (Area) Height
|
|
55 in
Tailgate Width
|
|
39 ft³
Cargo Volume
|
|
N/A
Ext'd Cab Cargo Volume
|
Steering
|
Variable Pwr
Steering Type
|
|
N/A
Steering Ratio (:1), Overall
|
|
42 ft
Turning Diameter - Curb to Curb
|
|
N/A
Turning Diameter - Wall to Wall
|
Suspension
|
Torsion Bar
Suspension Type - Front
|
|
2-Stage Multi-Leaf
Suspension Type - Rear
|
|
Independent GM
Axle Type - Front
|
|
Semi-Floating
Axle Type - Rear
|
Tires & Wheels
|
P235/70R15
Front Tire Size
|
|
P235/70R15
Rear Tire Size
|
|
P235/70R15
Spare Tire Size
|
|
15 x 7 in
Front Wheel Size
|
|
15 x 7 in
Rear Wheel Size
|
|
15 x 7 in
Spare Wheel Size
|
|
Steel
Front Wheel Material
|
|
Steel
Rear Wheel Material
|
|
Steel
Spare Wheel Material
|
Weight & Capacity
|
5,150 lbs
Gross Vehicle Weight Rating
|
|
N/A
Base Curb Weight
|
|
2,317 lbs
Curb Weight - Front
|
|
1,435 lbs
Curb Weight - Rear
|
|
0 lbs
Option Weight - Front
|
|
0 lbs
Option Weight - Rear
|
|
3,752 lbs
As Spec'd Curb Weight
|
|
1,398 lbs
As Spec'd Payload
|
|
1,398 lbs
Maximum Payload Capacity
|
|
8,000 lbs
Gross Combined Wt Rating
|
|
4,000 lbs
Dead Weight Hitch - Max Trailer Wt.
|
|
400 lbs
Dead Weight Hitch - Max Tongue Wt.
|
|
5,500 lbs
Wt Distributing Hitch - Max Trailer Wt.
|
|
750 lbs
Wt Distributing Hitch - Max Tongue Wt.
|
|
Not Available lbs
Fifth Wheel Hitch - Max Trailer Wt.
|
|
Not Available lbs
Fifth Wheel Hitch - Max Tongue Wt.
|
|
N/A
Maximum Trailering Capacity
|
|
18 gal
Fuel Tank Capacity, Approx
|
|
Not Available gal
Aux Fuel Tank Capacity, Approx
|
|
5,500 lbs
Gross Axle Weight Rating
|
|
3,752 lbs
Curb Weight
|
|
0 lbs
Total Option Weight
|
