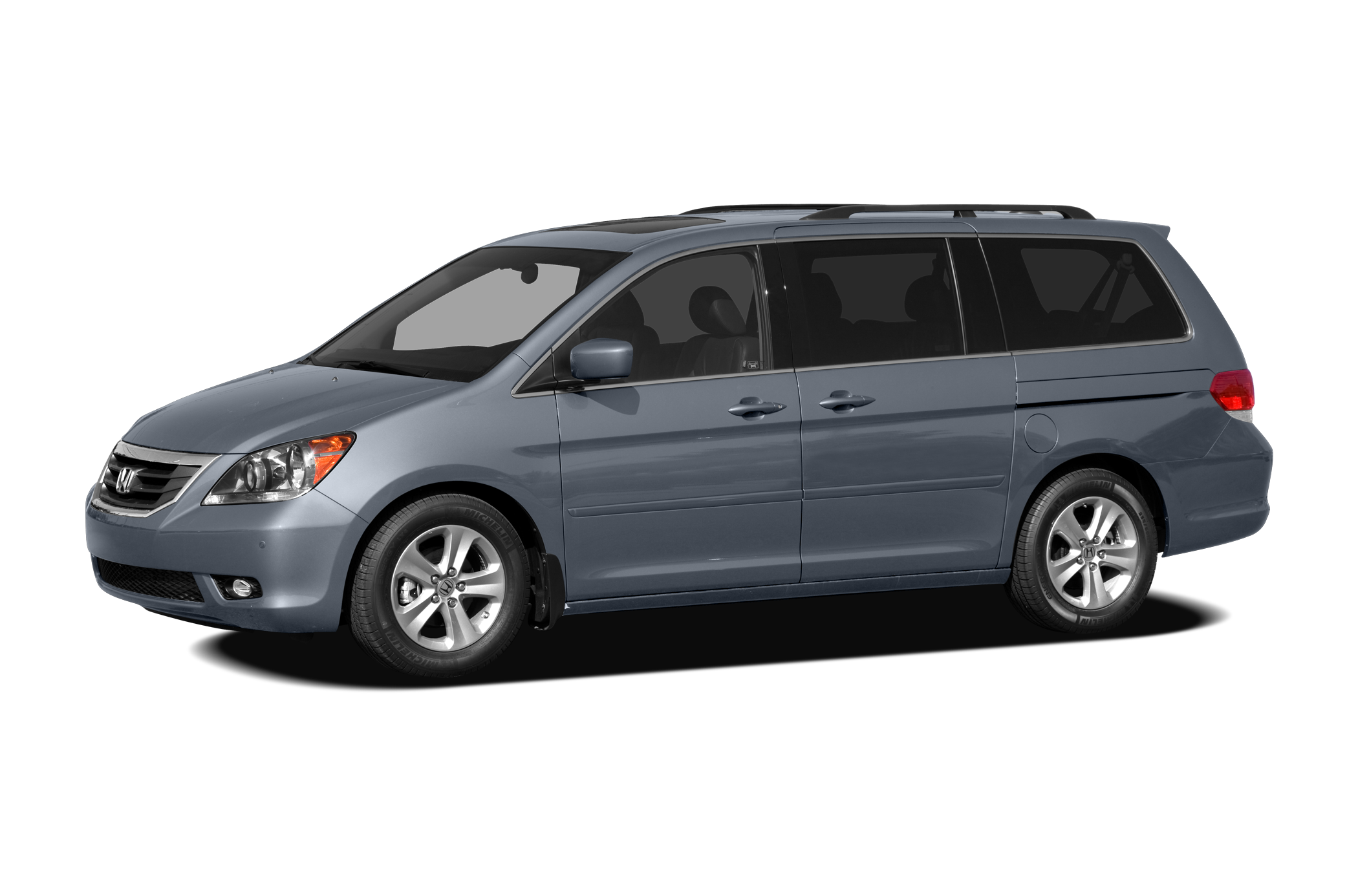

2009 Honda Odyssey LX specs & colors
Mini-van, Passenger
MSRP
- 5dr LX
- $26,355
- 5dr EX
- $29,455
- 5dr EX-L
- $33,155
- 5dr EX-L w/RES
- $34,755
- 5dr EX-L w/RES & Navi
- $36,955
- 5dr Touring
- $40,505
- 5dr Touring w/PAX
- $41,105
Key specs
Color options
Interior
Gray
Ivory
Packages
Specifications
Highlights
|
Gas V6
Engine Type
|
|
16 City / 23 Hwy
MPG
|
|
244 hp
Horsepower
|
|
7
Seating Capacity
|
Brakes
|
11.7 x -TBD- in
Front Brake Rotor Diam x Thickness
|
|
Not Available
Drum - Rear (Yes or )
|
|
12.3 x -TBD- in
Rear Brake Rotor Diam x Thickness
|
|
Pwr
Brake Type
|
|
4-Wheel
Brake ABS System
|
|
Yes
Disc - Front (Yes or )
|
|
Yes
Disc - Rear (Yes or )
|
|
N/A
Brake ABS System (Second Line)
|
Electrical
|
N/A
Cold Cranking Amps @ 0° F (Primary)
|
|
N/A
Maximum Alternator Capacity (amps)
|
Engine
|
Gas V6
Engine Type
|
|
240 @ 5000
SAE Net Torque @ RPM
|
|
244 @ 5750
SAE Net Horsepower @ RPM
|
|
3.5L/212
Displacement
|
|
A/T
5-Speed A/T Transmission Options
|
|
16 City / 23 Hwy
MPG
|
|
10.2 qts
Total Cooling System Capacity
|
Measurements
|
7
Passenger Capacity
|
|
91 ft³
Cargo Volume to Seat 2
|
|
N/A
Cargo Box Width @ Wheelhousings
|
|
49 in
Third Hip Room
|
|
63 in
Second Shoulder Room
|
|
64 in
Second Hip Room
|
|
57 in
Front Hip Room
|
|
N/A
Cargo Area Length @ Floor to Seat 1
|
|
67 in
Track Width, Rear
|
|
N/A
Trunk Volume
|
|
41 in
Front Leg Room
|
|
40 in
Second Leg Room
|
|
38 ft³
Cargo Volume to Seat 3
|
|
202 in
Length, Overall
|
|
N/A
Cargo Box (Area) Height
|
|
171 ft³
Passenger Volume
|
|
118 in
Wheelbase
|
|
40 in
Second Head Room
|
|
41 in
Front Head Room
|
|
N/A
Cargo Area Width @ Beltline
|
|
N/A
Cargo Area Length @ Floor to Seat 2
|
|
69 in
Height, Overall
|
|
N/A
Min Ground Clearance
|
|
61 in
Third Shoulder Room
|
|
N/A
Rear Door Opening Width
|
|
64 in
Front Shoulder Room
|
|
38 in
Third Head Room
|
|
147 ft³
Cargo Volume to Seat 1
|
|
N/A
Cargo Area Length @ Floor to Seat 3
|
|
N/A
Liftover Height
|
|
N/A
Rear Door Opening Height
|
|
67 in
Track Width, Front
|
|
41 in
Third Leg Room
|
|
77 in
Width, Max w/o mirrors
|
Safety
|
Standard
Stability Control
|
|
Standard
Brake Assist
|
Steering
|
3
Lock to Lock Turns (Steering)
|
|
37 ft
Turning Diameter - Curb to Curb
|
|
16
Steering Ratio (:1), Overall
|
|
N/A
Turning Diameter - Wall to Wall
|
|
Pwr Rack & Pinion
Steering Type
|
Suspension
|
Multi-link
Suspension Type - Rear (Cont.)
|
|
Double Wishbone
Suspension Type - Rear
|
|
Not Available
Suspension Type - Front (Cont.)
|
|
MacPherson Strut
Suspension Type - Front
|
Tires & Wheels
|
P235/65TR16
Front Tire Size
|
|
Compact
Spare Tire Size
|
|
Steel
Spare Wheel Material
|
|
Compact in
Spare Wheel Size
|
|
16 x -TBD- in
Front Wheel Size
|
|
16 x -TBD- in
Rear Wheel Size
|
|
Steel
Front Wheel Material
|
|
Steel
Rear Wheel Material
|
|
P235/6T5R16
Rear Tire Size
|
Weight & Capacity
|
3,500 lbs
Wt Distributing Hitch - Max Trailer Wt.
|
|
4,387 lbs
Base Curb Weight
|
|
350 lbs
Dead Weight Hitch - Max Tongue Wt.
|
|
350 lbs
Wt Distributing Hitch - Max Tongue Wt.
|
|
21 gal
Fuel Tank Capacity, Approx
|
|
3,500 lbs
Dead Weight Hitch - Max Trailer Wt.
|
|
N/A
Aux Fuel Tank Capacity, Approx
|
