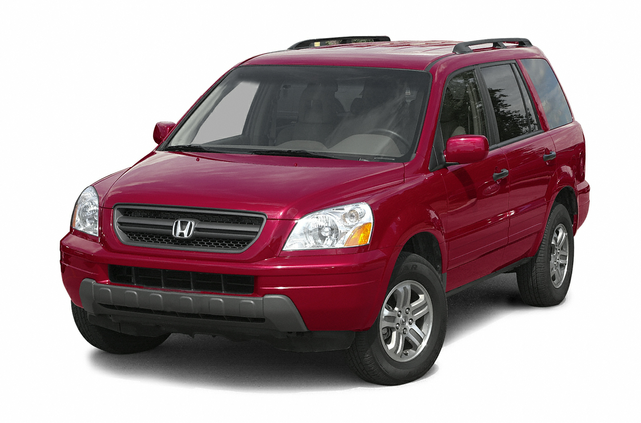

2003 Honda Pilot LX specs & colors
Sport Utility
MSRP
- 4WD LX Auto
- $26,900
- 4WD EX Auto
- $29,270
- 4WD EX Auto w/Leather
- $30,520
- 4WD EX Auto w/Leather/DVD
- $32,020
- 4WD EX Auto w/Leather/Nav
- $32,520
Key specs
Color options
Interior
Fern
Light Gray / Gray
Gray
Packages
Specifications
Highlights
|
Gas V6
Engine Type
|
|
17 City / 22 Hwy
MPG
|
|
240 hp
Horsepower
|
|
8
Seating Capacity
|
Brakes
|
N/A
Brake ABS System (Second Line)
|
|
Pwr
Brake Type
|
|
Yes
Disc - Rear (Yes or )
|
|
Yes
Disc - Front (Yes or )
|
|
Not Available
Drum - Rear (Yes or )
|
|
4-Wheel
Brake ABS System
|
|
11.8 x -TBD- in
Front Brake Rotor Diam x Thickness
|
|
12.3 x -TBD- in
Rear Brake Rotor Diam x Thickness
|
Electrical
|
N/A
Maximum Alternator Capacity (amps)
|
|
N/A
Cold Cranking Amps @ 0° F (Primary)
|
Engine
|
242 @ 4500
SAE Net Torque @ RPM
|
|
Gas V6
Engine Type
|
|
240 @ 5400
SAE Net Horsepower @ RPM
|
|
3.5L/214
Displacement
|
|
A/T
5-Speed A/T Transmission Options
|
|
17 City / 22 Hwy
MPG
|
|
8.9 qts
Total Cooling System Capacity
|
Measurements
|
41 in
Front Leg Room
|
|
49 in
Third Hip Room
|
|
106 in
Wheelbase
|
|
59 in
Third Shoulder Room
|
|
37 in
Second Leg Room
|
|
N/A
Cargo Area Length @ Floor to Seat 2
|
|
77 in
Width, Max w/o mirrors
|
|
N/A
Cargo Area Width @ Beltline
|
|
N/A
Liftover Height
|
|
8
Passenger Capacity
|
|
N/A
Cargo Box (Area) Height
|
|
188 in
Length, Overall
|
|
N/A
Cargo Area Length @ Floor to Seat 1
|
|
N/A
Rear Door Opening Width
|
|
171 ft³
Passenger Volume
|
|
90 ft³
Cargo Volume to Seat 1
|
|
30 in
Third Leg Room
|
|
N/A
Cargo Area Length @ Floor to Seat 3
|
|
61 in
Second Shoulder Room
|
|
57 in
Second Hip Room
|
|
39 in
Third Head Room
|
|
42 in
Front Head Room
|
|
66 in
Track Width, Front
|
|
71 in
Height, Overall
|
|
49 ft³
Cargo Volume to Seat 2
|
|
N/A
Rear Door Opening Height
|
|
41 in
Second Head Room
|
|
67 in
Track Width, Rear
|
|
8 in
Min Ground Clearance
|
|
16 ft³
Cargo Volume to Seat 3
|
|
62 in
Front Shoulder Room
|
|
N/A
Trunk Volume
|
|
58 in
Front Hip Room
|
|
N/A
Cargo Box Width @ Wheelhousings
|
Steering
|
Variable Pwr
Steering Type
|
|
17
Steering Ratio (:1), Overall
|
|
3
Lock to Lock Turns (Steering)
|
|
N/A
Turning Diameter - Wall to Wall
|
|
38 ft
Turning Diameter - Curb to Curb
|
Suspension
|
Independent Strut
Suspension Type - Front
|
|
w/Trailing Arm
Suspension Type - Rear (Cont.)
|
|
Not Available
Suspension Type - Front (Cont.)
|
|
Independent Multilink
Suspension Type - Rear
|
Tires & Wheels
|
N/A
Spare Tire Size
|
|
N/A
Spare Wheel Material
|
|
N/A
Spare Wheel Size
|
|
Steel
Rear Wheel Material
|
|
P235/70R16
Front Tire Size
|
|
P235/70R16
Rear Tire Size
|
|
16 x -TBD- in
Rear Wheel Size
|
|
16 x -TBD- in
Front Wheel Size
|
|
Steel
Front Wheel Material
|
Weight & Capacity
|
N/A
Wt Distributing Hitch - Max Trailer Wt.
|
|
4,500 lbs
Dead Weight Hitch - Max Trailer Wt.
|
|
4,416 lbs
Base Curb Weight
|
|
19 gal
Fuel Tank Capacity, Approx
|
|
N/A
Aux Fuel Tank Capacity, Approx
|
|
450 lbs
Dead Weight Hitch - Max Tongue Wt.
|
|
N/A
Wt Distributing Hitch - Max Tongue Wt.
|
