2010 Honda Pilot LX specs & colors

$27,895
Starting MSRP
Current listing price

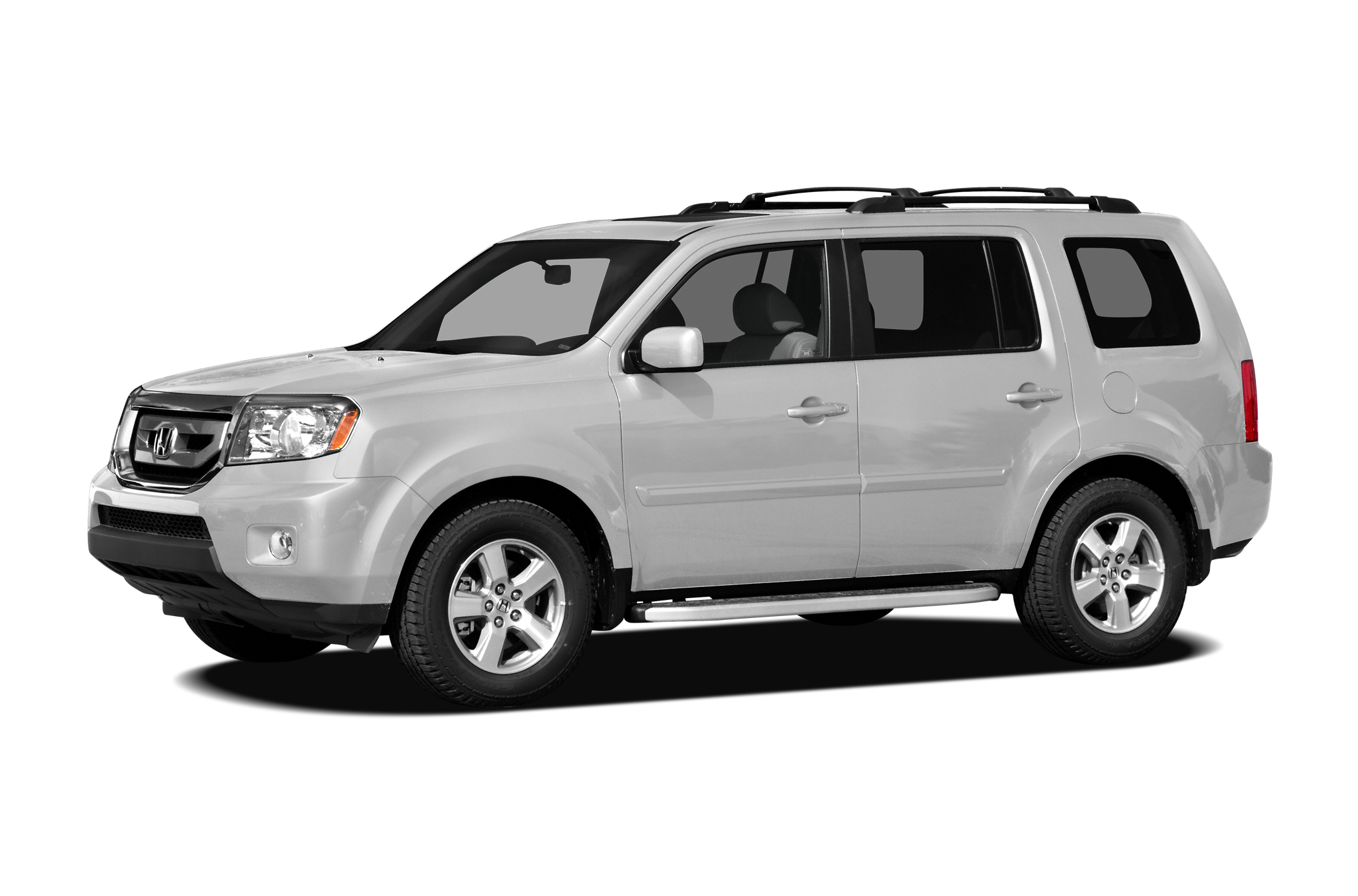

Showing the 2010 Honda Pilot 2WD 4dr LX

Shop Now

Key specs

Color options

Interior

Vanilla / Blue


Black


Gray


Beige


Packages

Specifications

EPA Classification 2WD Sport Utility Vehicle

Front Wheel Size 17 x -TBD- in
Rear Wheel Size 17 x -TBD- in
Spare Wheel Size Compact in
Front Wheel Material Steel
Rear Wheel Material Steel
Spare Wheel Material Steel

Cold Cranking Amps @ 0° F (Primary) N/A
Maximum Alternator Capacity (amps) N/A

Engine Type Gas V6
Displacement 3.5L/212
SAE Net Horsepower @ RPM 250 @ 5700
SAE Net Torque @ RPM 253 @ 4800

EPA Fuel Economy Est - Hwy 23 MPG
Cruising Range - City 357.00 mi
EPA Fuel Economy Est - City 17 MPG
Fuel Economy Est-Combined 19 MPG
Cruising Range - Hwy 483.00 mi
EPA MPG Equivalent - City N/A
EPA MPG Equivalent - Hwy N/A
EPA MPG Equivalent - Combined N/A
Estimated Battery Range N/A mi

Drivetrain Front Wheel Drive
Trans Type 5
Trans Description Cont. Automatic w/OD
Trans Description Cont. Again Not Available
First Gear Ratio (:1) 2.70
Second Gear Ratio (:1) 1.61
Third Gear Ratio (:1) 1.07
Fourth Gear Ratio (:1) 0.77
Fifth Gear Ratio (:1) 0.61
Reverse Ratio (:1) 1.89
Final Drive Axle Ratio (:1) 4.31

Suspension Type - Front MacPherson Strut
Suspension Type - Rear Multi-link
Suspension Type - Front (Cont.) Not Available
Suspension Type - Rear (Cont.) w/Trailing Arms

Brake Type Pwr
Brake ABS System 4-Wheel
Brake ABS System (Second Line) N/A
Disc - Front (Yes or ) Yes
Disc - Rear (Yes or ) Yes
Front Brake Rotor Diam x Thickness 13.0 x -TBD- in
Rear Brake Rotor Diam x Thickness 13.1 x -TBD- in
Drum - Rear (Yes or ) Not Available

Fuel Tank Capacity, Approx 21.0 gal
Aux Fuel Tank Capacity, Approx N/A gal

Steering Type Pwr Rack & Pinion
Steering Ratio (:1), Overall 19.0
Lock to Lock Turns (Steering) 3.69
Turning Diameter - Curb to Curb 38.6 ft
Turning Diameter - Wall to Wall N/A ft

Front Tire Size P245/65R17
Rear Tire Size P245/65R17
Spare Tire Size Compact

Dead Weight Hitch - Max Trailer Wt. 3500 lbs
Dead Weight Hitch - Max Tongue Wt. 350 lbs
Wt Distributing Hitch - Max Trailer Wt. 3500 lbs
Wt Distributing Hitch - Max Tongue Wt. 350 lbs

Base Curb Weight 4319 lbs

Passenger Capacity 8
Passenger Volume 153.7 ft³
Front Head Room 40.0 in
Front Leg Room 41.4 in
Front Shoulder Room 61.5 in
Front Hip Room 58.6 in
Second Head Room 39.8 in
Second Leg Room 38.5 in
Second Shoulder Room 62.2 in
Second Hip Room 56.9 in
Third Head Room 38.2 in
Third Leg Room 32.1 in
Third Shoulder Room 58.9 in
Third Hip Room 48.4 in
Wheelbase 109.2 in
Length, Overall 190.9 in
Width, Max w/o mirrors 78.5 in
Height, Overall 71.0 in
Track Width, Front 67.7 in
Track Width, Rear 67.5 in
Min Ground Clearance 8.0 in
Rear Door Opening Height N/A in
Rear Door Opening Width N/A in
Cargo Area Length @ Floor to Seat 1 N/A in
Cargo Area Length @ Floor to Seat 2 N/A in
Cargo Area Length @ Floor to Seat 3 N/A in
Cargo Area Width @ Beltline N/A in
Cargo Box Width @ Wheelhousings Not Available in
Cargo Box (Area) Height Not Available in
Liftover Height Not Available in
Cargo Volume to Seat 1 87.0 ft³
Cargo Volume to Seat 2 47.7 ft³
Cargo Volume to Seat 3 18.0 ft³
Trunk Volume N/A ft³

Courtesy door lights Standard
Front seat adjustable active head restraints Standard
Front & rear air conditioning -inc: air-filtration system Standard
Maintenance Minder system Standard
Pwr windows w/dual front auto-up/down Standard
Tilt & telescoping steering column Standard
17" steel wheels Standard
AM/FM stereo w/CD player -inc: (6) speakers, subwoofer, MP3/WMA playback, aux input jack, radio data system, speed-sensitive volume control Standard
4-wheel anti-lock braking system (ABS) w/electronic brake distribution (EBD) Standard
Child-proof rear door locks Standard
P245/65R17 all-season tires Standard
Pwr door & tailgate locks Standard
Hill start assist Standard
Warning lights -inc: low-fuel, low-oil pressure, door/tailgate open, passenger airbags status, vehicle stability assist Standard
Illuminated steering wheel-mounted cruise controls Standard
Black body side molding Standard
Vehicle Stability Assist (VSA) w/traction control Standard
Multifunctional center console Standard
Drive-by-wire throttle Standard
Dual front dual-stage, dual-threshold airbags Standard
Integrated glass antenna Standard
Side curtain airbags on all rows w/rollover sensor Standard
Pwr ventilated front/solid rear disc brakes Standard
Remote keyless entry Standard
8-passenger seating Standard
2nd & 3rd row 3-point seat belts Standard
Instrumentation -inc: digital odometer, (2) digital trip meters, trip computer, miles-to-empty indicator, compass Standard
Rear seat heater ducts Standard
Variable pwr rack & pinion steering Standard
2nd row 60/40 split reclining, sliding, flat-folding bench seat Standard
Heavy duty pwr steering fluid cooler Standard
Cruise control Standard
Advanced Compatibility Engineering (ACE) body structure Standard
Cloth front bucket seats -inc: 6-way manual seat adjusters Standard
3rd row 60/40 split flat-folding bench seat Standard
(3) 12V aux pwr outlets Standard
Remote fuel filler door release Standard
Heavy-duty automatic transmission fluid cooler Standard
Head restraints at all seating positions Standard
Upper & lower front row seatback pockets Standard
Front 3-point seat belts -inc: automatic tensioning system, adjustable anchors Standard
Side-impact door beams Standard
Ambient console lighting Standard
Immobilizer theft-deterrent system Standard
Tailgate w/lift-up glass hatch Standard
Heat-rejecting green-tinted glass Standard
Rear window defroster w/timer Standard
3rd row child seat tether anchors Standard
Active control engine mount system (ACM) Standard
Sliding sunvisor extensions Standard
Intermittent rear window wiper/washer Standard
Map lights on all rows Standard
Variable intermittent windshield wipers Standard
Front wheel drive Standard
Daytime running lights Standard
Multi-link rear suspension w/trailing arms Standard
Integrated class III trailer hitch w/trailer harness pre-wiring Standard
3.5L SOHC MPFI 24-valve i-VTEC V6 engine Standard
Pwr mirrors Standard
2nd & 3rd row lower anchors & tethers for children (LATCH) Standard
Tire pressure monitoring system -inc: location indicators Standard
Dual illuminated visor vanity mirrors Standard
Variable Cylinder Management (VCM) Standard
Multi-reflector halogen headlights w/auto-on/off Standard
MacPherson strut front suspension Standard
Brake assist Standard
Compact spare tire Standard
Sunglasses holder Standard
Front & rear splash guards Standard
Floor mats Standard
Unit-body construction Standard
Front & rear stabilizer bars Standard
Active Noise Cancellation (ANC) Standard
Rear hidden storage compartment Standard
(12) cup holders Standard
Cargo area -inc: cargo net, cargo light, (4) tie-down anchors, bag hooks Standard
5-speed automatic transmission w/OD Standard
Dual front side-impact airbags w/passenger-side occupant position detection system Standard
Rear privacy glass Standard
