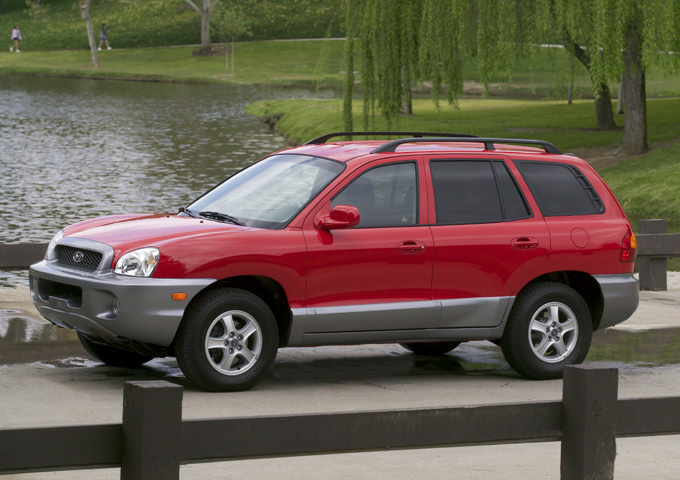

2004 Hyundai SANTA FE LX specs & colors
Sport Utility
MSRP
- 4dr 2WD Manual 2.4L I4
- $17,999
- 4dr 2WD Auto 2.4L I4
- $18,799
- 4dr GLS 2WD Auto 2.7L V6
- $20,999
- 4dr GLS 2WD Auto 3.5L V6
- $21,999
- 4dr GLS 4WD Auto 2.7L V6
- $22,499
- 4dr GLS 4WD Auto 3.5L V6
- $23,499
- 4dr LX 2WD Auto 3.5L V6
- $23,999
- 4dr LX 4WD Auto 3.5L V6
- $25,499
$23,999
Starting MSRP
Current listing price
Current listing price
Showing the 2004 Hyundai SANTA FE 4dr LX 2WD Auto 3.5L V6
Shop NowKey specs
Color options
Interior
Beige
Gray
Packages
$595
Starting MSRP
- pwr sliding glass sunroof
$0
Starting MSRP
- base vehicle only
Specifications
Highlights
|
GAS V6
Engine Type
|
|
16 City / 22 Hwy
MPG
|
|
200 hp
Horsepower
|
|
5
Seating Capacity
|
Brakes
|
11.2 x 0.39 in
Rear Brake Rotor Diam x Thickness
|
|
Yes
Disc - Front (Yes or )
|
|
N/A
Brake ABS System (Second Line)
|
|
Not Available
Drum - Rear (Yes or )
|
|
4-Wheel
Brake ABS System
|
|
Pwr
Brake Type
|
|
11.65 x 1.02 in
Front Brake Rotor Diam x Thickness
|
|
Yes
Disc - Rear (Yes or )
|
Electrical
|
120
Maximum Alternator Capacity (amps)
|
|
N/A
Cold Cranking Amps @ 0° F (Primary)
|
Engine
|
200 @ 5500
SAE Net Horsepower @ RPM
|
|
219 @ 3500
SAE Net Torque @ RPM
|
|
3.5L/212
Displacement
|
|
GAS V6
Engine Type
|
|
A/T
Transmission w/Dual Shift Mode 5-Speed A/T Transmission Options
|
|
16 City / 22 Hwy
MPG
|
|
8.7 qts
Total Cooling System Capacity
|
Measurements
|
N/A
Cargo Area Length @ Floor to Seat 3
|
|
78 in
Cargo Area Length @ Floor to Seat 1
|
|
37 in
Second Leg Room
|
|
42 in
Front Leg Room
|
|
N/A
Rear Door Opening Height
|
|
66 in
Height, Overall
|
|
31 in
Cargo Area Length @ Floor to Seat 2
|
|
103 in
Wheelbase
|
|
39 in
Second Head Room
|
|
31 ft³
Cargo Volume to Seat 2
|
|
61 in
Track Width, Front
|
|
5
Passenger Capacity
|
|
N/A
Cargo Area Width @ Beltline
|
|
N/A
Cargo Box Width @ Wheelhousings
|
|
177 in
Length, Overall
|
|
N/A
Trunk Volume
|
|
54 in
Front Hip Room
|
|
40 in
Front Head Room
|
|
N/A
Rear Door Opening Width
|
|
56 in
Front Shoulder Room
|
|
Not Available ft³
Cargo Volume to Seat 3
|
|
101 ft³
Passenger Volume
|
|
N/A
Cargo Box (Area) Height
|
|
73 in
Width, Max w/o mirrors
|
|
61 in
Track Width, Rear
|
|
78 ft³
Cargo Volume to Seat 1
|
|
54 in
Second Hip Room
|
|
N/A
Liftover Height
|
|
57 in
Second Shoulder Room
|
|
8 in
Min Ground Clearance
|
Steering
|
19
Steering Ratio (:1), Overall
|
|
Pwr Rack & Pinion
Steering Type
|
|
3
Lock to Lock Turns (Steering)
|
|
N/A
Turning Diameter - Wall to Wall
|
|
37 ft
Turning Diameter - Curb to Curb
|
Suspension
|
Independent
Suspension Type - Rear
|
|
Independent
Suspension Type - Front
|
|
MacPherson Strut
Suspension Type - Front (Cont.)
|
|
Multi-Link
Suspension Type - Rear (Cont.)
|
Tires & Wheels
|
Aluminum
Front Wheel Material
|
|
P225/70R16
Spare Tire Size
|
|
Aluminum
Rear Wheel Material
|
|
P225/70R16
Rear Tire Size
|
|
P225/70R16
Front Tire Size
|
|
16.0 x 6.5 in
Front Wheel Size
|
|
Aluminum
Spare Wheel Material
|
|
16.0 x 6.5 in
Spare Wheel Size
|
|
16.0 x 6.5 in
Rear Wheel Size
|
Weight & Capacity
|
Not Available lbs
Wt Distributing Hitch - Max Tongue Wt.
|
|
Not Available lbs
Wt Distributing Hitch - Max Trailer Wt.
|
|
17 gal
Fuel Tank Capacity, Approx
|
|
1,500 lbs
Dead Weight Hitch - Max Trailer Wt.
|
|
150 lbs
Dead Weight Hitch - Max Tongue Wt.
|
|
3,737 lbs
Base Curb Weight
|
|
N/A
Aux Fuel Tank Capacity, Approx
|
