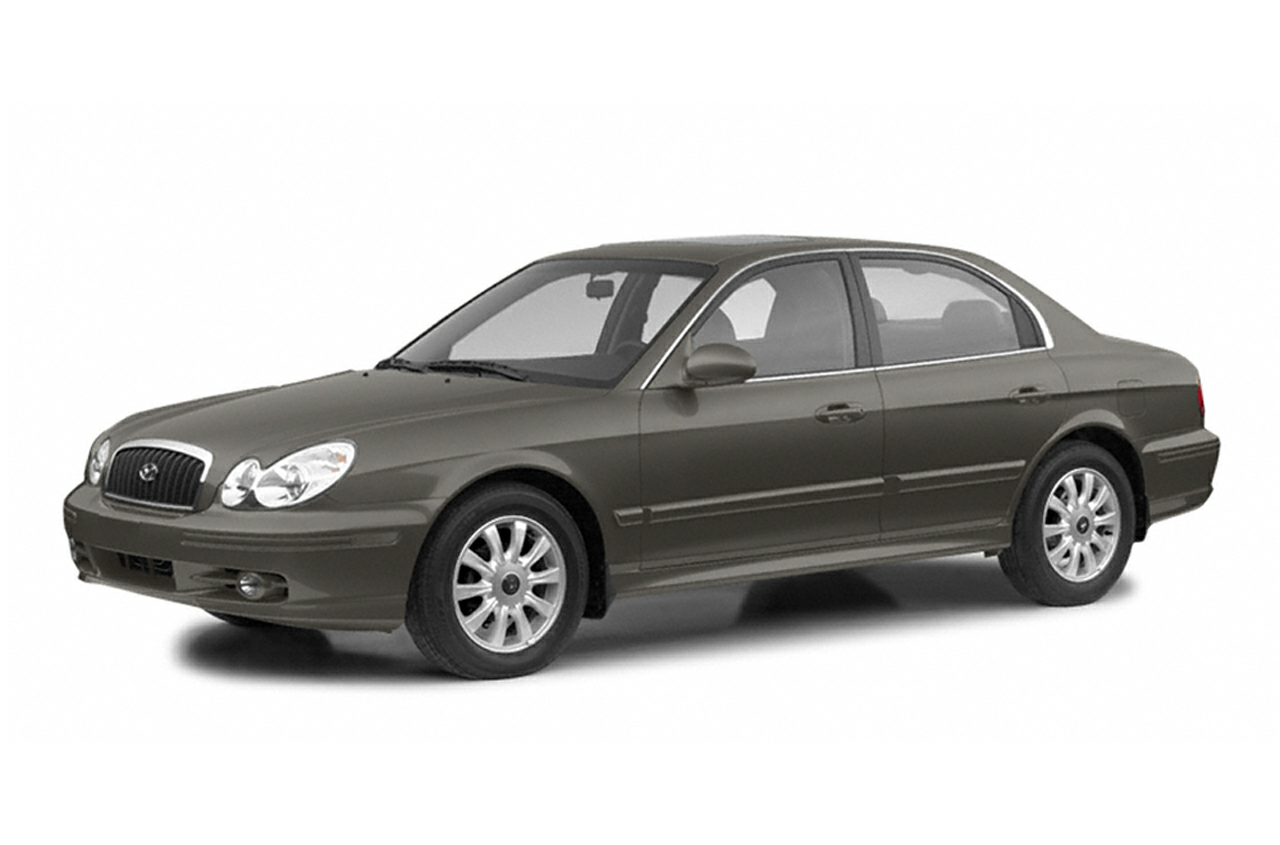

2003 Hyundai Sonata specs & colors

$15,499
Starting MSRP
Current listing price

Showing the 2003 Hyundai Sonata 4dr Sdn I4 Manual

Shop Now

Key specs

Color options

Interior

Beige


Black


Packages

$550

Starting MSRP

  • anti-lock braking system (ABS)

$0

Starting MSRP

  • base vehicle only

Specifications

EPA Classification Mid-Size

Front Wheel Size 15 x 6.0 in
Rear Wheel Size 15 x 6.0 in
Spare Wheel Size N/A in
Front Wheel Material Steel
Rear Wheel Material Steel
Spare Wheel Material Steel

Cold Cranking Amps @ 0° F (Primary) N/A
Maximum Alternator Capacity (amps) 95

Engine Type Gas I4
Displacement 2.4L/143
SAE Net Horsepower @ RPM 138 @ 5500
SAE Net Torque @ RPM 147 @ 3000

EPA Fuel Economy Est - Hwy 30 MPG
Cruising Range - City 378.40 mi
EPA Fuel Economy Est - City 22 MPG
Fuel Economy Est-Combined N/A MPG
Cruising Range - Hwy 516.00 mi
EPA MPG Equivalent - City N/A
EPA MPG Equivalent - Hwy N/A
EPA MPG Equivalent - Combined N/A
Estimated Battery Range N/A mi

Drivetrain Front Wheel Drive
Trans Type 5
Trans Description Cont. Manual w/OD
Trans Description Cont. Again Not Available
First Gear Ratio (:1) 3.46
Second Gear Ratio (:1) 1.95
Third Gear Ratio (:1) 1.30
Fourth Gear Ratio (:1) 0.94
Fifth Gear Ratio (:1) 0.78
Reverse Ratio (:1) 3.46
Final Drive Axle Ratio (:1) 3.88

Suspension Type - Front Independent
Suspension Type - Rear Independent
Suspension Type - Front (Cont.) Double-wishbone
Suspension Type - Rear (Cont.) Multi-Link

Brake Type Pwr-Assisted
Brake ABS System Not Available
Brake ABS System (Second Line) N/A
Disc - Front (Yes or ) Yes
Disc - Rear (Yes or ) Not Available
Front Brake Rotor Diam x Thickness 10.1 x -TBD- in
Rear Brake Rotor Diam x Thickness Not Available in
Drum - Rear (Yes or ) Yes

Fuel Tank Capacity, Approx 17.2 gal
Aux Fuel Tank Capacity, Approx N/A gal

Steering Type Pwr Rack & Pinion
Steering Ratio (:1), Overall 14.1
Lock to Lock Turns (Steering) 2.92
Turning Diameter - Curb to Curb 34.4 ft
Turning Diameter - Wall to Wall N/A ft

Front Tire Size P205/65HR15
Rear Tire Size P205/65HR15
Spare Tire Size Compact

Dead Weight Hitch - Max Trailer Wt. 2000 lbs
Dead Weight Hitch - Max Tongue Wt. 200 lbs
Wt Distributing Hitch - Max Trailer Wt. Not Available lbs
Wt Distributing Hitch - Max Tongue Wt. Not Available lbs

Base Curb Weight 3181 lbs

Passenger Capacity 5
Passenger Volume 100.0 ft³
Front Head Room 39.3 in
Front Leg Room 43.3 in
Front Shoulder Room 56.9 in
Front Hip Room 55.8 in
Second Head Room 37.6 in
Second Leg Room 36.2 in
Second Shoulder Room 55.7 in
Second Hip Room 54.4 in
Wheelbase 106.3 in
Length, Overall 186.9 in
Width, Max w/o mirrors 71.7 in
Height, Overall 56.0 in
Track Width, Front 60.6 in
Track Width, Rear 60.2 in
Min Ground Clearance N/A in
Liftover Height N/A in
Trunk Volume 14.1 ft³

Pwr windows w/driver side auto-down Standard
Cargo area lamp Standard
Chrome grille w/black slats Standard
60/40 split folding rear seat w/folding center armrest Standard
Driver side sunvisor w/illuminated vanity mirror Standard
Gauges-inc: tachometer, coolant temp, trip odometer Standard
5-mph bumpers Standard
Front passenger side 3-point ELR/ALR seatbelt Standard
Cruise control Standard
5-mph body-color bumpers Standard
ETR AM/FM stereo w/compact disc w/6-speakers Standard
Color-keyed 4-spoke steering wheel w/adjustable tilt Standard
Front fog lights Standard
Full cut pile carpeting Standard
Air conditioning Standard
17.2 gallon fuel tank Standard
15" x 6" steel wheels w/full wheel covers Standard
Remote releases-inc: hood, fuel & trunk door w/lockout feature Standard
Tinted glass Standard
Dual coat hooks Standard
Rear child safety door locks Standard
(3) rear 3-point ELR/ALR seat belts Standard
Warning lights-inc: low fuel, trunk ajar, low fuel indicator Standard
Digital quartz clock Standard
Multi-link rear suspension Standard
Front/rear stabilizer bars Standard
Carpet cargo floor & side trim Standard
Fixed mast antenna Standard
P205/65HR15 all-season SBR Michelin tires Standard
Front seat belts w/height adjustable anchors, belt pretensioners w/force limiters Standard
Dual body-color pwr exterior mirrors Standard
Aerodynamic halogen headlamps Standard
12-volt pwr accessory outlets mounted on center console & in trunk Standard
Driver & front passenger front & side impact airbags w/passenger presence detection system Standard
Front/rear assist grips Standard
Cloth insert door trim Standard
Pwr-assisted speed sensitive rack & pinion steering Standard
Speed sensitive variable intermittent windshield wipers w/washers Standard
Front door map pockets Standard
(3) child safety seat anchors Standard
Front driver side 3-point ELR seatbelt Standard
Rear seat heater ducts Standard
Front wheel drive Standard
Full cloth seat trim Standard
Dual front cup holders in console Standard
5-speed manual transmission w/OD Standard
Double-wishbone front suspension Standard
Body-color body-side moldings w/chrome inserts Standard
Remote keyless entry system w/alarm Standard
2.4L (143) MPFI DOHC 16-valve 4-cyl I4 engine Standard
Rear seatback storage pockets Standard
Pwr front disc/rear drum brakes Standard
Delay out interior lamps Standard
Pwr door locks Standard
Body-color door handles Standard
Rear window defroster w/timer Standard
Center console w/armrest & storage Standard
City 22/hwy 30 (2.4L engine/5-speed manual trans) Standard
Glove box Standard
Reclining front bucket seats w/driver side adjustable lumbar support, adjustable headrests Standard
