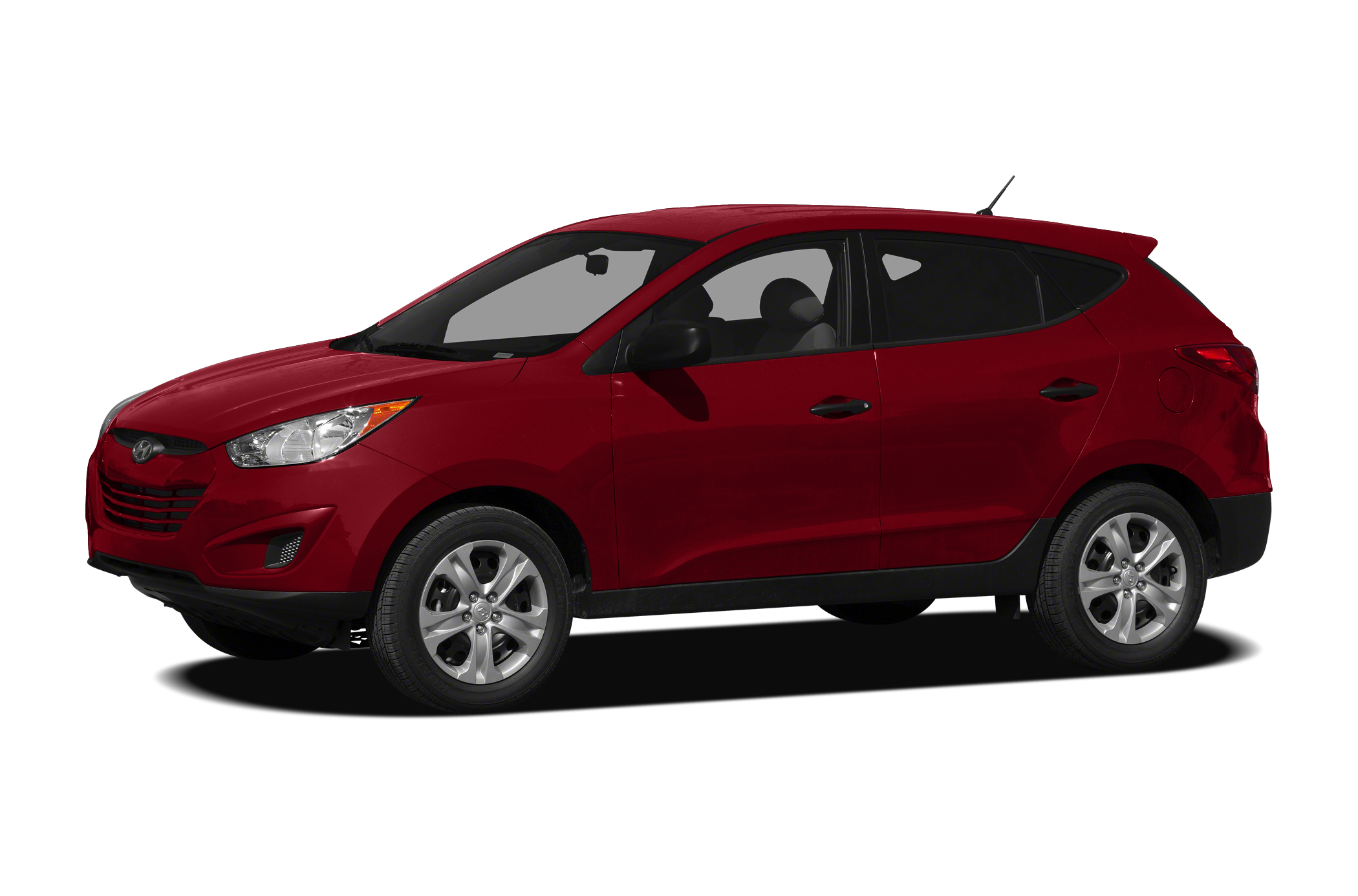

2010 Hyundai Tucson GLS specs & colors

Starting MSRP
Current listing price

Showing the 2010 Hyundai Tucson FWD 4dr I4 Man GLS

Shop Now

Key specs

Color options






Starting MSRP

  • base vehicle only


EPA Classification 2WD Sport Utility

Front Wheel Size 17 x 6.5 in
Rear Wheel Size 17 x 6.5 in
Spare Wheel Size Compact in
Front Wheel Material Steel
Rear Wheel Material Steel
Spare Wheel Material Steel

Cold Cranking Amps @ 0° F (Primary) N/A
Maximum Alternator Capacity (amps) 110

Engine Type Gas I4
Displacement 2.4L/144
SAE Net Horsepower @ RPM 176 @ 6000
SAE Net Torque @ RPM 168 @ 4000

EPA Fuel Economy Est - Hwy 30 MPG
Cruising Range - City 319.00 mi
EPA Fuel Economy Est - City 22 MPG
Fuel Economy Est-Combined 25 MPG
Cruising Range - Hwy 435.00 mi
EPA MPG Equivalent - City N/A
EPA MPG Equivalent - Hwy N/A
EPA MPG Equivalent - Combined N/A
Estimated Battery Range N/A mi

Drivetrain Front Wheel Drive
Trans Type 6
Trans Description Cont. Manual w/OD
Trans Description Cont. Again Not Available
First Gear Ratio (:1) 3.27
Second Gear Ratio (:1) 1.79
Third Gear Ratio (:1) 1.54
Fourth Gear Ratio (:1) 1.18
Fifth Gear Ratio (:1) 0.97
Sixth Gear Ratio (:1) 0.83
Reverse Ratio (:1) 3.42
Final Drive Axle Ratio (:1) 3.74

Suspension Type - Front Independent
Suspension Type - Rear Independent
Suspension Type - Front (Cont.) MacPherson Strut
Suspension Type - Rear (Cont.) Multi-Link

Brake Type Pwr
Brake ABS System 4-wheel
Brake ABS System (Second Line) N/A
Disc - Front (Yes or ) Yes
Disc - Rear (Yes or ) Yes
Front Brake Rotor Diam x Thickness 11.02 x 1.02 in
Rear Brake Rotor Diam x Thickness 10.31 x 0.39 in
Drum - Rear (Yes or ) Not Available

Fuel Tank Capacity, Approx 14.5 gal
Aux Fuel Tank Capacity, Approx N/A gal

Steering Type Pwr Rack & Pinion
Steering Ratio (:1), Overall 15.9
Lock to Lock Turns (Steering) 3.0
Turning Diameter - Curb to Curb 34.7 ft
Turning Diameter - Wall to Wall N/A ft

Front Tire Size P225/60R17
Rear Tire Size P225/60R17
Spare Tire Size Compact

Dead Weight Hitch - Max Trailer Wt. 2000 lbs
Dead Weight Hitch - Max Tongue Wt. 200 lbs
Wt Distributing Hitch - Max Trailer Wt. Not Available lbs
Wt Distributing Hitch - Max Tongue Wt. Not Available lbs

Base Curb Weight 3179 lbs

Passenger Capacity 5
Passenger Volume 101.9 ft³
Front Head Room 39.4 in
Front Leg Room 42.1 in
Front Shoulder Room 57.1 in
Front Hip Room 55.5 in
Second Head Room 39.1 in
Second Leg Room 38.7 in
Second Shoulder Room 55.1 in
Second Hip Room 53.4 in
Wheelbase 103.9 in
Length, Overall 173.2 in
Width, Max w/o mirrors 71.7 in
Height, Overall 65.2 in
Track Width, Front 62.4 in
Track Width, Rear 62.4 in
Min Ground Clearance 6.7 in
Rear Door Opening Height N/A in
Rear Door Opening Width N/A in
Cargo Area Length @ Floor to Seat 1 N/A in
Cargo Area Length @ Floor to Seat 2 N/A in
Cargo Area Length @ Floor to Seat 3 N/A in
Cargo Area Width @ Beltline N/A in
Cargo Box Width @ Wheelhousings N/A in
Cargo Box (Area) Height N/A in
Liftover Height N/A in
Cargo Volume to Seat 1 55.8 ft³
Cargo Volume to Seat 2 25.7 ft³
Cargo Volume to Seat 3 Not Available ft³
Trunk Volume N/A ft³

Traction control system (TCS) w/electronic stability control (ESC) Standard
Independent MacPherson strut front suspension -inc: coil springs. stabalizer bar, gas shocks Standard
Tilt steering wheel Standard
Front aux pwr outlets (2) Standard
Compact spare tire Standard
Dual sunvisors -inc: dual front vanity mirrors, extensions Standard
Pwr door locks Standard
Cargo area pwr outlet Standard
Trip computer -inc: Eco shift indicator Standard
Door map pockets w/front & rear bottle holders Standard
Advanced driver/front passenger air bags Standard
2.4L DOHC MPI CVVT 16-valve I4 engine Standard
Tinted glass -inc: windshield/front Standard
Downhill brake control (DBC) Standard
Front/rear roof-mounted side curtain air bags -inc: rollover sensors Standard
P225/60R17 all-season tires Standard
Front seatback pockets Standard
6-speed manual transmission w/OD Standard
Variable intermittent front windshield wiper Standard
Rear coat hanger Standard
Roof mounted antenna Standard
Rear assist grips (4) Standard
Independent multi-link rear suspension -inc: stabalizer bar, gas shocks Standard
Child proof rear door locks Standard
17" x 6.5" steel wheels w/full wheel covers Standard
Rear 60/40 split-folding seat -inc: center armrest w/cupholders Standard
Front wheel drive Standard
Body-color grille Standard
Gauges -inc: speedometer, tachometer, coolant temp, fuel, odometer, trip odometer Standard
Front console -inc: armrest, storage, dual cupholders Standard
Front crumple zones Standard
Body-side reinforcements Standard
Rear seat heat ducts Standard
AM/FM/XM stereo w/CD/MP3 player -inc: (6) speakers, iPod/USB jack, aux input jack, iPod cable Standard
Lighting -inc: dome, front map, cargo Standard
4-wheel anti-lock brakes (ABS) -inc: electronic brake force distribution (EBD), brake assist Standard
Air conditioning w/cabin air filter Standard
Occupant classification system (OCS) Standard
Black door handles Standard
Rear bag hook Standard
Black pwr mirrors Standard
Motor driven pwr steering (MDPS) Standard
Remote keyless entry system w/alarm Standard
Body-color bumpers Standard
Lower anchors & tethers for children (LATCH) system Standard
Front seat-mounted side-impact air bags Standard
Warning lights -inc: oil pressure, battery, door ajar, airbag, seatbelt, fuel, trunk open, brake oil, check engine, ABS, TPMS, ESC, DBC, EPS Standard
Rear window defroster w/timer Standard
EZ lane change assist turn signals Standard
Rear wiper w/washer Standard
4-wheel disc brakes Standard
Body-color rear spoiler w/LED lights Standard
Tire pressure monitoring system Standard
Cloth front bucket seats -inc: 6-way adjustable driver seat, adjustable active head restraints Standard
Pwr windows -inc: driver side auto down Standard
Hillstart assist control (HAC) Standard
