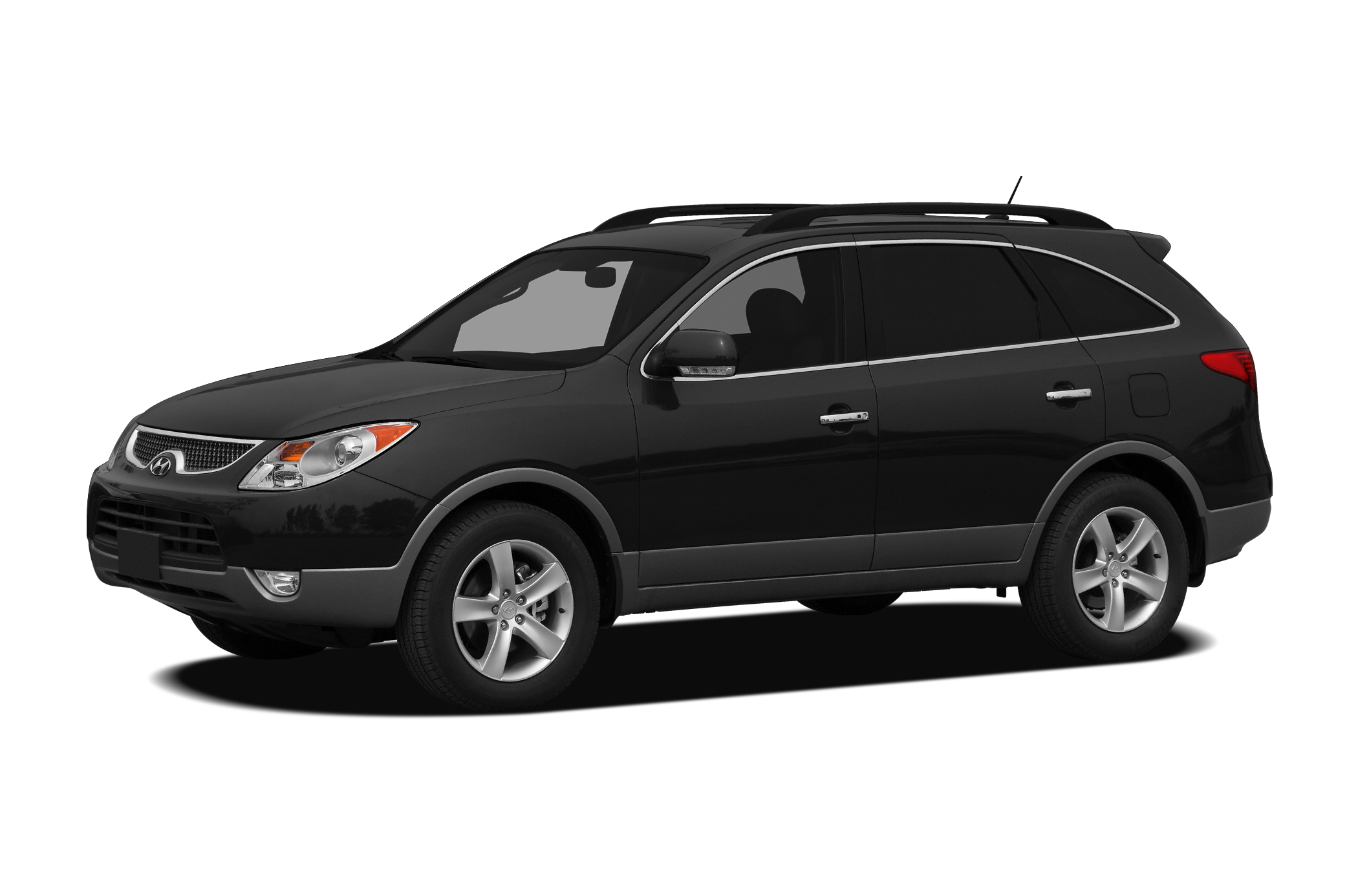

2009 Hyundai Veracruz GLS specs & colors
Sport Utility
MSRP
- FWD 4dr GLS
- $27,145
- AWD 4dr GLS
- $28,845
- FWD 4dr Limited
- $34,295
- AWD 4dr Limited
- $35,995
Key specs
Color options
Interior
Gray
Beige
Packages
$0
Starting MSRP
- base vehicle only
$4,750
Starting MSRP
- pwr tilt/slide sunroof
- pwr driver seat w/pwr lumbar support
- heated front seats
See more detail $4,750
Starting MSRP
- pwr tilt/slide sunroof
- pwr driver seat w/pwr lumbar support
- heated front seats
- leather wrapped steering wheel & shift knob
- backup warning system
- roof rack side rails
- 115-volt pwr outlet
- conversation mirror
- automatic headlights
- fog lights
- temp controlled center console storage
- leather seats
- pwr tailgate
- autodimming rearview mirror with Homelink & compass
- 18" 5-spoke alloy wheels
$2,400
Starting MSRP
- pwr tilt/slide sunroof
- pwr driver seat w/pwr lumbar support
- heated front seats
See more detail $2,400
Starting MSRP
- pwr tilt/slide sunroof
- pwr driver seat w/pwr lumbar support
- heated front seats
- leather wrapped steering wheel & shift knob
- backup warning system
- roof rack side rails
- 115-volt pwr outlet
- conversation mirror
- automatic headlights
- fog lights
- temp controlled center console storage
Specifications
Highlights
|
Gas V6
Engine Type
|
|
16 City / 23 Hwy
MPG
|
|
260 hp
Horsepower
|
|
7
Seating Capacity
|
Brakes
|
Pwr
Brake Type
|
|
4-wheel
Brake ABS System
|
|
N/A
Brake ABS System (Second Line)
|
|
Yes
Disc - Front (Yes or )
|
|
Yes
Disc - Rear (Yes or )
|
|
12.6 x -TBD- in
Front Brake Rotor Diam x Thickness
|
|
12.8 x -TBD- in
Rear Brake Rotor Diam x Thickness
|
|
Not Available
Drum - Rear (Yes or )
|
Electrical
|
N/A
Cold Cranking Amps @ 0° F (Primary)
|
|
130
Maximum Alternator Capacity (amps)
|
Engine
|
Gas V6
Engine Type
|
|
3.8L/231
Displacement
|
|
260 @ 6000
SAE Net Horsepower @ RPM
|
|
257 @ 4500
SAE Net Torque @ RPM
|
|
6-Speed A/T
A/T Transmission w/Dual Shift Mode Transmission Options
|
|
16 City / 23 Hwy
MPG
|
|
11.1 qts
Total Cooling System Capacity
|
Measurements
|
7
Passenger Capacity
|
|
151 ft³
Passenger Volume
|
|
40 in
Front Head Room
|
|
43 in
Front Leg Room
|
|
61 in
Front Shoulder Room
|
|
58 in
Front Hip Room
|
|
40 in
Second Head Room
|
|
38 in
Second Leg Room
|
|
60 in
Second Shoulder Room
|
|
57 in
Second Hip Room
|
|
36 in
Third Head Room
|
|
32 in
Third Leg Room
|
|
56 in
Third Shoulder Room
|
|
46 in
Third Hip Room
|
|
110 in
Wheelbase
|
|
191 in
Length, Overall
|
|
77 in
Width, Max w/o mirrors
|
|
69 in
Height, Overall
|
|
66 in
Track Width, Front
|
|
66 in
Track Width, Rear
|
|
8 in
Min Ground Clearance
|
|
N/A
Rear Door Opening Height
|
|
N/A
Rear Door Opening Width
|
|
N/A
Cargo Area Length @ Floor to Seat 1
|
|
N/A
Cargo Area Length @ Floor to Seat 2
|
|
N/A
Cargo Area Length @ Floor to Seat 3
|
|
N/A
Cargo Area Width @ Beltline
|
|
N/A
Cargo Box Width @ Wheelhousings
|
|
N/A
Cargo Box (Area) Height
|
|
N/A
Liftover Height
|
|
87 ft³
Cargo Volume to Seat 1
|
|
40 ft³
Cargo Volume to Seat 2
|
|
13 ft³
Cargo Volume to Seat 3
|
|
N/A
Trunk Volume
|
Safety
|
Standard
Stability Control
|
|
Standard
Brake Assist
|
Steering
|
Pwr Rack & Pinion
Steering Type
|
|
N/A
Steering Ratio (:1), Overall
|
|
4
Lock to Lock Turns (Steering)
|
|
37 ft
Turning Diameter - Curb to Curb
|
|
N/A
Turning Diameter - Wall to Wall
|
Suspension
|
Independent
Suspension Type - Front
|
|
Independent
Suspension Type - Rear
|
|
MacPherson Strut
Suspension Type - Front (Cont.)
|
|
Multi-link
Suspension Type - Rear (Cont.)
|
Tires & Wheels
|
P245/65R17
Front Tire Size
|
|
P245/65R17
Rear Tire Size
|
|
Compact
Spare Tire Size
|
|
17 x 7 in
Front Wheel Size
|
|
17 x 7 in
Rear Wheel Size
|
|
Compact in
Spare Wheel Size
|
|
Aluminum
Front Wheel Material
|
|
Aluminum
Rear Wheel Material
|
|
Steel
Spare Wheel Material
|
Weight & Capacity
|
4,266 lbs
Base Curb Weight
|
|
3,500 lbs
Dead Weight Hitch - Max Trailer Wt.
|
|
350 lbs
Dead Weight Hitch - Max Tongue Wt.
|
|
Not Available lbs
Wt Distributing Hitch - Max Trailer Wt.
|
|
Not Available lbs
Wt Distributing Hitch - Max Tongue Wt.
|
|
21 gal
Fuel Tank Capacity, Approx
|
|
N/A
Aux Fuel Tank Capacity, Approx
|
