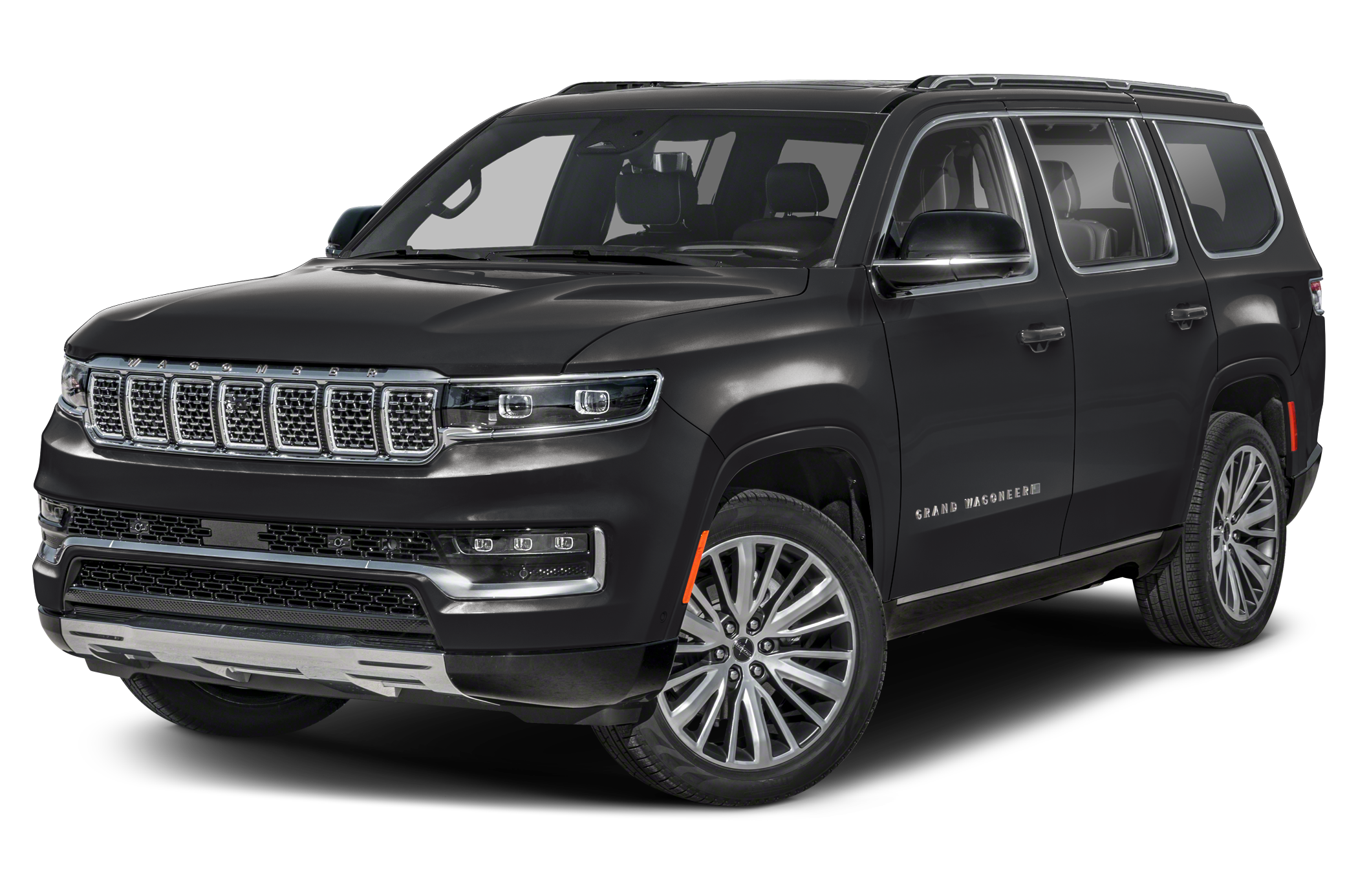

2024 Jeep Grand Wagoneer specs & colors
Sport Utility
MSRP
- 4x4
- $91,945
- Series II Obsidian 4x4
- $98,945
- Series III 4x4
- $112,595
- Series III Obsidian 4x4
- $112,595
Key specs
Color options
Interior
Sea Salt / Black
Black / Alloy / Black
Packages
$1,870
Starting MSRP
- Chrome Tow Hooks
- Trailer Brake Control
- Locking In-Vehicle Safe
See more detail $1,870
Starting MSRP
- Chrome Tow Hooks
- Trailer Brake Control
- Locking In-Vehicle Safe
- Heavy Duty Engine Cooling
- Removable Rear Tow Hook
- Trailer Hitch Zoom
$595
Starting MSRP
- 2nd Row Dual Charge-Only USB Ports
- 8 Passenger Seating
- GVWR: 7,800 lbs
See more detail $595
Starting MSRP
- 2nd Row Dual Charge-Only USB Ports
- 8 Passenger Seating
- GVWR: 7,800 lbs
- 40/20/40 2nd Row Bench Power Tip/Slide
$395
Starting MSRP
- All-Season Floor Mats
- Cargo Tray
$4,495
Starting MSRP
- Active Driving Assist System
- Drowsy Driver Detection
- Intersection Collision Assist System
See more detail $4,495
Starting MSRP
- Active Driving Assist System
- Drowsy Driver Detection
- Intersection Collision Assist System
- Traffic Sign Recognition
- Interior Rear Facing Camera
- Adjustable Roof Rail Crossbars
- Rearview Autodim Digital Display Mirror
- Night Vision/Pedestrian-Animal Detection
$2,595
Starting MSRP
- Video USB Port
- Seatback Video Screens
- Amazon Fire TV Built-In
$0
Starting MSRP
- Engine: 3.0L I6 Hurricane HO Twin Turbo ESS
- Transmission: 8-Speed Automatic (8HP75)
Specifications
Highlights
|
Twin Turbo Premium Unleaded I-6
Engine Type
|
|
14 City / 20 Hwy
MPG
|
|
510 hp
Horsepower
|
|
8
Seating Capacity
|
Brakes
|
4-Wheel Disc
Brake Type
|
|
4-Wheel
Brake ABS System
|
|
4-Wheel
Brake ABS System (Second Line)
|
|
Yes
Disc - Front (Yes or )
|
|
Yes
Disc - Rear (Yes or )
|
|
15 in
Front Brake Rotor Diam x Thickness
|
|
15 in
Rear Brake Rotor Diam x Thickness
|
|
N/A
Drum - Rear (Yes or )
|
Electrical
|
230
Maximum Alternator Capacity (amps)
|
|
700
Cold Cranking Amps @ 0° F (Primary)
|
Engine
|
500 @ 3500
SAE Net Torque @ RPM
|
|
510 @ 5700
SAE Net Horsepower @ RPM
|
|
3.0 L/183
Displacement
|
|
Twin Turbo Premium Unleaded I-6
Engine Type
|
|
8-Speed A/T
A/T Transmission w/Dual Shift Mode Transmission Options
|
|
14 City / 20 Hwy
MPG
|
|
N/A
Total Cooling System Capacity
|
Entertainment
|
Standard
Bluetooth®
|
Measurements
|
7
Passenger Capacity
|
|
41 in
Front Head Room
|
|
41 in
Front Leg Room
|
|
66 in
Front Shoulder Room
|
|
63 in
Front Hip Room
|
|
40 in
Second Head Room
|
|
43 in
Second Leg Room
|
|
65 in
Second Shoulder Room
|
|
63 in
Second Hip Room
|
|
39 in
Third Head Room
|
|
37 in
Third Leg Room
|
|
64 in
Third Shoulder Room
|
|
52 in
Third Hip Room
|
|
123 in
Wheelbase
|
|
N/A
Length, Overall w/rear bumper
|
|
215 in
Length, Overall
|
|
84 in
Width, Max w/o mirrors
|
|
76 in
Height, Overall
|
|
69 in
Track Width, Front
|
|
68 in
Track Width, Rear
|
|
N/A
Overhang, Front
|
|
N/A
Overhang, Rear w/o bumper
|
|
N/A
Cab to End of Frame
|
|
N/A
Ground to Top of Load Floor
|
|
N/A
Ground Clearance, Front
|
|
N/A
Ground Clearance, Rear
|
|
10 in
Min Ground Clearance
|
|
N/A
Rear Door Opening Height
|
|
N/A
Rear Door Opening Width
|
|
N/A
Cargo Area Length @ Floor to Seat 1
|
|
N/A
Cargo Area Length @ Floor to Seat 2
|
|
N/A
Cargo Area Length @ Floor to Seat 3
|
|
N/A
Cargo Box Width @ Top, Rear
|
|
N/A
Cargo Area Width @ Beltline
|
|
N/A
Cargo Box Width @ Floor
|
|
N/A
Cargo Box Width @ Wheelhousings
|
|
N/A
Cargo Box (Area) Height
|
|
32 in
Liftover Height
|
|
N/A
Tailgate Width
|
|
N/A
Cargo Volume
|
|
94 ft³
Cargo Volume to Seat 1
|
|
71 ft³
Cargo Volume to Seat 2
|
|
27 ft³
Cargo Volume to Seat 3
|
|
N/A
Ext'd Cab Cargo Volume
|
Safety
|
Standard
Backup Camera
|
|
Standard
Blind Spot Monitor
|
|
Standard
Lane Departure Warning
|
|
Standard
Rear Cross Traffic Alert
|
|
Standard
Stability Control
|
Steering
|
38 ft
Turning Diameter - Curb to Curb
|
|
N/A
Steering Ratio (:1), Overall
|
|
Rack-Pinion
Steering Type
|
|
N/A
Turning Diameter - Wall to Wall
|
Suspension
|
Independent
Axle Type - Rear
|
|
Independent
Axle Type - Front
|
|
Multi-Link
Suspension Type - Rear
|
|
Short And Long Arm
Suspension Type - Front
|
Tires & Wheels
|
Aluminum
Spare Wheel Material
|
|
Aluminum
Rear Wheel Material
|
|
Aluminum
Front Wheel Material
|
|
Full-Size in
Spare Wheel Size
|
|
20 X 9 in
Rear Wheel Size
|
|
20 X 9 in
Front Wheel Size
|
|
Full-Size
Spare Tire Size
|
|
P275/55TR20
Rear Tire Size
|
|
P275/55TR20
Front Tire Size
|
Weight & Capacity
|
8,200 lbs
Maximum Trailering Capacity
|
|
N/A
Fifth Wheel Hitch - Max Tongue Wt.
|
|
N/A
Fifth Wheel Hitch - Max Trailer Wt.
|
|
820 lbs
Wt Distributing Hitch - Max Tongue Wt.
|
|
8,200 lbs
Wt Distributing Hitch - Max Trailer Wt.
|
|
500 lbs
Dead Weight Hitch - Max Tongue Wt.
|
|
5,000 lbs
Dead Weight Hitch - Max Trailer Wt.
|
|
15,000 lbs
Gross Combined Wt Rating
|
|
N/A
Maximum Payload Capacity
|
|
N/A
As Spec'd Payload
|
|
N/A
As Spec'd Curb Weight
|
|
0 lbs
Option Weight - Rear
|
|
0 lbs
Option Weight - Front
|
|
N/A
Curb Weight - Rear
|
|
N/A
Curb Weight - Front
|
|
6,412 lbs
Base Curb Weight
|
|
27 gal
Fuel Tank Capacity, Approx
|
|
N/A
Aux Fuel Tank Capacity, Approx
|
|
N/A
Gross Axle Weight Rating
|
|
N/A
Curb Weight
|
|
0 lbs
Total Option Weight
|
|
7,700 lbs
Gross Vehicle Weight Rating
|
