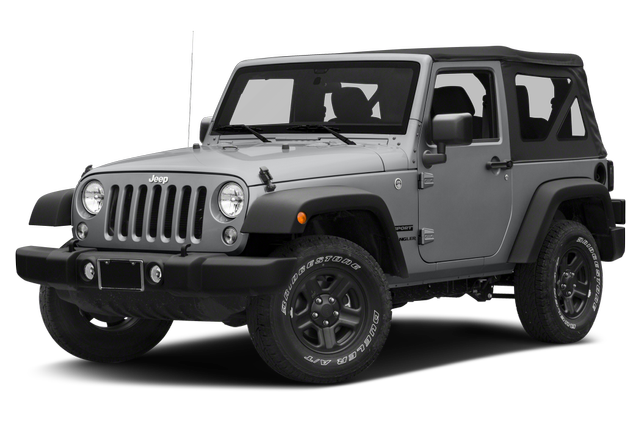

2016 Jeep Wrangler Willys Wheeler specs & colors

Sport Utility

Change trim

MSRP

Change trim

$23,895

Starting MSRP
Current listing price

Showing the 2016 Jeep Wrangler 4WD 2dr Willys Wheeler

Shop Now

Color options

Exterior

Interior

Black / Dark Saddle Interior

Black Interior

Packages

Half Metal Doors w/Locks

$0

Starting MSRP

Plastic Front Door Window

Smoker's Group

$30

Starting MSRP

Cigar Lighter
Removable Ash Tray

Quick Order Package 24W Willys Wheeler

$6,400

Starting MSRP

Engine: 3.6L V6 24V VVT
Transmission: 5-Speed Automatic (W5A580)
Rear Passenger Assist Handles Kit

See all packages

Quick Order Package 24K Willys Wheeler

$4,300

Starting MSRP

Engine: 3.6L V6 24V VVT
Transmission: 5-Speed Automatic (W5A580)
Rear Passenger Assist Handles Kit

Quick Order Package 23W Willys Wheeler

$6,400

Starting MSRP

Engine: 3.6L V6 24V VVT
Transmission: 6-Speed Manual (NSG370)
Rear Passenger Assist Handles Kit

Quick Order Package 23K Willys Wheeler

$4,300

Starting MSRP

Engine: 3.6L V6 24V VVT
Transmission: 6-Speed Manual (NSG370)
Rear Passenger Assist Handles Kit

Dual Top Group

$2,185

Starting MSRP

Black 3-Piece Hard Top
Freedom Panel Storage Bag
Rear Window Defroster

Trailer Tow Group

$495

Starting MSRP

Class II Receiver Hitch
Trailer Tow w/4-Pin Connector Wiring

Power Convenience Group

$1,595

Starting MSRP

Auto Dim Mirror w/Reading Lamp
Front 1-Touch Down Power Windows
Power Heated Mirrors

Specifications

Spare Wheel Size	Full-Size in
Rear Wheel Size	17 X 7.5 in
Front Wheel Material	Aluminum
Front Wheel Size	17 X 7.5 in
Spare Wheel Material	Aluminum
Rear Wheel Material	Aluminum

Estimated Battery Range	N/A mi
EPA Fuel Economy Est - Hwy	21 MPG
Fuel Economy Est-Combined	18 MPG
EPA Fuel Economy Est - City	17 MPG
Cruising Range - City	316.20 mi
Cruising Range - Hwy	390.60 mi

Transfer Case Power Take Off	No
Trans Type	6
Transfer Case Model	Manual
Third Gear Ratio (:1)	1.72
Sixth Gear Ratio (:1)	0.80
Fifth Gear Ratio (:1)	1.00
Trans Power Take Off	N/A
Second Gear Ratio (:1)	2.61
Reverse Ratio (:1)	4.06
Transfer Case Gear Ratio (:1), Low	N/A
Trans Description Cont. Again	N/A
Drivetrain	Four Wheel Drive
Trans Description Cont.	Manual w/OD
First Gear Ratio (:1)	4.46
Final Drive Axle Ratio (:1)	N/A
Transfer Case Gear Ratio (:1), High	N/A
Fourth Gear Ratio (:1)	1.25

Disc - Rear (Yes or )	Yes
Brake ABS System	4-Wheel
Rear Brake Rotor Diam x Thickness	11.9 in
Front Brake Rotor Diam x Thickness	11.9 in
Brake ABS System (Second Line)	4-Wheel
Drum - Rear (Yes or )	N/A
Brake Type	4-Wheel Disc
Disc - Front (Yes or )	Yes

Wt Distributing Hitch - Max Tongue Wt.	200 lbs
Fifth Wheel Hitch - Max Tongue Wt.	N/A lbs
Fifth Wheel Hitch - Max Trailer Wt.	N/A lbs
Wt Distributing Hitch - Max Trailer Wt.	2000 lbs
Dead Weight Hitch - Max Tongue Wt.	200 lbs
Maximum Trailering Capacity	2000 lbs
Dead Weight Hitch - Max Trailer Wt.	2000 lbs

Curb Weight - Rear	1913 lbs
Gross Vehicle Weight Rating	4900.00 lbs
Maximum Payload Capacity	1021.00 lbs
As Spec'd Payload	1021.00 lbs
Gross Axle Weight Rating	5975.00 lbs
Base Curb Weight	3879 lbs
Curb Weight	3879.00 lbs
As Spec'd Curb Weight	3879.00 lbs
Gross Combined Wt Rating	6029 lbs
Total Option Weight	0.00 lbs
Curb Weight - Front	1966 lbs
Option Weight - Rear	0.00 lbs
Option Weight - Front	0.00 lbs

Min Ground Clearance	8.8 in
Width, Max w/o mirrors	73.7 in
Second Head Room	40.3 in
Second Leg Room	35.6 in
Front Hip Room	55.6 in
Rear Door Opening Height	N/A in
Liftover Height	27.8 in
Cargo Box Width @ Wheelhousings	N/A in
Track Width, Front	61.9 in
Front Shoulder Room	55.8 in
Ground Clearance, Front	N/A in
Front Head Room	41.3 in
Second Shoulder Room	44.7 in
Cargo Box Width @ Floor	N/A in
Passenger Capacity	4
Cargo Volume	N/A ft³
Ground to Top of Load Floor	N/A in
Length, Overall	163.8 in
Cargo Area Length @ Floor to Seat 2	N/A in
Overhang, Rear w/o bumper	N/A in
Track Width, Rear	61.9 in
Length, Overall w/rear bumper	N/A in
Height, Overall	72.5 in
Rear Door Opening Width	N/A in
Cargo Volume to Seat 1	55 ft³
Ext'd Cab Cargo Volume	N/A ft³
Ground Clearance, Rear	N/A in
Cab to End of Frame	N/A in
Cargo Box Width @ Top, Rear	N/A in
Wheelbase	95.4 in
Cargo Area Length @ Floor to Seat 3	N/A in
Cargo Area Width @ Beltline	N/A in
Cargo Volume to Seat 2	12.8 ft³
Tailgate Width	N/A in
Second Hip Room	44.7 in
Cargo Volume to Seat 3	12.8 ft³
Front Leg Room	41 in
Overhang, Front	N/A in
Cargo Area Length @ Floor to Seat 1	N/A in
Cargo Box (Area) Height	N/A in

Fixed Antenna	Standard
Radio: 130	Standard
1 LCD Monitor In The Front	Standard
Radio w/Seek-Scan, In-Dash Mounted Single CD, MP3 Player, Clock and Steering Wheel Controls	Standard
SIRIUS Satellite Radio -inc: 1-Yr SiriusXM Radio Service, For More Info Call 888-539-7474	Optional
Audio Jack Input for Mobile Devices	Standard
8 Speakers	Standard

Manual Tailgate/Rear Door Lock	Standard
Black Rear Bumper w/1 Tow Hook	Standard
Conventional Rear Cargo Access	Standard
Black Manual Side Mirrors w/Manual Folding	Standard
Removable Rear Window	Standard
Wheels: 17" x 7.5" High Gloss Black Willys	Optional
Black Front Bumper w/2 Tow Hooks	Standard
Deep Tint Sunscreen Windows	Optional
Black Fender Flares	Standard
Jeep Trail Rated Kit	Optional
Black Side Windows Trim	Standard
Variable Intermittent Wipers	Standard
Black Door Handles	Standard
Fully Galvanized Steel Panels	Standard
Sunrider Soft Top	Standard
Convertible w/Fixed Roll-Over Protection	Standard
Tires: 17"	Optional
Front Fog Lamps	Standard
Aero-Composite Halogen Headlamps	Standard
Full-Size Spare Tire Mounted Outside Rear	Standard

Gauges -inc: Speedometer, Odometer, Engine Coolant Temp, Tachometer, Trip Odometer and Trip Computer	Standard
Trip Computer	Standard
Locking Cargo Area Concealed Storage	Standard
2 Seatback Storage Pockets	Standard
Front Center Armrest w/Storage	Standard
Day-Night Rearview Mirror	Standard
Sentry Key Immobilizer	Standard
Full Carpet Floor Covering	Optional
Fade-To-Off Interior Lighting	Standard
Cruise Control w/Steering Wheel Controls	Standard
Removable Rear Windows	Standard
Driver And Passenger Visor Vanity Mirrors	Standard
Instrument Panel Bin, Dashboard Storage, Driver And Passenger Door Bins	Standard
Outside Temp Gauge	Standard
6-Way Driver Seat -inc: Manual Recline, Height Adjustment and Fore/Aft Movement	Standard
2 12V DC Power Outlets	Standard
Manual Tilt Steering Column	Standard
Manual 1st Row Windows	Standard
Manual Adjustable Front Head Restraints and Fixed Rear Head Restraints	Standard
4-Way Passenger Seat -inc: Manual Recline, Fore/Aft Movement and Manual Rear Seat Easy Entry	Standard
MOPAR Slush Mats	Optional
Removable Full Folding Bench Front Facing Tumble Forward Rear Seat	Standard
Compass	Standard
Full Floor Console w/Locking Storage and 2 12V DC Power Outlets	Standard
Rear Cupholder	Standard
Front Cupholder	Standard
Cloth Seats w/Adjustable Head Restraints	Standard
Carpet Floor Trim, Carpet And Rubber Mat	Standard
Interior Trim -inc: Metal-Look Instrument Panel Insert, Metal-Look Door Panel Insert and Metal-Look Interior Accents	Standard
Analog Appearance	Standard
Locking Glove Box	Standard

Performance Suspension	Optional
Engine: 3.6L V6 24V VVT (STD)	Standard
Engine Oil Cooler	Standard
Auto Locking Hubs	Standard
1000# Maximum Payload	Standard
3.73 Rear Axle Ratio (STD)	Optional
Solid Axle Rear Suspension w/Coil Springs	Standard
160 Amp Alternator	Standard
Part-Time Four-Wheel Drive	Standard
Gas-Pressurized Shock Absorbers	Standard
Anti-Spin Differential Rear Axle	Optional
600CCA Maintenance-Free Battery	Standard
4-Wheel Disc Brakes w/4-Wheel ABS, Front And Rear Vented Discs, Brake Assist and Hill Hold Control	Standard
Single Stainless Steel Exhaust	Standard
Towing Equipment -inc: Trailer Sway Control	Standard
Front And Rear Anti-Roll Bars	Standard
GVWR: 4,900 lbs	Standard
Manual Transfer Case	Standard
Transmission: 6-Speed Manual (NSG370) (STD)	Standard
Leading Link Front Suspension w/Coil Springs	Standard
18.6 Gal. Fuel Tank	Standard
Hydraulic Power-Assist Steering	Standard

Airbag Occupancy Sensor	Standard
ABS Traction Control	Standard
Dual Stage Driver And Passenger Front Airbags	Standard
Outboard Front Lap And Shoulder Safety Belts -inc: Height Adjusters and Pretensioners	Standard
Side Impact Beams	Standard
Electronic Stability Control (ESC) And Roll Stability Control (RSC)	Standard

Compare trims

Wondering which trim is right for you?

Our 2016 Jeep Wrangler trim comparison will help you decide.

Displacement	3.6 L/220
Engine Oil Cooler	Regular Duty
SAE Net Horsepower @ RPM	285 @ 6400
SAE Net Torque @ RPM	260 @ 4800
Engine Type	Regular Unleaded V-6

Suspension Type - Rear	Trailing Arm
Axle Type - Front	Non-Independent
Axle Type - Rear	Rigid Axle
Suspension Type - Front	Leading Link

Fuel Tank Capacity, Approx	18.6 gal
Aux Fuel Tank Capacity, Approx	N/A gal

Turning Diameter - Curb to Curb	34.9 ft
Steering Ratio (:1), Overall	N/A
Steering Type	Re-Circulating Ball
Turning Diameter - Wall to Wall	N/A ft

Rear Tire Size	P255/75SR17
Front Tire Size	P255/75SR17
Spare Tire Size	Full-Size

Cold Cranking Amps @ 0° F (Primary)	600
Maximum Alternator Capacity (amps)	160
