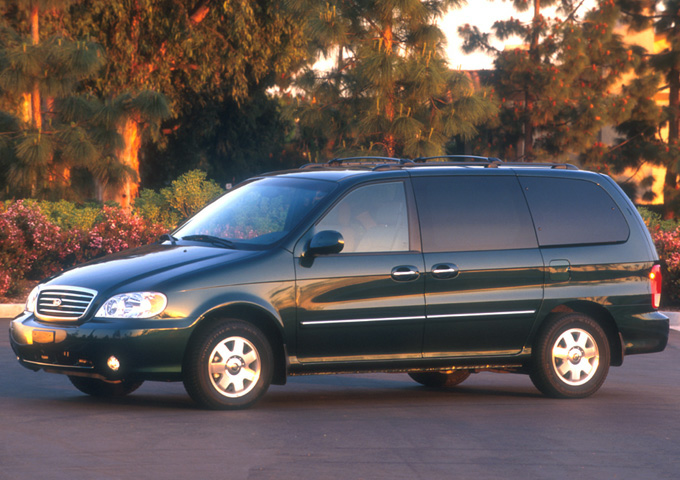

2003 Kia Sedona LX specs & colors
Mini-van, Passenger
Key specs
Color options
Interior
Aqua
Anthracite
Gray
Packages
Specifications
| EPA Classification | 2WD Minivan |
| Rear Wheel Size | 15 x 6.0 in |
| Front Wheel Material | Steel |
| Rear Wheel Material | Steel |
| Spare Wheel Size | Compact in |
| Spare Wheel Material | N/A |
| Front Wheel Size | 15 x 6.0 in |
| Cold Cranking Amps @ 0° F (Primary) | 600 |
| Maximum Alternator Capacity (amps) | 120 |
| Engine Type | Gas V6 |
| Displacement | 3.5L/213 |
| SAE Net Horsepower @ RPM | 195 @ 5500 |
| SAE Net Torque @ RPM | 218 @ 3500 |
| Cruising Range - Hwy | 396.00 mi |
| EPA MPG Equivalent - Combined | N/A |
| EPA Fuel Economy Est - City | 15 MPG |
| Estimated Battery Range | N/A mi |
| Fuel Economy Est-Combined | N/A MPG |
| EPA MPG Equivalent - Hwy | N/A |
| Cruising Range - City | 297.00 mi |
| EPA MPG Equivalent - City | N/A |
| EPA Fuel Economy Est - Hwy | 20 MPG |
| Final Drive Axle Ratio (:1) | 3.33 |
| Trans Description Cont. Again | Not Available |
| First Gear Ratio (:1) | 3.79 |
| Trans Description Cont. | Automatic w/OD |
| Fifth Gear Ratio (:1) | 0.73 |
| Fourth Gear Ratio (:1) | 1.00 |
| Drivetrain | Front Wheel Drive |
| Second Gear Ratio (:1) | 2.06 |
| Trans Type | 5 |
| Third Gear Ratio (:1) | 1.42 |
| Reverse Ratio (:1) | 3.87 |
| Suspension Type - Front (Cont.) | w/Coil Springs |
| Suspension Type - Rear (Cont.) | w/Coil Springs |
| Suspension Type - Rear | Five-link |
| Suspension Type - Front | MacPherson Strut |
| Disc - Rear (Yes or ) | Not Available |
| Brake ABS System (Second Line) | N/A |
| Rear Brake Rotor Diam x Thickness | Not Available in |
| Front Brake Rotor Diam x Thickness | 10.87 x -TBD- in |
| Disc - Front (Yes or ) | Yes |
| Brake Type | Power |
| Drum - Rear (Yes or ) | Yes |
| Brake ABS System | Not Available |
| Fuel Tank Capacity, Approx | 19.8 gal |
| Aux Fuel Tank Capacity, Approx | N/A gal |
| Turning Diameter - Wall to Wall | N/A ft |
| Steering Type | Pwr Rack & Pinion |
| Steering Ratio (:1), Overall | N/A |
| Turning Diameter - Curb to Curb | 41.1 ft |
| Lock to Lock Turns (Steering) | 3.4 |
| Front Tire Size | P215/70HR15 |
| Rear Tire Size | P215/70HR15 |
| Spare Tire Size | Compact |
| Wt Distributing Hitch - Max Tongue Wt. | Not Available lbs |
| Dead Weight Hitch - Max Tongue Wt. | 350 lbs |
| Wt Distributing Hitch - Max Trailer Wt. | Not Available lbs |
| Dead Weight Hitch - Max Trailer Wt. | 3500 lbs |
| Base Curb Weight | 4802 lbs |
| Front Shoulder Room | 62.2 in |
| Front Hip Room | 58.7 in |
| Cargo Volume to Seat 3 | 21.8 ft³ |
| Cargo Volume to Seat 1 | 127.5 ft³ |
| Cargo Box Width @ Wheelhousings | N/A in |
| Length, Overall | 194.1 in |
| Third Head Room | 36.3 in |
| Min Ground Clearance | 6.9 in |
| Track Width, Rear | 63.4 in |
| Passenger Volume | 150.5 ft³ |
| Width, Max w/o mirrors | 74.6 in |
| Third Leg Room | 32.8 in |
| Passenger Capacity | 7 |
| Trunk Volume | N/A ft³ |
| Second Leg Room | 37.2 in |
| Wheelbase | 114.6 in |
| Second Shoulder Room | 63.1 in |
| Track Width, Front | 64.4 in |
| Liftover Height | N/A in |
| Cargo Area Length @ Floor to Seat 2 | N/A in |
| Rear Door Opening Height | N/A in |
| Rear Door Opening Width | N/A in |
| Second Hip Room | 65.1 in |
| Cargo Area Width @ Beltline | N/A in |
| Cargo Area Length @ Floor to Seat 3 | N/A in |
| Front Leg Room | 40.6 in |
| Cargo Area Length @ Floor to Seat 1 | N/A in |
| Cargo Box (Area) Height | N/A in |
| Front Head Room | 39.4 in |
| Third Hip Room | 48.8 in |
| Second Head Room | 39.2 in |
| Cargo Volume to Seat 2 | 70.6 ft³ |
| Height, Overall | 69.3 in |
| Third Shoulder Room | 58.4 in |
| Rear window defroster w/timer | Standard |
| Lower Anchors & Tethers for Children (LATCH) | Standard |
| Variable intermittent front windshield wipers | Standard |
| Childproof sliding door locks | Standard |
| Privacy glass windows-inc: side, quarter & back windows | Standard |
| LEV certified (3.5L engine/5-speed auto trans) | Standard |
| 3-point height-adjustable front seat belts-inc: pretensioners, force limiters | Standard |
| Center console w/storage | Standard |
| Body-color bumpers | Standard |
| 3-point height-adjustable 2nd row seat belts | Standard |
| P215/70HR15 SBR tires | Standard |
| 70 amp/hr (600 CCA) battery | Standard |
| Pwr windows w/driver-side auto-down feature | Standard |
| Pwr door locks-inc: central locking feature, two-turn entry system | Standard |
| Dual glove boxes | Standard |
| Tilt steering wheel | Standard |
| Front/rear stabilizer bars | Standard |
| Cloth front bucket seats w/8-way manual driver seat, driver/passenger armrest | Standard |
| Multi-reflector headlights | Standard |
| Pwr front vented disc/rear drum brakes | Standard |
| Cruise control | Standard |
| Overhead console-inc: sunglass holder, garage door opener holder, digital clock | Standard |
| Dual side sliding doors | Standard |
| Cup holders-inc: (2) center console/(2) 2nd row/(4) 3rd row | Standard |
| Electric windshield de-icer | Standard |
| Cargo area net w/hooks | Standard |
| Driver & front passenger airbags | Standard |
| Dual extendable vanity visor mirrors w/covers | Standard |
| Front/rear air conditioning | Standard |
| Removable 2nd row bench seat | Standard |
| Dual side-impact beams | Standard |
| Body-color door handles | Standard |
| 50/50 split folding removable 3rd row bench seat | Standard |
| Dash storage | Standard |
| Tachometer | Standard |
| 120 amp alternator | Standard |
| Rear window wiper/washer | Standard |
| (6) assist handles | Standard |
| AM/FM stereo w/CD player-inc: (6) speakers | Standard |
| First aid kit | Standard |
| Front passenger underseat lockable storage bin | Standard |
| 19.8 gallon fuel tank | Standard |
| Sliding seats w/reclining seatbacks on all rows | Standard |
| Front wheel drive | Standard |
| Lighting-inc: dual map, 2nd/3rd row reading, front door courtesy | Standard |
| (3) 12-volt pwr outlets | Standard |
| Body-color body-side moldings | Standard |
| Five-link rear suspension w/coil springs | Standard |
| Dual body-color pwr mirrors | Standard |
| City 15/hwy 20 (3.5L engine/5-speed auto trans) | Standard |
| Remote fuel filler door | Standard |
| 3.5L DOHC MPFI 24-valve V6 engine | Standard |
| Engine-speed-sensitive pwr rack & pinion steering | Standard |
| 15" x 6.0" steel wheels w/full wheel covers | Standard |
| 5-speed automatic transmission w/OD | Standard |
| Independent MacPherson strut front suspension | Standard |
| Body-color grille | Standard |
| Front/rear floor mats | Standard |
