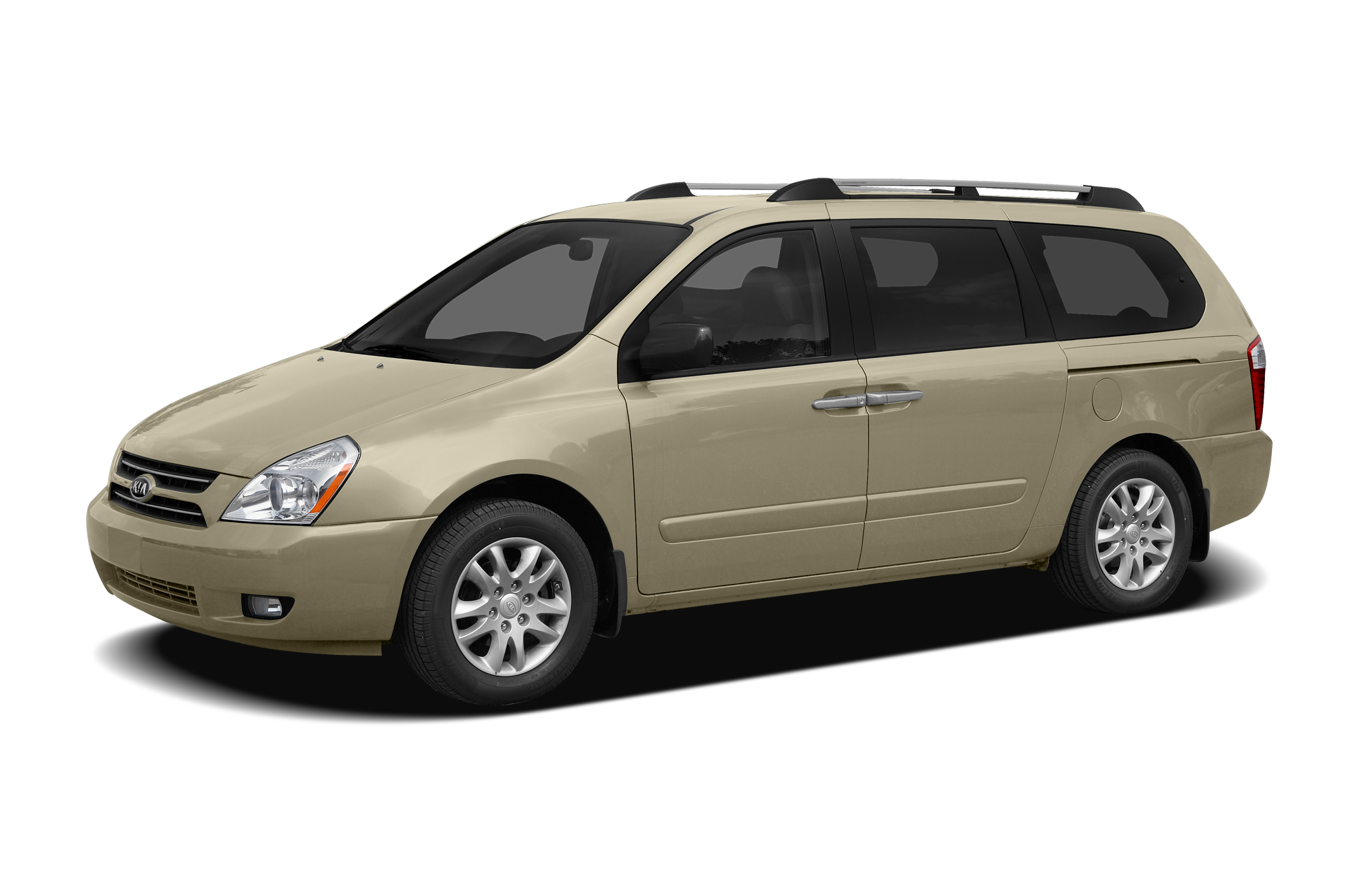

2010 Kia Sedona specs & colors
Mini-van, Passenger
MSRP
- 4dr SWB
- $22,195
- 4dr LWB LX
- $24,195
- 4dr LWB EX
- $28,695
Key specs
-
4-door -
7 seats -
244.0-hp, 3.8-liter, V6 Cylinder Engine (Gasoline Fuel) -
0 combined MPG -
189.4" length, 69.3" height -
Front Wheel Drive
Color options
Exterior
Melina Blue
Interior
Gray
Crema / Black
Packages
Specifications
Highlights
- Engine Type
-
Gas V6
- MPG
-
17 City / 23 Hwy
- Horsepower
-
244 hp
- Seating Capacity
-
7
Brakes
- Brake ABS System
-
4-Wheel
- Rear Brake Rotor Diam x Thickness
-
11.9 x -TBD- in
- Front Brake Rotor Diam x Thickness
-
11.7 x -TBD- in
- Disc - Rear (Yes or )
-
Yes
- Brake ABS System (Second Line)
-
N/A
- Drum - Rear (Yes or )
-
Not Available
- Disc - Front (Yes or )
-
Yes
- Brake Type
-
Pwr
Electrical
- Maximum Alternator Capacity (amps)
-
N/A
- Cold Cranking Amps @ 0° F (Primary)
-
N/A
Engine
- Engine Type
-
Gas V6
- Displacement
-
3.8L/231
- SAE Net Torque @ RPM
-
253 @ 3500
- SAE Net Horsepower @ RPM
-
244 @ 6000
- Transmission Options
-
A/T
Transmission w/Dual Shift Mode
5-Speed A/T
- MPG
-
17 City / 23 Hwy
- Total Cooling System Capacity
-
8.6 qts
Measurements
- Cargo Volume to Seat 2
-
62 ft³
- Front Head Room
-
41 in
- Third Shoulder Room
-
57 in
- Trunk Volume
-
N/A
- Cargo Volume to Seat 1
-
121 ft³
- Width, Max w/o mirrors
-
78 in
- Second Hip Room
-
66 in
- Rear Door Opening Width
-
N/A
- Height, Overall
-
69 in
- Front Hip Room
-
59 in
- Track Width, Front
-
66 in
- Length, Overall
-
189 in
- Passenger Volume
-
162 ft³
- Third Hip Room
-
49 in
- Second Leg Room
-
37 in
- Rear Door Opening Height
-
N/A
- Cargo Volume to Seat 3
-
13 ft³
- Third Leg Room
-
34 in
- Cargo Box (Area) Height
-
N/A
- Front Leg Room
-
42 in
- Cargo Area Length @ Floor to Seat 1
-
N/A
- Third Head Room
-
36 in
- Liftover Height
-
N/A
- Min Ground Clearance
-
7 in
- Cargo Box Width @ Wheelhousings
-
N/A
- Passenger Capacity
-
7
- Second Head Room
-
40 in
- Wheelbase
-
114 in
- Front Shoulder Room
-
63 in
- Cargo Area Width @ Beltline
-
N/A
- Track Width, Rear
-
66 in
- Cargo Area Length @ Floor to Seat 3
-
N/A
- Cargo Area Length @ Floor to Seat 2
-
N/A
- Second Shoulder Room
-
65 in
Safety
- Brake Assist
-
Standard
- Stability Control
-
Standard
Steering
- Turning Diameter - Curb to Curb
-
38 ft
- Turning Diameter - Wall to Wall
-
N/A
- Steering Type
-
Pwr Rack & Pinion
- Lock to Lock Turns (Steering)
-
3
- Steering Ratio (:1), Overall
-
N/A
Suspension
- Suspension Type - Rear (Cont.)
-
Multi-link
- Suspension Type - Rear
-
Independent
- Suspension Type - Front
-
Independent
- Suspension Type - Front (Cont.)
-
MacPherson Strut
Tires & Wheels
- Front Wheel Material
-
Steel
- Rear Wheel Size
-
16 x -TBD- in
- Front Tire Size
-
P225/70R16
- Spare Wheel Size
-
Temporary in
- Spare Tire Size
-
Temporary
- Front Wheel Size
-
16 x -TBD- in
- Rear Tire Size
-
P225/70R16
- Spare Wheel Material
-
Steel
- Rear Wheel Material
-
Steel
Weight & Capacity
- Dead Weight Hitch - Max Tongue Wt.
-
Not Available lbs
- Base Curb Weight
-
4,365 lbs
- Dead Weight Hitch - Max Trailer Wt.
-
Not Available lbs
- Aux Fuel Tank Capacity, Approx
-
N/A
- Wt Distributing Hitch - Max Tongue Wt.
-
Not Available lbs
- Fuel Tank Capacity, Approx
-
21 gal
- Wt Distributing Hitch - Max Trailer Wt.
-
Not Available lbs
Compare trims
Wondering which trim is right for you?
Our 2010 Kia Sedona trim comparison will help you decide.
