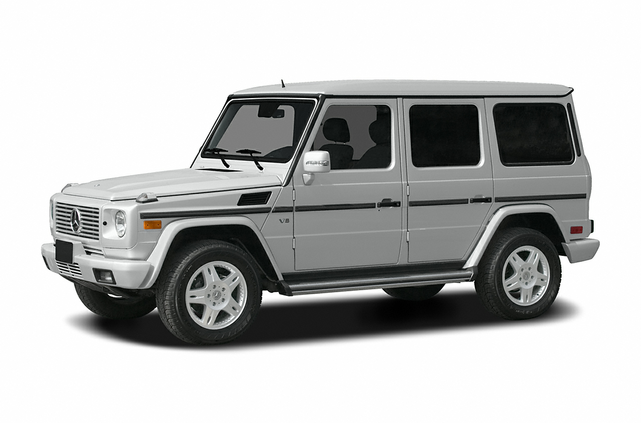

2005 Mercedes-Benz G-Class 5.0L specs & colors

Sport Utility

Change trim

MSRP

4MATIC 4dr 5.0L $78,900
4MATIC 4dr 5.0L Grand Edition $78,900
4MATIC 4dr 5.5L AMG Grand Edition $101,400
4MATIC 4dr 5.5L AMG $101,400

Change trim

$78,900

Starting MSRP
Current listing price

Showing the 2005 Mercedes-Benz G-Class 4MATIC 4dr 5.0L

Shop Now

Color options

Exterior

Interior

Black

Gray

Packages

Specifications

Front Wheel Size	18 x 7.5 in
Rear Wheel Size	18 x 7.5 in
Front Wheel Material	Aluminum
Spare Wheel Size	18 x 7.5 in
Spare Wheel Material	Aluminum
Rear Wheel Material	Aluminum

Cruising Range - City	325.00 mi
EPA Fuel Economy Est - Hwy	14 MPG
Estimated Battery Range	N/A mi
EPA Fuel Economy Est - City	13 MPG
EPA MPG Equivalent - City	N/A
Cruising Range - Hwy	350.00 mi
EPA MPG Equivalent - Combined	N/A
EPA MPG Equivalent - Hwy	N/A
Fuel Economy Est-Combined	N/A MPG

Third Gear Ratio (:1)	1.41
Final Drive Axle Ratio (:1)	4.38
Transfer Case Gear Ratio (:1), Low	2.16
First Gear Ratio (:1)	3.59
Second Gear Ratio (:1)	2.19
Reverse Ratio (:1)	3.16
Trans Type	5
Trans Description Cont.	Automatic
Fifth Gear Ratio (:1)	0.83
Fourth Gear Ratio (:1)	1.00
Drivetrain	4 Wheel Drive
Transfer Case Gear Ratio (:1), High	0.87

Brake ABS System	4-Channel
Front Brake Rotor Diam x Thickness	12.3 x -TBD- in
Brake ABS System (Second Line)	N/A
Disc - Rear (Yes or )	Yes
Disc - Front (Yes or )	Yes
Rear Brake Rotor Diam x Thickness	10.7 x -TBD- in
Brake Type	Power

Wt Distributing Hitch - Max Trailer Wt.	7000 lbs
Dead Weight Hitch - Max Tongue Wt.	500 lbs
Wt Distributing Hitch - Max Tongue Wt.	700 lbs
Dead Weight Hitch - Max Trailer Wt.	5000 lbs
Maximum Trailering Capacity	N/A lbs

Rear Door Opening Height	N/A in
Track Width, Front	59.6 in
Front Head Room	42.2 in
Front Leg Room	52.5 in
Second Hip Room	53.9 in
Length, Overall	185.6 in
Rear Door Opening Width	N/A in
Passenger Volume	124 ft³
Second Head Room	40.0 in
Cargo Volume to Seat 2	45.2 ft³
Front Shoulder Room	53.7 in
Cargo Box (Area) Height	N/A in
Cargo Area Length @ Floor to Seat 2	N/A in
Front Hip Room	51.5 in
Second Shoulder Room	56.3 in
Cargo Volume to Seat 1	79.5 ft³
Passenger Capacity	5
Cargo Area Length @ Floor to Seat 1	N/A in
Min Ground Clearance	8.3 in
Height, Overall	77.8 in
Track Width, Rear	59.6 in
Liftover Height	N/A in
Second Leg Room	41.9 in
Width, Max w/o mirrors	71.3 in
Cargo Box Width @ Wheelhousings	N/A in
Cargo Area Width @ Beltline	N/A in
Wheelbase	112.2 in

Full-time 4-wheel drive	Standard
Front/rear pwr windows w/(1)-touch express-down	Standard
Velour carpet including cargo floor	Standard
Full-time 4-wheel drive w/4-wheel Electronic Traction System (4-ETS)	Standard
City 13/hwy 14 (5.0L engine/5-speed auto trans)	Standard
5-speed automatic driver-adaptive transmission-inc: touch shift, optimum gear programming	Standard
Electronic Stability Program (ESP)	Standard
4-channel Anti-Lock Braking System (ABS) w/brake assist	Standard
Leather/wood trimmed heated steering wheel w/audio, multifunction display controls	Standard
Dual-stage resonance intake manifold	Standard
Premium leather upholstery	Standard
5.0L SOHC SMPI 24-valve V8 engine	Standard
Driver/front passenger airbags w/front passenger occupancy sensor	Standard
Single rear foglamp	Standard
Antitheft alarm system w/towaway protection	Standard
4-wheel Electronic Traction System (4-ETS)	Standard
Floor-mounted cargo tie-downs	Standard
AM/FM/weatherband stereo w/CD player-inc: 6-disc CD-changer, Harman Kardon premium sound system w/upgrade amplifier, (9) speakers, subwoofer	Standard
Multifunction displays in speedometer face-inc: trip computer, engine oil level check, digital speedometer, reminder/malfunction messages, driver- programmable settings, navigation system route guidance, exterior temp gauge, audio status, engine coolant temp	Standard
Rain-sensing intermittent front wipers w/heated washer system	Standard
SmartKey system-inc: remote central locking system, anti-theft engine immobilizer, driver-programmable user-recognition features, drive away automatic locking	Standard
Dual illuminated visor vanity mirrors	Standard
Leather-trimmed parking brake lever/boot	Standard
Rear Parking Assist audio/visual parking assistant system	Standard
265/60VR18 high-performance spare tires w/18" x 7.5" 5-spoke alloy spare wheel, rear-mounted carrier	Standard
Electronic Brake Force Distribution (EBD)	Standard
Parcel net on RH knee bolster	Standard
CD-ROM/Global Positioning System (GPS) navigation system	Standard
Hand-polished burl walnut trim	Standard
Front seatback pockets	Standard
Front/rear tow hooks	Standard
Electronic Brake Force Distribution (EBD)	Standard
Front center armrest w/dual enclosed storage, attachable cup holder, (2) mounted cup holders for rear passengers	Standard
Programmable daytime running lamps	Standard
Illuminated brushed stainless-steel door sill trim	Standard
Retractible/removable cargo cover	Standard
Chrome-finish grille bars w/black bodyside rub strips	Standard
COMAND cockpit management/data system controls-inc: navigation system, AM/FM weatherband radio, in-dash single CD player/CD-ROM, 6-disc CD-changer, 5" color LCD in-dash screen	Standard
Front & rear window curtain side airbags	Standard
10-way pwr front seats w/4-way head restraints, 3-position memory	Standard
60/40 split fold & tumble rear seats w/(3) height-adjustable head restraints	Standard
Automatic dual-zone climate control-inc: dust filter, REST mode w/engine heat recirculation feature or cabin ventilation, adjustable rear-cabin vents	Standard
Dual color-keyed heated pwr mirrors-inc: auto-dimming driver mirror, integrated turn signals, memory, entrance lamps	Standard
Recirculating-ball steering w/power assist, hydraulic damper	Standard
Pwr outlets-inc: (1) in ashtray, (1) rear of center console, (1) cargo area	Standard
Overhead passenger assist grip	Standard
Rigid front/rear axles w/longitudinal & transverse links, coil springs, gas-pressurized shock absorbers	Standard
Color-keyed bumpers	Standard
Privacy glass-inc: rear doors/quarters/liftgate	Standard
Auto-dimming rearview mirror	Standard
Heated front/outboard rear seats	Standard
Carpeted floor mats	Standard
Cruise control	Standard
Variable-focus halogen headlamps-inc: driver-selectable light-sensing auto-on feature, clear lenses, heated washers	Standard
Front/center/rear locking differentials	Standard
Aluminum running boards	Standard
3-point height adjustable front seat belts w/Emergency Tensioning Device (ETD)	Standard
Universal LATCH system (Lower Anchors and Tethers for Children) at rear outboard seating positions	Standard
Pwr 4-wheel front internally vented/solid rear disc brakes	Standard
18" x 7.5" 5-spoke alloy wheels	Standard
Intermittent rear wiper w/washer	Standard
4-way pwr tilt/telescoping steering column w/memory, driver-programmable easy entry/exit feature	Standard
Dual cargo-area lamps w/master shutoff switch	Standard
Integrated 3-button HomeLink compatible garage door control	Standard
Front stabilizer bar	Standard
Electronic analog speedometer, tachometer, and fuel gauge	Standard
Driver-side multicontour seat-inc: pneumatic side bolsters, dual lumbar supports, thigh support	Standard
Mercedes-Benz Maintenance System Plus display-inc: distance remaining to next maintenance, type of service due, reminders	Standard
Tele Aid GPS stolen vehicle recovery system-inc: remote door unlock, automatic alarm notification, concierge service	Standard
Leather/wood trimmed shift knob	Standard
Lockable illuminated glovebox	Standard
265/60VR18 high-performance tires	Standard
2-speed electronic transfer case	Standard
Programmable daytime running lamps	Standard
3-point height adjustable outer rear seat belts w/middle 3-point seat belt	Standard
Halogen front foglamps	Standard
Rear window defroster w/auto-shutoff based on time/driving speed/exterior temp	Standard
Doors/dash mounted passenger assist grips	Standard
Night security illumination	Standard
SmartKey infrared-remote-inc: opening/closing windows, panic alarm, fuel filler door, lock/unlock all doors or drivers	Standard
4-channel Anti-Lock Braking System (ABS) w/brake assist	Standard
Neutral-tinted glass for windshield/front doors	Standard
Audible reminders-inc: parking brake/headlamps on, remove key from ignition	Standard
Dual delayed-shutoff front/rear courtesy/reading lamps	Standard
Touch turn signals (flashes three times w/one touch)	Standard
Electronic Stability Program (ESP)	Standard

Compare trims

Wondering which trim is right for you?

Our 2005 Mercedes-Benz G-Class trim comparison will help you decide.

SAE Net Torque @ RPM	336 @ 3000
Displacement	5.0L/303
Engine Type	Gas V8
SAE Net Horsepower @ RPM	292 @ 5500

Suspension Type - Rear (Cont.)	w/Coil Springs
Suspension Type - Front (Cont.)	w/Coil Springs
Suspension Type - Front	Rigid Axle
Suspension Type - Rear	Rigid Axle

Aux Fuel Tank Capacity, Approx	N/A gal
Fuel Tank Capacity, Approx	25.0 gal

Steering Ratio (:1), Overall	N/A
Steering Type	Pwr Recir Ball
Turning Diameter - Curb to Curb	43.5 ft
Lock to Lock Turns (Steering)	3.5
Turning Diameter - Wall to Wall	N/A ft

Rear Tire Size	P265/60VR18
Spare Tire Size	P265/60VR18
Front Tire Size	P265/60VR18

Cold Cranking Amps @ 0° F (Primary)	N/A
Maximum Alternator Capacity (amps)	N/A

Maximum Payload Capacity	N/A lbs
Total Option Weight	0.00 lbs
Curb Weight	N/A lbs
Base Curb Weight	5423 lbs
Curb Weight - Front	N/A lbs
Curb Weight - Rear	N/A lbs
