2012 Mercedes-Benz Sprinter specs & colors
Full-size Cargo Van
Change trim
MSRP
- 2500 144" $36,290
- 2500 144" $37,670
- 2500 144" $40,320
- 3500 144" $40,345
- 2500 170" $41,400
- 2500 170" EXT $42,350
- 2500 170" $42,720
- 3500 170" $42,785
- 3500 170" EXT $43,420
- 2500 170" $45,050
$36,290
Starting MSRP
Current listing price
Current listing price

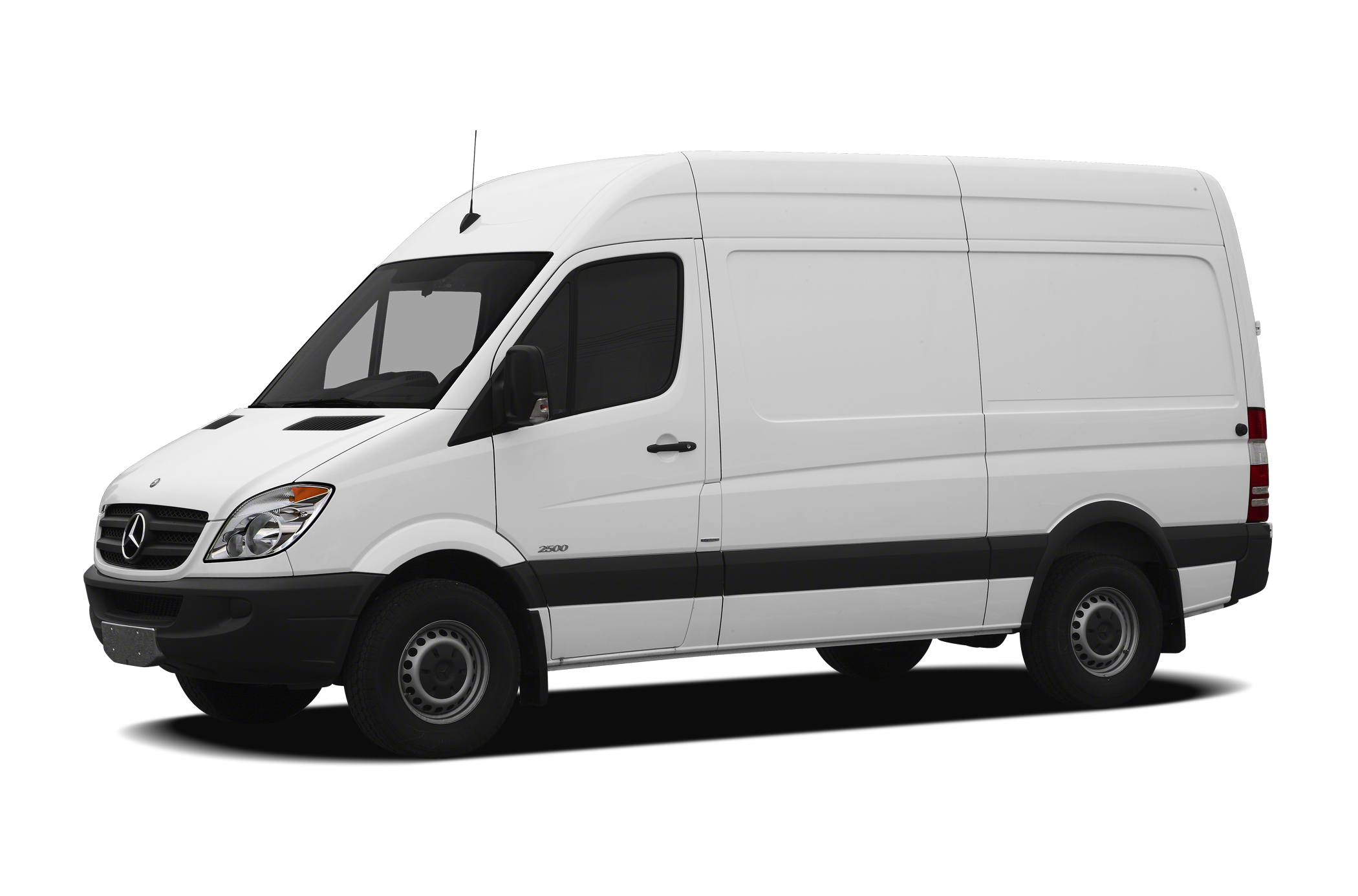

Showing the 2012 Mercedes-Benz Sprinter 2500 144"
Shop NowKey specs
Color options
Interior
Black
Packages
Specifications
Rear Door Type | Dual Swing-Out |
Spare Wheel Size | N/A in |
Front Wheel Size | 16 x 6.5 in |
Spare Wheel Material | Steel |
Front Wheel Material | Steel |
Rear Wheel Material | Steel |
Rear Wheel Size | 16 x 6.5 in |
Cold Cranking Amps @ 0° F (Primary) | N/A |
Maximum Alternator Capacity (amps) | 220 |
SAE Net Torque @ RPM | 325 @ 1400-2400 |
Engine Oil Cooler | Not Available |
SAE Net Horsepower @ RPM | 188 @ 3800 |
Engine Type | Turbocharged Diesel V6 |
Displacement | 3.0L/182 |
EPA Fuel Economy Est - City | Not Available MPG |
Fuel Economy Est-Combined | Not Available MPG |
Cruising Range - Hwy | 0.00 mi |
EPA Fuel Economy Est - Hwy | Not Available MPG |
Cruising Range - City | 0.00 mi |
Estimated Battery Range | N/A mi |
Fourth Gear Ratio (:1) | 1.00 |
Second Gear Ratio (:1) | 2.18 |
Final Drive Axle Ratio (:1) | N/A |
First Gear Ratio (:1) | 3.59 |
Trans Type | 5 |
Trans Power Take Off | Not Available |
Fifth Gear Ratio (:1) | 0.83 |
Trans Description Cont. | Automatic |
Third Gear Ratio (:1) | 1.40 |
Transfer Case Gear Ratio (:1), High | Not Available |
Trans Description Cont. Again | Not Available |
Drivetrain | Rear Wheel Drive |
Reverse Ratio (:1) | 3.16 |
Transfer Case Gear Ratio (:1), Low | Not Available |
Transfer Case Power Take Off | Not Available |
Transfer Case Model | Not Available |
Axle Type - Front | N/A |
Suspension Type - Rear | Fixed axle |
Axle Type - Rear | N/A |
Suspension Type - Front | Independent |
Frame Type | Not Available |
Side Door Type | Sliding |
Rear Brake Rotor Diam x Thickness | N/A in |
Brake ABS System | 4-Wheel |
Disc - Front (Yes or ) | Yes |
Drum - Rear (Yes or ) | Not Available |
Front Brake Rotor Diam x Thickness | N/A in |
Disc - Rear (Yes or ) | Yes |
Brake Type | Pwr |
Brake ABS System (Second Line) | Not Available |
Aux Fuel Tank Capacity, Approx | Not Available gal |
Fuel Tank Capacity, Approx | 25.0 gal |
Turning Diameter - Curb to Curb | N/A ft |
Steering Ratio (:1), Overall | N/A |
Turning Diameter - Wall to Wall | 47.6 ft |
Steering Type | Pwr Rack & Pinion |
Front Tire Size | LT245/75R16 |
Rear Tire Size | LT245/75R16 |
Spare Tire Size | N/A |
Dead Weight Hitch - Max Trailer Wt. | 5000 lbs |
Fifth Wheel Hitch - Max Tongue Wt. | Not Available lbs |
Wt Distributing Hitch - Max Trailer Wt. | 5000 lbs |
Wt Distributing Hitch - Max Tongue Wt. | 750 lbs |
Fifth Wheel Hitch - Max Trailer Wt. | Not Available lbs |
Maximum Trailering Capacity | N/A lbs |
Dead Weight Hitch - Max Tongue Wt. | 500 lbs |
As Spec'd Payload | 3469.00 lbs |
Base Curb Weight | N/A lbs |
Curb Weight | 5081.00 lbs |
As Spec'd Curb Weight | 5081.00 lbs |
Gross Vehicle Weight Rating | 8550.00 lbs |
Gross Combined Wt Rating | 13550 lbs |
Curb Weight - Rear | 2286 lbs |
Curb Weight - Front | 2795 lbs |
Maximum Payload Capacity | 3469.00 lbs |
Total Option Weight | 0.00 lbs |
Option Weight - Rear | 0.00 lbs |
Option Weight - Front | 0.00 lbs |
Gross Axle Weight Rating | N/A lbs |
Ground Clearance, Rear | N/A in |
Side Door Opening Height | 59.8 in |
Tailgate Width | N/A in |
Second Leg Room | N/A in |
Second Shoulder Room | N/A in |
Rear Door Opening Height | 60.6 in |
Front Head Room | N/A in |
Front Shoulder Room | N/A in |
Cab to End of Frame | N/A in |
Cargo Area Width @ Beltline | N/A in |
Overhang, Front | N/A in |
Step Up Height - Side | N/A in |
Rear Door Opening Width | 61.6 in |
Width, Max w/o mirrors | 79.7 in |
Length, Overall | N/A in |
Ext'd Cab Cargo Volume | N/A ft³ |
Cargo Box (Area) Height | 65.0 in |
Cargo Box Width @ Top, Rear | N/A in |
Front Leg Room | N/A in |
Cargo Box Width @ Floor | N/A in |
Length, Overall w/rear bumper | 232.5 in |
Passenger Capacity | 2 |
Ground to Top of Load Floor | 27.6 in |
Cargo Area Length @ Floor to Seat 1 | 128.5 in |
Front Hip Room | N/A in |
Wheelbase | 144.3 in |
Side Door Opening Width | 51.2 in |
Cargo Box Width @ Wheelhousings | 53.1 in |
Second Hip Room | N/A in |
Second Head Room | N/A in |
Height, Overall | 96.3 in |
Overhang, Rear w/o bumper | N/A in |
Ground Clearance, Front | N/A in |
Cargo Volume | 318 ft³ |
Step Up Height - Front | N/A in |
Cargo Area Length @ Floor to Console | N/A in |
Rear wheel drive | Standard |
Rear mud flaps | Standard |
Driver airbag | Standard |
Shelf above windshield | Standard |
Aux fuel sending unit | Standard |
Below-frame mounted spare wheel bracket | Standard |
Outside temp display | Standard |
Battery single pole main switch | Standard |
(2) two-way front speakers | Standard |
Electric pwr aux heater | Standard |
4-wheel anti-lock disc brakes | Standard |
LT245/75R16 tires | Standard |
Start-off assist | Standard |
Reinforced front stabilizer bar | Standard |
8550# GVWR | Standard |
Manual exterior mirror | Standard |
3.92 axle ratio | Standard |
All-season tires | Standard |
270 degree opening rear hinged doors | Standard |
Keyless entry w/remote fob | Standard |
Steel spare wheel | Standard |
Front/rear disc brake | Standard |
Single rear leaf springs | Standard |
Driver seat belt reminder | Standard |
100-amp battery | Standard |
Jump start terminal | Standard |
144" wheel base | Standard |
5-speed automatic transmission | Standard |
Aux electrical connector under drivers seat | Standard |
Fuel filter w/water separator | Standard |
Straight to rear exhaust | Standard |
Electronic stability program -inc: electronic brake force distribution, acceleration skid control, brake assist, roll over mitigation, roll over intervention, load adaptive control, enhanced understeering control | Standard |
3.0L DOHC 24-valve V6 turbo BlueTEC diesel engine | Standard |
Hydraulic jack | Standard |
Front passenger airbag | Standard |
Tilt/telescoping steering column | Standard |
16" x 6.5" steel wheels | Standard |
220-amp alternator | Standard |
Pwr rack & pinion steering | Standard |
Reclining black cloth front bucket seats w/armrests | Standard |
Tinted windshield glass | Standard |
Right sliding door | Standard |
Front ashtray w/lighter | Standard |
Wood floor | Standard |
Automatic temp control air conditioning | Standard |
Front mud flaps | Standard |
Cargo compartment lamp | Standard |
Parking lights deletion | Standard |
Reinforced shock absorbers | Standard |
Under-frame rear stabilizer bar | Standard |
Tire sealant and air compressor delete | Standard |
No cargo partition | Standard |
Rear tow hook | Standard |
Tire pressure monitoring lamp | Standard |
Special request tires | Standard |
AM/FM radio w/CD player | Standard |
