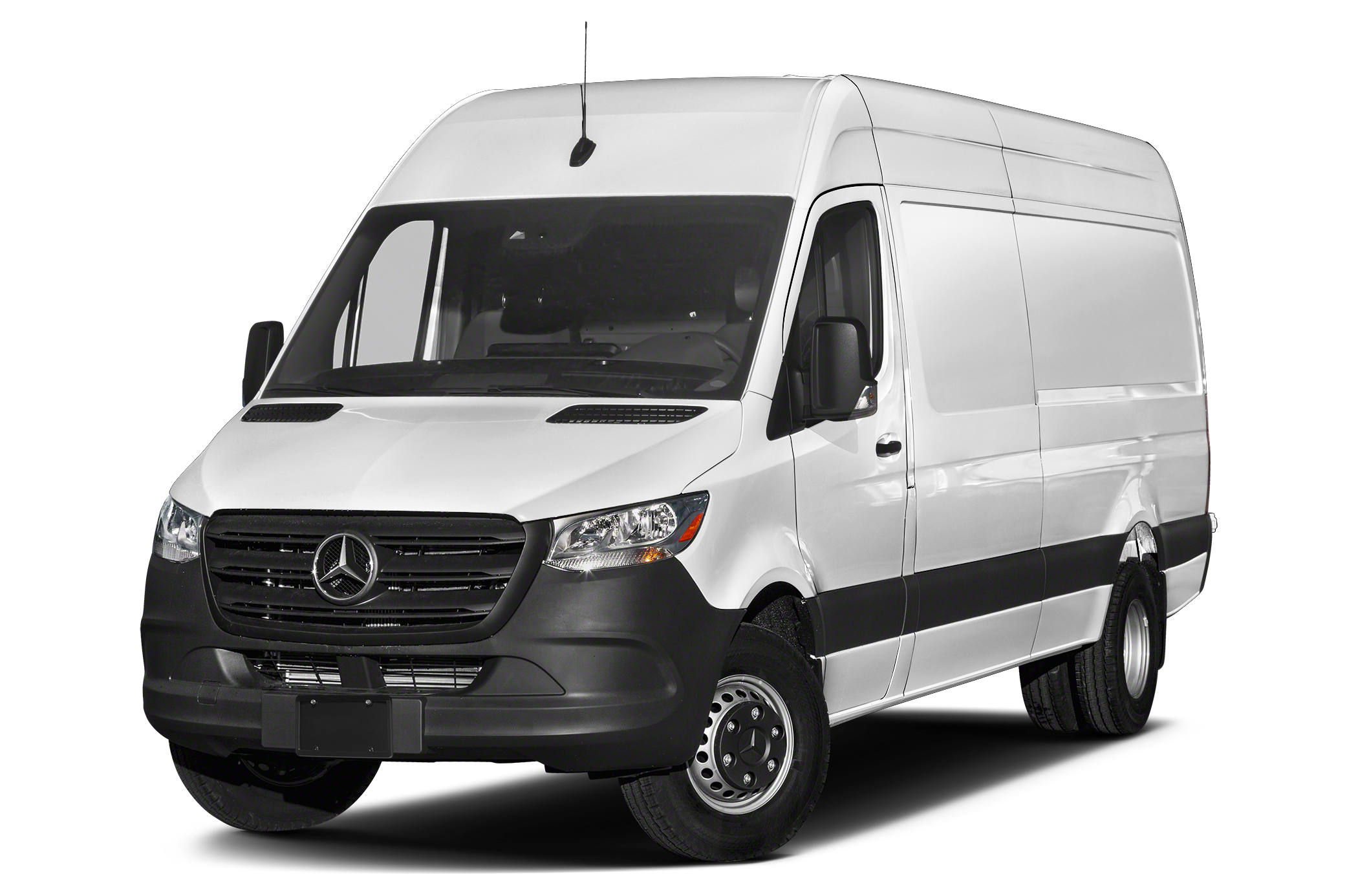

2024 Mercedes-Benz Sprinter 3500XD specs & colors

Full-size Cargo Van

Change trim

$58,500

Starting MSRP
Current listing price

Showing the 2024 Mercedes-Benz Sprinter 3500XD 3500XD Standard Roof I4 Diesel HO 144" RWD

Shop Now

Key specs

3-door

1 seat

211.0-hp, 2.0-liter, 4 Cylinder Engine (Diesel Fuel)

0 combined MPG

233.5" length, 111.3" height

Rear Wheel Drive

Color options

Exterior

Interior

Black

Black / White

Packages

RV Suspension Bundle

$879

Starting MSRP

Stabilization Level III
Front Axle Reinforced
Raised Rear Body Mounts

Premium Plus Package

$2,008

Starting MSRP

navigation
Instrument Panel Front-to-Rear Outlet
Traffic Sign Assist

Swivel Seat Package

$595

Starting MSRP

Swivel Base for Driver's Seat
Passenger's Seat Base
Low Driver's Seat Frame

See all packages

Exterior Lighting Package

$1,801

Starting MSRP

Partial LED Tail Lights
High Beam Assist
LED High Performance Headlamps

Premium Package

$805

Starting MSRP

Wet Wiper System
Active Lane Keeping Assist
Radio: MBUX Multimedia System w/7" Touchscreen

Heavy-Duty-Cargo Protection Package

$1,952

Starting MSRP

D-Ring Cargo Straps
Floor-Level Lashing Rails w/4 Anchors
Lashing Rail Cargo Straps

Comfort Plus Package

$1,898

Starting MSRP

Heated Front Passenger Seat
Electrically Adjustable Front Passenger Seat
Electrically Adjustable Driver's Seat

Chrome Grille Package

$325

Starting MSRP

Radiator Grille Frame in Vehicle Color
Chrome Trimmed Radiator Grille

Cargo Protection Package

$1,250

Starting MSRP

D-Ring Cargo Straps
Half Height Load Compartment Trim
Floor Covering

Driver Convenience Package

$449

Starting MSRP

Hinged Lid for Left & Right Storage Compartments
Attention Assist
2 Additional Master Keys

Premium Package w/Premium Plus Package

$547

Starting MSRP

Leather Steering Wheel
Wet Wiper System
Active Lane Keeping Assist

Comfort Package

$307

Starting MSRP

Comfort Head Restraint
Passenger
Comfort Head Restraint

Shuttle Door Prep Package

Starting MSRP

Passenger Seat Pedestal Deletion
Passenger Seat Deletion
Seat Belt Deletion

RV Technical Bundle

$957

Starting MSRP

Auxiliary Fuel Sending Unit w/Fuel Tap
Front Engine Bracket For Additional Alternator
Optimized Aux Fuel Tap Fuel Gauge

Comfort Package w/Seat Addition

$426

Starting MSRP

Comfort Passenger Seat
Comfort Driver's Seat

Specifications

Rear Door Type

Split Swing-Out

Front Wheel Size	16 X 5.5 in
Rear Wheel Size	16 X 5.5 in
Spare Wheel Size	Full-Size in
Front Wheel Material	Steel
Rear Wheel Material	Steel
Spare Wheel Material	Steel

Cold Cranking Amps @ 0° F (Primary)	850
Maximum Alternator Capacity (amps)	250

Engine Type	Intercooled Turbo Diesel I-4
Displacement	2.0 L/119
SAE Net Horsepower @ RPM	211 @ 3800
SAE Net Torque @ RPM	332 @ 1400
Engine Oil Cooler	None

EPA Fuel Economy Est - Hwy	N/A MPG
Cruising Range - City	N/A mi
EPA Fuel Economy Est - City	N/A MPG
Fuel Economy Est-Combined	N/A MPG
Cruising Range - Hwy	N/A mi
Estimated Battery Range	N/A mi

Drivetrain	Rear Wheel Drive
Trans Type	9
Trans Description Cont.	Automatic w/OD
Trans Description Cont. Again	N/A
First Gear Ratio (:1)	5.53
Second Gear Ratio (:1)	3.24
Third Gear Ratio (:1)	2.25
Fourth Gear Ratio (:1)	1.64
Fifth Gear Ratio (:1)	1.21
Sixth Gear Ratio (:1)	1.00
Reverse Ratio (:1)	4.90
Trans Power Take Off	N/A
Final Drive Axle Ratio (:1)	N/A
Transfer Case Model	None
Transfer Case Gear Ratio (:1), High	N/A
Transfer Case Gear Ratio (:1), Low	N/A
Transfer Case Power Take Off	No
Seventh Gear Ratio (:1)	0.86
Eighth Gear Ratio (:1)	0.72
Ninth Gear Ratio (:1)	N/A

Suspension Type - Front	Strut
Suspension Type - Rear	Leaf
Axle Type - Front	Independent
Axle Type - Rear	Rigid Axle

Frame Type

N/A

Side Door Type

Sliding

Brake Type	4-Wheel Disc
Brake ABS System	4-Wheel
Brake ABS System (Second Line)	4-Wheel
Disc - Front (Yes or )	Yes
Disc - Rear (Yes or )	Yes
Front Brake Rotor Diam x Thickness	N/A in
Rear Brake Rotor Diam x Thickness	N/A in
Drum - Rear (Yes or )	N/A

Fuel Tank Capacity, Approx	24.5 gal
Aux Fuel Tank Capacity, Approx	N/A gal

Steering Type	Rack-Pinion
Steering Ratio (:1), Overall	N/A
Turning Diameter - Curb to Curb	45.3 ft
Turning Diameter - Wall to Wall	N/A ft

Front Tire Size	LT215/85SR16
Rear Tire Size	LT215/85SR16
Spare Tire Size	Full-Size

Dead Weight Hitch - Max Trailer Wt.	5000 lbs
Dead Weight Hitch - Max Tongue Wt.	500 lbs
Wt Distributing Hitch - Max Trailer Wt.	7500 lbs
Wt Distributing Hitch - Max Tongue Wt.	750 lbs
Fifth Wheel Hitch - Max Trailer Wt.	N/A lbs
Fifth Wheel Hitch - Max Tongue Wt.	N/A lbs
Maximum Trailering Capacity	7500 lbs

Base Curb Weight	5368 lbs
Curb Weight - Front	2362 lbs
Curb Weight - Rear	3006 lbs
Option Weight - Front	0.00 lbs
Option Weight - Rear	0.00 lbs
As Spec'd Curb Weight	5368.00 lbs
As Spec'd Payload	5662.00 lbs
Maximum Payload Capacity	5662.00 lbs
Gross Combined Wt Rating	15250 lbs
Gross Axle Weight Rating	11802.00 lbs
Curb Weight	5368.00 lbs
Total Option Weight	0.00 lbs
Gross Vehicle Weight Rating	11030.00 lbs

Passenger Capacity	2
Front Head Room	47.3 in
Front Leg Room	38.9 in
Front Shoulder Room	67.4 in
Front Hip Room	63.7 in
Second Head Room	N/A in
Second Leg Room	N/A in
Second Shoulder Room	N/A in
Second Hip Room	N/A in
Wheelbase	144 in
Length, Overall w/rear bumper	N/A in
Length, Overall	233.5 in
Width, Max w/o mirrors	80 in
Height, Overall	97.9 in
Overhang, Front	N/A in
Overhang, Rear w/o bumper	N/A in
Cab to End of Frame	N/A in
Ground to Top of Load Floor	29.3 in
Ground Clearance, Front	8 in
Ground Clearance, Rear	8 in
Rear Door Opening Height	N/A in
Rear Door Opening Width	N/A in
Side Door Opening Height	N/A in
Side Door Opening Width	N/A in
Step Up Height - Front	N/A in
Step Up Height - Side	N/A in
Cargo Area Length @ Floor to Console	N/A in
Cargo Area Length @ Floor to Seat 1	132.9 in
Cargo Box Width @ Top, Rear	N/A in
Cargo Area Width @ Beltline	70.4 in
Cargo Box Width @ Floor	N/A in
Cargo Box Width @ Wheelhousings	38.5 in
Cargo Box (Area) Height	67.7 in
Tailgate Width	N/A in
Cargo Volume	281.1 ft³
Ext'd Cab Cargo Volume	N/A ft³

Radio: Standard	Standard
Radio w/Seek-Scan, Clock, Aux Audio Input Jack, Steering Wheel Controls and External Memory Control	Standard
Integrated Roof Antenna	Standard
Audio Theft Deterrent	Standard
Streaming Audio	Standard
Bluetooth Wireless Phone Connectivity	Standard
5 Speakers	Standard
1 LCD Monitor In The Front	Standard

All-Season Tires	Standard
Sliding Rear Passenger Side Door	Standard
Splash Guards	Standard
Steel Spare Wheel	Standard
Tires: LT215/85R16 (STD)	Standard
Full-Size Spare Tire Stored Underbody w/Crankdown	Standard
Fully Galvanized Steel Panels	Standard
Fixed Interval Wipers	Standard
Wheels: 5.5J x 16 Steel (STD)	Standard
Gray Bodyside Moldings	Standard
Tailgate/Rear Door Lock Included w/Power Door Locks	Standard
Front License Plate Bracket	Standard
LED Brakelights	Standard
Light Tinted Glass	Standard
Split Swing-Out Rear Cargo Access	Standard
Black Door Handles	Standard
Tire Brand Unspecified	Standard
Gray Front Bumper	Standard
Auto On/Off Reflector Halogen Daytime Running Headlamps	Standard
Black Side Windows Trim	Standard
Gray Rear Bumper	Standard
Black Grille	Standard
Wheels w/Silver Accents w/Hub Covers	Standard
Front Windshield -inc: Sun Visor Strip	Standard
Black Power Heated Side Mirrors w/Convex Spotter and Manual Folding	Standard

Manual Air Conditioning	Standard
Standard Front Passenger Seat	Standard
Bucket Seats	Standard
Immobilizer	Standard
Air Filtration	Standard
Cargo Space Lights	Standard
2 12V DC Power Outlets	Standard
Seats w/Vinyl Back Material	Standard
FOB Controls -inc: Cargo Access	Standard
Driver And Front Passenger Armrests	Standard
Analog Appearance	Standard
Maturin Fabric Upholstery	Standard
Outside Temp Gauge	Standard
Front Only Vinyl/Rubber Floor Covering	Standard
HVAC -inc: Residual Heat Recirculation and Supplemental Cabin Heater	Standard
Standard Driver Seat	Standard
Cruise Control w/Steering Wheel Controls	Standard
6-Way Passenger Seat	Standard
Power 1st Row Windows w/Driver And Passenger 1-Touch Down	Standard
Locking Glove Box	Standard
Front Cloth Headliner	Standard
Manual Adjustable Front Head Restraints	Standard
Proximity Key For Push Button Start Only	Standard
Heated Driver's Seat	Standard
Front Cupholder	Standard
Day-Night Rearview Mirror	Standard
Full Overhead Console w/Storage and 2 12V DC Power Outlets	Standard
Tracker System	Standard
Urethane Gear Shifter Material	Standard
Fade-To-Off Interior Lighting	Standard
Power Door Locks	Standard
Remote Keyless Entry w/Integrated Key Transmitter and Illuminated Entry	Standard
Manual Tilt Steering Column	Standard
Instrument Panel Bin, Dashboard Storage, Interior Concealed Storage, Driver And Passenger Door Bins	Standard
6-Way Driver Seat	Standard
Gauges -inc: Speedometer, Odometer, Tachometer and Trip Odometer	Standard
Driver Foot Rest	Standard

Rear-Wheel Drive	Standard
Single Stainless Steel Exhaust	Standard
Transmission: 9G-TRONIC Automatic	Standard
Trailer Wiring Harness	Standard
Transmission w/Sequential Shift Control w/Steering Wheel Controls and Oil Cooler	Standard
24.5 Gal. Fuel Tank	Standard
GVWR: 11,030 lbs (5,003 kgs)	Standard
Electric Power-Assist Speed-Sensing Steering	Standard
4.727 Axle Ratio	Standard
Strut Front Suspension w/Transverse Leaf Springs	Standard
Solid Axle Rear Suspension w/Leaf Springs	Standard
Engine: 2.0L 4-Cyl Diesel High Output	Standard
5662# Maximum Payload	Standard
Front Anti-Roll Bar	Standard
250 Amp Alternator	Standard
4-Wheel Disc Brakes w/4-Wheel ABS, Front Vented Discs, Brake Assist and Hill Hold Control	Standard
92-Amp/Hr 850CCA Maintenance-Free Battery	Standard

ESP w/Crosswind Assist Electronic Stability Control (ESC)	Standard
eCall Emergency System Emergency Sos	Standard
Side Impact Beams	Standard
ABS And Driveline Traction Control	Standard
Airbag Occupancy Sensor	Standard
Outboard Front Lap And Shoulder Safety Belts -inc: Height Adjusters and Pretensioners	Standard
Dual Stage Driver And Passenger Seat-Mounted Side Airbags	Standard
Curtain 1st Row Airbags	Standard
Back-Up Camera	Standard
Restricted Driving Mode	Standard
Dual Stage Driver And Passenger Front Airbags	Standard
