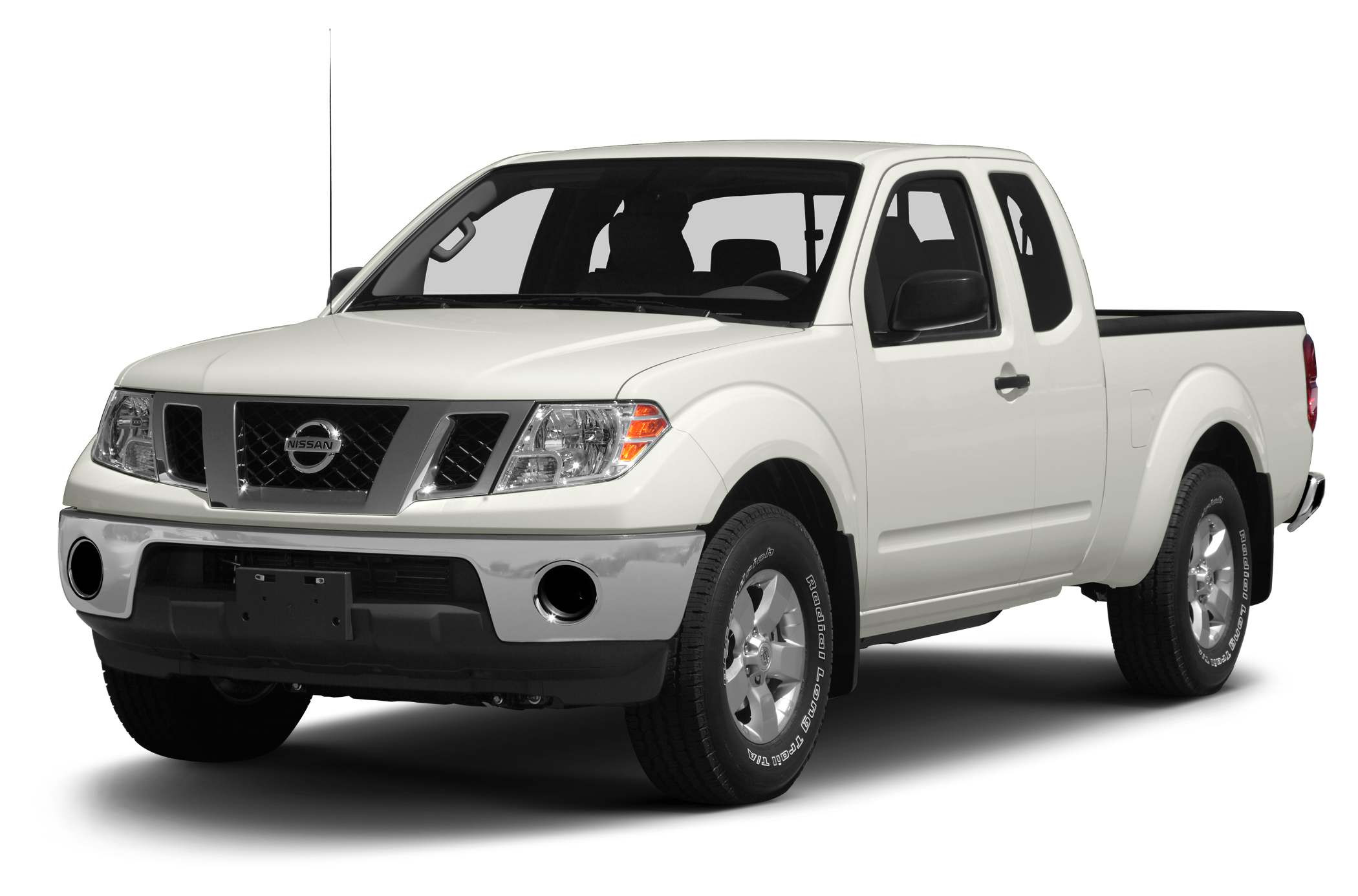

2012 Nissan Frontier S specs & colors

$19,260
Starting MSRP
Current listing price

Showing the 2012 Nissan Frontier 2WD King Cab I4 Manual S

Shop Now

Key specs

Color options

Interior

Charcoal


Medium Mocha


Packages

Specifications

Front Wheel Size 15 x 7.0 in
Rear Wheel Size 15 x 7.0 in
Spare Wheel Size 15 x 7.0 in
Front Wheel Material Steel
Rear Wheel Material Steel
Spare Wheel Material Steel

Cold Cranking Amps @ 0° F (Primary) 550
Maximum Alternator Capacity (amps) 110

Engine Type Gas 4-cyl
Displacement 2.5L/-TBD-
SAE Net Horsepower @ RPM 152 @ 5200
SAE Net Torque @ RPM 171 @ 4400
Engine Oil Cooler Not Available

EPA Fuel Economy Est - Hwy 23 MPG
Cruising Range - City 400.90 mi
EPA Fuel Economy Est - City 19 MPG
Fuel Economy Est-Combined 21 MPG
Cruising Range - Hwy 485.30 mi
Estimated Battery Range N/A mi

Drivetrain Rear Wheel Drive
Trans Type 5
Trans Description Cont. Manual
Trans Description Cont. Again Not Available
First Gear Ratio (:1) 3.58
Second Gear Ratio (:1) 2.07
Third Gear Ratio (:1) 1.36
Fourth Gear Ratio (:1) 1.00
Fifth Gear Ratio (:1) 0.81
Reverse Ratio (:1) 3.63
Trans Power Take Off Not Available
Final Drive Axle Ratio (:1) N/A
Transfer Case Model Not Available
Transfer Case Gear Ratio (:1), High Not Available
Transfer Case Gear Ratio (:1), Low Not Available
Transfer Case Power Take Off Not Available

Suspension Type - Front Double Wishbone
Suspension Type - Rear Multi-Leaf
Axle Type - Front Not Available
Axle Type - Rear C200

Frame Type Ladder

Brake Type Pwr
Brake ABS System 4-Wheel
Brake ABS System (Second Line) Not Available
Disc - Front (Yes or ) Yes
Disc - Rear (Yes or ) Yes
Front Brake Rotor Diam x Thickness 11.1 x 0.7 in
Rear Brake Rotor Diam x Thickness 11.3 x 0.7 in
Drum - Rear (Yes or ) Not Available

Fuel Tank Capacity, Approx 21.1 gal
Aux Fuel Tank Capacity, Approx Not Available gal

Steering Type Pwr Rack & pinion
Steering Ratio (:1), Overall N/A
Turning Diameter - Curb to Curb 43.4 ft
Turning Diameter - Wall to Wall N/A ft

Front Tire Size P235/75R15
Rear Tire Size P235/75R15
Spare Tire Size P235/75R15

Dead Weight Hitch - Max Trailer Wt. 3500 lbs
Dead Weight Hitch - Max Tongue Wt. 350 lbs
Wt Distributing Hitch - Max Trailer Wt. 3500 lbs
Wt Distributing Hitch - Max Tongue Wt. 350 lbs
Fifth Wheel Hitch - Max Trailer Wt. Not Available lbs
Fifth Wheel Hitch - Max Tongue Wt. Not Available lbs
Maximum Trailering Capacity N/A lbs

Base Curb Weight N/A lbs
Curb Weight - Front 2027 lbs
Curb Weight - Rear 1658 lbs
Option Weight - Front 0.00 lbs
Option Weight - Rear 0.00 lbs
As Spec'd Curb Weight 3685.00 lbs
As Spec'd Payload 1005.00 lbs
Maximum Payload Capacity 1005.00 lbs
Gross Combined Wt Rating 7936 lbs
Gross Axle Weight Rating 5062.00 lbs
Curb Weight 3685.00 lbs
Total Option Weight 0.00 lbs
Gross Vehicle Weight Rating 4690.00 lbs

Passenger Capacity 4
Front Head Room 39.7 in
Front Leg Room 42.4 in
Front Shoulder Room 58.3 in
Front Hip Room 55.8 in
Second Head Room 38.3 in
Second Leg Room 25.4 in
Second Shoulder Room 54.9 in
Second Hip Room 55.0 in
Wheelbase 125.9 in
Length, Overall w/o rear bumper 205.5 in
Length, Overall w/rear bumper N/A in
Length, Overall N/A in
Width, Max w/o mirrors 72.8 in
Height, Overall 68.7 in
Overhang, Front 31.3 in
Overhang, Rear w/o bumper 48.2 in
Cab to End of Frame N/A in
Ground to Top of Load Floor N/A in
Ground Clearance, Front 8.7 in
Ground Clearance, Rear 8.7 in
Cargo Box Length @ Floor 73.3 in
Cargo Box Width @ Top, Rear 61.4 in
Cargo Box Width @ Floor 61.4 in
Cargo Box Width @ Wheelhousings 44.4 in
Cargo Box (Area) Height 18.0 in
Tailgate Width 58.8 in
Cargo Volume 33.5 ft³
Ext'd Cab Cargo Volume 30.9 ft³

Reclining front bucket seats w/adjustable active head restraints Standard
Rear under-seat storage bin Standard
Dome light Standard
Rear access doors Standard
Front independent suspension Standard
Clutch interlock Standard
Front seat-mounted side impact airbags Standard
Chrome rear bumper Standard
4-wheel anti-lock braking system (ABS) Standard
Black manual outside mirrors Standard
Audio system prewiring w/(4) speakers Standard
Chrome front grille Standard
5-speed manual transmission Standard
Black front bumper Standard
Side door guard beams Standard
Vehicle dynamic control (VDC) Standard
15" styled steel wheels Standard
Tire pressure monitoring system Standard
Active brake limited slip (ABLS) Standard
Tinted UV-reducing solar glass Standard
Multi-leaf rear suspension Standard
Driver/front passenger assist grips Standard
Black door handles Standard
Cloth seating surfaces Standard
Pwr 4-wheel vented disc brakes Standard
Rear wheel drive Standard
Front seat belts w/pretensioners, load limiters, adjustable upper anchors Standard
Detachable tailgate w/lock Standard
P235/75R15 all-season tires Standard
Electronic Brake force Distribution (EBD) Standard
Forward-facing rear flip-up seats Standard
Dual front/rear cup holders Standard
Front center console armrest w/storage Standard
Reminders -inc: low fuel, fasten seat belts Standard
3-point seat belts for all seating positions Standard
Coat hook Standard
Driver & front passenger dual-stage airbags w/occupant sensor Standard
Lower anchors & tethers for children (LATCH) Standard
Vehicle speed-sensitive pwr steering Standard
Full size spare tire w/steel wheel Standard
Variable intermittent windshield wipers Standard
2.5L DOHC 16-valve 4-cyl engine Standard
Dual glove box w/lower lockable glove box Standard
Fold-flat passenger seat Standard
(2) auxiliary pwr outlets Standard
Front/rear door map pockets Standard
Front/rear roof-mounted curtain side impact airbags Standard
Instrumentation -inc: tachometer, trip meter, coolant temp Standard
Cargo lamp Standard
