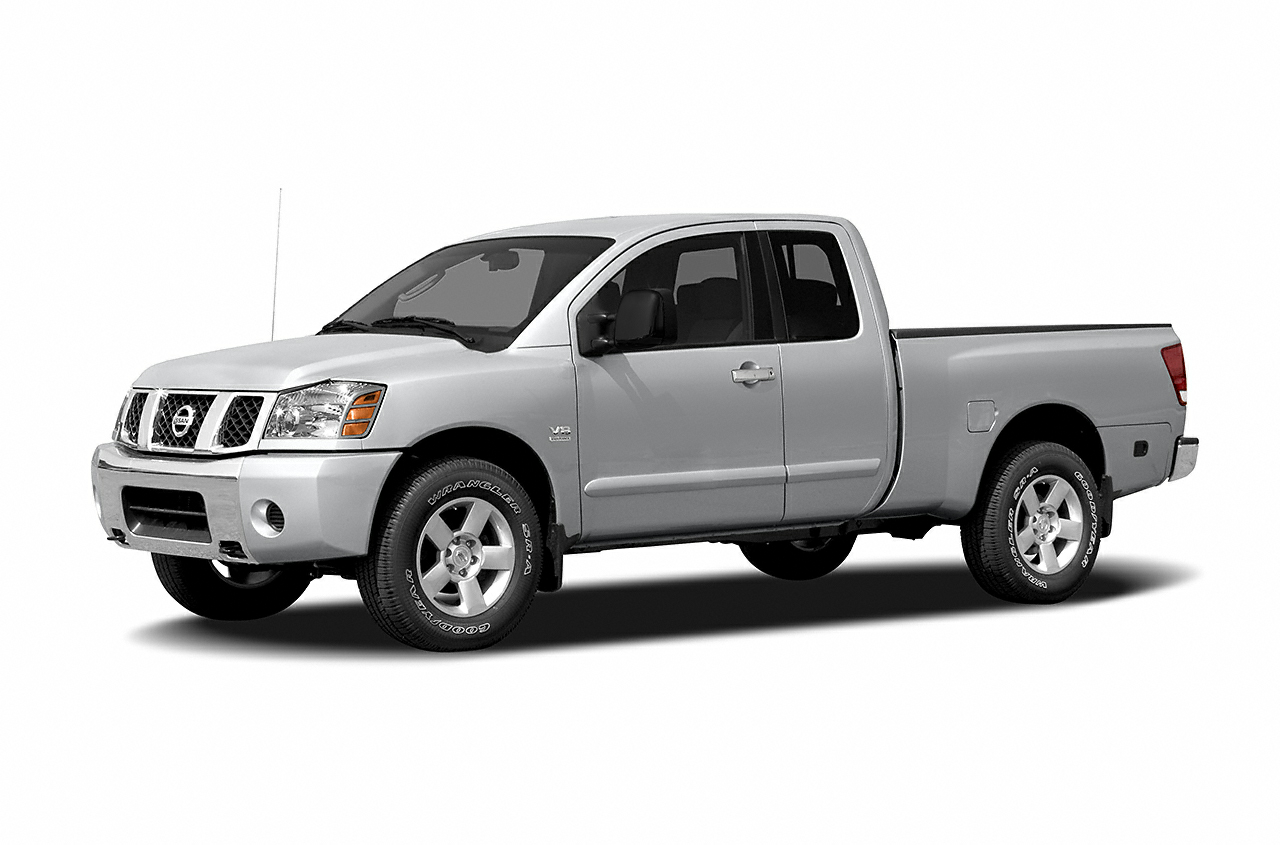

2006 Nissan Titan XE specs & colors
Extended Cab Pickup
MSRP
- XE King Cab 2WD FFV
- $23,400
- XE King Cab 2WD
- $23,400
- SE King Cab 2WD
- $25,550
- SE King Cab 2WD FFV
- $25,550
- XE Crew Cab 2WD
- $26,250
- XE Crew Cab 2WD FFV
- $26,250
- XE King Cab 4WD FFV
- $26,600
- XE King Cab 4WD
- $26,600
- SE Crew Cab 2WD
- $28,050
- SE Crew Cab 2WD FFV
- $28,050
- SE King Cab 4WD FFV
- $28,750
- SE King Cab 4WD
- $28,750
- XE Crew Cab 4WD FFV
- $29,450
- XE Crew Cab 4WD
- $29,450
- LE King Cab 2WD
- $30,350
- LE King Cab 2WD FFV
- $30,350
- SE Crew Cab 4WD FFV
- $31,250
- SE Crew Cab 4WD
- $31,250
- LE Crew Cab 2WD
- $32,850
- LE Crew Cab 2WD FFV
- $32,850
- LE King Cab 4WD FFV
- $33,400
- LE King Cab 4WD
- $33,400
- LE Crew Cab 4WD
- $35,900
- LE Crew Cab 4WD FFV
- $35,900
Key specs
Color options
Interior
Charcoal
Medium Mocha
Packages
Specifications
Highlights
|
Gas V8
Engine Type
|
|
14 City / 18 Hwy
MPG
|
|
305 hp
Horsepower
|
|
4
Seating Capacity
|
Brakes
|
Pwr
Brake Type
|
|
4-Wheel
Brake ABS System
|
|
Not Available
Brake ABS System (Second Line)
|
|
Yes
Disc - Front (Yes or )
|
|
Yes
Disc - Rear (Yes or )
|
|
10.9 x 1 in
Front Brake Rotor Diam x Thickness
|
|
N/A
Rear Brake Rotor Diam x Thickness
|
|
Not Available
Drum - Rear (Yes or )
|
Electrical
|
650
Cold Cranking Amps @ 0° F (Primary)
|
|
110
Maximum Alternator Capacity (amps)
|
Engine
|
Gas V8
Engine Type
|
|
5.6L/339
Displacement
|
|
305 @ 4900
SAE Net Horsepower @ RPM
|
|
379 @ 3600
SAE Net Torque @ RPM
|
|
Transmission Overdrive Switch
A/T Transmission w/Dual Shift Mode 5-Speed A/T Transmission Options
|
|
14 City / 18 Hwy
MPG
|
|
N/A
Total Cooling System Capacity
|
Measurements
|
4
Passenger Capacity
|
|
41 in
Front Head Room
|
|
42 in
Front Leg Room
|
|
65 in
Front Shoulder Room
|
|
61 in
Front Hip Room
|
|
39 in
Second Head Room
|
|
33 in
Second Leg Room
|
|
65 in
Second Shoulder Room
|
|
60 in
Second Hip Room
|
|
140 in
Wheelbase
|
|
224 in
Length, Overall w/o rear bumper
|
|
N/A
Length, Overall w/rear bumper
|
|
N/A
Length, Overall
|
|
79 in
Width, Max w/o mirrors
|
|
77 in
Height, Overall
|
|
N/A
Overhang, Front
|
|
N/A
Overhang, Rear w/o bumper
|
|
N/A
Cab to End of Frame
|
|
N/A
Ground to Top of Load Floor
|
|
N/A
Ext'd Cab Cargo Volume
|
|
N/A
Cargo Volume
|
|
N/A
Tailgate Width
|
|
20 in
Cargo Box (Area) Height
|
|
N/A
Cargo Box Width @ Wheelhousings
|
|
64 in
Cargo Box Width @ Floor
|
|
N/A
Cargo Box Width @ Top, Rear
|
|
79 in
Cargo Box Length @ Floor
|
|
N/A
Ground Clearance, Rear
|
|
N/A
Ground Clearance, Front
|
Steering
|
Pwr Recirculating Ball
Steering Type
|
|
N/A
Steering Ratio (:1), Overall
|
|
N/A
Turning Diameter - Curb to Curb
|
|
N/A
Turning Diameter - Wall to Wall
|
Suspension
|
Independent
Suspension Type - Front
|
|
Multi-Leaf
Suspension Type - Rear
|
|
N/A
Axle Type - Front
|
|
N/A
Axle Type - Rear
|
Tires & Wheels
|
P245/75R17
Front Tire Size
|
|
P245/75R17
Rear Tire Size
|
|
P245/75R17
Spare Tire Size
|
|
17 x 7.5 in
Front Wheel Size
|
|
17 x 7.5 in
Rear Wheel Size
|
|
17 x 7.5 in
Spare Wheel Size
|
|
Steel
Front Wheel Material
|
|
Steel
Rear Wheel Material
|
|
Steel
Spare Wheel Material
|
Weight & Capacity
|
N/A
Base Curb Weight
|
|
2,668 lbs
Curb Weight - Front
|
|
2,182 lbs
Curb Weight - Rear
|
|
0 lbs
Option Weight - Front
|
|
0 lbs
Option Weight - Rear
|
|
4,850 lbs
As Spec'd Curb Weight
|
|
1,572 lbs
As Spec'd Payload
|
|
1,572 lbs
Maximum Payload Capacity
|
|
N/A
Gross Combined Wt Rating
|
|
9,500 lbs
Dead Weight Hitch - Max Trailer Wt.
|
|
950 lbs
Dead Weight Hitch - Max Tongue Wt.
|
|
N/A
Wt Distributing Hitch - Max Trailer Wt.
|
|
N/A
Fifth Wheel Hitch - Max Tongue Wt.
|
|
N/A
Maximum Trailering Capacity
|
|
28 gal
Fuel Tank Capacity, Approx
|
|
Not Available gal
Aux Fuel Tank Capacity, Approx
|
|
6,422 lbs
Gross Vehicle Weight Rating
|
|
0 lbs
Total Option Weight
|
|
4,850 lbs
Curb Weight
|
|
7,100 lbs
Gross Axle Weight Rating
|
|
N/A
Wt Distributing Hitch - Max Tongue Wt.
|
|
N/A
Fifth Wheel Hitch - Max Trailer Wt.
|
