2010 Nissan Titan XE specs & colors
Extended Cab Pickup
MSRP
- 2WD King Cab SWB XE
- $26,540
- 2WD King Cab SWB SE
- $28,540
- 2WD Crew Cab SWB XE
- $29,090
- 4WD King Cab SWB XE
- $29,390
- 2WD Crew Cab SWB SE
- $30,740
- 2WD Crew Cab LWB SE
- $31,190
- 4WD King Cab SWB SE
- $31,390
- 4WD Crew Cab SWB XE
- $31,940
- 4WD Crew Cab SWB SE
- $33,590
- 4WD Crew Cab LWB SE
- $34,070
- 4WD King Cab SWB PRO-4X
- $34,270
- 4WD Crew Cab SWB PRO-4X
- $36,470
- 2WD Crew Cab SWB LE
- $36,640
- 4WD Crew Cab SWB LE
- $39,340
$26,540
Starting MSRP
Current listing price
Current listing price

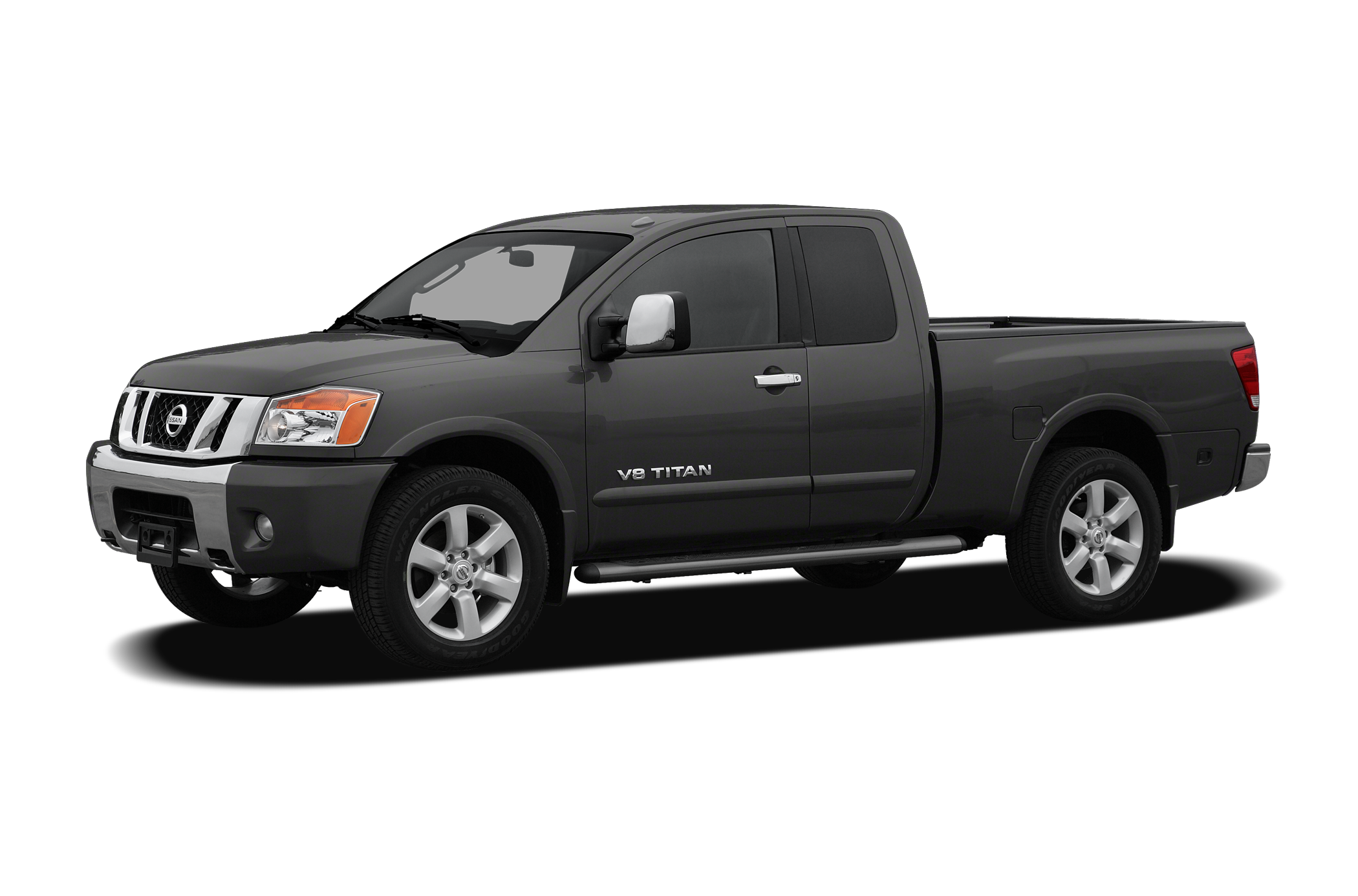

Showing the 2010 Nissan Titan 2WD King Cab SWB XE
Shop NowKey specs
Color options
Interior
Dark Pumice
Medium Grey
Packages
Specifications
Highlights
|
Gas V8
Engine Type
|
|
13 City / 17 Hwy
MPG
|
|
317 hp
Horsepower
|
|
6
Seating Capacity
|
Brakes
|
Pwr
Brake Type
|
|
4-Wheel
Brake ABS System
|
|
Not Available
Brake ABS System (Second Line)
|
|
Yes
Disc - Front (Yes or )
|
|
Yes
Disc - Rear (Yes or )
|
|
13.8 x 1.2 in
Front Brake Rotor Diam x Thickness
|
|
12.6 x 0.6 in
Rear Brake Rotor Diam x Thickness
|
|
Not Available
Drum - Rear (Yes or )
|
Electrical
|
650
Cold Cranking Amps @ 0° F (Primary)
|
|
130
Maximum Alternator Capacity (amps)
|
Engine
|
Gas V8
Engine Type
|
|
5.6L/-TBD-
Displacement
|
|
317 @ 5200
SAE Net Horsepower @ RPM
|
|
385 @ 3400
SAE Net Torque @ RPM
|
|
Transmission Overdrive Switch
A/T 5-Speed A/T Transmission Options
|
|
13 City / 17 Hwy
MPG
|
|
12.8 qts
Total Cooling System Capacity
|
Measurements
|
6
Passenger Capacity
|
|
41 in
Front Head Room
|
|
42 in
Front Leg Room
|
|
65 in
Front Shoulder Room
|
|
61 in
Front Hip Room
|
|
39 in
Second Head Room
|
|
33 in
Second Leg Room
|
|
65 in
Second Shoulder Room
|
|
60 in
Second Hip Room
|
|
140 in
Wheelbase
|
|
225 in
Length, Overall w/o rear bumper
|
|
N/A
Length, Overall w/rear bumper
|
|
N/A
Length, Overall
|
|
80 in
Width, Max w/o mirrors
|
|
75 in
Height, Overall
|
|
N/A
Overhang, Front
|
|
N/A
Overhang, Rear w/o bumper
|
|
N/A
Cab to End of Frame
|
|
N/A
Ground to Top of Load Floor
|
|
10 in
Ground Clearance, Front
|
|
10 in
Ground Clearance, Rear
|
|
79 in
Cargo Box Length @ Floor
|
|
N/A
Cargo Box Width @ Top, Rear
|
|
64 in
Cargo Box Width @ Floor
|
|
50 in
Cargo Box Width @ Wheelhousings
|
|
N/A
Cargo Box (Area) Height
|
|
N/A
Tailgate Width
|
|
N/A
Cargo Volume
|
|
N/A
Ext'd Cab Cargo Volume
|
Steering
|
Pwr Rack & Pinion
Steering Type
|
|
N/A
Steering Ratio (:1), Overall
|
|
46 ft
Turning Diameter - Curb to Curb
|
|
N/A
Turning Diameter - Wall to Wall
|
Suspension
|
Double Wishbone
Suspension Type - Front
|
|
Multi-leaf
Suspension Type - Rear
|
|
N/A
Axle Type - Front
|
|
Solid
Axle Type - Rear
|
Tires & Wheels
|
P265/70R18
Front Tire Size
|
|
P265/70R18
Rear Tire Size
|
|
Full-Size
Spare Tire Size
|
|
18 x 8.0 in
Front Wheel Size
|
|
18 x 8.0 in
Rear Wheel Size
|
|
18 x 8.0 in
Spare Wheel Size
|
|
Steel
Front Wheel Material
|
|
Steel
Rear Wheel Material
|
|
Steel
Spare Wheel Material
|
Weight & Capacity
|
N/A
Base Curb Weight
|
|
2,792 lbs
Curb Weight - Front
|
|
2,195 lbs
Curb Weight - Rear
|
|
0 lbs
Option Weight - Front
|
|
0 lbs
Option Weight - Rear
|
|
4,987 lbs
As Spec'd Curb Weight
|
|
2,013 lbs
As Spec'd Payload
|
|
2,013 lbs
Maximum Payload Capacity
|
|
15,099 lbs
Gross Combined Wt Rating
|
|
5,000 lbs
Dead Weight Hitch - Max Trailer Wt.
|
|
500 lbs
Dead Weight Hitch - Max Tongue Wt.
|
|
9,500 lbs
Wt Distributing Hitch - Max Trailer Wt.
|
|
950 lbs
Wt Distributing Hitch - Max Tongue Wt.
|
|
Not Available lbs
Fifth Wheel Hitch - Max Trailer Wt.
|
|
Not Available lbs
Fifth Wheel Hitch - Max Tongue Wt.
|
|
N/A
Maximum Trailering Capacity
|
|
28 gal
Fuel Tank Capacity, Approx
|
|
Not Available gal
Aux Fuel Tank Capacity, Approx
|
|
7,899 lbs
Gross Axle Weight Rating
|
|
4,987 lbs
Curb Weight
|
|
0 lbs
Total Option Weight
|
|
7,000 lbs
Gross Vehicle Weight Rating
|
