2010 Nissan Xterra X specs & colors

Starting MSRP
Current listing price

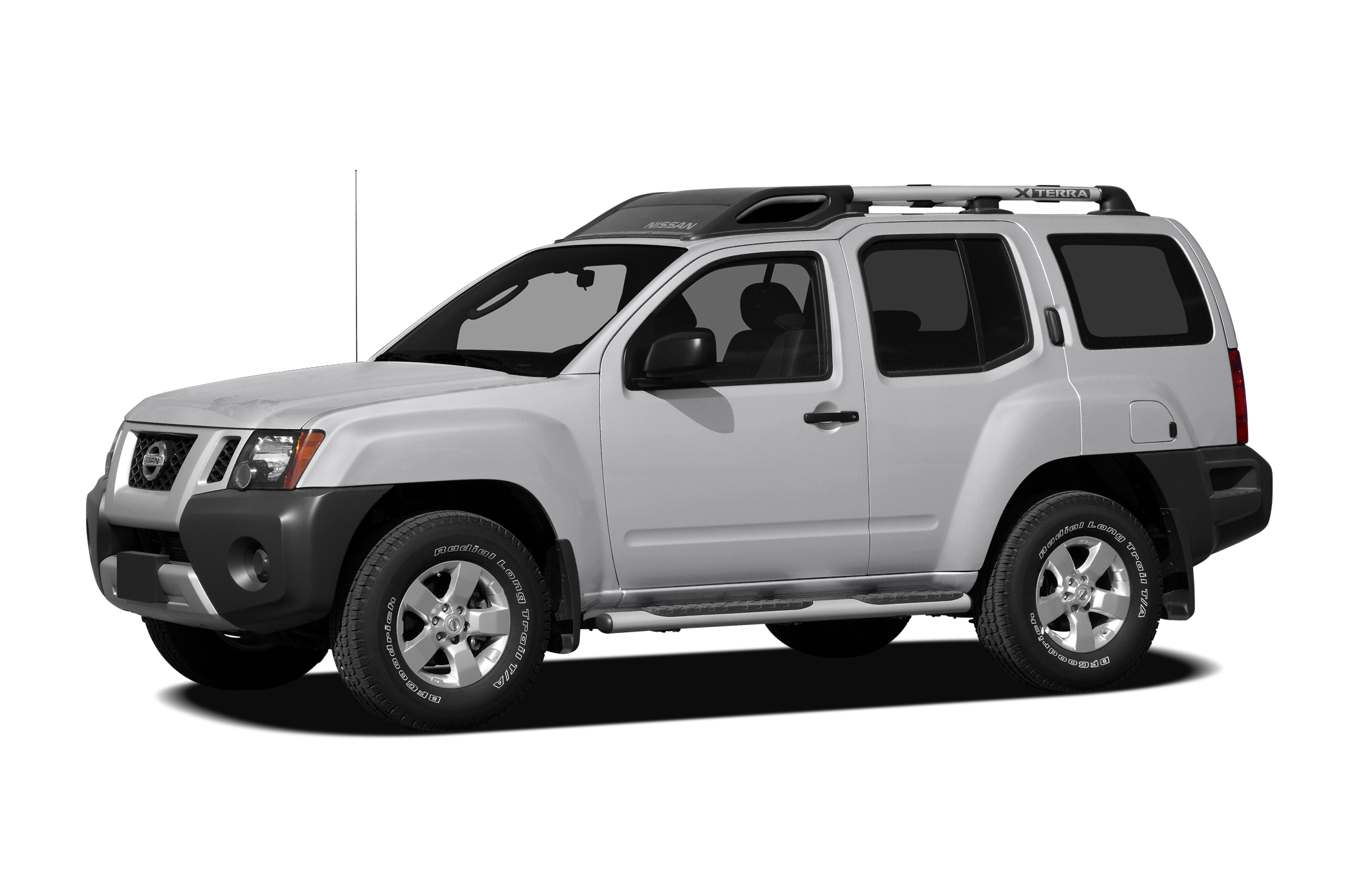

Showing the 2010 Nissan Xterra 2WD 4dr Manual X

Shop Now

Key specs

Color options


Oxford White / Lt Graphite



EPA Classification 2WD Sport Utility

Front Wheel Size 16 x 7.0 in
Rear Wheel Size 16 x 7.0 in
Spare Wheel Size 16 x 7.0 in
Front Wheel Material Steel
Rear Wheel Material Steel
Spare Wheel Material Steel

Cold Cranking Amps @ 0° F (Primary) 550
Maximum Alternator Capacity (amps) N/A

Engine Type Gas V6
Displacement 4.0L/-TBD-
SAE Net Horsepower @ RPM 261 @ 5600
SAE Net Torque @ RPM 281 @ 4000

EPA Fuel Economy Est - Hwy 20 MPG
Cruising Range - City 337.60 mi
EPA Fuel Economy Est - City 16 MPG
Fuel Economy Est-Combined 18 MPG
Cruising Range - Hwy 422.00 mi
EPA MPG Equivalent - City N/A
EPA MPG Equivalent - Hwy N/A
EPA MPG Equivalent - Combined N/A
Estimated Battery Range N/A mi

Drivetrain Rear Wheel Drive
Trans Type 6
Trans Description Cont. Manual w/OD
Trans Description Cont. Again Not Available
First Gear Ratio (:1) 4.37
Second Gear Ratio (:1) 2.52
Third Gear Ratio (:1) 1.74
Fourth Gear Ratio (:1) 1.28
Fifth Gear Ratio (:1) 1.00
Sixth Gear Ratio (:1) 0.77
Reverse Ratio (:1) 3.97
Final Drive Axle Ratio (:1) 3.69
Transfer Case Gear Ratio (:1), High Not Available
Transfer Case Gear Ratio (:1), Low Not Available

Suspension Type - Front Double wishbone
Suspension Type - Rear Multi-leaf
Suspension Type - Front (Cont.) Not Available
Suspension Type - Rear (Cont.) Solid Axle

Brake Type Pwr
Brake ABS System 4-Wheel
Brake ABS System (Second Line) N/A
Disc - Front (Yes or ) Yes
Disc - Rear (Yes or ) Yes
Front Brake Rotor Diam x Thickness 11.7 x 1.1 in
Rear Brake Rotor Diam x Thickness N/A in
Drum - Rear (Yes or ) Not Available

Fuel Tank Capacity, Approx 21.1 gal
Aux Fuel Tank Capacity, Approx N/A gal

Steering Type Pwr rack & pinion
Steering Ratio (:1), Overall N/A
Lock to Lock Turns (Steering) N/A
Turning Diameter - Curb to Curb 37.3 ft
Turning Diameter - Wall to Wall Not Available ft

Front Tire Size P265/70R16
Rear Tire Size P265/70R16
Spare Tire Size P265/70R16

Dead Weight Hitch - Max Trailer Wt. 5000 lbs
Dead Weight Hitch - Max Tongue Wt. 500 lbs
Wt Distributing Hitch - Max Trailer Wt. Not Available lbs
Wt Distributing Hitch - Max Tongue Wt. Not Available lbs
Maximum Trailering Capacity N/A lbs

Base Curb Weight 4167 lbs
Curb Weight - Front N/A lbs
Curb Weight - Rear N/A lbs
Maximum Payload Capacity N/A lbs
Curb Weight N/A lbs
Total Option Weight 0.00 lbs

Passenger Capacity 5
Passenger Volume 99.8 ft³
Front Head Room 39.9 in
Front Leg Room 42.4 in
Front Shoulder Room 58.3 in
Front Hip Room 55.9 in
Second Head Room 39.3 in
Second Leg Room 34.4 in
Second Shoulder Room 58.3 in
Second Hip Room 46.1 in
Wheelbase 106.3 in
Length, Overall 178.7 in
Width, Max w/o mirrors 72.8 in
Height, Overall 74.9 in
Track Width, Front 61.8 in
Track Width, Rear 61.8 in
Min Ground Clearance N/A in
Rear Door Opening Height N/A in
Rear Door Opening Width N/A in
Cargo Area Length @ Floor to Seat 1 N/A in
Cargo Area Length @ Floor to Seat 2 36.7 in
Cargo Area Length @ Floor to Seat 3 Not Available in
Cargo Area Width @ Beltline 43.3 in
Cargo Box Width @ Wheelhousings N/A in
Cargo Box (Area) Height 36.1 in
Liftover Height 32.2 in
Cargo Volume to Seat 1 65.7 ft³
Cargo Volume to Seat 2 35.2 ft³
Cargo Volume to Seat 3 Not Available ft³

Storage compartment under cargo area Standard
Engine immobilizer system Standard
Dark tinted rear privacy glass Standard
Roof rack rails w/air dam Standard
Electronic brake force distribution (EBD) Standard
Dark gray front bumper w/silver paint accent Standard
Accessory pwr delay Standard
Full size spare tire w/steel wheel Standard
Lower radiator skid plate Standard
Security alarm system Standard
Manual tilt steering column Standard
Manual day/night rearview mirror Standard
6-speed manual transmission w/OD Standard
Energy absorbing steering column Standard
Rear HVAC vents under front seats Standard
Front seat-mounted side-impact airbags Standard
Driver & front passenger advanced dual stage airbags w/occupant sensor Standard
Child safety rear door locks Standard
Clutch interlock Standard
4-wheel vented disc brakes Standard
Cargo area hooks -inc: (2) side mounted Standard
Dark gray rear bumper w/steps Standard
Dual sunvisors vanity mirrors Standard
Remote keyless entry system Standard
Black door handles Standard
Variable intermittent windshield wipers w/washer Standard
Roof-mounted side-impact curtain airbags for all rows w/rollover sensor Standard
4-way manual driver seat Standard
Vehicle dynamic control system (VDC) -inc: 2-wheel brake limited slip (ABLS) Standard
Dual front door pockets & bottle holders Standard
4-wheel anti-lock braking system (ABS) Standard
Pwr door locks w/selective unlock feature Standard
(3) 12-volt pwr outlets Standard
Stainless steel exhaust system Standard
Side door guard beams Standard
Double wishbone independent front suspension Standard
Rear intermittent wiper w/washer Standard
16" steel wheels Standard
P265/70R16 all-season BSW tires Standard
Engine speed-sensitive pwr rack & pinion steering Standard
Cloth seating surfaces Standard
Rear window defroster Standard
Black folding pwr outside mirrors Standard
Front 3-point seat belts w/height adjusters, pretensioners & load limiters Standard
Pwr windows w/driver auto-down Standard
4.0L DOHC 24-valve V6 engine w/continuous variable valve timing Standard
Rear outboard 3-point seat belts Standard
Glove box w/lower lock, light & damper Standard
Angled strut style front grille Standard
Rear wheel drive Standard
Dual front/rear cup holders Standard
60/40 split-fold down 2nd row seat w/removable cushions & adjustable head restraints Standard
Front active head restraints Standard
Front/rear crumple zones Standard
Front air conditioning Standard
Multi-leaf rear suspension w/solid axle Standard
Lower anchors & tethers for children (LATCH) Standard
AM/FM stereo w/CD player -inc: (6) speakers Standard
Steering wheel cruise controls Standard
Front reclining bucket seats w/adjustable active head restraints Standard
