2011 Suzuki Equator specs & colors

Extended Cab Pickup

Change trim

$17,595

Starting MSRP
Current listing price

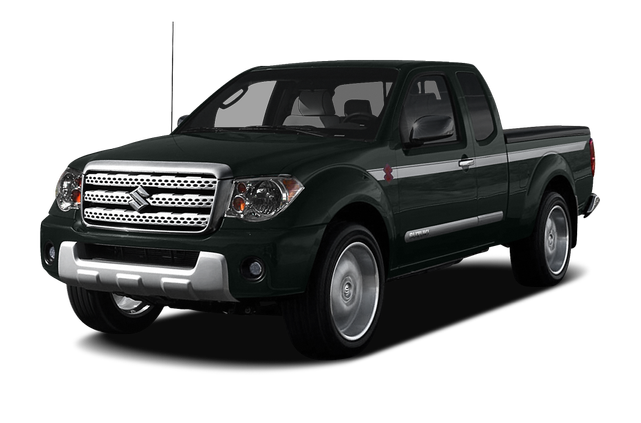

2011 Suzuki Equator

Showing the 2011 Suzuki Equator 2WD Ext Cab I4 Man

Shop Now

Key specs

2-door
5 seats
152.0-hp, 2.5-liter, 4 Cylinder Engine (Gasoline Fuel)
21 combined MPG
206.6" length, 68.7" height
Rear Wheel Drive

Color options

Exterior

Cloud White

Interior

No colors available

Packages

Specifications

Highlights

Engine Type: Gas I4
MPG: 19 City / 23 Hwy
Horsepower: 152 hp
Seating Capacity: 5

Brakes

Brake Type: Pwr
Brake ABS System: 4 Wheel
Brake ABS System (Second Line): 4 Wheel
Disc - Front (Yes or ): Yes
Disc - Rear (Yes or ): Yes
Front Brake Rotor Diam x Thickness: 11.1 x 0.7 in
Rear Brake Rotor Diam x Thickness: 11.3 x 0.7 in
Drum - Rear (Yes or ): Not Available

Electrical

Cold Cranking Amps @ 0° F (Primary): 550
Maximum Alternator Capacity (amps): 110

Engine

Engine Type: Gas I4
Displacement: 2.5L/152
SAE Net Horsepower @ RPM: 152 @ 5200
SAE Net Torque @ RPM: 171 @ 4400
Transmission Options: M/T
5-Speed M/T
MPG: 19 City / 23 Hwy
Total Cooling System Capacity: 9.3 qts

Measurements

Passenger Capacity: 5
Front Head Room: 40 in
Front Leg Room: 42 in
Front Shoulder Room: 58 in
Front Hip Room: 56 in
Second Head Room: 38 in
Second Leg Room: 25 in
Second Shoulder Room: 55 in
Second Hip Room: 55 in
Wheelbase: 126 in
Length, Overall w/o rear bumper: 207 in
Length, Overall w/rear bumper: N/A
Length, Overall: N/A
Width, Max w/o mirrors: 73 in
Height, Overall: 69 in
Overhang, Front: 31 in
Overhang, Rear w/o bumper: 48 in
Cab to End of Frame: N/A
Ground to Top of Load Floor: N/A
Ground Clearance, Front: 8 in
Ground Clearance, Rear: 8 in
Cargo Box Length @ Floor: 73 in
Cargo Box Width @ Top, Rear: N/A
Cargo Box Width @ Floor: N/A
Cargo Box Width @ Wheelhousings: 44 in
Cargo Box (Area) Height: N/A
Tailgate Width: N/A
Cargo Volume: 27 ft³
Ext'd Cab Cargo Volume: N/A

Steering

Steering Type: Pwr Rack & Pinion
Steering Ratio (:1), Overall: N/A
Turning Diameter - Curb to Curb: N/A
Turning Diameter - Wall to Wall: N/A

Suspension

Suspension Type - Front: Double Wishbone
Suspension Type - Rear: N/A
Axle Type - Front: N/A
Axle Type - Rear: Solid

Tires & Wheels

Front Tire Size: P235/75R15
Rear Tire Size: P235/75R15
Spare Tire Size: Full-size
Front Wheel Size: 15 x -TBD- in
Rear Wheel Size: 15 x -TBD- in
Spare Wheel Size: Not Available in
Front Wheel Material: Steel
Rear Wheel Material: Steel
Spare Wheel Material: Not Available

Weight & Capacity

Base Curb Weight: N/A
Curb Weight - Front: 1,990 lbs
Curb Weight - Rear: 1,696 lbs
Option Weight - Front: 0 lbs
Option Weight - Rear: 0 lbs
As Spec'd Curb Weight: 3,686 lbs
As Spec'd Payload: 1,004 lbs
Maximum Payload Capacity: 1,004 lbs
Gross Combined Wt Rating: N/A
Dead Weight Hitch - Max Trailer Wt.: 3,500 lbs
Dead Weight Hitch - Max Tongue Wt.: 350 lbs
Wt Distributing Hitch - Max Trailer Wt.: 3,500 lbs
Wt Distributing Hitch - Max Tongue Wt.: 350 lbs
Fifth Wheel Hitch - Max Trailer Wt.: Not Available lbs
Fifth Wheel Hitch - Max Tongue Wt.: Not Available lbs
Maximum Trailering Capacity: N/A
Fuel Tank Capacity, Approx: 21 gal
Aux Fuel Tank Capacity, Approx: Not Available gal
Gross Axle Weight Rating: N/A
Curb Weight: 3,686 lbs
Total Option Weight: 0 lbs
Gross Vehicle Weight Rating: 4,690 lbs
