Change trim
MSRP
- 2WD 4dr $73,425
- 4WD 4dr $75,975
- 2WD 4dr Platinum $85,225
- 4WD 4dr Platinum $87,725

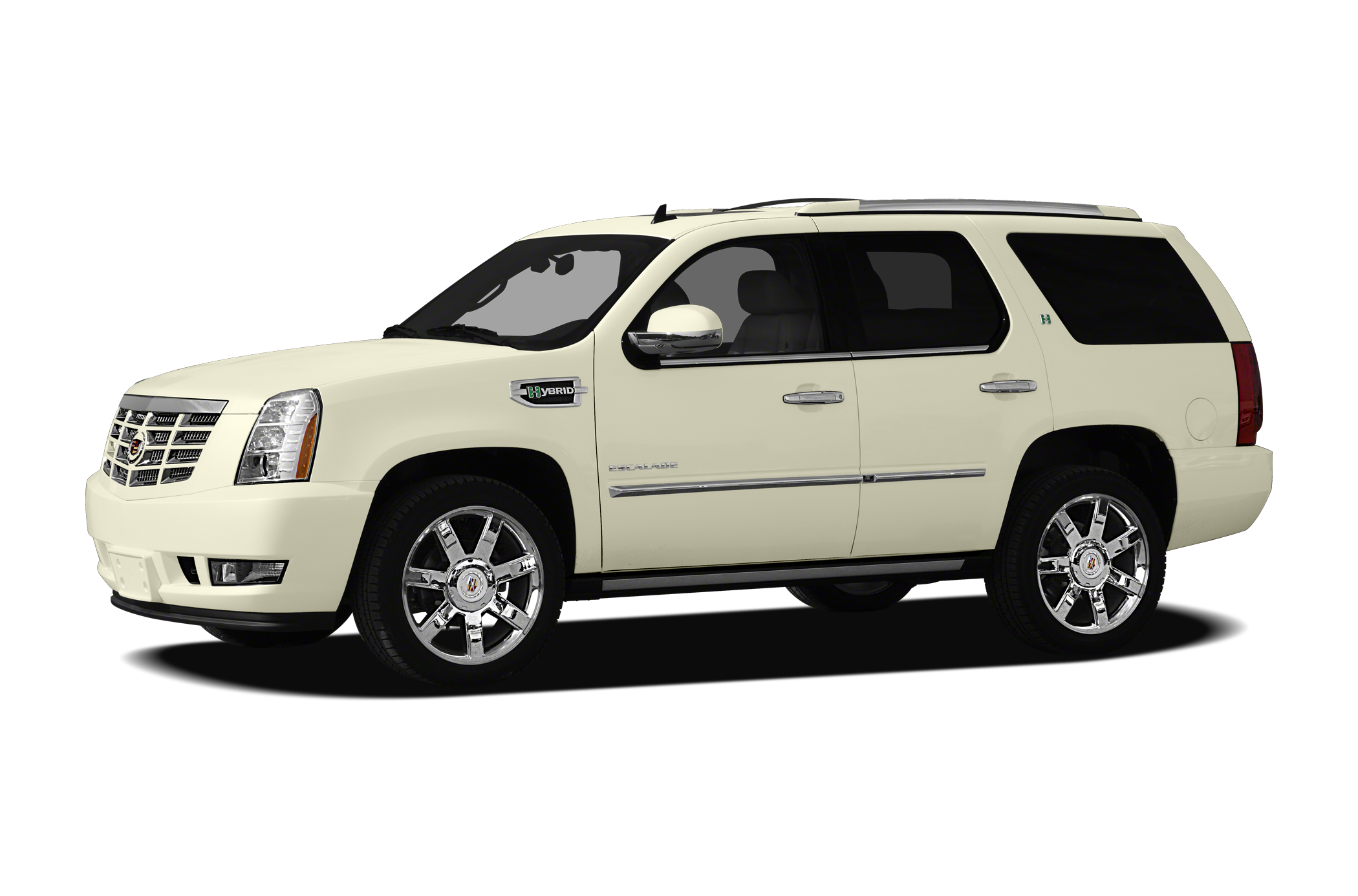

Showing the 2010 Cadillac Escalade Hybrid 2WD 4dr Platinum
View local inventoryInterior
Light Linen / Cocoa
Rear Door Type | Liftgate |
Front Wheel Size | 22 x 9 in |
Front Wheel Material | Aluminum |
Rear Wheel Material | Aluminum |
Rear Wheel Size | 22 x 9 in |
Displacement | 6.0L/364 |
SAE Net Horsepower @ RPM | 332 @ 5100 |
Engine Type | Gas/Electric V8 |
SAE Net Torque @ RPM | 367 @ 4100 |
EPA Fuel Economy Est - City | 21 MPG |
Cruising Range - Hwy | 572.00 mi |
Fuel Economy Est-Combined | 22 MPG |
Cruising Range - City | 546.00 mi |
Estimated Battery Range | N/A mi |
EPA Fuel Economy Est - Hwy | 22 MPG |
Second Gear Ratio (:1) | 1.70 |
Trans Description Cont. | Automatic |
First Gear Ratio (:1) | 3.69 |
Reverse Ratio (:1) | 1.70 |
Fourth Gear Ratio (:1) | 0.73 |
Final Drive Axle Ratio (:1) | N/A |
Third Gear Ratio (:1) | 1.00 |
Trans Type | 4 |
Drivetrain | Rear Wheel Drive |
Suspension Type - Rear | 5-link coil springs |
Axle Type - Rear | Semi-Floating |
Suspension Type - Front | Indepenent torsion bar |
Axle Type - Front | Independent |
Frame Type | Ladder-type |
Side Door Type | Swing-out |
Front Brake Rotor Diam x Thickness | 13.0 x 1.18 in |
Disc - Rear (Yes or ) | Yes |
Brake Type | Pwr |
Brake ABS System | 4-Wheel |
Disc - Front (Yes or ) | Yes |
Rear Brake Rotor Diam x Thickness | 13.5 x 0.79 in |
Fuel Tank Capacity, Approx | 26 gal |
Steering Ratio (:1), Overall | N/A |
Steering Type | Pwr |
Turning Diameter - Curb to Curb | 39.0 ft |
Rear Tire Size | P285/45R22 |
Front Tire Size | P285/45R22 |
Dead Weight Hitch - Max Trailer Wt. | 5000 lbs |
Maximum Trailering Capacity | N/A lbs |
Dead Weight Hitch - Max Tongue Wt. | 500 lbs |
Wt Distributing Hitch - Max Tongue Wt. | 885 lbs |
Wt Distributing Hitch - Max Trailer Wt. | 5900 lbs |
Total Option Weight | 0.00 lbs |
Curb Weight | 5896.00 lbs |
Gross Axle Weight Rating | 6800.00 lbs |
As Spec'd Payload | 904.00 lbs |
Gross Combined Wt Rating | 14000 lbs |
As Spec'd Curb Weight | 5896.00 lbs |
Gross Vehicle Weight Rating | 6800.00 lbs |
Option Weight - Front | 0.00 lbs |
Base Curb Weight | N/A lbs |
Curb Weight - Front | 2976 lbs |
Option Weight - Rear | 0.00 lbs |
Curb Weight - Rear | 2920 lbs |
Maximum Payload Capacity | 1404.00 lbs |
Third Hip Room | 49.1 in |
Cargo Area Length @ Floor to Seat 2 | N/A in |
Ext'd Cab Cargo Volume | N/A ft³ |
Ground Clearance, Front | N/A in |
Cargo Area Length @ Floor to Seat 1 | N/A in |
Wheelbase | 116.0 in |
Tailgate Width | N/A in |
Length, Overall w/rear bumper | 202.5 in |
Side Door Opening Width | N/A in |
Front Hip Room | 64.4 in |
Cargo Box Width @ Floor | N/A in |
Width, Max w/o mirrors | 79.0 in |
Step Up Height - Side | 21.8 in |
Cargo Area Length @ Floor to Console | N/A in |
Height, Overall | 75.9 in |
Overhang, Rear w/o bumper | N/A in |
Cargo Volume | N/A ft³ |
Cab to End of Frame | N/A in |
Cargo Volume to Seat 1 | 108.9 ft³ |
Front Shoulder Room | 65.3 in |
Cargo Box Width @ Wheelhousings | N/A in |
Step Up Height - Front | 21.8 in |
Passenger Capacity | 8 |
Ground to Top of Load Floor | 31.6 in |
Cargo Volume to Seat 3 | 16.9 ft³ |
Cargo Area Width @ Beltline | N/A in |
Third Shoulder Room | 61.7 in |
Second Shoulder Room | 65.2 in |
Cargo Box Width @ Top, Rear | N/A in |
Length, Overall | N/A in |
Front Head Room | 41.1 in |
Cargo Volume to Seat 2 | 60.3 ft³ |
Cargo Area Length @ Floor to Seat 3 | N/A in |
Second Leg Room | 39.0 in |
Second Hip Room | 60.8 in |
Third Leg Room | 25.6 in |
Rear Door Opening Width | N/A in |
Rear Door Opening Height | N/A in |
Second Head Room | 39.2 in |
Front Leg Room | 41.3 in |
Third Head Room | 37.9 in |
Side Door Opening Height | N/A in |
Cargo Box (Area) Height | N/A in |
Ground Clearance, Rear | N/A in |
Tow/haul mode selector, button located at end of shift lever | Standard |
Air bags, head curtain side-impact, first, second and third row outboard seating positions with rollover sensor (Head curtain side air bags are designed to help reduce the risk of head and neck injuries to front and outboard rear seat occupants on the near side of certain side-impact collisions. Always use safety belts and the correct child restraints for your child's age and size, even in vehicles equipped with air bags. Children are safer when properly secured in a rear seat. See the vehicle's Owner's Manual and child safety seat instructions for more safety information) | Standard |
Rearview camera system | Standard |
Floor covering, color-keyed carpeting | Standard |
Alternator delete | Standard |
Seats, second row 60/40 split-folding bench with leather seating surfaces 3-passenger with outboard heated seat cushions (3 settings) and center armrest | Standard |
Seats, third row 50/50 split-bench with leather-appointed seating 3-passenger, can be folded, tumbled forward or totally removed | Standard |
Passenger Sensing System, sensor indicator inflatable restraint, front passenger/child presence detector (Always use safety belts and the correct child restraints for your child's age and size. Even in vehicles equipped with air bags and the Passenger Sensing System, children are safer when properly secured in a rear seat. Never place a rear-facing infant restraint in the front seat of any vehicle equipped with an active frontal air bag. See the vehicle's Owner's Manual and child safety seat instructions for more safety information) | Standard |
Traction control, all-speed, electronic | Standard |
Body, liftgate with deep-tinted liftglass includes rear-window wiper/washer and defogger | Standard |
XM NavTraffic enhances your vehicle's GPS navigation system by showing real-time traffic data when it's needed most - while you're driving. Available in over 80 markets, XM NavTraffic displays construction, road closures and accidents so you can get to your destination faster. Available in select models (Required XM Radio and NavTraffic monthly subscriptions sold separately after trial period. XM NavTraffic only available in select markets. For more information, see www.xmradio.com/navtraffic.) | Standard |
Power outlet, 115 volt | Standard |
Console, floor with damped-door storage covers, large storage bin, analog clock, dual cup holders, rear seat audio and electronic climate controls and second row heated seat controls | Standard |
Headlamps, LED | Optional |
Headlamps, IntelliBeam | Standard |
Fascia, front, body-color | Standard |
Luggage rack center rails | Standard |
Remote Keyless Entry | Standard |
StabiliTrak, vehicle stability enhancement system with Rollover Mitigation includes disable switch | Standard |
Tail lamps, LED illumination | Standard |
Wheels, 22" x 9" (55.9 cm x 22.9 cm) multi-spoke chromed aluminum (Requires (QST) P285/45R22 all-season blackwall TL AL2 tires and (Z95) Magnetic Ride Control) | Optional |
Steering, power, rack-and-pinion | Standard |
Daytime Running Lamps with automatic exterior lamp control | Standard |
Defogger, rear-window electric | Standard |
Bluetooth for phone, personal cell phone connectivity to vehicle audio system and HMI (Human Machine Interface) (Included with (UE1) OnStar, 1-year Directions and Connection Plan) | Standard |
Entertainment system, DVD, backside of front row head restraints | Optional |
Audio system feature, Bose 5.1 Cabin Surround Sound system with 10 speakers | Standard |
Wiper, rear intermittent with washer | Standard |
Sunroof, power, tilt-sliding with express-open/-close and wind deflector | Standard |
Engine, Vortec 6.0L V8 SFI Hybrid, LIVC with Active Fuel Management (332 hp [247.5 kW] @ 5100 rpm, 367 lb-ft of torque [495.4 N-m] @ 4100 rpm) | Standard |
GVWR, 7300 lbs. (3311 kg) (2WD Model only) | Standard |
Moldings, color-keyed bodyside with chrome accents | Standard |
Fascia, rear, body-color | Standard |
Door handles, chrome | Standard |
Remote vehicle start | Standard |
Transmission, automatic, electronic ratio select, GM, strong hybrid | Standard |
Safety belts, first and second row belts to body, third row belts to seat, lap and shoulder all seating positions | Standard |
Rear Parking Assist, Ultrasonic with rearview LED display audible warning and instrument panel-mounted shutoff switch | Standard |
Rear wheel drive | Standard |
Instrumentation, analog with speedometer, odometer, fuel level, engine temperature and tachometer | Standard |
Console, overhead deluxe with reading lights and (UG1) Universal Home Remote (Includes sunroof controls ) | Standard |
Theft-deterrent system, vehicle, PASS-Key III+ | Standard |
Windows, power with driver and front passenger Express-Up/Down and lockout features | Standard |
Audio system feature, USB port located inside center console, radio interface | Standard |
Brakes, 4-wheel antilock, 4-wheel disc, electro-hydraulic power with StabiliTrak, regenerative system | Standard |
Suspension Package, Magnetic Ride Control (Included with (P56) 22" x 9" (55.9 cm x 22.9 cm) 7-spoke chromed aluminum wheels) | Optional |
Rear axle, 3.08 ratio | Standard |
Steering wheel controls, mounted audio and Driver Information Center controls | Standard |
Tire pressure monitoring system (does not apply to spare tire) | Standard |
Entertainment system, rear seat, in-dash DVD player with remote control, overhead display, 2 wireless infrared headphones, auxiliary audio/video jacks on rear of center console, sound compression, CD-R and CD-R/W capability, LED backlighting display, MP3 capable | Standard |
Seats, heated and cooled, seat cushion and seat back for driver and front passenger | Standard |
Door locks, child rear security | Standard |
Assist steps, power-retractable | Optional |
Driver Information Center with programmable personalization features such as door locking and unlocking, a trip computer with trip odometer and individual tire pressure read outs, fuel information such as range, average mpg, gallons used and oil life, and a message center that displays dozens of warning messages such as low fuel, door ajar, security, seat belt reminder, low coolant and oil pressure low | Standard |
Luggage rack, roof-mounted with chrome accents | Standard |
Cruise control, electronic with set and resume speed | Standard |
Air bags, dual-stage frontal, driver and right-front passenger with Passenger Sensing System (Always use safety belts and the correct child restraints for your child's age and size. Even in vehicles equipped with air bags and the Passenger Sensing System, children are safer when properly secured in a rear seat. Never place a rear-facing infant restraint in the front seat of any vehicle equipped with an active frontal air bag. See the vehicle's Owner's Manual and child safety seat instructions for more safety information) | Standard |
Floor mats, color-keyed carpeted first and second row | Standard |
Audio system with DVD navigation, ETR AM/FM/XM stereo with single DVD map disc, 6-disc MP3/CD/DVD Video/Audio changer, DSP, RDS, clock, voice recognition and USB interface | Standard |
Mirror, inside rearview auto-dimming, includes OnStar controls | Standard |
Pedals, power-adjustable for accelerator and brake | Standard |
Lighting, interior courtesy with theater dimming | Standard |
Fog lamps, front rectangular halogen, integral in front fascia | Standard |
Cup holders, heated and cooled | Optional |
Tires, P285/45R22, all-season, blackwall TL AL2 (Includes (P56) 22" x 9" (55.9 cm x 22.9 cm) 7-spoke chromed aluminum wheels. Requires (Z95) Magnetic Ride Control.) | Standard |
OnStar, 1-year of Directions and Connections plan Includes Automatic Crash Response, Emergency Services, Crisis Assist, Stolen Vehicle Assistance featuring Stolen Vehicle Slowdown and Remote Ignition Block, Remote Door Unlock, Roadside Assistance, Remote Horn and Lights, innovative easy to use Turn-by-Turn Navigation with Destination Download and OnStar eNav (where available), Hands Free Calling, OnStar Vehicle Diagnostics, and Low Mileage Discount (OnStar services require vehicle electrical system (including battery), wireless service and GPS satellite signals to be available and operating for features to function properly. OnStar acts as a link to existing emergency service providers. Stolen Vehicle Location Assistance and Remote Door Unlock success varies with conditions. OnStar Vehicle Diagnostics available on most 2004 MY and newer GM vehicles. Diagnostic capability varies by model. Turn-by-Turn Navigation requires ABS and is not available in certain areas. Visit onstar.com or call 1-888-466-7827 for system limitations and details. For a list of vehicles with Automatic Crash Notification visit onstar.com) | Standard |
Door locks, power programmable with lockout protection and power lock for liftgate | Standard |
Visors, driver and front passenger illuminated vanity mirrors with extenders | Standard |
Differential, heavy-duty locking rear | Standard |
Climate control, tri-zone automatic with individual climate settings for driver, right-front passenger and rear passengers | Standard |
Seats, front bucket with leather seating surfaces, driver and front passenger 14-way power seat adjusters including 4-way power lumbar control, independently heated driver and front passenger seat cushions and seatbacks (3 settings) and 2-position driver memory | Standard |
Suspension, front independent, SLA, coil over shock and stabilizer bar | Standard |
Platinum Edition includes (UUM) audio system with navigation, (UVC) rearview camera system, (KA9) heated steering wheel, (ARS) power release second row bucket seats, (KB6) heated and cooled driver and front passenger seats, (CF5) power sunroof, (U42) rear seat entertainment system, (HNE) heated and cooled cup holders, (AYE) DVD screens located on backside of front row head restraints, (UFT) Side Blind Zone Alert, (T4Q) LED headlamps,(TQ5) IntelliBeam headlamps, LED rear tail lamps, (S85) 22" x 9" (55.9 CM x 22.9 cm) multi-spoke chrome wheels, (BRS) power-retractable assist steps, and (Z95) Magnetic Ride Control suspension system ((KA9) heated steering wheel and (ARS) power release second row seats not available on Platinum Hybrid.) | Optional |
Throttle control, electronic | Standard |
Mirrors, outside heated power-adjustable, power-folding and driver-side auto-dimming, color-keyed with integrated turn signal indicators, ground illumination and programmable to provide curb view when in reverse | Standard |
Audio system controls, rear with 2 headphone jacks (headphones not included) and controls for volume, station selection and media | Standard |
Climate control, rear air conditioning | Standard |
Glass, Solar-Ray deep-tinted (all windows except light-tinted glass on windshield, driver- and front passenger-side glass) | Standard |
Wipers, front intermittent | Standard |
Suspension, rear 5-link coil springs | Standard |
Climate control, rear heat | Standard |
Headlamps, Twilight Sentinel automatic delay | Standard |
Tire inflation kit | Standard |
Battery, heavy-duty with rundown protection and retained accessory power | Standard |
Cup holders, quad front, dual second row and single third row | Standard |
Steering wheel, power-tilt, color-keyed with wood and leather-wrapped rim, locking | Standard |
Trailering equipment, heavy-duty includes trailering hitch platform, 7-wire harness with independent fused trailering circuits and 7-way sealed connector | Standard |
Universal Home Remote includes garage door opener, 3-channel programmable | Standard |
Body, power liftgate | Standard |
Automatic level control, heavy-duty, air | Standard |
Side Blind Zone Alert | Standard |
