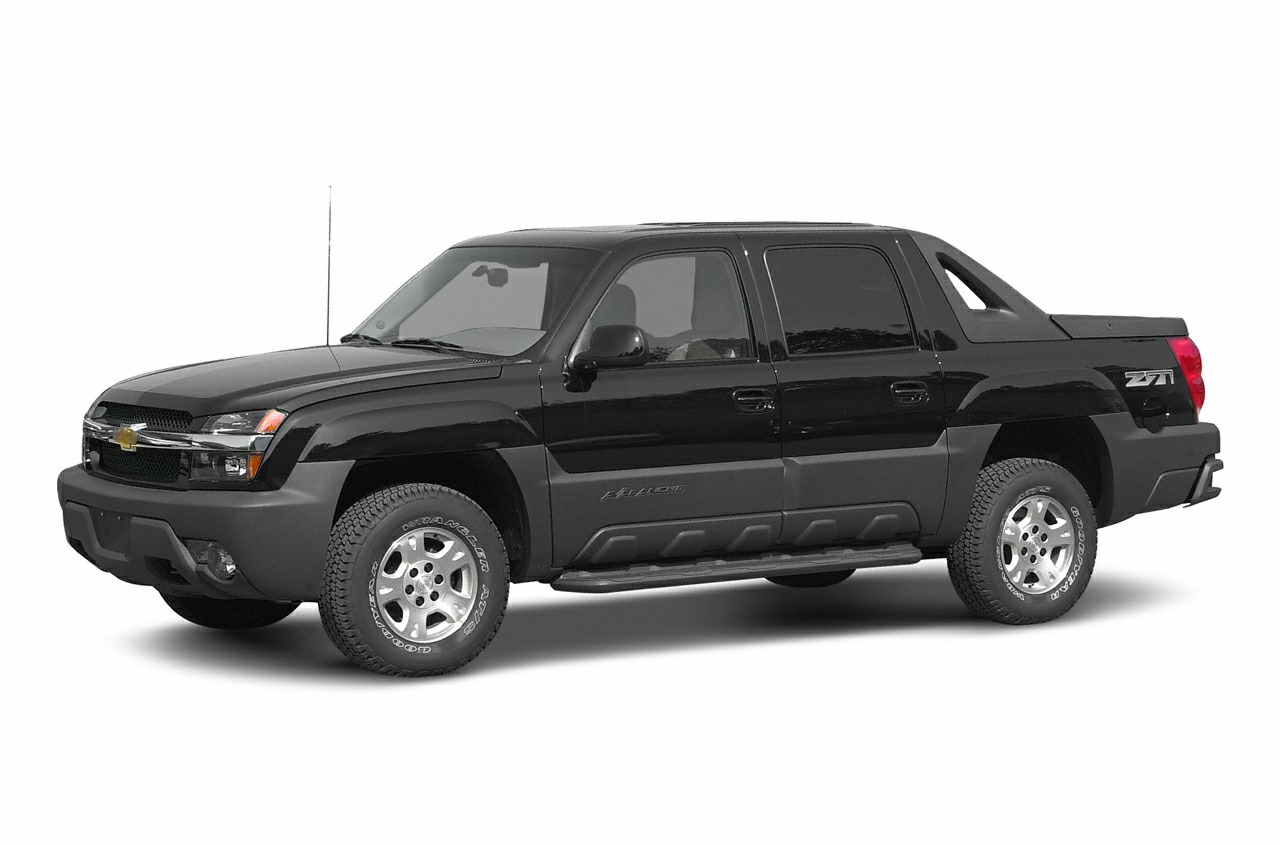

2004 Chevrolet Avalanche Z66 specs & colors

Crew Cab Pickup

Change trim
MSRP
1500 5dr Crew Cab 130" WB Z66
$33,185
1500 5dr Crew Cab 130" WB
$33,185
1500 5dr Crew Cab 130" WB 4WD Z71
$36,185
1500 5dr Crew Cab 130" WB 4WD
$36,185
2500 5dr Crew Cab 130" WB 4WD
$38,020
$33,185
Starting MSRP
Current listing price
2004 Chevrolet Avalanche Z66

Showing the 2004 Chevrolet Avalanche 1500 5dr Crew Cab 130" WB Z66

Shop Now

Key specs

Color options

Interior
Taupe
Sage

Packages

Specifications

Highlights

Gas V8
Engine Type
15 City / 20 Hwy
MPG
295 hp
Horsepower
5
Seating Capacity

Brakes

Yes
Disc - Front (Yes or )
Not Available
Drum - Rear (Yes or )
12.0 x 1.1 in
Front Brake Rotor Diam x Thickness
4-Wheel
Brake ABS System
12.9 x 1.2 in
Rear Brake Rotor Diam x Thickness
Not Available
Brake ABS System (Second Line)
Pwr
Brake Type
Yes
Disc - Rear (Yes or )

Electrical

600
Cold Cranking Amps @ 0° F (Primary)
105
Maximum Alternator Capacity (amps)

Engine

Gas V8
Engine Type
330 @ 4000
SAE Net Torque @ RPM
295 @ 5200
SAE Net Horsepower @ RPM
5.3L/327
Displacement
Transmission Overdrive Switch
A/T
4-Speed A/T
Transmission Options
15 City / 20 Hwy
MPG
13.88 qts
Total Cooling System Capacity

Measurements

50 in
Cargo Box Width @ Wheelhousings
41.0 Min ft³
Cargo Volume
41 in
Front Head Room
75 in
Height, Overall
6
Passenger Capacity
N/A
Length, Overall w/rear bumper
50 in
Cargo Box Width @ Floor
62 in
Second Hip Room
Not Available in
Cab to End of Frame
80 in
Width, Max w/o mirrors
9 in
Ground Clearance, Rear
Not Available ft³
Ext'd Cab Cargo Volume
63.0 Min, 97.6 Max in
Cargo Box Length @ Floor
23 in
Cargo Box (Area) Height
61 in
Front Hip Room
9 in
Ground Clearance, Front
41 in
Front Leg Room
N/A
Tailgate Width
221 in
Length, Overall w/o rear bumper
N/A
Length, Overall
39 in
Overhang, Front
39 in
Second Leg Room
50 in
Cargo Box Width @ Top, Rear
65 in
Front Shoulder Room
39 in
Second Head Room
65 in
Second Shoulder Room
31 in
Ground to Top of Load Floor
130 in
Wheelbase
53 in
Overhang, Rear w/o bumper

Steering

Pwr
Steering Type
N/A
Turning Diameter - Wall to Wall
43 ft
Turning Diameter - Curb to Curb
N/A
Steering Ratio (:1), Overall

Suspension

Indep Torsion Bar
Suspension Type - Front
Independent
Axle Type - Front
Semi-Floating
Axle Type - Rear
Multi-Link
Suspension Type - Rear

Tires & Wheels

Aluminum
Front Wheel Material
16"
Spare Tire Size
P265/70R17
Front Tire Size
17 X 7 in
Rear Wheel Size
16 in
Spare Wheel Size
17 x 7 in
Front Wheel Size
Steel
Spare Wheel Material
Aluminum
Rear Wheel Material
P265/70R17
Rear Tire Size

Weight & Capacity

2,752 lbs
Curb Weight - Front
5,310 lbs
As Spec'd Curb Weight
31 gal
Fuel Tank Capacity, Approx
0 lbs
Option Weight - Rear
6,800 lbs
Gross Vehicle Weight Rating
5,000 lbs
Dead Weight Hitch - Max Trailer Wt.
5,310 lbs
Curb Weight
1,490 lbs
As Spec'd Payload
Not Available gal
Aux Fuel Tank Capacity, Approx
8,300 lbs
Wt Distributing Hitch - Max Trailer Wt.
N/A
Fifth Wheel Hitch - Max Trailer Wt.
1,490 lbs
Maximum Payload Capacity
2,558 lbs
Curb Weight - Rear
600 lbs
Dead Weight Hitch - Max Tongue Wt.
830 lbs
Wt Distributing Hitch - Max Tongue Wt.
7,400 lbs
Gross Axle Weight Rating
N/A
Fifth Wheel Hitch - Max Tongue Wt.
N/A
Base Curb Weight
0 lbs
Total Option Weight
0 lbs
Option Weight - Front
13,000 lbs
Gross Combined Wt Rating
N/A
Maximum Trailering Capacity
