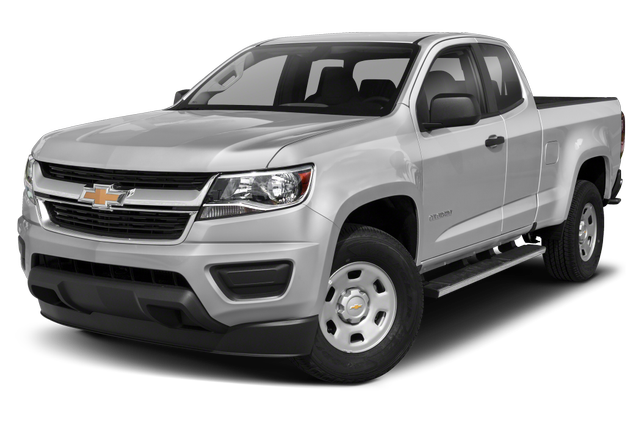

2020 Chevrolet Colorado 4WD Work Truck specs & colors

Extended Cab Pickup

Change trim

MSRP

Change trim

$28,700

Starting MSRP
Current listing price

Showing the 2020 Chevrolet Colorado 4WD Ext Cab 128" Work Truck

Shop Now

Color options

Exterior

Interior

Jet Black / Dark Ash

Packages

Work Truck Preferred Equipment Group

$0

Starting MSRP

includes standard equipment

Specifications

EPA Fuel Economy Est - Hwy	24 MPG
Cruising Range - City	399.00 mi
EPA Fuel Economy Est - City	19 MPG
Fuel Economy Est-Combined	21 MPG
Cruising Range - Hwy	504.00 mi
Estimated Battery Range	N/A mi

Drivetrain	Four Wheel Drive
Trans Type	6
Trans Description Cont.	Automatic
Trans Description Cont. Again	N/A
First Gear Ratio (:1)	4.06
Second Gear Ratio (:1)	2.37
Third Gear Ratio (:1)	1.55
Fourth Gear Ratio (:1)	1.16
Fifth Gear Ratio (:1)	0.85
Sixth Gear Ratio (:1)	0.67
Reverse Ratio (:1)	3.20
Trans Power Take Off	N/A
Final Drive Axle Ratio (:1)	N/A
Transfer Case Model	Magna MP1622G
Transfer Case Gear Ratio (:1), High	1.00
Transfer Case Gear Ratio (:1), Low	2.72
Transfer Case Power Take Off	N/A

Brake Type	Pwr
Brake ABS System	4-Wheel
Brake ABS System (Second Line)	N/A
Disc - Front (Yes or )	Yes
Disc - Rear (Yes or )	Yes
Front Brake Rotor Diam x Thickness	12.2 x -TBD- in
Rear Brake Rotor Diam x Thickness	12.8 x -TBD- in
Drum - Rear (Yes or )	N/A

Dead Weight Hitch - Max Trailer Wt.	3500 lbs
Dead Weight Hitch - Max Tongue Wt.	350 lbs
Wt Distributing Hitch - Max Trailer Wt.	3500 lbs
Wt Distributing Hitch - Max Tongue Wt.	350 lbs
Fifth Wheel Hitch - Max Trailer Wt.	N/A lbs
Fifth Wheel Hitch - Max Tongue Wt.	N/A lbs
Maximum Trailering Capacity	7700 lbs

Base Curb Weight	N/A lbs
Curb Weight - Front	2190 lbs
Curb Weight - Rear	1694 lbs
Option Weight - Front	0.00 lbs
Option Weight - Rear	0.00 lbs
As Spec'd Curb Weight	4067.00 lbs
As Spec'd Payload	1533.00 lbs
Maximum Payload Capacity	1716.00 lbs
Gross Combined Wt Rating	8500 lbs
Gross Axle Weight Rating	6200.00 lbs
Curb Weight	3884.00 lbs
Total Option Weight	0.00 lbs
Gross Vehicle Weight Rating	5600.00 lbs

Passenger Capacity	4
Front Head Room	41.4 in
Front Leg Room	45.0 in
Front Shoulder Room	57.5 in
Front Hip Room	55.0 in
Second Head Room	36.7 in
Second Leg Room	28.6 in
Second Shoulder Room	57.3 in
Second Hip Room	52.2 in
Wheelbase	128.3 in
Length, Overall w/o rear bumper	N/A in
Length, Overall w/rear bumper	N/A in
Length, Overall	212.7 in
Width, Max w/o mirrors	74.3 in
Height, Overall	70.3 in
Overhang, Front	36.9 in
Overhang, Rear w/o bumper	47.2 in
Cab to End of Frame	N/A in
Ground to Top of Load Floor	34.0 in
Ground Clearance, Front	8.3 in
Ground Clearance, Rear	8.3 in
Cargo Box Length @ Floor	74.0 in
Cargo Box Width @ Top, Rear	N/A in
Cargo Box Width @ Floor	57.8 in
Cargo Box Width @ Wheelhousings	44.4 in
Cargo Box (Area) Height	N/A in
Tailgate Width	N/A in
Cargo Volume	49.9 ft³
Ext'd Cab Cargo Volume	N/A ft³

Audio system feature, 6-speaker system	Standard
Audio system, Chevrolet Infotainment 3 system 7" diagonal color touchscreen, AM/FM stereo. Additional features for compatible phones include: Bluetooth audio streaming for 2 active devices, voice command pass-through to phone, Apple CarPlay and Android Auto capable (STD)	Standard

Cargo box light, back of cab	Standard
Wheels, 16" x 7" (40.6 cm x 17.8 cm) Ultra Silver Metallic steel (STD)	Standard
CornerStep, rear bumper	Standard
Wheel, compact spare, 18" x 4.5" (45.7 cm x 11.4 cm) Black cast aluminum (Standard with (LCV) 2.5L I4 engine only. Not included on Crew Cab models.)	Standard
Tire, compact spare T175/90D18, blackwall (STD) (Requires (RTX) 18" x 4.5" (45.7 cm x 11.4 cm) Black cast aluminum, compact spare wheel.)	Standard
Headlamps, halogen with automatic exterior lamp control	Standard
Capless Fuel Fill	Standard
Mirrors, outside manual-folding, Black	Standard
Tires, 265/70R16 all-season, blackwall (STD)	Standard
Bumper, rear chrome	Standard
Moldings, Black beltline	Standard
Door handles, Black	Standard
Tailgate handle, Black	Standard
Glass, windshield shade band	Standard
Tailgate, locking	Standard

Display, driver instrument information enhanced, one color	Standard
Seats, dual rear with underseat storage (Extended Cab models only.)	Standard
Handles, door release, front and rear, Jet Black	Standard
Seat adjuster, driver 4-way power with manual recline	Standard
Air conditioning, single-zone manual climate control	Standard
Seats, front bucket (STD)	Standard
Floor covering, color-keyed carpeting	Standard
Mirror, inside rearview manual day/night	Standard
Seat adjuster, passenger 2-way manual fore/aft with manual recline	Standard
Steering wheel, urethane	Standard
Door locks, power	Standard
USB data ports, 2 includes auxiliary input jack, located on the front console	Standard
Floor mats, carpeted rear (Requires (B30) color-keyed carpeting floor covering.)	Standard
Windows, power with driver Express-Up and Down	Standard
Visors, driver and front passenger with passenger vanity mirror	Standard
Lighting, interior, center dome	Standard
Steering column, tilt, manual	Standard
Console, floor, front compartment, custom	Standard
Speedometer, miles/kilometers	Standard
Floor mats, carpeted front (Deleted when (B38) full-length Black vinyl floor covering is ordered. Requires (B30) color-keyed carpeting floor covering.)	Standard
Theft-deterrent system, immobilization	Standard

Four wheel drive	Standard
Transmission, 6-speed automatic, HMD, 6L50 (STD) (Included and only available with (LCV) 2.5L I4 engine or (LWN) 2.8L Duramax Turbo-Diesel engine.)	Standard
Recovery hooks, front	Standard
Brakes, 4-wheel antilock, 4-wheel disc	Standard
Rear axle, 4.10 ratio (Requires (LCV) 2.5L I4 engine. Not included on Crew Cab models.)	Standard
Engine, 2.5L I4, DI, DOHC, VVT (200 hp [149.0 kW] @ 6300 rpm, 191 lb-ft of torque [259 N-m] @ 4400 rpm) (STD) (Not included on Crew Cab models.)	Standard
GVWR, 5600 lbs. (2540 kg) (STD) (Standard on Extended Cab models with (LCV) 2.5L I4 engine only.)	Standard
Steering, Electric Power Steering (EPS) assist	Standard
Pickup box	Standard
Frame, fully-boxed	Standard
Transfer case, electric, 2-speed	Standard

Traction control, electronic	Standard
Tire Pressure Monitoring System (does not apply to spare tire)	Standard
Teen Driver a configurable feature that lets you activate customizable vehicle settings associated with a key fob, to help encourage safe driving behavior. It can limit certain available vehicle features, and it prevents certain safety systems from being turned off. It includes the Buckle-to-Drive feature which prevents the driver from shifting from Park for up to 20 seconds if the driver's seat belt is not buckled. An in-vehicle report card gives you information on driving habits and helps you to continue to coach your new driver	Standard
Airbags, Dual-stage frontal airbags for driver and front passenger; Seat-mounted side-impact airbags for driver and front outboard passenger; Head-curtain airbags for front and rear outboard seating positions; Includes front outboard Passenger Sensing System for frontal passenger airbag (Always use seat belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)	Standard
Tire Fill Alert provides an audible and visual indication when tire pressure is added to a tire that is low. Aids to achieve optimal tire pressure	Standard
StabiliTrak, stability control system	Standard
Daytime Running Lamps	Standard
Rear Vision Camera	Standard

Compare trims

Wondering which trim is right for you?

Our 2020 Chevrolet Colorado trim comparison will help you decide.

Front Wheel Size	16 x 7 in
Rear Wheel Size	16 x 7 in
Spare Wheel Size	18 x 4.5 in
Front Wheel Material	Steel
Rear Wheel Material	Steel
Spare Wheel Material	Aluminum

Engine Type	Gas I4
Displacement	2.5L/150
SAE Net Horsepower @ RPM	200 @ 6300
SAE Net Torque @ RPM	191 @ 4400
Engine Oil Cooler	N/A

Suspension Type - Front	Independent
Suspension Type - Rear	Multi-Leaf
Axle Type - Front	N/A
Axle Type - Rear	N/A

Fuel Tank Capacity, Approx	21 gal
Aux Fuel Tank Capacity, Approx	N/A gal

Steering Type	Pwr Rack & Pinion
Steering Ratio (:1), Overall	N/A
Turning Diameter - Curb to Curb	41.3 ft
Turning Diameter - Wall to Wall	N/A ft

Cold Cranking Amps @ 0° F (Primary)	N/A
Maximum Alternator Capacity (amps)	N/A

Front Tire Size	265/70R16
Rear Tire Size	265/70R16
Spare Tire Size	T175/90D18
