2020 Chevrolet Equinox LT specs & colors

$27,900
Starting MSRP
Current listing price

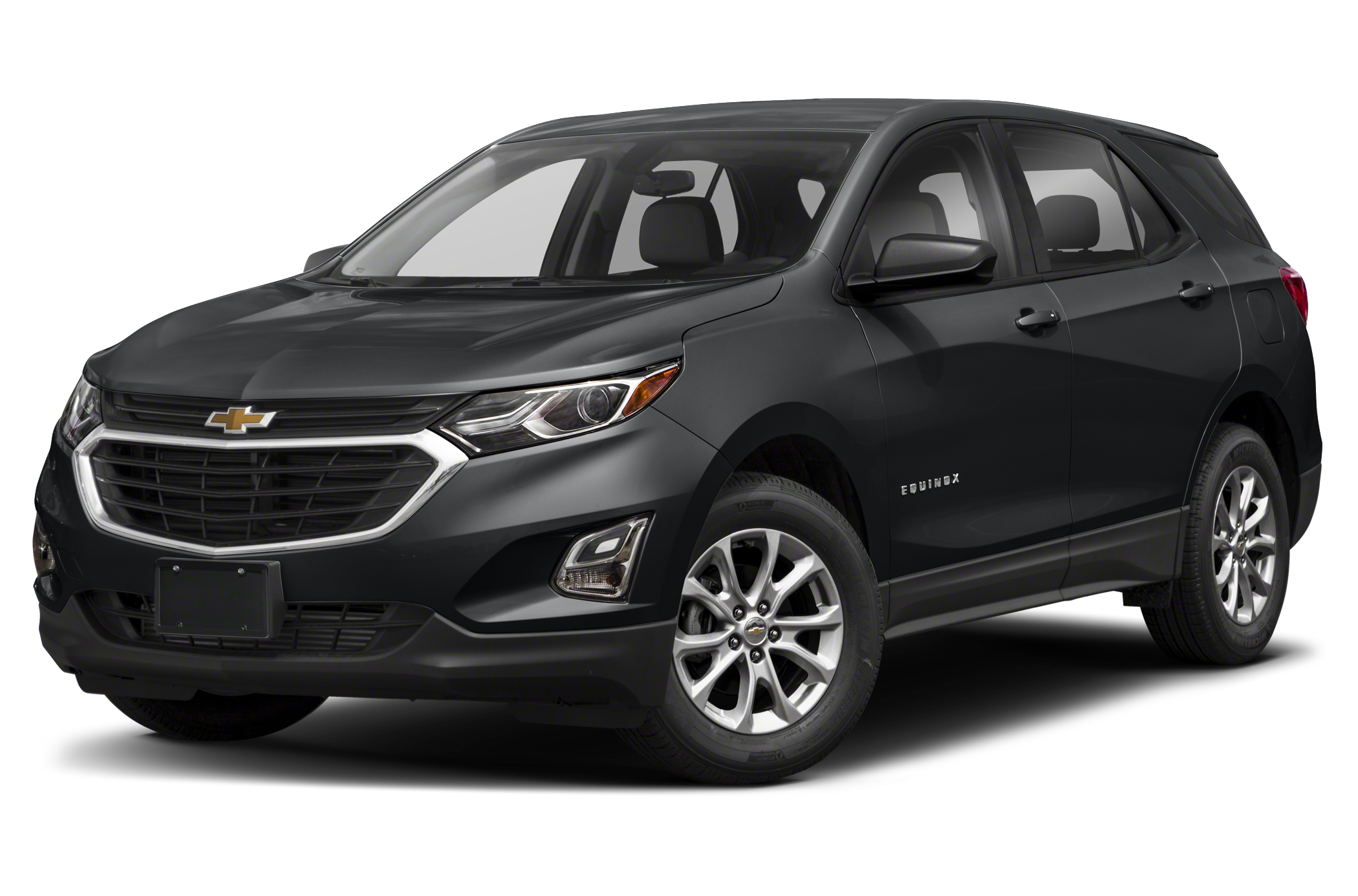

Showing the 2020 Chevrolet Equinox FWD 4dr LT w/2FL

Shop Now

Key specs

Color options

Interior

Ebony


Medium Ash Gray


Packages

$0

Starting MSRP

  • includes standard equipment

Specifications

EPA Classification 2WD Sport Utility Vehicle

Front Wheel Size 17 x -TBD- in
Rear Wheel Size 17 x -TBD- in
Spare Wheel Size 16 x -TBD - in
Front Wheel Material Aluminum
Rear Wheel Material Aluminum
Spare Wheel Material Steel

Cold Cranking Amps @ 0° F (Primary) N/A
Maximum Alternator Capacity (amps) N/A

Engine Type Turbocharged Gas I4
Displacement 1.5L/92
SAE Net Horsepower @ RPM 170 @ 5600
SAE Net Torque @ RPM 203 @ 2000-4000

EPA Fuel Economy Est - Hwy 31 MPG
Cruising Range - City 387.40 mi
EPA Fuel Economy Est - City 26 MPG
Fuel Economy Est-Combined 28 MPG
Cruising Range - Hwy 461.90 mi
EPA MPG Equivalent - City N/A
EPA MPG Equivalent - Hwy N/A
EPA MPG Equivalent - Combined N/A
Estimated Battery Range N/A mi

Drivetrain Front Wheel Drive
Trans Type 6
Trans Description Cont. Automatic
Trans Description Cont. Again N/A
First Gear Ratio (:1) 4.584
Second Gear Ratio (:1) 2.964
Third Gear Ratio (:1) 1.912
Fourth Gear Ratio (:1) 1.446
Fifth Gear Ratio (:1) 1.00
Sixth Gear Ratio (:1) 0.746
Reverse Ratio (:1) 2.94
Final Drive Axle Ratio (:1) 3.50
Transfer Case Gear Ratio (:1), High N/A
Transfer Case Gear Ratio (:1), Low N/A

Suspension Type - Front MacPherson Strut
Suspension Type - Rear Four-Link
Suspension Type - Front (Cont.) w/Coil Springs
Suspension Type - Rear (Cont.) N/A

Brake Type Pwr
Brake ABS System 4-Wheel
Brake ABS System (Second Line) N/A
Disc - Front (Yes or ) Yes
Disc - Rear (Yes or ) Yes
Front Brake Rotor Diam x Thickness 11.8 x -TBD- in
Rear Brake Rotor Diam x Thickness 11.3 x -TBD- in
Drum - Rear (Yes or ) N/A

Fuel Tank Capacity, Approx 14.9 gal
Aux Fuel Tank Capacity, Approx N/A gal

Steering Type Pwr
Steering Ratio (:1), Overall N/A
Lock to Lock Turns (Steering) N/A
Turning Diameter - Curb to Curb 37.4 ft
Turning Diameter - Wall to Wall N/A ft

Front Tire Size P225/65R17
Rear Tire Size P225/65R17
Spare Tire Size T135/70R16

Dead Weight Hitch - Max Trailer Wt. 1500 lbs
Dead Weight Hitch - Max Tongue Wt. 150 lbs
Wt Distributing Hitch - Max Trailer Wt. 1500 lbs
Wt Distributing Hitch - Max Tongue Wt. 150 lbs
Maximum Trailering Capacity N/A lbs

Base Curb Weight 3325 lbs
Curb Weight - Front N/A lbs
Curb Weight - Rear N/A lbs
Maximum Payload Capacity N/A lbs
Curb Weight N/A lbs
Total Option Weight 0.00 lbs

Passenger Capacity 5
Passenger Volume 103.5 ft³
Front Head Room 40 in
Front Leg Room 40.9 in
Front Shoulder Room 57.2 in
Front Hip Room 54.2 in
Second Head Room 38.5 in
Second Leg Room 39.9 in
Second Shoulder Room 55.5 in
Second Hip Room 51.7 in
Wheelbase 107.3 in
Length, Overall 183.1 in
Width, Max w/o mirrors 72.6 in
Height, Overall 65.4 in
Track Width, Front 62.2 in
Track Width, Rear 62.2 in
Min Ground Clearance 7.6 in
Rear Door Opening Height N/A in
Rear Door Opening Width N/A in
Cargo Area Length @ Floor to Seat 1 N/A in
Cargo Area Length @ Floor to Seat 2 N/A in
Cargo Area Length @ Floor to Seat 3 N/A in
Cargo Area Width @ Beltline N/A in
Cargo Box Width @ Wheelhousings N/A in
Cargo Box (Area) Height N/A in
Liftover Height N/A in
Cargo Volume to Seat 1 63.9 ft³
Cargo Volume to Seat 2 29.9 ft³
Cargo Volume to Seat 3 N/A ft³

Antenna, roof-mounted (Black.) Standard
SiriusXM Radio enjoy an All Access trial subscription with over 150 channels including commercial-free music, plus sports, news and entertainment. Plus listening on the SiriusXM app, online and at home on compatible connected devices is included, so you'll hear the best SiriusXM has to offer, anywhere life takes you. Welcome to the world of SiriusXM. (IMPORTANT: The SiriusXM radio trial package is not provided on vehicles that are ordered for Fleet Daily Rental ("FDR") use. If you decide to continue service after your trial, the subscription plan you choose will automatically renew thereafter and you will be charged according to your chosen payment method at then-current rates. Fees and taxes apply. See the SiriusXM Customer Agreement at www.siriusxm.com for complete terms and how to cancel. All fees, content, features, and availability are subject to change.) Optional
Noise control system, active noise cancellation Standard
Audio system feature, 6-speaker system Standard
Bluetooth for phone personal cell phone connectivity to vehicle audio system (Go to my.chevrolet.com/learn to find out which phones are compatible with the vehicle.) Standard
Audio system, Chevrolet Infotainment 3 system, 7" diagonal color touchscreen, AM/FM stereo. Additional features for compatible phones include: Bluetooth audio streaming for 2 active devices, voice command pass-through to phone, Apple CarPlay and Android Auto capable. (STD) Standard
4G LTE Wi-Fi Hotspot capable (Terms and limitations apply. See onstar.com or dealer for details.) Standard

Wheels, 17" (43.2 cm) aluminum Standard
Glass, acoustic, laminated windshield Standard
Tire, compact spare, T135/70R16 blackwall Optional
Wheel, spare, 16" (40.6 cm) steel Optional
Mirror caps, body-color Optional
Glass, deep-tinted, rear Optional
Active Aero Shutters Standard
Headlamps, high intensity discharge Optional
Headlamp control, IntelliBeam auto high beam Standard
Trim, Bright lower window Optional
Tires, P225/65R17 all-season blackwall (FWD only.) Optional
Mirrors, outside heated power-adjustable, manual-folding Standard
Headlamp control, automatic on and off with automatic delay Standard
Liftgate, rear manual Standard
Door handles, body-color Standard

Seat adjuster, 2-way power driver lumbar control Optional
Keyless Open includes extended range Remote Keyless Entry with lock and unlock feature Standard
Speedometer, miles/kilometers Standard
Windows, power, rear with Express-Down Standard
Floor mats, carpeted rear Optional
Cruise control, electronic with set and resume speed Standard
Theft-deterrent system, unauthorized entry Standard
Seat trim, Premium Cloth Standard
Sunglass storage, overhead Optional
Seat, rear split-folding with center armrest Standard
Air conditioning, semi-automatic, single-zone Standard
Seat release levers, 2nd row mechanical release levers in cargo area Optional
Assist handles, rear outboard Standard
Seat adjuster, driver 8-way power with 2-way power lumbar Optional
Door locks, power with lock-out protection Standard
Display, driver instrument information enhanced, multi-color Optional
Window, power with driver Express-Up and Down Standard
Seat adjuster, front passenger 4-way manual Standard
Window, power with front passenger Express-Down Standard
Power outlet, front auxiliary, 12-volt Standard
Power outlet, cargo area auxiliary, 12-volt Standard
Assist handle, front passenger Standard
USB charging-only ports, 2, located in the rear of the floor console Standard
Steering wheel controls, audio, phone interface and driver information center controls Standard
Seats, front bucket (STD) Standard
Steering column, tilt and telescoping Standard
Chevrolet Connected Access capable (Subject to terms. See onstar.com or dealer for details.) Standard
USB ports, 2, with auxiliary input jack, located in front center stack storage area Standard
Remote panic alarm Standard
Map pocket, driver seatback Standard
Shift lever, chrome-trimmed Standard
Steering wheel, 3-spoke, deluxe Standard
Assist handle, driver Standard
Keyless Start, push-button Standard
Defogger, rear-window electric Standard
Head restraints, 2-way adjustable (up/down), front Standard
Visors, driver and front passenger illuminated vanity mirrors, covered Standard
Floor mats, carpeted front Standard
Mirror, inside rearview manual day/night Standard
Map pocket, front passenger seatback Standard

Axle, 3.50 final drive ratio (FWD only.) Optional
Mechanical jack with tools Optional
Engine control, stop-start system Standard
Transmission, 6-speed automatic, electronically-controlled with overdrive includes Driver Shift Control (STD) Standard
Brake, electronic parking Standard
Brake lining, high-performance, noise and dust performance Standard
Suspension, rear 4-link Standard
Engine, 1.5L Turbo DOHC 4-cylinder, SIDI, VVT (170 hp [127.0 kW] @ 5600 rpm, 203 lb-ft of torque [275.0 N-m] @ 2000 - 4000 rpm) (STD) Standard
Driver Shift Controls Standard
Exhaust, single outlet Standard
GVWR, 4464 lbs. (2025 kg) (FWD only.) Optional
Fuel, gasoline, E15 Standard
Front-wheel drive Standard
Suspension, front MacPherson strut Standard
Brakes, 4-wheel antilock, 4-wheel disc 16" front and rear Standard

Chevy Safety Assist includes (UHY) Automatic Emergency Braking, (UEU) Forward Collision Alert, (UHX) Lane Keep Assist with Lane Departure Warning, (UE4) Following Distance Indicator, (UKJ) Front Pedestrian Braking and (TQ5) IntelliBeam headlamps Standard
Driver Confidence II Package includes (UD7) Rear Park Assist, (UFG) Rear Cross Traffic Alert and (UKC) Lane Change Alert with Side Blind Zone Alert Optional

Rear Cross Traffic Alert Optional
Following Distance Indicator Standard
Airbags, dual-stage, frontal, driver and right front passenger with Passenger Sensing System, thorax side-impact, seat mounted, driver and right front passenger, roof-rail, side front and rear outboard seating positions (Always use seat belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.) Standard
Forward Collision Alert Standard
Door locks, rear child security, manual Standard
Rear Vision Camera Standard
Tire Pressure Monitor, manual learn with Tire Fill Alert (Does not apply to spare tire.) Optional
Rear Park Assist with audible warning Optional
Lane Keep Assist with Lane Departure Warning Standard
Horn, dual-note Standard
Teen Driver a configurable feature that lets you activate customizable vehicle settings associated with a key fob, to help encourage safe driving behavior. It can limit certain available vehicle features, and it prevents certain safety systems from being turned off. An in-vehicle report card gives you information on driving habits and helps you to continue to coach your new driver Standard
Front Pedestrian Braking Standard
Daytime Running Lamps, separate cavity, LED Standard
StabiliTrak, stability control system with Traction Control Standard
Automatic Emergency Braking Standard
OnStar and Chevrolet connected services capable (Terms and limitations apply. See onstar.com or dealer for details.) Standard
Lane Change Alert with Side Blind Zone Alert Optional
Rear Seat Reminder Standard
