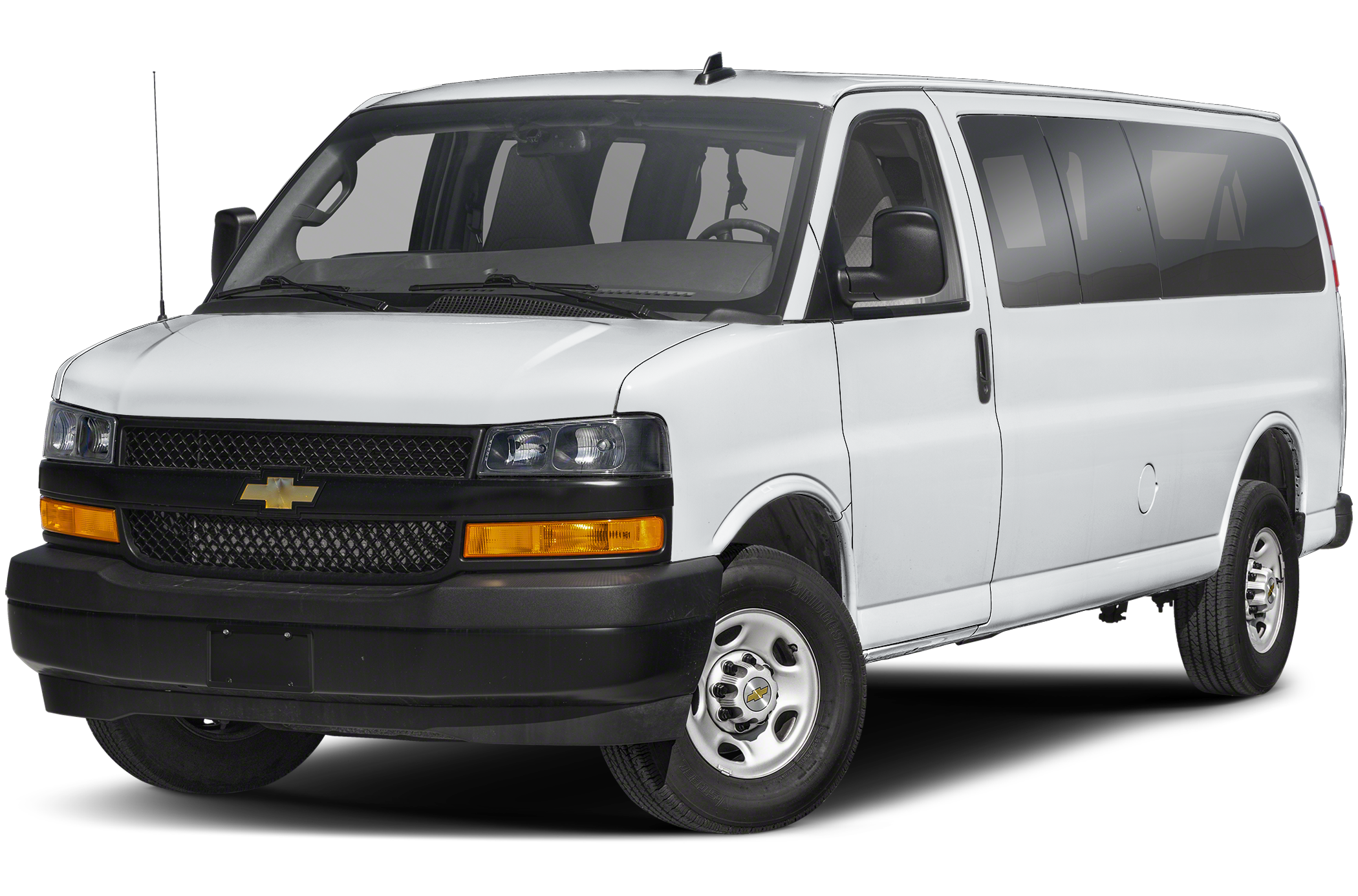

2025 Chevrolet Express 3500 LS specs & colors
Full-size Passenger Van
MSRP
- RWD 3500 135"
- $45,750
- RWD 3500 155"
- $46,550
- RWD 3500 135" LT
- $48,550
- RWD 3500 135" LS
- $48,550
- RWD 3500 155" LT
- $49,350
- RWD 3500 155" LS
- $49,350
$49,350
Starting MSRP
Current listing price
Current listing price
Showing the 2025 Chevrolet Express 3500 RWD 3500 155" LS
Shop NowKey specs
Color options
Interior
Medium Pewter
Packages
$100
Starting MSRP
- (Includes (K05) engine block heater.)
$0
Starting MSRP
- includes standard equipment
Specifications
Highlights
|
Gas V6
Engine Type
|
|
-
MPG
|
|
401 hp
276 hp Horsepower
|
|
15
Seating Capacity
|
Brakes
|
N/A
Drum - Rear (Yes or )
|
|
Yes
Disc - Rear (Yes or )
|
|
4-Wheel
Brake ABS System
|
|
Yes
Disc - Front (Yes or )
|
|
13 x 1.1 in
Rear Brake Rotor Diam x Thickness
|
|
12.8 x 1.5 in
Front Brake Rotor Diam x Thickness
|
|
N/A
Brake ABS System (Second Line)
|
|
Pwr
Brake Type
|
Electrical
|
600
Cold Cranking Amps @ 0° F (Primary)
|
|
150
Maximum Alternator Capacity (amps)
|
Engine
|
276 @ 5200
SAE Net Horsepower @ RPM
|
|
Gas V6
Engine Type
|
|
298 @ 3900
SAE Net Torque @ RPM
|
|
4.3L/-TBD-
Displacement
|
|
Transmission Overdrive Switch
8-Speed A/T A/T Transmission w/Dual Shift Mode Transmission Options
|
|
-
MPG
|
|
N/A
Total Cooling System Capacity
|
Measurements
|
N/A
Cargo Volume to Seat 4
|
|
N/A
Cargo Volume
|
|
N/A
Cargo Box Width @ Top, Rear
|
|
N/A
Fifth Shoulder Room
|
|
66 in
Second Hip Room
|
|
9 in
Ground Clearance, Rear
|
|
256 ft³
Cargo Volume to Seat 1
|
|
37 in
Fourth Leg Room
|
|
37 in
Third Leg Room
|
|
N/A
Cargo Box Width @ Floor
|
|
47 in
Side Door Opening Height
|
|
65 in
Front Hip Room
|
|
N/A
Overhang, Rear w/o bumper
|
|
40 in
Overhang, Front
|
|
41 in
Front Head Room
|
|
41 in
Front Leg Room
|
|
146 in
Cargo Area Length @ Floor to Seat 1
|
|
38 in
Second Head Room
|
|
N/A
Cargo Area Length @ Floor to Seat 2
|
|
N/A
Cargo Area Width @ Beltline
|
|
N/A
Fifth Hip Room
|
|
244 in
Length, Overall
|
|
46 in
Rear Door Opening Height
|
|
69 in
Second Shoulder Room
|
|
79 in
Width, Max w/o mirrors
|
|
66 in
Third Shoulder Room
|
|
53 in
Rear Door Opening Width
|
|
N/A
Cargo Volume to Seat 2
|
|
N/A
Cargo Volume to Seat 3
|
|
69 in
Fourth Shoulder Room
|
|
51 in
Cargo Box Width @ Wheelhousings
|
|
N/A
Tailgate Width
|
|
N/A
Fifth Head Room
|
|
32 in
Ground to Top of Load Floor
|
|
155 in
Wheelbase
|
|
9 in
Ground Clearance, Front
|
|
N/A
Ext'd Cab Cargo Volume
|
|
66 in
Fourth Hip Room
|
|
28 in
Step Up Height - Side
|
|
63 in
Third Hip Room
|
|
39 in
Third Head Room
|
|
12
Passenger Capacity
|
|
N/A
Fifth Leg Room
|
|
N/A
Cargo Area Length @ Floor to Seat 3
|
|
174 in
Cargo Area Length @ Floor to Console
|
|
N/A
Cab to End of Frame
|
|
27 in
Step Up Height - Front
|
|
N/A
Length, Overall w/rear bumper
|
|
38 in
Fourth Head Room
|
|
52 in
Cargo Box (Area) Height
|
|
36 in
Second Leg Room
|
|
85 in
Height, Overall
|
|
69 in
Front Shoulder Room
|
|
N/A
Side Door Opening Width
|
Safety
|
Standard
Stability Control
|
|
Standard
Navigation System
|
|
Standard
Backup Camera
|
Steering
|
N/A
Turning Diameter - Wall to Wall
|
|
N/A
Steering Ratio (:1), Overall
|
|
55 ft
Turning Diameter - Curb to Curb
|
|
Pwr
Steering Type
|
Suspension
|
Hypoid Drive
Suspension Type - Rear
|
|
Coil Spring
Suspension Type - Front
|
|
Full-Floating
Axle Type - Rear
|
|
Independent
Axle Type - Front
|
Tires & Wheels
|
LT245/75R16E
Front Tire Size
|
|
Steel
Front Wheel Material
|
|
Steel
Spare Wheel Material
|
|
Steel
Rear Wheel Material
|
|
16 x 6.5 in
Front Wheel Size
|
|
16 x 6.5 in
Spare Wheel Size
|
|
LT245/75R16E
Spare Tire Size
|
|
LT245/75R16E
Rear Tire Size
|
|
16 x 6.5 in
Rear Wheel Size
|
Weight & Capacity
|
630 lbs
Wt Distributing Hitch - Max Tongue Wt.
|
|
10,384 lbs
Gross Axle Weight Rating
|
|
500 lbs
Dead Weight Hitch - Max Tongue Wt.
|
|
9,600 lbs
Gross Vehicle Weight Rating
|
|
9,200 lbs
Maximum Trailering Capacity
|
|
15,000 lbs
Gross Combined Wt Rating
|
|
2,984 lbs
Curb Weight - Rear
|
|
N/A
Aux Fuel Tank Capacity, Approx
|
|
0 lbs
Option Weight - Rear
|
|
6,173 lbs
As Spec'd Curb Weight
|
|
N/A
Base Curb Weight
|
|
3,427 lbs
As Spec'd Payload
|
|
6,300 lbs
Wt Distributing Hitch - Max Trailer Wt.
|
|
0 lbs
Total Option Weight
|
|
6,173 lbs
Curb Weight
|
|
N/A
Fifth Wheel Hitch - Max Tongue Wt.
|
|
5,000 lbs
Dead Weight Hitch - Max Trailer Wt.
|
|
0 lbs
Option Weight - Front
|
|
3,427 lbs
Maximum Payload Capacity
|
|
31 gal
Fuel Tank Capacity, Approx
|
|
3,189 lbs
Curb Weight - Front
|
|
N/A
Fifth Wheel Hitch - Max Trailer Wt.
|
