2002 Chevrolet Silverado 3500 specs & colors

MSRP
Ext Cab 157.5" WB DRW
$27,169
Reg Cab 133" WB 4WD DRW
$27,577
Crew Cab 167" WB DRW
$28,974
Ext Cab 157.5" WB DRW LS
$28,991
Reg Cab 133" WB 4WD DRW LS
$29,274
Ext Cab 157.5" WB 4WD DRW
$30,267
Crew Cab 167" WB DRW LS
$30,646
Crew Cab 167" WB 4WD DRW
$32,072
Ext Cab 157.5" WB 4WD DRW LS
$32,089
Ext Cab 157.5" WB DRW LT
$33,116
Crew Cab 167" WB 4WD DRW LS
$33,744
Crew Cab 167" WB DRW LT
$34,844
Ext Cab 157.5" WB 4WD DRW LT
$36,409
Crew Cab 167" WB 4WD DRW LT
$38,137
$32,072
Starting MSRP
Current listing price
2002 Chevrolet Silverado 3500

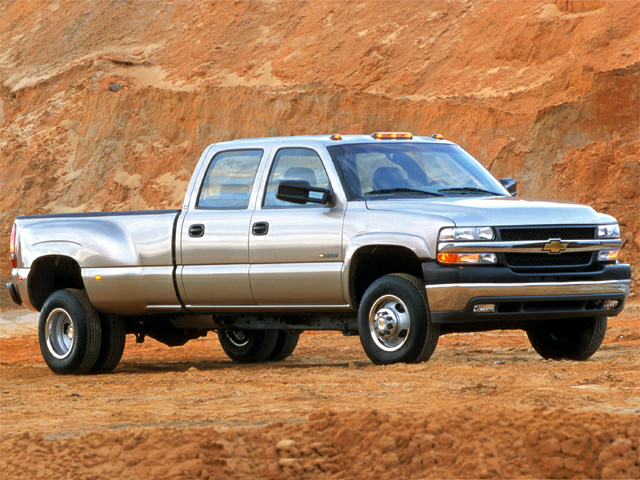

Showing the 2002 Chevrolet Silverado 3500 Crew Cab 167" WB 4WD DRW

Shop Now

Key specs

Color options

Interior
Taupe
Graphite
Pewter Gray

Packages

Specifications

Highlights

Gas V8
Engine Type
-
MPG
300 hp
300 hp
340 hp
Horsepower
6
Seating Capacity

Brakes

Yes
Disc - Front (Yes or )
12.8 x 1.2 in
Rear Brake Rotor Diam x Thickness
12.8 x 1.5 in
Front Brake Rotor Diam x Thickness
Pwr
Brake Type
Yes
Disc - Rear (Yes or )
Not Available
Brake ABS System (Second Line)
Not Available
Drum - Rear (Yes or )
Four-Wheel
Brake ABS System

Electrical

105
Maximum Alternator Capacity (amps)
600
Cold Cranking Amps @ 0° F (Primary)

Engine

300 @ 4400
SAE Net Horsepower @ RPM
360 @ 4000
SAE Net Torque @ RPM
Gas V8
Engine Type
6.0L/364
Displacement
M/T
6-Speed M/T
A/T
5-Speed A/T
5-Speed M/T
4-Speed A/T
Transmission Options
-
MPG
N/A
Total Cooling System Capacity

Measurements

65 in
Front Shoulder Room
63 in
Second Hip Room
256 in
Length, Overall w/o rear bumper
80 in
Width, Max w/o mirrors
62 in
Cargo Box Width @ Top, Rear
N/A
Length, Overall w/rear bumper
65 in
Cargo Box Width @ Floor
61 in
Front Hip Room
39 in
Second Leg Room
40 in
Second Head Room
41 in
Front Leg Room
20 in
Cargo Box (Area) Height
N/A
Cab to End of Frame
167 in
Wheelbase
47 in
Overhang, Rear w/o bumper
62 in
Tailgate Width
65 in
Second Shoulder Room
76 in
Height, Overall
14 in
Ground Clearance, Rear
50 in
Cargo Box Width @ Wheelhousings
N/A
Ext'd Cab Cargo Volume
41 in
Front Head Room
6
Passenger Capacity
37 in
Overhang, Front
N/A
Ground to Top of Load Floor
11 in
Ground Clearance, Front
71 ft³
Cargo Volume
N/A
Length, Overall
98 in
Cargo Box Length @ Floor

Steering

N/A
Turning Diameter - Wall to Wall
N/A
Steering Ratio (:1), Overall
56 ft
Turning Diameter - Curb to Curb
Pwr
Steering Type

Suspension

N/A
Axle Type - Front
2-Stage Multi-Leaf
Suspension Type - Rear
Torsion Bar
Suspension Type - Front
Full-Floating
Axle Type - Rear

Tires & Wheels

Steel
Spare Wheel Material
16 x 6.5 in
Rear Wheel Size
LT215/85R16
Rear Tire Size
LT215/85R16
Front Tire Size
LT215/85R16
Spare Tire Size
Steel
Front Wheel Material
Steel
Rear Wheel Material
16 x 6.5 in
Front Wheel Size
16 x 6.5 in
Spare Wheel Size

Weight & Capacity

9,800 lbs
Wt Distributing Hitch - Max Trailer Wt.
3,424 lbs
Curb Weight - Front
N/A
Maximum Payload Capacity
N/A
Base Curb Weight
1,500 lbs
Wt Distributing Hitch - Max Tongue Wt.
N/A
As Spec'd Payload
0 lbs
Option Weight - Rear
Not Available gal
Aux Fuel Tank Capacity, Approx
13,350 lbs
Gross Axle Weight Rating
0 lbs
Option Weight - Front
6,215 lbs
As Spec'd Curb Weight
11,400 lbs
Gross Vehicle Weight Rating
9,800 lbs
Fifth Wheel Hitch - Max Trailer Wt.
3,500 lbs
Fifth Wheel Hitch - Max Tongue Wt.
1,000 lbs
Dead Weight Hitch - Max Tongue Wt.
7,500 lbs
Dead Weight Hitch - Max Trailer Wt.
6,215 lbs
Curb Weight
0 lbs
Total Option Weight
34 gal
Fuel Tank Capacity, Approx
16,000 lbs
Gross Combined Wt Rating
N/A
Maximum Trailering Capacity
2,791 lbs
Curb Weight - Rear
