2003 Chevrolet Silverado 3500 LT specs & colors

Extended Cab Pickup

Change trim
MSRP
Ext Cab 157.5" WB DRW
$27,760
Reg Cab 133" WB 4WD DRW
$28,300
Crew Cab 167" WB DRW
$29,760
Ext Cab 157.5" WB DRW LS
$30,000
Reg Cab 133" WB 4WD DRW LS
$30,450
Ext Cab 157.5" WB 4WD DRW
$30,850
Crew Cab 167" WB DRW LS
$31,862
Crew Cab 167" WB 4WD DRW
$32,850
Ext Cab 157.5" WB 4WD DRW LS
$33,123
Ext Cab 157.5" WB DRW LT
$34,895
Crew Cab 167" WB 4WD DRW LS
$34,950
Crew Cab 167" WB DRW LT
$36,995
Ext Cab 157.5" WB 4WD DRW LT
$38,175
Crew Cab 167" WB 4WD DRW LT
$40,240
$38,175
Starting MSRP
Current listing price

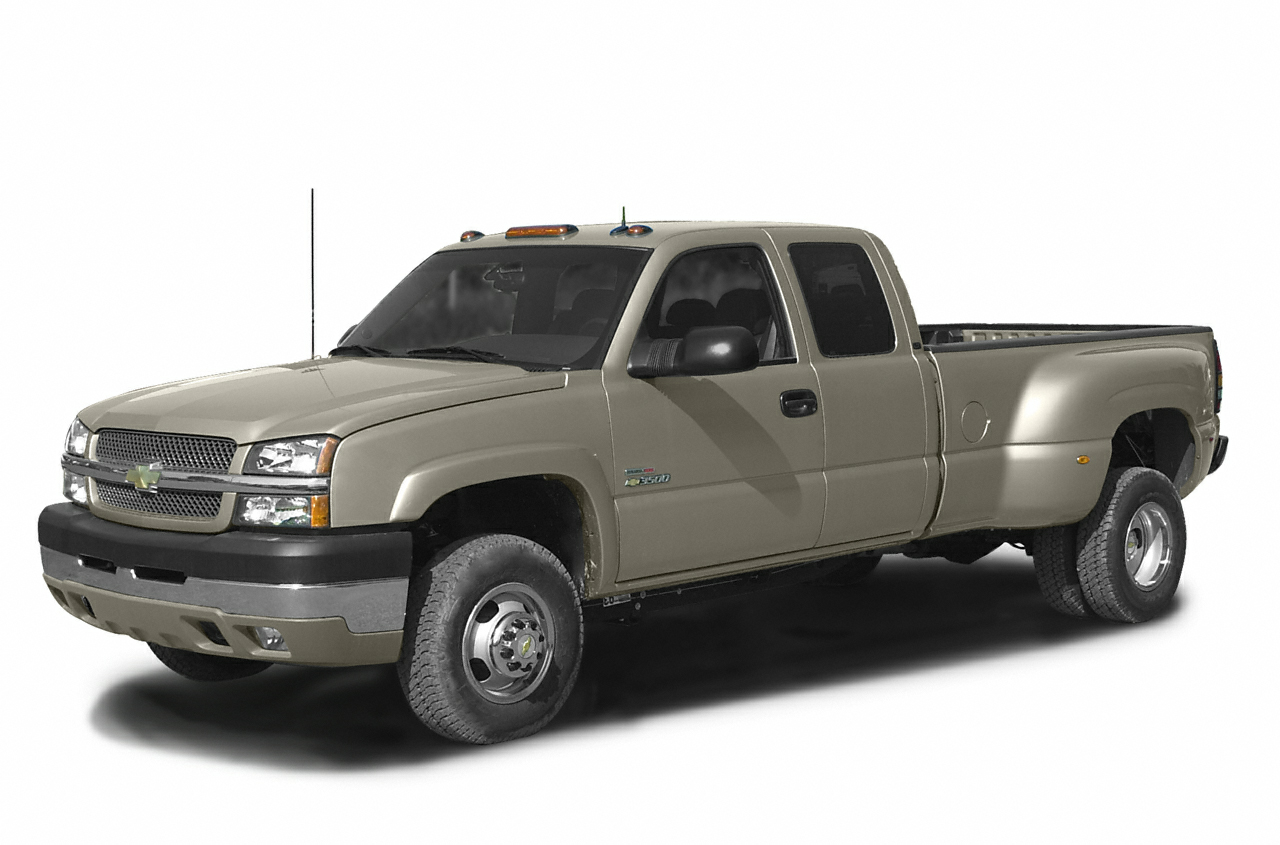

2003 Chevrolet Silverado 3500 LT

Showing the 2003 Chevrolet Silverado 3500 Ext Cab 157.5" WB 4WD DRW LT

Shop Now

Key specs

Color options

Interior
Taupe
Sage
Pewter Gray

Packages

Specifications

Highlights

Gas V8
Engine Type
-
MPG
300 hp
300 hp
340 hp
Horsepower
5
Seating Capacity

Brakes

Pwr
Brake Type
Four-Wheel
Brake ABS System
Not Available
Brake ABS System (Second Line)
Yes
Disc - Front (Yes or )
Yes
Disc - Rear (Yes or )
12.8 x 1.5 in
Front Brake Rotor Diam x Thickness
12.8 x 1.2 in
Rear Brake Rotor Diam x Thickness
Not Available
Drum - Rear (Yes or )

Electrical

600
Cold Cranking Amps @ 0° F (Primary)
105
Maximum Alternator Capacity (amps)

Engine

Gas V8
Engine Type
6.0L/364
Displacement
300 @ 4400
SAE Net Horsepower @ RPM
360 @ 4000
SAE Net Torque @ RPM
Transmission Overdrive Switch
A/T
5-Speed A/T
4-Speed A/T
Transmission Options
-
MPG
15.4 qts
Total Cooling System Capacity

Measurements

Not Available ft³
Ext'd Cab Cargo Volume
71 ft³
Cargo Volume
62 in
Tailgate Width
20 in
Cargo Box (Area) Height
50 in
Cargo Box Width @ Wheelhousings
65 in
Cargo Box Width @ Floor
62 in
Cargo Box Width @ Top, Rear
98 in
Cargo Box Length @ Floor
14 in
Ground Clearance, Rear
11 in
Ground Clearance, Front
35 in
Ground to Top of Load Floor
Not Available in
Cab to End of Frame
47 in
Overhang, Rear w/o bumper
37 in
Overhang, Front
76 in
Height, Overall
96 in
Width, Max w/o mirrors
N/A
Length, Overall
N/A
Length, Overall w/rear bumper
247 in
Length, Overall w/o rear bumper
158 in
Wheelbase
62 in
Second Hip Room
66 in
Second Shoulder Room
34 in
Second Leg Room
38 in
Second Head Room
61 in
Front Hip Room
65 in
Front Shoulder Room
41 in
Front Leg Room
5
Passenger Capacity
41 in
Front Head Room

Steering

Pwr
Steering Type
N/A
Steering Ratio (:1), Overall
52 ft
Turning Diameter - Curb to Curb
Not Available ft
Turning Diameter - Wall to Wall

Suspension

Torsion Bar
Suspension Type - Front
2-Stage Multi-Leaf
Suspension Type - Rear
Not Available
Axle Type - Front
Full-Floating
Axle Type - Rear

Tires & Wheels

LT215/85R16
Front Tire Size
LT215/85R16
Rear Tire Size
LT215/85R16
Spare Tire Size
16 x 6.5 in
Front Wheel Size
16 x 6.5 in
Rear Wheel Size
16 x 6.5 in
Spare Wheel Size
Steel
Front Wheel Material
Steel
Rear Wheel Material
Steel
Spare Wheel Material

Weight & Capacity

11,400 lbs
Gross Vehicle Weight Rating
0 lbs
Total Option Weight
6,115 lbs
Curb Weight
13,350 lbs
Gross Axle Weight Rating
N/A
Base Curb Weight
3,399 lbs
Curb Weight - Front
2,716 lbs
Curb Weight - Rear
0 lbs
Option Weight - Front
0 lbs
Option Weight - Rear
6,115 lbs
As Spec'd Curb Weight
N/A
As Spec'd Payload
N/A
Maximum Payload Capacity
16,000 lbs
Gross Combined Wt Rating
7,500 lbs
Dead Weight Hitch - Max Trailer Wt.
1,000 lbs
Dead Weight Hitch - Max Tongue Wt.
9,900 lbs
Wt Distributing Hitch - Max Trailer Wt.
1,500 lbs
Wt Distributing Hitch - Max Tongue Wt.
9,900 lbs
Fifth Wheel Hitch - Max Trailer Wt.
3,500 lbs
Fifth Wheel Hitch - Max Tongue Wt.
N/A
Maximum Trailering Capacity
34 gal
Fuel Tank Capacity, Approx
Not Available gal
Aux Fuel Tank Capacity, Approx
