2005 Chevrolet Silverado 3500 Wrk Trk specs & colors

Crew Cab Pickup

Change trim

$30,765

Starting MSRP
Current listing price

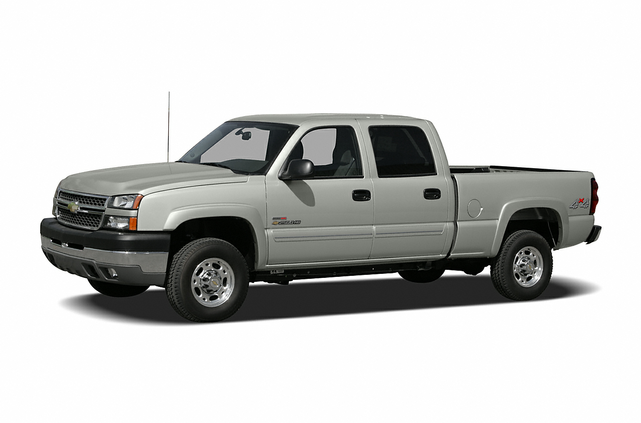

2005 Chevrolet Silverado 3500 Wrk Trk

Showing the 2005 Chevrolet Silverado 3500 Crew Cab 167" WB DRW Wrk Trk

Shop Now

No inventory available.
Shop 2005 Chevrolet Silverado 3500

Key specs

4-door
6 seats
300.0-hp, 6.6-liter, 8 Cylinder Engine (Diesel Fuel)
0 combined MPG
225.0" length, 76.0" height
Rear Wheel Drive

Color options

Exterior

Medium Cadet Blue Metallic

Interior

Taupe

Sage

Pewter Gray

Packages

Specifications

Highlights

Engine Type: Gas V8
MPG: -
Horsepower: 300 hp
330 hp
300 hp
Seating Capacity: 6

Brakes

Disc - Rear (Yes or ): Yes
Disc - Front (Yes or ): Yes
Brake ABS System: Four-Wheel
Rear Brake Rotor Diam x Thickness: 12.8 x 1.2 in
Brake ABS System (Second Line): Not Available
Front Brake Rotor Diam x Thickness: 12.8 x 1.5 in
Drum - Rear (Yes or ): Not Available
Brake Type: Pwr

Electrical

Cold Cranking Amps @ 0° F (Primary): 600
Maximum Alternator Capacity (amps): 105

Engine

Engine Type: Gas V8
SAE Net Torque @ RPM: 360 @ 4000
Displacement: 6.0L/364
SAE Net Horsepower @ RPM: 300 @ 4400
Transmission Options: M/T
6-Speed M/T
Transmission Overdrive Switch
A/T
5-Speed A/T
5-Speed M/T
4-Speed A/T
MPG: -
Total Cooling System Capacity: 16.4 qts

Measurements

Ground Clearance, Front: 9 in
Wheelbase: 167 in
Front Hip Room: 61 in
Tailgate Width: 62 in
Cargo Volume: 74 ft³
Second Head Room: 40 in
Length, Overall w/o rear bumper: 256 in
Cargo Box Width @ Floor: 65 in
Cargo Box (Area) Height: 20 in
Second Hip Room: 63 in
Front Leg Room: 41 in
Cargo Box Width @ Wheelhousings: 50 in
Second Leg Room: 39 in
Ground to Top of Load Floor: 35 in
Passenger Capacity: 6
Front Shoulder Room: 65 in
Height, Overall: 77 in
Length, Overall w/rear bumper: N/A
Cargo Box Width @ Top, Rear: 62 in
Front Head Room: 41 in
Second Shoulder Room: 65 in
Overhang, Front: 37 in
Width, Max w/o mirrors: 96 in
Cab to End of Frame: N/A
Length, Overall: N/A
Overhang, Rear w/o bumper: 47 in
Cargo Box Length @ Floor: 98 in
Ground Clearance, Rear: 12 in
Ext'd Cab Cargo Volume: N/A

Steering

Steering Type: Pwr
Turning Diameter - Curb to Curb: 54 ft
Steering Ratio (:1), Overall: N/A
Turning Diameter - Wall to Wall: N/A

Suspension

Axle Type - Front: Not Available
Suspension Type - Front: Torsion Bar
Axle Type - Rear: Full-Floating
Suspension Type - Rear: 3-Stage Spring

Tires & Wheels

Rear Wheel Size: 16 x 6.5 in
Spare Wheel Material: Steel
Spare Tire Size: LT215/85R16
Front Wheel Material: Steel
Rear Wheel Material: Steel
Front Wheel Size: 16 x 6.5 in
Spare Wheel Size: 16 x 6.5 in
Front Tire Size: LT215/85R16
Rear Tire Size: LT215/85R16

Weight & Capacity

Gross Vehicle Weight Rating: 11,400 lbs
Fuel Tank Capacity, Approx: 34 gal
Base Curb Weight: N/A
Fifth Wheel Hitch - Max Trailer Wt.: 9,400 lbs
Option Weight - Rear: 0 lbs
Total Option Weight: 0 lbs
Dead Weight Hitch - Max Tongue Wt.: 500 lbs
Curb Weight - Front: 3,204 lbs
Option Weight - Front: 0 lbs
Maximum Trailering Capacity: N/A
Gross Axle Weight Rating: 13,220 lbs
Fifth Wheel Hitch - Max Tongue Wt.: 2,350 lbs
Maximum Payload Capacity: 5,332 lbs
Curb Weight: 6,068 lbs
Curb Weight - Rear: 2,864 lbs
Gross Combined Wt Rating: 16,000 lbs
Aux Fuel Tank Capacity, Approx: Not Available gal
As Spec'd Curb Weight: 6,068 lbs
As Spec'd Payload: 5,332 lbs
Wt Distributing Hitch - Max Tongue Wt.: 1,410 lbs
Dead Weight Hitch - Max Trailer Wt.: 5,000 lbs
Wt Distributing Hitch - Max Trailer Wt.: 9,400 lbs
