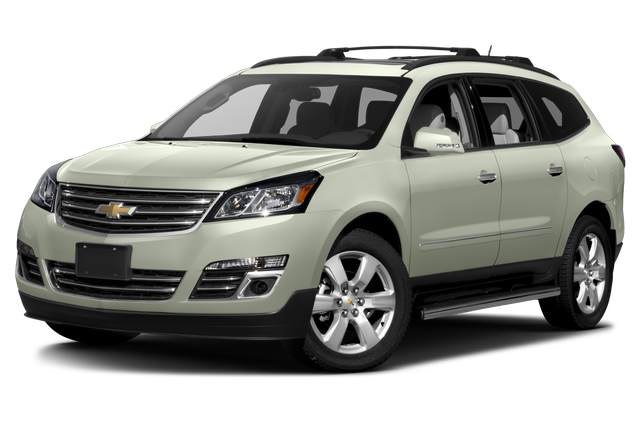

2016 Chevrolet Traverse LTZ specs & colors

Sport Utility

Change trim

MSRP

FWD 4dr LS w/1SM $28,700
FWD 4dr LS w/1LS $31,205
AWD 4dr LS $33,205
FWD 4dr LT w/1LT $34,005
AWD 4dr LT w/1LT $36,005
FWD 4dr LT w/2LT $36,505
AWD 4dr LT w/2LT $38,505
FWD 4dr LTZ $42,145
AWD 4dr LTZ $44,145

Change trim

$42,145

Starting MSRP
Current listing price

Showing the 2016 Chevrolet Traverse FWD 4dr LTZ

Shop Now

Color options

Exterior

Interior

Ebony / Saddle Up

Titanium

Ebony

Packages

LTZ Preferred Equipment Group

$0

Starting MSRP

Includes Standard Equipment

Specifications

Front Wheel Material	Aluminum
Spare Wheel Material	Steel
Rear Wheel Size	20 x 7.5 in
Spare Wheel Size	17 x -TBD- in
Rear Wheel Material	Aluminum
Front Wheel Size	20 x 7.5 in

EPA MPG Equivalent - Hwy	N/A
EPA Fuel Economy Est - Hwy	22 MPG
EPA Fuel Economy Est - City	15 MPG
Cruising Range - City	330.00 mi
EPA MPG Equivalent - Combined	N/A
Fuel Economy Est-Combined	18 MPG
Estimated Battery Range	N/A mi
Cruising Range - Hwy	484.00 mi
EPA MPG Equivalent - City	N/A

Trans Description Cont.	Automatic
Drivetrain	Front Wheel Drive
Trans Type	6
Transfer Case Gear Ratio (:1), High	N/A
Fourth Gear Ratio (:1)	1.41
Transfer Case Gear Ratio (:1), Low	N/A
Reverse Ratio (:1)	2.88
Third Gear Ratio (:1)	1.80
Trans Description Cont. Again	N/A
Fifth Gear Ratio (:1)	1.00
Sixth Gear Ratio (:1)	0.74
First Gear Ratio (:1)	4.48
Second Gear Ratio (:1)	2.87
Final Drive Axle Ratio (:1)	3.16

Rear Brake Rotor Diam x Thickness	13.0 x 0.8 in
Brake ABS System (Second Line)	N/A
Disc - Front (Yes or )	Yes
Drum - Rear (Yes or )	N/A
Disc - Rear (Yes or )	Yes
Brake ABS System	4-Wheel
Brake Type	Pwr
Front Brake Rotor Diam x Thickness	12.8 x 1.1 in

Wt Distributing Hitch - Max Tongue Wt.	520 lbs
Maximum Trailering Capacity	N/A lbs
Wt Distributing Hitch - Max Trailer Wt.	5200 lbs
Dead Weight Hitch - Max Trailer Wt.	5200 lbs
Dead Weight Hitch - Max Tongue Wt.	520 lbs

Cargo Area Length @ Floor to Seat 1	N/A in
Front Leg Room	41.30 in
Width, Max w/o mirrors	78.50 in
Second Head Room	39.40 in
Front Shoulder Room	61.50 in
Third Shoulder Room	57.60 in
Min Ground Clearance	7.20 in
Second Hip Room	57.80 in
Length, Overall	203.70 in
Height, Overall	69.90 in
Cargo Box Width @ Wheelhousings	N/A in
Front Head Room	40.40 in
Second Leg Room	36.80 in
Third Hip Room	48.30 in
Rear Door Opening Width	N/A in
Rear Door Opening Height	N/A in
Cargo Area Width @ Beltline	N/A in
Liftover Height	N/A in
Cargo Area Length @ Floor to Seat 3	N/A in
Track Width, Front	67.30 in
Third Leg Room	33.20 in
Passenger Volume	150.8 ft³
Cargo Box (Area) Height	N/A in
Wheelbase	118.90 in
Cargo Volume to Seat 2	70.3 ft³
Cargo Volume to Seat 3	24.4 ft³
Front Hip Room	58.00 in
Cargo Volume to Seat 1	116.3 ft³
Third Head Room	37.80 in
Track Width, Rear	67.10 in
Cargo Area Length @ Floor to Seat 2	N/A in
Passenger Capacity	7
Second Shoulder Room	61.00 in

Audio system feature, USB port	Standard
Audio system, Chevrolet MyLink radio with Navigation 6.5" diagonal color touch-screen display, AM/FM/SiriusXM radio with CD player, includes Bluetooth streaming audio for music and select phones; Hands-Free smartphone integration with Pandora and Stitcher; voice-activated technology for radio and phone (STD)	Optional
Audio system feature, auxiliary input jack	Standard
Color Touch Navigation System	Optional
Audio system feature, Bose premium 10-speaker system (Upgraded to (UQS) Bose 5.1 surround sound 10-speaker system when (U42) rear seat entertainment system is ordered.)	Optional
Audio system controls, rear with headphone jacks	Optional
Audio system feature, dual USB port, charge only, located rear of center console	Standard

Tires, P255/55R20 H-rated, blackwall	Optional
Spoiler, rear	Optional
Headlamp control, automatic on and off	Optional
Roof rail moldings	Standard
Wiper, rear intermittent with washer	Standard
Fog lamps, front	Optional
Wheel, 17" (43.2 cm) compact steel spare wheel and tire	Optional
Door handles, chrome	Standard
Headlamps, dual cavity, halogen	Standard
Liftgate, rear power	Optional
Wipers, front intermittent with washers	Standard
Mirrors, outside heated power-adjustable, power-folding and driver-side auto-dimming, body-color with integrated turn signal indicators and driver-side memory	Optional
Glass, Solar-Ray deep-tinted (all windows except light-tinted glass on windshield and driver and front passenger side glass)	Standard
Wheels, 4 - 20" x 7.5" (50.8 cm x 19.1 cm) machined aluminum	Optional
Moldings, body-color with chrome accent bodyside	Optional

Floor covering, color-keyed carpeting	Standard
Memory Package includes 2-position memory for driver's seat and outside rearview mirrors	Optional
Cruise control, electronic with set and resume speed	Standard
Air conditioning, rear manual	Standard
Lighting, interior with theater dimming, cargo compartment, reading lights for front seats, second row reading lamps integrated into dome light, door-and tailgate-activated switches and illuminated entry and exit feature	Standard
Defogger, rear-window electric	Standard
Floormats, color-keyed carpeted front, second and third row, removable	Standard
Air conditioning, tri-zone automatic climate control with individual climate settings for driver and right-front passenger and second/third row controls for second and third row passengers	Optional
NavTraffic Avoid congestion before you reach it by enhancing your vehicle's navigation or entertainment system with NavTraffic. With detailed information on traffic speed, accidents, construction, road closures and more, you will get to your destination faster and more easily than ever before. (SiriusXM Satellite Radio and NavTraffic subscriptions are sold separately or as a package after trial period. If you decide to continue service after your trial, the subscription plan you choose will automatically renew thereafter and you will be charged according to your chosen payment method at then-current rates. Fees and taxes apply. To cancel you must call us at 1-866-635-2349. See our Customer Agreement for complete terms at www.siriusxm.com. All fees and programming subject to change. NavTraffic available only in select markets. For more information, see www.siriusxm.com/navtraffic.)	Optional
Cup holders 10 with (ABB) 7-passenger (2-2-3 seating configuration) and 12 with (ABC) 8-passenger (2-3-3 seating configuration)	Standard
Console, front center with 2 cup holders, covered storage bin and sliding armrest with storage	Standard
Remote Keyless Entry, programmable with 2 transmitters, panic button and extended range	Optional
Cargo storage, tray under rear floor	Optional
Bluetooth for phone, personal cell phone connectivity to vehicle audio system (Upgraded to Bluetooth streaming audio for music and select phones with (UI6) Chevrolet MyLink radio, (UI4) Chevrolet MyLink radio with Rear Seat Entertainment, (UI8) Chevrolet MyLink radio with Navigation or (UI7) Chevrolet MyLink radio with Navigation and Rear Seat Entertainment.)	Optional
Seat adjuster, passenger 8-way power	Optional
Seats, front, heated and cooled driver and passenger	Optional
Steering wheel, leather-wrapped with mounted cruise and audio controls	Optional
Reclining front buckets (STD)	Standard
Door locks, power programmable with lockout protection	Standard
Trim, interior, wood grain center stack and interior trim (Includes wood grain passenger door trim.)	Optional
Seating, 7-passenger (2-2-3 seating configuration) with 2nd row flat-folding Captains Chair and third row 60/40 split flat folding bench seat (STD)	Optional
Seat, third row manual 60/40 split-folding bench	Optional
Visors, driver and front passenger padded with cloth trim, color-keyed and illuminated vanity mirrors	Optional
Insulation, acoustical package	Standard
Seat, 8-way power driver with power recline and lumbar control and memory	Optional
Remote vehicle start with extended range Remote Keyless Entry	Optional
Steering column, tilt and telescopic with brake/transmission shift interlock	Standard
Seat trim, perforated leather seating surfaces (Includes (KB6) heated and cooled driver and front passenger seats driver and (AH8) 8-way power passenger seat adjuster.)	Optional
Universal Home Remote includes garage door opener, 3-channel programmable	Optional
Steering wheel, heated	Optional
Instrumentation, enhanced Driver Information Center with personalization features, speedometer, tachometer, outside temperature display, low oil, fuel and coolant indicators, odometer, trip odometer and trip computer with digital compass	Optional
Rear Park Assist	Optional
Windows, power with driver Express-Up and -Down and passenger Express- Down	Optional
Mirror, inside rearview auto-dimming	Optional

Front wheel drive	Standard
Transmission, 6-speed automatic (STD) (Included and only available with CR14526 FWD models.)	Optional
Engine, 3.6L SIDI V6 (288 hp [214.7 kW] @ 6300 rpm, 270 lb-ft of torque @ 3400 rpm [364.5 N-m] with dual exhaust) (STD)	Optional
Battery, high capacity 660 cold-cranking amps	Standard
Steering, power, variable effort	Optional
Axle, 3.16 ratio	Standard
GVWR, 6411 lbs. (2908 kg) (CR14526 FWD models only.)	Standard
Exhaust, dual with bright tips	Optional
Suspension, Ride and Handling	Standard
Brakes, 4-wheel antilock, 4-wheel disc	Optional

StabiliTrak, stability control system	Optional
OnStar with 4G LTE and built-in Wi-Fi hotspot to connect to the internet at 4G LTE speeds includes 3GB or 3 months OnStar Data Trial (whichever comes first) (Available 4G LTE Wi-Fi requires compatible mobile device, active OnStar subscription and data plan after trial.)	Optional
Side Blind Zone Alert and Rear Cross Traffic Alert	Optional
Traction control	Optional
Rear Vision Camera display integrated into Color Touch Radio	Optional
Daytime Running Lamps	Optional
Tire Pressure Monitoring System (Does not monitor spare)	Optional
Air bags, front passenger air bag suppression (Always use safety belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)	Optional
Air bags, frontal and side-impact for driver and front passenger, driver inboard seat-mounted side-impact and head curtain side-impact for all rows in outboard seating positions (Always use safety belts and the correct child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)	Optional
OnStar Guidance plan for 6 months including Automatic Crash Response, Stolen Vehicle Assistance, Roadside Assistance, Turn-by-Turn Navigation, Advanced Diagnostics and more (trial excludes Hands-Free Calling) (Visit www.onstar.com for coverage map, details and system limitations. Services may vary by model and conditions.)	Optional
Door locks, rear child security	Standard
OnStar Basic plan for 5 years including limited RemoteLink mobile app services, Advanced Diagnostics and Dealer Maintenance Notification (Basic Plan available for 5 years from the date of vehicle delivery, and is transferable. Does not include Emergency, Security or Navigation services.)	Standard
Horn, dual-note	Standard
Forward Collision Alert and Lane Departure Warning	Optional

Compare trims

Wondering which trim is right for you?

Our 2016 Chevrolet Traverse trim comparison will help you decide.

Cold Cranking Amps @ 0° F (Primary)	660
Maximum Alternator Capacity (amps)	170

Engine Type	Gas V6
SAE Net Torque @ RPM	270 @ 3400
Displacement	3.6L/217
SAE Net Horsepower @ RPM	288 @ 6300

Suspension Type - Front	Coil-Over Strut
Suspension Type - Rear	Linked H-Arm
Suspension Type - Rear (Cont.)	w/Coil Springs
Suspension Type - Front (Cont.)	w/Coil Springs

Fuel Tank Capacity, Approx	22.0 gal
Aux Fuel Tank Capacity, Approx	N/A gal

Steering Type	Pwr Rack-&-Pinion
Turning Diameter - Wall to Wall	N/A ft
Steering Ratio (:1), Overall	16.1
Turning Diameter - Curb to Curb	40.4 ft
Lock to Lock Turns (Steering)	2.89

Rear Tire Size	P255/55R20
Spare Tire Size	Compact
Front Tire Size	P255/55R20

Curb Weight	N/A lbs
Curb Weight - Rear	N/A lbs
Total Option Weight	0.00 lbs
Curb Weight - Front	N/A lbs
Base Curb Weight	4713 lbs
Maximum Payload Capacity	N/A lbs
