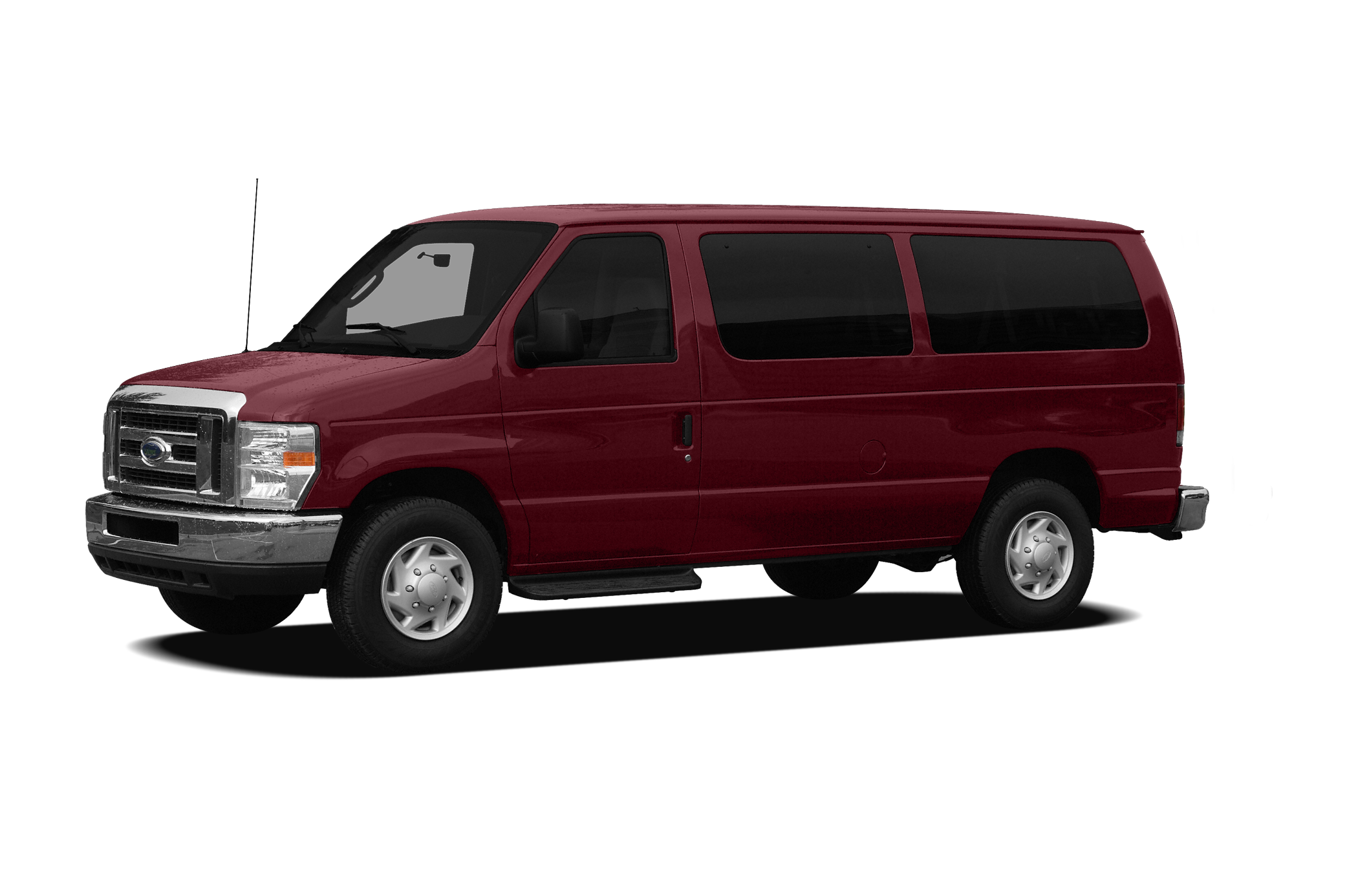

2010 Ford E150 Commercial specs & colors
Full-size Cargo Van
MSRP
- E-150 Commercial
- $25,510
- E-150 Ext Commercial
- $26,715
- E-150 XL
- $27,970
- E-150 Recreational
- $29,055
- E-150 XLT
- $30,425
Key specs
Color options
Interior
Graphite Grey
Black
Boxster Red
Medium pebble
Packages
$0
Starting MSRP
Specifications
Highlights
|
Gas/Ethanol V8
Engine Type
|
|
-
MPG
|
|
255 hp
225 hp Horsepower
|
|
5
Seating Capacity
|
Brakes
|
13.58 x -TBD- in
Front Brake Rotor Diam x Thickness
|
|
Yes
Disc - Front (Yes or )
|
|
Power
Brake Type
|
|
Yes
Disc - Rear (Yes or )
|
|
13.58 x -TBD- in
Rear Brake Rotor Diam x Thickness
|
|
4-wheel
Brake ABS System
|
|
Not Available
Drum - Rear (Yes or )
|
|
Not Available
Brake ABS System (Second Line)
|
Electrical
|
650
Cold Cranking Amps @ 0° F (Primary)
|
|
120
Maximum Alternator Capacity (amps)
|
Engine
|
Gas/Ethanol V8
Engine Type
|
|
286 @ 3500
SAE Net Torque @ RPM
|
|
225 @ 4800
SAE Net Horsepower @ RPM
|
|
4.6L/281
Displacement
|
|
A/T
4-Speed A/T Transmission Options
|
|
-
MPG
|
|
25.0 qts
Total Cooling System Capacity
|
Measurements
|
40 in
Front Leg Room
|
|
138 in
Wheelbase
|
|
48 in
Side Door Opening Height
|
|
N/A
Second Leg Room
|
|
139 in
Cargo Area Length @ Floor to Console
|
|
68 in
Front Shoulder Room
|
|
N/A
Cargo Box Width @ Top, Rear
|
|
66 in
Front Hip Room
|
|
50 in
Rear Door Opening Height
|
|
42 in
Front Head Room
|
|
82 in
Height, Overall
|
|
238 ft³
Cargo Volume
|
|
122 in
Cargo Area Length @ Floor to Seat 1
|
|
N/A
Length, Overall
|
|
N/A
Second Shoulder Room
|
|
N/A
Cab to End of Frame
|
|
28 in
Cargo Box (Area) Height
|
|
N/A
Second Hip Room
|
|
28 in
Ground to Top of Load Floor
|
|
N/A
Cargo Box Width @ Floor
|
|
N/A
Ext'd Cab Cargo Volume
|
|
N/A
Step Up Height - Front
|
|
N/A
Second Head Room
|
|
N/A
Cargo Area Width @ Beltline
|
|
N/A
Overhang, Rear w/o bumper
|
|
53 in
Cargo Box Width @ Wheelhousings
|
|
N/A
Step Up Height - Side
|
|
N/A
Ground Clearance, Rear
|
|
N/A
Ground Clearance, Front
|
|
217 in
Length, Overall w/rear bumper
|
|
54 in
Rear Door Opening Width
|
|
N/A
Tailgate Width
|
|
2
Passenger Capacity
|
|
35 in
Overhang, Front
|
|
79 in
Width, Max w/o mirrors
|
|
45 in
Side Door Opening Width
|
Steering
|
Pwr
Steering Type
|
|
N/A
Steering Ratio (:1), Overall
|
|
49 ft
Turning Diameter - Curb to Curb
|
|
50 ft
Turning Diameter - Wall to Wall
|
Suspension
|
Coil Spring
Suspension Type - Front
|
|
Twin I-Beam
Axle Type - Front
|
|
Semi-Floating
Axle Type - Rear
|
|
Multi-Leaf 2-Stage
Suspension Type - Rear
|
Tires & Wheels
|
LT225/75R16E
Spare Tire Size
|
|
16 x 7 in
Spare Wheel Size
|
|
Steel
Rear Wheel Material
|
|
LT225/75R16E
Front Tire Size
|
|
Steel
Front Wheel Material
|
|
16 x 7 in
Rear Wheel Size
|
|
16 x 7 in
Front Wheel Size
|
|
LT225/75R16E
Rear Tire Size
|
|
Steel
Spare Wheel Material
|
Weight & Capacity
|
0 lbs
Option Weight - Rear
|
|
5,224 lbs
Curb Weight
|
|
900 lbs
Wt Distributing Hitch - Max Tongue Wt.
|
|
N/A
Maximum Trailering Capacity
|
|
Not Available gal
Aux Fuel Tank Capacity, Approx
|
|
3,296 lbs
As Spec'd Payload
|
|
8,820 lbs
Gross Axle Weight Rating
|
|
11,500 lbs
Gross Combined Wt Rating
|
|
0 lbs
Option Weight - Front
|
|
2,339 lbs
Curb Weight - Rear
|
|
8,520 lbs
Gross Vehicle Weight Rating
|
|
5,224 lbs
As Spec'd Curb Weight
|
|
3,296 lbs
Maximum Payload Capacity
|
|
500 lbs
Dead Weight Hitch - Max Tongue Wt.
|
|
N/A
Base Curb Weight
|
|
Not Available lbs
Fifth Wheel Hitch - Max Tongue Wt.
|
|
2,885 lbs
Curb Weight - Front
|
|
Not Available lbs
Fifth Wheel Hitch - Max Trailer Wt.
|
|
35 gal
Fuel Tank Capacity, Approx
|
|
6,000 lbs
Wt Distributing Hitch - Max Trailer Wt.
|
|
0 lbs
Total Option Weight
|
|
5,000 lbs
Dead Weight Hitch - Max Trailer Wt.
|
