2004 Ford Escape XLS Value specs & colors

Sport Utility

Change trim
MSRP
4dr 103" WB XLS Value
$18,710
4dr 103" WB XLS
$20,400
4dr 103" WB XLS 4WD
$22,050
4dr 103" WB XLT
$22,655
4dr 103" WB XLT 4WD
$24,305
4dr 103" WB Limited
$24,615
4dr 103" WB Limited 4WD
$26,240
$18,710
Starting MSRP
Current listing price

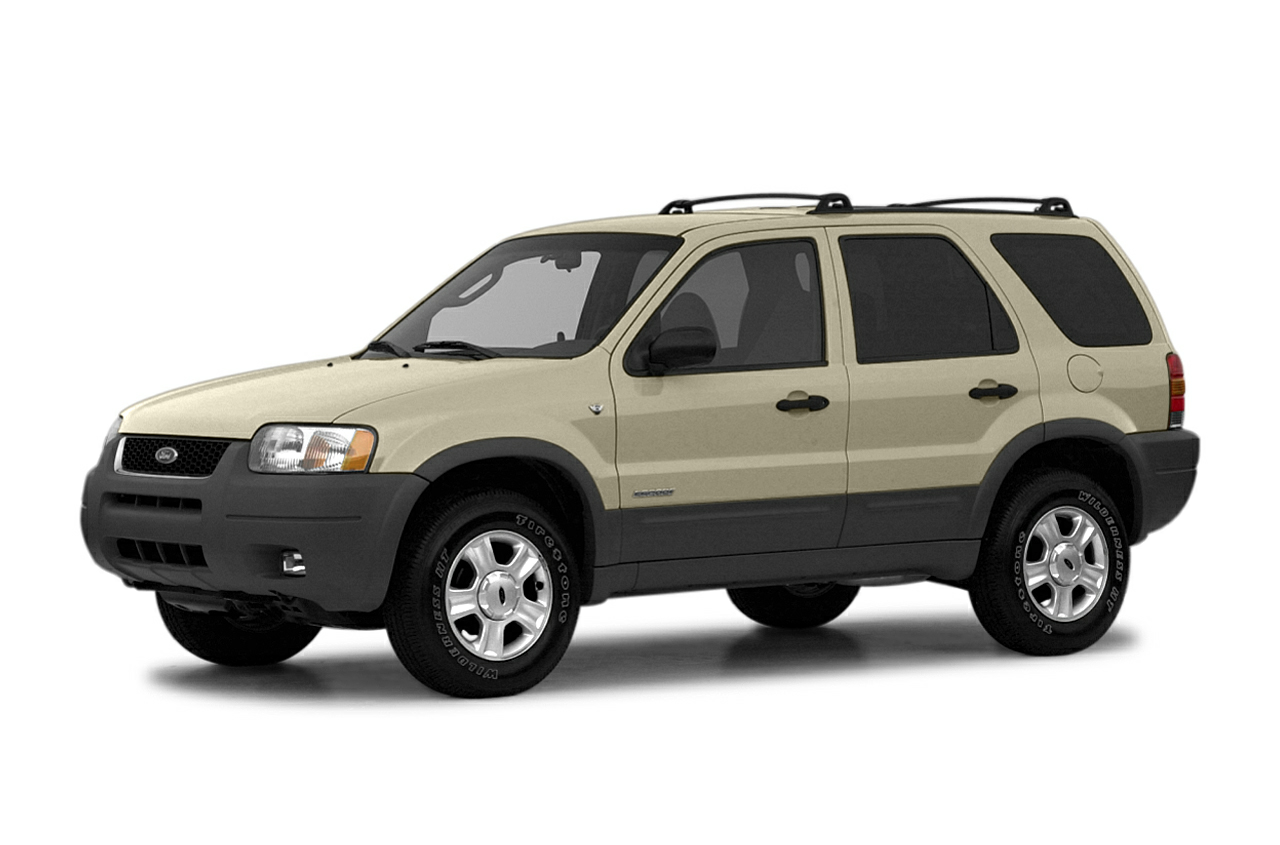

2004 Ford Escape XLS Value

Showing the 2004 Ford Escape 4dr 103" WB XLS Value

Shop Now

Key specs

Color options

Interior
Mocha
Graphite

Packages

  • $0

    Starting MSRP

Specifications

Highlights

Gas I4
Engine Type
23 City / 28 Hwy
MPG
127 hp
Horsepower
5
Seating Capacity

Brakes

Not Available
Brake ABS System
Not Available in
Rear Brake Rotor Diam x Thickness
Yes
Disc - Front (Yes or )
Power
Brake Type
10.9 x .5 in
Front Brake Rotor Diam x Thickness
N/A
Brake ABS System (Second Line)
Yes
Drum - Rear (Yes or )
Not Available
Disc - Rear (Yes or )

Electrical

550
Cold Cranking Amps @ 0° F (Primary)
110
Maximum Alternator Capacity (amps)

Engine

127 @ 5400
SAE Net Horsepower @ RPM
Gas I4
Engine Type
2.0L/121
Displacement
135 @ 4500
SAE Net Torque @ RPM
M/T
5-Speed M/T
Transmission Options
23 City / 28 Hwy
MPG
5.3 qts
Total Cooling System Capacity

Measurements

41 in
Cargo Box Width @ Wheelhousings
70 in
Width, Max w/o mirrors
40 in
Front Head Room
Not Available ft³
Cargo Volume to Seat 3
61 in
Track Width, Front
103 in
Wheelbase
56 in
Second Shoulder Room
69 in
Height, Overall
49 in
Second Hip Room
53 in
Front Hip Room
36 in
Second Leg Room
39 in
Second Head Room
33 ft³
Cargo Volume to Seat 2
36 in
Cargo Area Length @ Floor to Seat 2
43 in
Front Leg Room
59 in
Cargo Area Length @ Floor to Seat 1
39 in
Cargo Box (Area) Height
8 in
Min Ground Clearance
56 in
Front Shoulder Room
5
Passenger Capacity
173 in
Length, Overall
69 ft³
Cargo Volume to Seat 1
35 in
Rear Door Opening Height
Not Available in
Cargo Area Length @ Floor to Seat 3
60 in
Track Width, Rear
41 in
Rear Door Opening Width
N/A
Liftover Height
N/A
Cargo Area Width @ Beltline
133 ft³
Passenger Volume

Steering

16
Steering Ratio (:1), Overall
39 ft
Turning Diameter - Wall to Wall
3
Lock to Lock Turns (Steering)
35 ft
Turning Diameter - Curb to Curb
Variable Pwr
Steering Type

Suspension

MacPherson Strut
Suspension Type - Front
Multi-link
Suspension Type - Rear
Not Available
Suspension Type - Rear (Cont.)
Not Available
Suspension Type - Front (Cont.)

Tires & Wheels

Steel
Spare Wheel Material
P225/70R15
Rear Tire Size
Steel
Front Wheel Material
Steel
Rear Wheel Material
17 x 4.0 in
Spare Wheel Size
P225/70R15
Front Tire Size
T135/90R17
Spare Tire Size
15 x 6.5 in
Front Wheel Size
15 x 6.5 in
Rear Wheel Size

Weight & Capacity

N/A
Aux Fuel Tank Capacity, Approx
Not Available lbs
Wt Distributing Hitch - Max Trailer Wt.
Not Available lbs
Wt Distributing Hitch - Max Tongue Wt.
100 lbs
Dead Weight Hitch - Max Tongue Wt.
N/A
Curb Weight - Rear
3,019 lbs
Base Curb Weight
N/A
Curb Weight
0 lbs
Total Option Weight
1,000 lbs
Dead Weight Hitch - Max Trailer Wt.
N/A
Maximum Payload Capacity
N/A
Curb Weight - Front
N/A
Maximum Trailering Capacity
16 gal
Fuel Tank Capacity, Approx
