1999 Ford Expedition XLT specs & colors

Sport Utility

Change trim
MSRP
119" WB XLT
$29,355
119" WB XLT 4WD
$32,185
119" WB Eddie Bauer
$35,320
119" WB Eddie Bauer 4WD
$39,095
$29,355
Starting MSRP
Current listing price

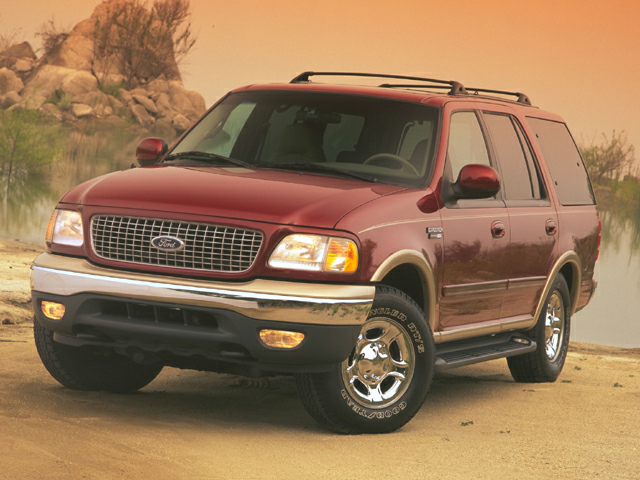

1999 Ford Expedition XLT

Showing the 1999 Ford Expedition 119" WB XLT

Shop Now

Key specs

Color options

Interior
Medium Prarie Tan
Graphite
Oxford White / Lt Graphite

Packages

  • $0

    Starting MSRP

    • base vehicle only

Specifications

Highlights

Gas V8
Engine Type
13 City / 18 Hwy
MPG
240 hp
260 hp
Horsepower
5
Seating Capacity

Brakes

Power
Brake Type
Yes
Disc - Front (Yes or )
Not Available
Drum - Rear (Yes or )
4-Wheel
Brake ABS System
13.2 x -TBD- in
Rear Brake Rotor Diam x Thickness
Not Available
Brake ABS System (Second Line)
Yes
Disc - Rear (Yes or )
12.1 x -TBD- in
Front Brake Rotor Diam x Thickness

Electrical

110
Maximum Alternator Capacity (amps)
650
Cold Cranking Amps @ 0° F (Primary)

Engine

293 @ 3500
SAE Net Torque @ RPM
240 @ 4750
SAE Net Horsepower @ RPM
Gas V8
Engine Type
4.6L/281
Displacement
A/T
4-Speed A/T
Transmission Options
13 City / 18 Hwy
MPG
13 qts
Total Cooling System Capacity

Measurements

64 in
Front Shoulder Room
19 in
Step Up Height - Front
39 in
Overhang, Front
119 in
Wheelbase
77 in
Height, Overall
29 in
Third Leg Room
N/A
Cab to End of Frame
N/A
Length, Overall
8 in
Ground Clearance, Rear
N/A
Overhang, Rear w/o bumper
62 in
Second Hip Room
60 in
Third Hip Room
35 in
Third Head Room
Not Available in
Side Door Opening Height
40 in
Second Head Room
39 in
Second Leg Room
Not Available ft³
Cargo Volume to Seat 4
62 in
Front Hip Room
Not Available in
Cargo Area Length @ Floor to Console
N/A
Tailgate Width
12 ft³
Cargo Volume to Seat 3
67 in
Third Shoulder Room
Not Available in
Side Door Opening Width
82 in
Cargo Area Length @ Floor to Seat 1
41 in
Front Leg Room
N/A
Cargo Area Length @ Floor to Seat 3
49 in
Cargo Box Width @ Wheelhousings
52 in
Cargo Area Length @ Floor to Seat 2
N/A
Ext'd Cab Cargo Volume
205 in
Length, Overall w/rear bumper
64 in
Second Shoulder Room
36 in
Rear Door Opening Height
79 in
Width, Max w/o mirrors
N/A
Cargo Area Width @ Beltline
8 in
Ground Clearance, Front
N/A
Cargo Box Width @ Floor
N/A
Cargo Box (Area) Height
Not Available in
Step Up Height - Side
33 in
Ground to Top of Load Floor
N/A
Cargo Box Width @ Top, Rear
57 in
Rear Door Opening Width
119 ft³
Cargo Volume to Seat 1
40 in
Front Head Room
9
Passenger Capacity
63 ft³
Cargo Volume to Seat 2
N/A
Cargo Volume

Steering

Speed-Sensitive Pwr Recirculating Ball
Steering Type
N/A
Steering Ratio (:1), Overall
40 ft
Turning Diameter - Curb to Curb
42 ft
Turning Diameter - Wall to Wall

Suspension

Coil Spring
Suspension Type - Rear
Semi-Floating
Axle Type - Rear
Independent SLA
Axle Type - Front
Coil Spring
Suspension Type - Front

Tires & Wheels

16 x 7.0 in
Front Wheel Size
Steel
Rear Wheel Material
Steel
Front Wheel Material
P255/70R16
Rear Tire Size
16 x 7.0 in
Rear Wheel Size
P255/70R16
Spare Tire Size
16 x 7.0 in
Spare Wheel Size
P255/70R16
Front Tire Size
Steel
Spare Wheel Material

Weight & Capacity

0 lbs
Option Weight - Front
4,805 lbs
As Spec'd Curb Weight
500 lbs
Dead Weight Hitch - Max Tongue Wt.
N/A
Fifth Wheel Hitch - Max Tongue Wt.
1,895 lbs
Maximum Payload Capacity
8,850 lbs
Wt Distributing Hitch - Max Trailer Wt.
11,000 lbs
Gross Combined Wt Rating
N/A
Fifth Wheel Hitch - Max Trailer Wt.
N/A
Base Curb Weight
2,233 lbs
Curb Weight - Rear
Not Available gal
Aux Fuel Tank Capacity, Approx
2,572 lbs
Curb Weight - Front
1,328 lbs
Wt Distributing Hitch - Max Tongue Wt.
0 lbs
Total Option Weight
6,950 lbs
Gross Axle Weight Rating
N/A
Maximum Trailering Capacity
1,895 lbs
As Spec'd Payload
26 gal
Fuel Tank Capacity, Approx
5,000 lbs
Dead Weight Hitch - Max Trailer Wt.
4,805 lbs
Curb Weight
0 lbs
Option Weight - Rear
6,700 lbs
Gross Vehicle Weight Rating
