2004 Ford Expedition XLT NBX specs & colors
Sport Utility
MSRP
- 4.6L XLS
- $32,500
- 4.6L XLT
- $34,325
- 5.4L XLT
- $34,720
- 4.6L XLS 4WD
- $35,070
- 4.6L XLT Sport
- $35,175
- 5.4L XLT Sport
- $35,570
- 4.6L XLT 4WD
- $37,080
- 5.4L XLT 4WD
- $37,475
- 4.6L XLT Sport 4WD
- $37,930
- 5.4L XLT Sport 4WD
- $38,325
- 4.6L Eddie Bauer
- $38,450
- 5.4L XLT NBX 4WD
- $38,725
- 5.4L Eddie Bauer
- $38,845
- 5.4L Eddie Bauer 4WD
- $41,995
$38,725
Starting MSRP
Current listing price
Current listing price

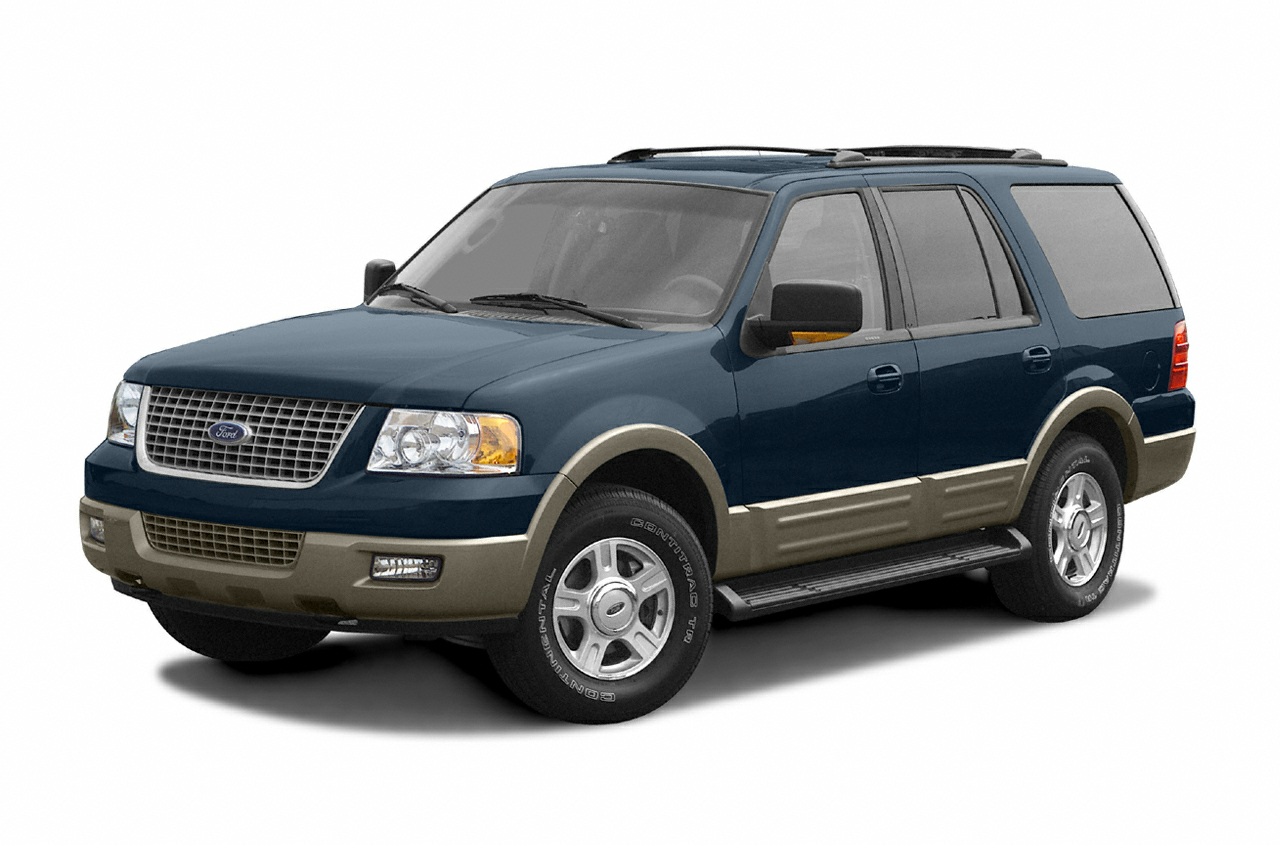

Showing the 2004 Ford Expedition 5.4L XLT NBX 4WD
Shop NowKey specs
Color options
Interior
Medium Tan
Packages
$0
Starting MSRP
Specifications
Highlights
|
Gas V8
Engine Type
|
|
13 City / 17 Hwy
MPG
|
|
260 hp
Horsepower
|
|
6
Seating Capacity
|
Brakes
|
Power
Brake Type
|
|
4-Wheel
Brake ABS System
|
|
Not Available
Brake ABS System (Second Line)
|
|
Yes
Disc - Front (Yes or )
|
|
Yes
Disc - Rear (Yes or )
|
|
13.0 x 1.18 in
Front Brake Rotor Diam x Thickness
|
|
13.5 x 0.9 in
Rear Brake Rotor Diam x Thickness
|
|
Not Available
Drum - Rear (Yes or )
|
Electrical
|
650
Cold Cranking Amps @ 0° F (Primary)
|
|
110
Maximum Alternator Capacity (amps)
|
Engine
|
Gas V8
Engine Type
|
|
5.4L/330
Displacement
|
|
260 @ 4500
SAE Net Horsepower @ RPM
|
|
350 @ 2500
SAE Net Torque @ RPM
|
|
A/T
4-Speed A/T Transmission Options
|
|
13 City / 17 Hwy
MPG
|
|
21.0 qts
Total Cooling System Capacity
|
Measurements
|
6
Passenger Capacity
|
|
40 in
Front Head Room
|
|
41 in
Front Leg Room
|
|
63 in
Front Shoulder Room
|
|
63 in
Front Hip Room
|
|
40 in
Second Head Room
|
|
39 in
Second Leg Room
|
|
64 in
Second Shoulder Room
|
|
62 in
Second Hip Room
|
|
38 in
Third Head Room
|
|
36 in
Third Leg Room
|
|
60 in
Third Shoulder Room
|
|
55 in
Third Hip Room
|
|
119 in
Wheelbase
|
|
206 in
Length, Overall w/rear bumper
|
|
N/A
Length, Overall
|
|
79 in
Width, Max w/o mirrors
|
|
78 in
Height, Overall
|
|
39 in
Overhang, Front
|
|
N/A
Overhang, Rear w/o bumper
|
|
N/A
Cab to End of Frame
|
|
36 in
Ground to Top of Load Floor
|
|
9 in
Ground Clearance, Front
|
|
9 in
Ground Clearance, Rear
|
|
N/A
Rear Door Opening Height
|
|
N/A
Rear Door Opening Width
|
|
Not Available in
Side Door Opening Height
|
|
Not Available in
Side Door Opening Width
|
|
Not Available in
Step Up Height - Front
|
|
Not Available in
Step Up Height - Side
|
|
Not Available in
Cargo Area Length @ Floor to Console
|
|
87 in
Cargo Area Length @ Floor to Seat 1
|
|
53 in
Cargo Area Length @ Floor to Seat 2
|
|
Not Available in
Cargo Area Length @ Floor to Seat 3
|
|
N/A
Cargo Box Width @ Top, Rear
|
|
N/A
Cargo Area Width @ Beltline
|
|
N/A
Cargo Box Width @ Floor
|
|
51 in
Cargo Box Width @ Wheelhousings
|
|
N/A
Cargo Box (Area) Height
|
|
N/A
Tailgate Width
|
|
N/A
Cargo Volume
|
|
111 ft³
Cargo Volume to Seat 1
|
|
61 ft³
Cargo Volume to Seat 2
|
|
21 ft³
Cargo Volume to Seat 3
|
|
Not Available ft³
Cargo Volume to Seat 4
|
|
N/A
Ext'd Cab Cargo Volume
|
Steering
|
Variable Pwr Rack & Pinion
Steering Type
|
|
N/A
Steering Ratio (:1), Overall
|
|
39 ft
Turning Diameter - Curb to Curb
|
|
41 ft
Turning Diameter - Wall to Wall
|
Suspension
|
Coil Spring
Suspension Type - Front
|
|
Coil Spring
Suspension Type - Rear
|
|
Double Wishbone
Axle Type - Front
|
|
Independent
Axle Type - Rear
|
Tires & Wheels
|
P265/70R17
Front Tire Size
|
|
P265/70R17
Rear Tire Size
|
|
P265/70R17
Spare Tire Size
|
|
17 x 7.5 in
Front Wheel Size
|
|
17 x 7.5 in
Rear Wheel Size
|
|
17 x 7.5 in
Spare Wheel Size
|
|
Steel
Front Wheel Material
|
|
Steel
Rear Wheel Material
|
|
Steel
Spare Wheel Material
|
Weight & Capacity
|
N/A
Base Curb Weight
|
|
2,868 lbs
Curb Weight - Front
|
|
2,821 lbs
Curb Weight - Rear
|
|
0 lbs
Option Weight - Front
|
|
0 lbs
Option Weight - Rear
|
|
5,689 lbs
As Spec'd Curb Weight
|
|
1,611 lbs
As Spec'd Payload
|
|
1,611 lbs
Maximum Payload Capacity
|
|
14,500 lbs
Gross Combined Wt Rating
|
|
5,000 lbs
Dead Weight Hitch - Max Trailer Wt.
|
|
500 lbs
Dead Weight Hitch - Max Tongue Wt.
|
|
8,650 lbs
Wt Distributing Hitch - Max Trailer Wt.
|
|
865 lbs
Wt Distributing Hitch - Max Tongue Wt.
|
|
Not Available lbs
Fifth Wheel Hitch - Max Trailer Wt.
|
|
Not Available lbs
Fifth Wheel Hitch - Max Tongue Wt.
|
|
N/A
Maximum Trailering Capacity
|
|
28 gal
Fuel Tank Capacity, Approx
|
|
Not Available gal
Aux Fuel Tank Capacity, Approx
|
|
7,403 lbs
Gross Axle Weight Rating
|
|
5,689 lbs
Curb Weight
|
|
0 lbs
Total Option Weight
|
|
7,300 lbs
Gross Vehicle Weight Rating
|
