2025 Ford F-150 Lightning LARIAT specs & colors

Crew Cab Pickup

Change trim

$76,995

Starting MSRP
Current listing price

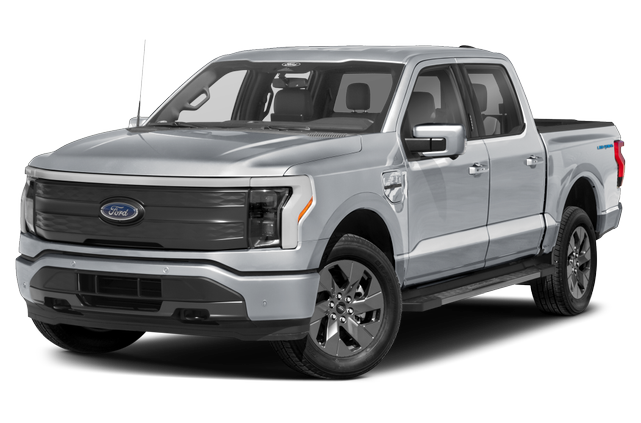

2025 Ford F-150 Lightning LARIAT

Showing the 2025 Ford F-150 Lightning LARIAT 4WD SuperCrew 5.5' Box

Shop Now

Key specs

4-door
5 seats
580.0-hp, -liter, Electric Motor (Electric Fuel System)
0 combined MPG
231.7" length, 77.2" height
All Wheel Drive

Color options

Exterior

Rapid Red Metallic Tinted Clearcoat

Interior

Glacier Tri-Tone

Packages

Equipment Group 511A Standard

$0

Starting MSRP
Max Trailer Tow Package

$1,100

Starting MSRP
- increased tow capability
- Max towing capability TBD
- E-Locker
See more detail
$1,100

Starting MSRP
- increased tow capability
- Max towing capability TBD
- E-Locker
- Hill Decent Control
- Trailer Brake Controller

Specifications

Highlights

Engine Type: Electric
MPG: -
Horsepower: 580 hp
Seating Capacity: 5

Brakes

Brake ABS System: 4-Wheel
Drum - Rear (Yes or ): N/A
Disc - Front (Yes or ): Yes
Brake ABS System (Second Line): 4-Wheel
Disc - Rear (Yes or ): Yes
Rear Brake Rotor Diam x Thickness: 14 in
Brake Type: 4-Wheel Disc
Front Brake Rotor Diam x Thickness: 14 in

Electrical

Maximum Alternator Capacity (amps): N/A
Cold Cranking Amps @ 0° F (Primary): N/A

Engine

Engine Type: Electric
SAE Net Horsepower @ RPM: 580
Displacement: N/A
SAE Net Torque @ RPM: 775
Transmission Options: 1-Speed A/T
A/T
MPG: -
Total Cooling System Capacity: N/A

Measurements

Front Leg Room: 44 in
Cargo Box Width @ Top, Rear: 65 in
Cargo Box Length @ Floor: 66 in
Second Head Room: 40 in
Cargo Box Width @ Floor: 65 in
Ground Clearance, Front: N/A
Length, Overall w/rear bumper: N/A
Passenger Capacity: 5
Second Shoulder Room: 66 in
Second Hip Room: 63 in
Second Leg Room: 44 in
Cargo Box (Area) Height: 21 in
Length, Overall: 232 in
Cargo Volume: 53 ft³
Ground to Top of Load Floor: N/A
Wheelbase: 145 in
Ground Clearance, Rear: N/A
Height, Overall: 77 in
Length, Overall w/o rear bumper: N/A
Cab to End of Frame: N/A
Front Head Room: 41 in
Tailgate Width: 60 in
Front Shoulder Room: 67 in
Overhang, Front: 38 in
Overhang, Rear w/o bumper: N/A
Ext'd Cab Cargo Volume: N/A
Front Hip Room: 63 in
Cargo Box Width @ Wheelhousings: 51 in
Width, Max w/o mirrors: 80 in

Safety

Backup Camera: Optional
Backup Camera: Standard
Blind Spot Monitor: Standard
Stability Control: Standard

Steering

Steering Ratio (:1), Overall: N/A
Steering Type: Rack-Pinion
Turning Diameter - Curb to Curb: 48 ft
Turning Diameter - Wall to Wall: N/A

Suspension

Suspension Type - Rear: Trailing Arm
Axle Type - Rear: Independent
Suspension Type - Front: Double Wishbone
Axle Type - Front: Independent

Tires & Wheels

Rear Wheel Size: 20 X 8.5 in
Spare Tire Size: N/A
Front Tire Size: P275/60SR20
Front Wheel Size: 20 X 8.5 in
Front Wheel Material: Aluminum
Spare Wheel Material: N/A
Spare Wheel Size: N/A
Rear Tire Size: P275/60SR20
Rear Wheel Material: Aluminum

Weight & Capacity

Curb Weight - Front: 3,461 lbs
Dead Weight Hitch - Max Trailer Wt.: 5,000 lbs
Gross Combined Wt Rating: 15,000 lbs
As Spec'd Curb Weight: 6,893 lbs
Wt Distributing Hitch - Max Trailer Wt.: 7,700 lbs
Maximum Payload Capacity: 1,657 lbs
Dead Weight Hitch - Max Tongue Wt.: 500 lbs
Option Weight - Front: 0 lbs
As Spec'd Payload: 1,657 lbs
Fifth Wheel Hitch - Max Tongue Wt.: N/A
Aux Fuel Tank Capacity, Approx: N/A
Gross Vehicle Weight Rating: 8,550 lbs
Curb Weight: 6,893 lbs
Base Curb Weight: 6,893 lbs
Maximum Trailering Capacity: 7,700 lbs
Curb Weight - Rear: 3,432 lbs
Wt Distributing Hitch - Max Tongue Wt.: 770 lbs
Option Weight - Rear: 0 lbs
Total Option Weight: 0 lbs
Fuel Tank Capacity, Approx: N/A
Gross Axle Weight Rating: 8,850 lbs
Fifth Wheel Hitch - Max Trailer Wt.: N/A
