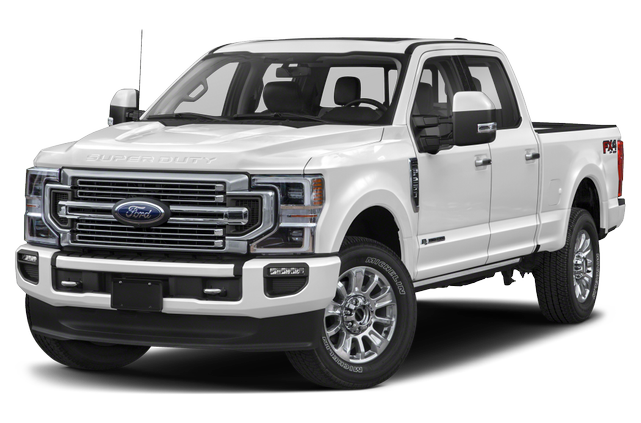

2021 Ford F-350 Limited specs & colors

Crew Cab Pickup

Change trim

$85,365

Starting MSRP
Current listing price

Showing the 2021 Ford F-350 Limited 4WD Crew Cab 6.75' Box

Shop Now

Key specs

4-door

5 seats

475.0-hp, 6.7-liter, 8 Cylinder Engine (Diesel Fuel)

0 combined MPG

230.7" length, 77.9" height

Four Wheel Drive

Color options

Exterior

Interior

Gray

Packages

Order Code 718A

$0

Starting MSRP
FX4 Off-Road Package

$400

Starting MSRP
- Hill Descent Control
- Off-Road Specifically Tuned Shock Absorbers
- front/rear
See more detail
$400

Starting MSRP
- Hill Descent Control
- Off-Road Specifically Tuned Shock Absorbers
- front/rear
- Transfer Case & Fuel Tank Skid Plates
- Unique FX4 Off-Road Box Decal

Specifications

Highlights

Intercooled Turbo Diesel V-8

Engine Type

MPG

475 hp

Horsepower

Seating Capacity

Brakes

4-Wheel Disc

Brake Type

4-Wheel

Brake ABS System

4-Wheel

Brake ABS System (Second Line)

Yes

Disc - Front (Yes or )

Yes

Disc - Rear (Yes or )

14 in

Front Brake Rotor Diam x Thickness

14 in

Rear Brake Rotor Diam x Thickness

N/A

Drum - Rear (Yes or )

Electrical

750

Cold Cranking Amps @ 0° F (Primary)

157 & 175

Maximum Alternator Capacity (amps)

Engine

Intercooled Turbo Diesel V-8

Engine Type

6.7 L/406

Displacement

475 @ 2600

SAE Net Horsepower @ RPM

1050 @ 1600

SAE Net Torque @ RPM

10-Speed A/T
A/T
Transmission w/Dual Shift Mode

Transmission Options

MPG

N/A

Total Cooling System Capacity

Entertainment

Optional

Bluetooth®

Measurements

9 in

Ground Clearance, Rear

9 in

Ground Clearance, Front

37 in

Ground to Top of Load Floor

N/A

Cab to End of Frame

N/A

Overhang, Rear w/o bumper

38 in

Overhang, Front

81 in

Height, Overall

80 in

Width, Max w/o mirrors

250 in

Length, Overall

N/A

Length, Overall w/rear bumper

N/A

Length, Overall w/o rear bumper

160 in

Wheelbase

65 in

Second Hip Room

66 in

Second Shoulder Room

44 in

Second Leg Room

40 in

Second Head Room

63 in

Front Hip Room

67 in

Front Shoulder Room

44 in

Front Leg Room

41 in

Front Head Room

N/A

Ext'd Cab Cargo Volume

65 ft³

Cargo Volume

61 in

Tailgate Width

21 in

Cargo Box (Area) Height

51 in

Cargo Box Width @ Wheelhousings

67 in

Cargo Box Width @ Floor

67 in

Cargo Box Width @ Top, Rear

82 in

Cargo Box Length @ Floor

Passenger Capacity

Safety

Optional

Blind Spot Monitor

Optional

Backup Camera

Standard

Backup Camera

Optional

Lane Departure Warning

Standard

Stability Control

Steering

Re-Circulating Ball

Steering Type

N/A

Steering Ratio (:1), Overall

53 ft

Turning Diameter - Curb to Curb

N/A

Turning Diameter - Wall to Wall

Suspension

Non-Independent

Axle Type - Front

Rigid Axle

Axle Type - Rear

Leaf

Suspension Type - Rear

Other

Suspension Type - Front

Tires & Wheels

LT275/65SR20

Rear Tire Size

Full-Size

Spare Tire Size

LT275/65SR20

Front Tire Size

20 X 8 in

Front Wheel Size

20 X 8 in

Rear Wheel Size

Full-Size in

Spare Wheel Size

Aluminum

Front Wheel Material

Aluminum

Rear Wheel Material

Steel

Spare Wheel Material

Weight & Capacity

13,220 lbs

Gross Axle Weight Rating

7,486 lbs

Curb Weight

0 lbs

Total Option Weight

11,500 lbs

Gross Vehicle Weight Rating

34 gal

Fuel Tank Capacity, Approx

N/A

Aux Fuel Tank Capacity, Approx

3,007 lbs

Curb Weight - Rear

0 lbs

Option Weight - Front

0 lbs

Option Weight - Rear

7,486 lbs

Base Curb Weight

4,479 lbs

Curb Weight - Front

7,486 lbs

As Spec'd Curb Weight

4,014 lbs

As Spec'd Payload

4,014 lbs

Maximum Payload Capacity

30,000 lbs

Gross Combined Wt Rating

5,000 lbs

Dead Weight Hitch - Max Trailer Wt.

500 lbs

Dead Weight Hitch - Max Tongue Wt.

20,000 lbs

Wt Distributing Hitch - Max Trailer Wt.

2,000 lbs

Wt Distributing Hitch - Max Tongue Wt.

19,000 lbs

Fifth Wheel Hitch - Max Trailer Wt.

4,750 lbs

Fifth Wheel Hitch - Max Tongue Wt.

20,000 lbs

Maximum Trailering Capacity
