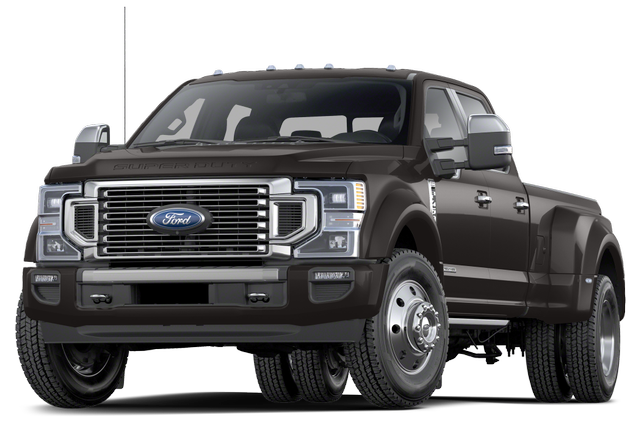

Showing the 2022 Ford F-450 Limited 4WD Crew Cab 8' Box
Shop NowInterior
Gray
$495
Starting MSRP
$0
Starting MSRP
| Front Wheel Material | Forged Aluminum |
| Rear Wheel Material | Forged Aluminum |
| Rear Wheel Size | 19.5 X 6 in |
| Spare Wheel Size | Full-Size in |
| Spare Wheel Material | Steel |
| Front Wheel Size | 19.5 X 6 in |
| Cold Cranking Amps @ 0° F (Primary) | 750 |
| Maximum Alternator Capacity (amps) | 157 & 175 |
| SAE Net Torque @ RPM | 1050 @ 1600 |
| Engine Oil Cooler | None |
| Displacement | 6.7 L/406 |
| SAE Net Horsepower @ RPM | 475 @ 2600 |
| Engine Type | Intercooled Turbo Diesel V-8 |
| Fuel Economy Est-Combined | N/A MPG |
| Cruising Range - Hwy | N/A mi |
| Cruising Range - City | N/A mi |
| EPA Fuel Economy Est - City | N/A MPG |
| EPA Fuel Economy Est - Hwy | N/A MPG |
| Estimated Battery Range | N/A mi |
| Trans Power Take Off | N/A |
| Seventh Gear Ratio (:1) | 1.00 |
| Transfer Case Gear Ratio (:1), Low | N/A |
| Eighth Gear Ratio (:1) | 0.85 |
| Trans Type | 10 |
| Fifth Gear Ratio (:1) | 1.52 |
| Transfer Case Gear Ratio (:1), High | N/A |
| Second Gear Ratio (:1) | 2.92 |
| First Gear Ratio (:1) | 4.62 |
| Third Gear Ratio (:1) | 2.13 |
| Fourth Gear Ratio (:1) | 1.77 |
| Ninth Gear Ratio (:1) | N/A |
| Transfer Case Power Take Off | No |
| Final Drive Axle Ratio (:1) | N/A |
| Tenth Gear Ratio (:1) | N/A |
| Transfer Case Model | Electronic |
| Drivetrain | Four Wheel Drive |
| Reverse Ratio (:1) | 4.70 |
| Sixth Gear Ratio (:1) | 1.28 |
| Trans Description Cont. | Automatic w/OD |
| Trans Description Cont. Again | N/A |
| Axle Type - Front | Non-Independent |
| Axle Type - Rear | Rigid Axle |
| Suspension Type - Rear | Leaf |
| Suspension Type - Front | Other |
| Frame Type | N/A |
| Drum - Rear (Yes or ) | N/A |
| Brake ABS System | 4-Wheel |
| Front Brake Rotor Diam x Thickness | 15.4 in |
| Brake ABS System (Second Line) | 4-Wheel |
| Disc - Front (Yes or ) | Yes |
| Disc - Rear (Yes or ) | Yes |
| Brake Type | 4-Wheel Disc |
| Rear Brake Rotor Diam x Thickness | 15.8 in |
| Aux Fuel Tank Capacity, Approx | N/A gal |
| Fuel Tank Capacity, Approx | 48 gal |
| Steering Ratio (:1), Overall | N/A |
| Steering Type | Re-Circulating Ball |
| Turning Diameter - Curb to Curb | 50.4 ft |
| Turning Diameter - Wall to Wall | N/A ft |
| Spare Tire Size | Full-Size |
| Rear Tire Size | LT225/70SR19.5 |
| Front Tire Size | LT225/70SR19.5 |
| Fifth Wheel Hitch - Max Trailer Wt. | 32500 lbs |
| Wt Distributing Hitch - Max Tongue Wt. | 2420 lbs |
| Dead Weight Hitch - Max Tongue Wt. | 500 lbs |
| Wt Distributing Hitch - Max Trailer Wt. | 24200 lbs |
| Dead Weight Hitch - Max Trailer Wt. | 5000 lbs |
| Maximum Trailering Capacity | 24200 lbs |
| Fifth Wheel Hitch - Max Tongue Wt. | 8125 lbs |
| Base Curb Weight | 8586 lbs |
| Option Weight - Rear | 0.00 lbs |
| As Spec'd Curb Weight | 8586.00 lbs |
| As Spec'd Payload | 5414.00 lbs |
| Total Option Weight | 0.00 lbs |
| Gross Vehicle Weight Rating | 14000.00 lbs |
| Gross Axle Weight Rating | 15900.00 lbs |
| Maximum Payload Capacity | 5414.00 lbs |
| Option Weight - Front | 0.00 lbs |
| Curb Weight - Rear | 3678 lbs |
| Gross Combined Wt Rating | 43500 lbs |
| Curb Weight | 8586.00 lbs |
| Curb Weight - Front | 4908 lbs |
| Ext'd Cab Cargo Volume | N/A ft³ |
| Height, Overall | 81 in |
| Front Shoulder Room | 66.7 in |
| Length, Overall w/o rear bumper | N/A in |
| Cargo Box Width @ Wheelhousings | 50.5 in |
| Overhang, Front | 38.2 in |
| Ground to Top of Load Floor | 36.9 in |
| Second Leg Room | 43.6 in |
| Ground Clearance, Front | 8.3 in |
| Second Hip Room | 64.7 in |
| Cargo Box Width @ Top, Rear | 66.9 in |
| Second Head Room | 40.4 in |
| Wheelbase | 176 in |
| Cab to End of Frame | N/A in |
| Front Head Room | 40.8 in |
| Front Hip Room | 62.5 in |
| Cargo Box Length @ Floor | 98.1 in |
| Front Leg Room | 43.9 in |
| Passenger Capacity | 5 |
| Second Shoulder Room | 65.9 in |
| Cargo Box Width @ Floor | 66.9 in |
| Cargo Volume | 78.5 ft³ |
| Cargo Box (Area) Height | 21.1 in |
| Width, Max w/o mirrors | 96 in |
| Ground Clearance, Rear | 8.3 in |
| Tailgate Width | 60.5 in |
| Overhang, Rear w/o bumper | N/A in |
| Length, Overall w/rear bumper | N/A in |
| Length, Overall | 266.2 in |
| Siriusxm Traffic Real-Time Traffic Display | Optional |
| Radio: B&O Sound System by Bang & Olufsen -inc: premium AM/FM MP3 player and 10 speakers including subwoofer | Optional |
| 2 LCD Monitors In The Front | Standard |
| Radio w/Seek-Scan, Clock, Speed Compensated Volume Control and Radio Data System | Optional |
| SiriusXM Radio w/360L -inc: 3-month prepaid subscription, Service is not available in Alaska and Hawaii, SiriusXM audio and data services each require a subscription sold separately, or as a package, by SiriusXM Radio Inc, If you decide to continue service after your trial, the subscription plan you choose will automatically renew thereafter and you will be charged according to your chosen payment method at then-current rates, Fees and taxes apply, To cancel you must call SiriusXM at 1-866-635-2349, See SiriusXM customer agreement for complete terms at www.siriusxm.com, All fees and programming subject to change, SiriusXM and all related marks and logos are trademarks of SiriusXM Radio Inc | Optional |
| SYNC 4 w/Enhanced Voice Recognition -inc: 12" LCD capacitive touchscreen w/swipe capability, information on demand panel, wireless phone connection, cloud connected, AppLink w/app catalog, 911 assist, Apple CarPlay and Android Auto compatibility, digital owner's manual, conversational voice command recognition and connected built-in navigation w/complimentary 3-year trial for eligible vehicles that begins on the new vehicle warranty start date, Customers must unlock the navigation service trial by activating the eligible vehicle w/a FordPass member account, If not subscribed by the end of the complimentary period, the connected navigation service will terminate, and the system will revert to embedded offline navigation, Navigation services require SYNC4 and Ford Pass Connect (optional on select vehicles), complimentary connect service and the FordPass app (see FordPass terms for details), Connected service and features depend on compatible AT&T network availability, Evolving technology/cellular networks/vehicle capability may limit functionality and prevent operation of connected features, FordPass app, compatible w/select smartphone platforms, is available via a download, Message and data rates may apply | Optional |
| Fixed Antenna | Standard |
| Body-Colored Power Heated Side Mirrors w/Convex Spotter, Power Folding and Turn Signal Indicator | Optional |
| Front Fog Lamps | Optional |
| Deep Tinted Glass | Optional |
| Power Running Boards | Optional |
| Regular Box Style | Standard |
| Steel Spare Wheel | Standard |
| Perimeter/Approach Lights | Optional |
| Tires: 225/70Rx19.5G BSW Traction -inc: Spare may not be the same as road tire (STD) | Standard |
| Silver Grille | Optional |
| Black Side Windows Trim and Black Front Windshield Trim | Standard |
| Tailgate Rear Cargo Access | Standard |
| Rain Detecting Variable Intermittent Wipers | Optional |
| Express Open/Close Sliding And Tilting Glass 1st And 2nd Row Sunroof w/Power Sunshade | Optional |
| Tailgate/Rear Door Lock Included w/Power Door Locks | Optional |
| Autolamp Auto On/Off Aero-Composite Led Low/High Beam Auto High-Beam Daytime Running Lights Preference Setting Headlamps w/Delay-Off | Optional |
| Body-Colored Front Bumper w/Body-Colored Rub Strip/Fascia Accent and 2 Tow Hooks | Optional |
| Power Extendable Trailer Style Mirrors | Optional |
| Power Rear Window w/Defroster | Optional |
| Wheels: 19.5" Forged Polished Aluminum -inc: 4 aluminum outer and 2 steel inner, bright hub covers/center ornaments | Standard |
| Full-Size Spare Tire Stored Underbody w/Crankdown | Standard |
| Cargo Lamp w/High Mount Stop Light | Standard |
| Chrome Door Handles | Optional |
| Cab Clearance Lights | Standard |
| Body-Colored Rear Step Bumper | Optional |
| Aluminum Panels | Standard |
| LED Brakelights | Optional |
| Headlights-Automatic Highbeams | Optional |
| Seats w/Leatherette Back Material | Optional |
| Distance Pacing w/Traffic Stop-Go | Optional |
| Power 1st Row Windows w/Driver And Passenger 1-Touch Up/Down | Optional |
| Illuminated Locking Glove Box | Standard |
| Urethane Gear Shifter Material | Standard |
| HVAC -inc: Underseat Ducts | Standard |
| Driver Information Center | Standard |
| Garage Door Transmitter | Optional |
| Trip Computer | Standard |
| Smart Device Remote Engine Start | Optional |
| Pickup Cargo Box Lights | Standard |
| Full Carpet Floor Covering -inc: Carpet Front And Rear Floor Mats | Optional |
| Rear Cupholder | Standard |
| Power Tilt/Telescoping Steering Column | Optional |
| Flow-Through Console -inc: 110V/400W outlet in rear | Optional |
| Perimeter Alarm | Optional |
| 8-Way Driver Seat | Optional |
| Driver And Passenger Visor Vanity Mirrors w/Driver And Passenger Illumination | Optional |
| Power Door Locks w/Autolock Feature | Optional |
| Interior Trim -inc: Metal-Look Instrument Panel Insert, Genuine Wood/Chrome Door Panel Insert, Chrome/Metal-Look Interior Accents and Leather Upholstered Dashboard | Optional |
| Instrument Panel Covered Bin, Dashboard Storage, Driver / Passenger And Rear Door Bins | Optional |
| FordPass Connect 4G Mobile Hotspot Internet Access | Standard |
| Air Filtration | Standard |
| Cruise Control w/Steering Wheel Controls | Optional |
| Digital/Analog Appearance | Optional |
| Front Facing Fold-Up Cushion Rear Seat | Optional |
| Outside Temp Gauge | Standard |
| Gauges -inc: Speedometer, Odometer, Engine Coolant Temp, Tachometer, Inclinometer, Turbo/Supercharger Boost, Transmission Fluid Temp, Engine Hour Meter, Trip Odometer and Trip Computer | Optional |
| FOB Controls -inc: Cargo Access and Remote Start | Optional |
| Unique Limited 2-Tone Leather 40/Console/40 Seats -inc: premium luxury leather, multi-contour, heated/ventilated, 10-way power driver and 8-way power front passenger seats (includes power lumbar), memory, 4-way adjustable driver and passenger headrests | Optional |
| Power Rear Windows | Optional |
| Power Adjustable Pedals | Optional |
| Day-Night Auto-Dimming Rearview Mirror | Optional |
| Fade-To-Off Interior Lighting | Standard |
| Keypad | Optional |
| Memory Settings -inc: Door Mirrors, Steering Wheel and Pedals | Optional |
| Leather Door Trim Insert | Optional |
| Remote Keyless Entry w/Integrated Key Transmitter, Illuminated Entry and Panic Button | Optional |
| Proximity Key For Doors And Push Button Start | Optional |
| Voice Activated Dual Zone Front Automatic Air Conditioning w/Steering Wheel Controls | Optional |
| SYNC 4 Connected Navigation Integrated Navigation System w/Voice Activation | Optional |
| Front Cupholder | Optional |
| Full Overhead Console w/Storage | Optional |
| Front And Rear Map Lights | Standard |
| Manual Adjustable Rear Head Restraints | Optional |
| 2 Seatback Storage Pockets | Optional |
| Passenger Seat | Optional |
| Full Miko Simulated Suede Headliner | Optional |
| Heated Leather Steering Wheel | Optional |
| Securilock Anti-Theft Ignition (pats) Immobilizer | Standard |
| Hydraulic Power-Assist Speed-Sensing Steering | Optional |
| 50-State Emissions System | Standard |
| Dual 157 Amp Alternator | Optional |
| Part-Time Four-Wheel Drive | Standard |
| HD Shock Absorbers | Standard |
| Transmission: TorqShift 10-Speed Automatic -inc: SelectShift and selectable drive modes: normal, tow/haul, eco, deep sand/snow and slippery (STD) | Standard |
| Single Stainless Steel Exhaust w/Chrome Tailpipe Finisher | Optional |
| Electronic Transfer Case | Standard |
| Trailer Wiring Harness | Standard |
| 48 Gal. Fuel Tank | Standard |
| Solid Axle Rear Suspension w/Leaf Springs | Standard |
| Dual Rear Wheels | Standard |
| Limited Slip w/4.30 Axle Ratio | Standard |
| Class V Towing Equipment -inc: Hitch, Brake Controller and Trailer Sway Control | Standard |
| GVWR: 14,000 lb Payload Package | Standard |
| Firm Suspension | Standard |
| 4-Wheel Disc Brakes w/4-Wheel ABS, Front And Rear Vented Discs, Brake Assist and Hill Hold Control | Standard |
| 78-Amp/Hr 750CCA Maintenance-Free Battery w/Run Down Protection | Standard |
| 5320# Maximum Payload | Standard |
| Front And Rear Anti-Roll Bars | Standard |
| Upfitter Switches | Optional |
| Engine: 6.7L 4V OHV Power Stroke V8 Turbo Diesel B20 -inc: manual push-button engine-exhaust braking and intelligent oil-life monitor (STD) | Standard |
| Front Suspension w/Coil Springs | Standard |
| Auto Locking Hubs | Standard |
| Dual Stage Driver And Passenger Front Airbags | Standard |
| Mykey System -inc: Top Speed Limiter, Audio Volume Limiter, Early Low Fuel Warning, Programmable Sound Chimes and Beltminder w/Audio Mute | Standard |
| Safety Canopy System Curtain 1st And 2nd Row Airbags | Standard |
| Rear Child Safety Locks | Standard |
| Collision Mitigation-Front | Optional |
| Ford Co-Pilot360 - Pre-Collision Assist with Automatic Emergency Braking (AEB) and Ford Co-Pilot360 - Cross-Traffic Alert | Optional |
| Side Impact Beams | Standard |
| AdvanceTrac w/Roll Stability Control Electronic Stability Control (ESC) And Roll Stability Control (RSC) | Standard |
| Left Side Camera | Optional |
| Aerial View Camera System | Optional |
| Lane Keeping Alert Lane Departure Warning | Optional |
| Back-Up Camera | Standard |
| Front Camera | Optional |
| Right Side Camera | Optional |
| Outboard Front Lap And Shoulder Safety Belts -inc: Rear Center 3 Point and Height Adjusters | Standard |
| Blind Spot | Optional |
| Rear Parking Sensors | Optional |
| Driveline Traction Control | Standard |
| Dual Stage Driver And Passenger Seat-Mounted Side Airbags | Standard |
| Driver Monitoring-Alert | Optional |
| Cargo Bed Camera | Optional |
