2025 Ford Transit-350 XL specs & colors

Full-size Passenger Van

Change trim

$56,400

Starting MSRP
Current listing price

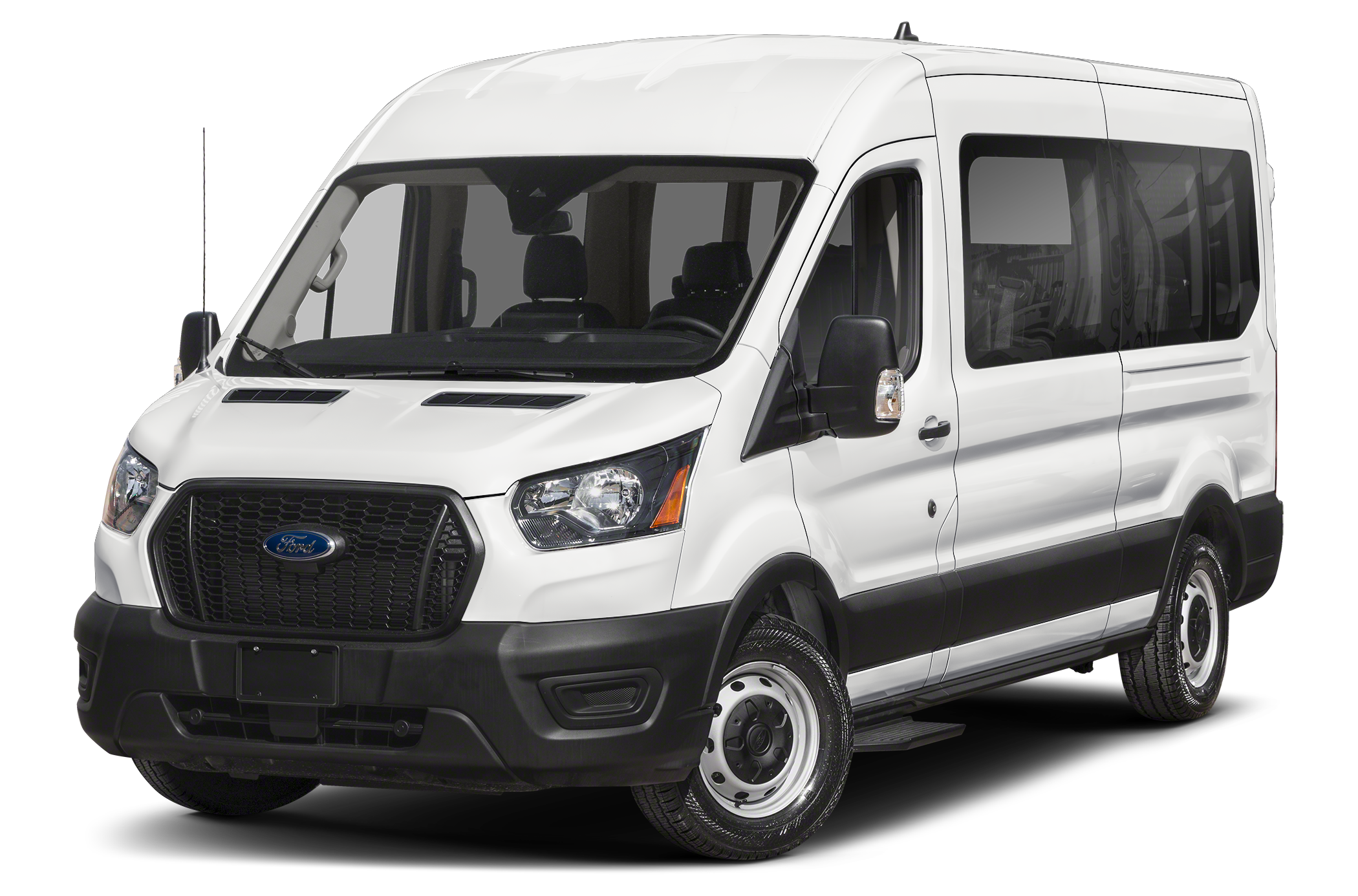

Showing the 2025 Ford Transit-350 T-350 148" Low Roof XL RWD

Shop Now

Key specs

3-door

15 seats

310.0-hp, 3.5-liter, V6 Cylinder Engine (Gasoline Fuel)

0 combined MPG

263.9" length, 107.7" height

Rear Wheel Drive

Color options

Exterior

Interior

Anthracite

Red

Packages

Heavy-Duty Trailer Tow Package

$485

Starting MSRP
- Deletes rear tow hook
- 4/7 pin connector assembly and rear jumper and relay system for backup/B+/running lights
- This package does not include a Trailer Brake Controller (67D)
See more detail
$485

Starting MSRP
- Deletes rear tow hook
- 4/7 pin connector assembly and rear jumper and relay system for backup/B+/running lights
- This package does not include a Trailer Brake Controller (67D)
- If a TBC is required
- it must be added to initial order
- Neither a Ford nor aftermarket TBC can be added later
- Frame Mounted Hitch Receiver
- Tow/Haul Mode w/Trailer Wiring Prov
Builder's Prep Package

-$665

Starting MSRP
- Deletes rear floor covering
- rear-seats and restraints and rear-seat rails and fasteners
- Dual AGM Batteries (70 Amp-hr Each)
See more detail
-$665

Starting MSRP
- Deletes rear floor covering
- rear-seats and restraints and rear-seat rails and fasteners
- Dual AGM Batteries (70 Amp-hr Each)
- GVWR: 9,250 lb
- Modified Vehicle Wiring System
- modified vehicle connections for customized wiring harness provisions
- Front Only Vinyl Floor Covering
- 2-Passenger Seats w/Add
- Rear Seat Attachment Points
- 13 rear seats are removed
- but seat attachment points are still present
Order Code 301A

$0

Starting MSRP

Specifications

Highlights

Regular Unleaded V-6

Engine Type

MPG

275 hp
310 hp

Horsepower

Seating Capacity

Brakes

4-Wheel Disc

Brake Type

4-Wheel

Brake ABS System

4-Wheel

Brake ABS System (Second Line)

Yes

Disc - Front (Yes or )

Yes

Disc - Rear (Yes or )

12 in

Front Brake Rotor Diam x Thickness

12 in

Rear Brake Rotor Diam x Thickness

N/A

Drum - Rear (Yes or )

Electrical

250

Maximum Alternator Capacity (amps)

N/A

Cold Cranking Amps @ 0° F (Primary)

Engine

260 @ 4000

SAE Net Torque @ RPM

275 @ 6250

SAE Net Horsepower @ RPM

3.5 L/213

Displacement

Regular Unleaded V-6

Engine Type

10-Speed A/T
A/T
Transmission w/Dual Shift Mode

Transmission Options

MPG

N/A

Total Cooling System Capacity

Entertainment

Standard

Bluetooth®

Measurements

70 in

Cargo Area Width @ Beltline

Passenger Capacity

N/A

Cargo Box Width @ Floor

54 in

Cargo Box Width @ Wheelhousings

53 in

Cargo Box (Area) Height

N/A

Tailgate Width

N/A

Cargo Volume

256 ft³

Cargo Volume to Seat 1

N/A

Cargo Volume to Seat 2

70 ft³

Cargo Volume to Seat 3

70 ft³

Cargo Volume to Seat 4

N/A

Ext'd Cab Cargo Volume

41 in

Front Head Room

41 in

Front Leg Room

68 in

Front Shoulder Room

61 in

Front Hip Room

41 in

Second Head Room

34 in

Second Leg Room

71 in

Second Shoulder Room

70 in

Second Hip Room

41 in

Third Head Room

36 in

Third Leg Room

67 in

Third Shoulder Room

67 in

Third Hip Room

N/A

Fourth Head Room

N/A

Fourth Leg Room

N/A

Fourth Shoulder Room

N/A

Fourth Hip Room

148 in

Wheelbase

N/A

Length, Overall w/rear bumper

238 in

Length, Overall

81 in

Width, Max w/o mirrors

82 in

Height, Overall

40 in

Overhang, Front

N/A

Overhang, Rear w/o bumper

N/A

Cab to End of Frame

29 in

Ground to Top of Load Floor

6 in

Ground Clearance, Front

6 in

Ground Clearance, Rear

N/A

Rear Door Opening Height

N/A

Rear Door Opening Width

N/A

Side Door Opening Height

N/A

Side Door Opening Width

N/A

Step Up Height - Front

N/A

Step Up Height - Side

N/A

Cargo Area Length @ Floor to Console

142 in

Cargo Area Length @ Floor to Seat 1

107 in

Cargo Area Length @ Floor to Seat 2

76 in

Cargo Area Length @ Floor to Seat 3

N/A

Cargo Box Width @ Top, Rear

Safety

Standard

Backup Camera

Standard

Blind Spot Monitor

Standard

Lane Departure Warning

Steering

Rack-Pinion

Steering Type

N/A

Steering Ratio (:1), Overall

48 ft

Turning Diameter - Curb to Curb

N/A

Turning Diameter - Wall to Wall

Suspension

Rigid Axle

Axle Type - Rear

Independent

Axle Type - Front

Leaf

Suspension Type - Rear

Strut

Suspension Type - Front

Tires & Wheels

LT235/65SR16

Rear Tire Size

LT235/65SR16

Front Tire Size

Full-Size

Spare Tire Size

16 X 6.5 in

Front Wheel Size

16 X 6.5 in

Rear Wheel Size

Full-Size in

Spare Wheel Size

Steel

Front Wheel Material

Steel

Rear Wheel Material

Steel

Spare Wheel Material

Weight & Capacity

4,200 lbs

Maximum Trailering Capacity

N/A

Fifth Wheel Hitch - Max Tongue Wt.

N/A

Fifth Wheel Hitch - Max Trailer Wt.

420 lbs

Wt Distributing Hitch - Max Tongue Wt.

4,200 lbs

Wt Distributing Hitch - Max Trailer Wt.

420 lbs

Dead Weight Hitch - Max Tongue Wt.

4,200 lbs

Dead Weight Hitch - Max Trailer Wt.

10,800 lbs

Gross Combined Wt Rating

3,377 lbs

Maximum Payload Capacity

3,377 lbs

As Spec'd Payload

6,023 lbs

As Spec'd Curb Weight

0 lbs

Option Weight - Rear

0 lbs

Option Weight - Front

2,810 lbs

Curb Weight - Rear

3,213 lbs

Curb Weight - Front

6,023 lbs

Base Curb Weight

9,910 lbs

Gross Axle Weight Rating

6,023 lbs

Curb Weight

0 lbs

Total Option Weight

9,400 lbs

Gross Vehicle Weight Rating

25 gal

Fuel Tank Capacity, Approx

N/A

Aux Fuel Tank Capacity, Approx
